Simpson Anchors | SKU:
EPB66

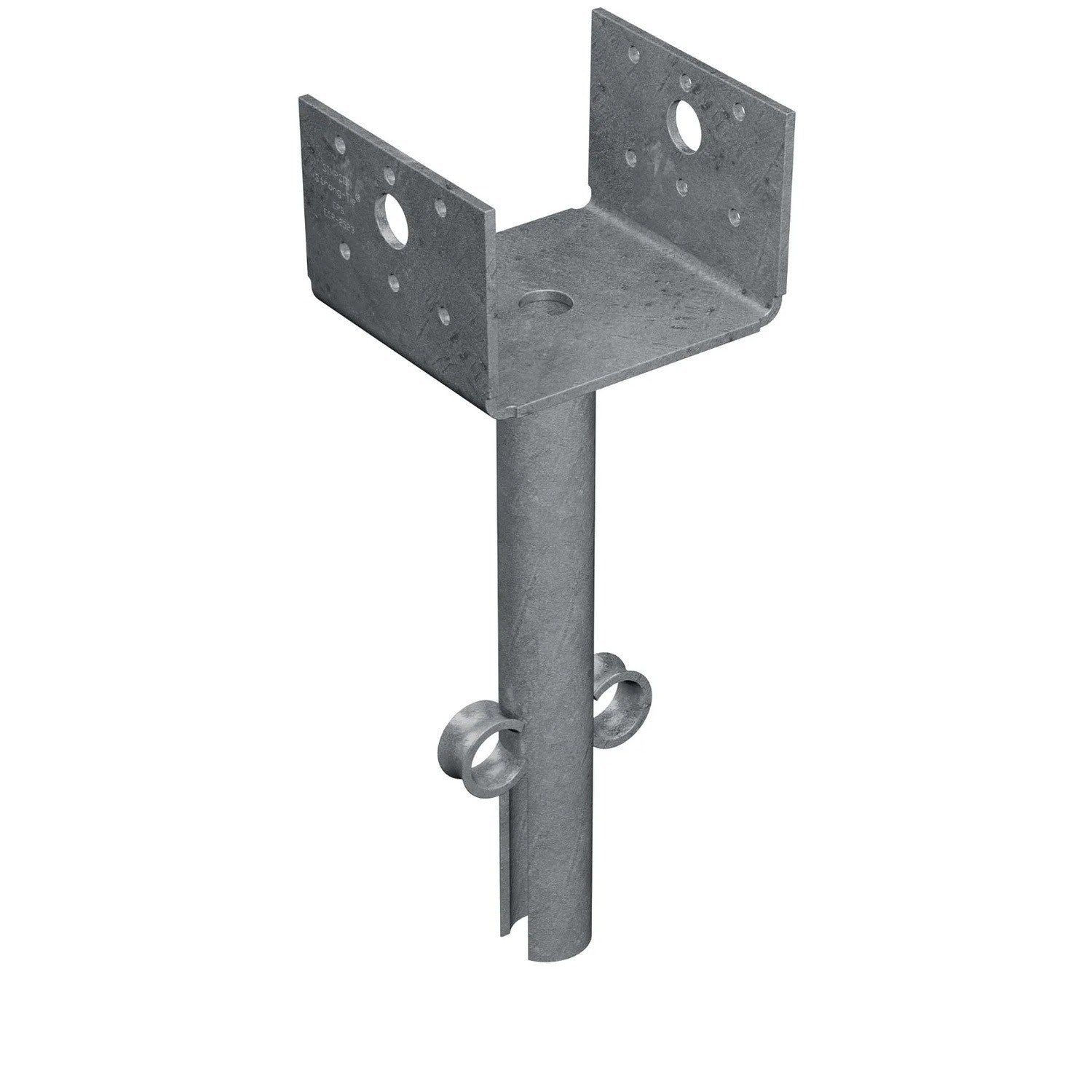

Simpson Strong-Tie EPB66 (4" x 6") Elevated Post Base
$30.63
$45.23
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson EPB66 Description
The Simpson EPB66 Elevated Post Base is designed for 6x6 posts, offering enhanced stability and durability with a gray painted finish.
Simpson EPB66 Includes
- (1) Elevated Post Base for 6x6
Simpson EPB66 Features
- Designed for 6x6 posts or columns
- Made from heavy-gauge steel for durability
- Gray painted finish for corrosion resistance
- Provides 1" code-required standoff to prevent rot or decay
- Cast-in-place design for secure concrete connection
Simpson EPB66 Applications
- Securing 6x6 posts in construction projects
- Providing elevated standoff for moisture barrier
- Enhancing structural stability in wood framing
Simpson EPB66 Installation Overview
- Prepare the concrete surface for casting the post base.
- Position the EPB66 post base in the desired location.
- Cast the post base into the concrete ensuring proper alignment.
- Secure the post to the base using specified fasteners.
- Verify the installation for stability and compliance with building codes.
Simpson EPB66 Specifications
| Finish | Gray Paint |
| Length | 5-1/2" |
| Material | Steel |
| Fasteners required | (12) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 3" |
| Post size | 6x6 |
| Width | 5-1/2" |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values.
