Simpson Anchors | SKU:
EPC4RZ
Simpson Strong-Tie EPC4RZ (4") 16 Gauge End Post Cap, ZMAX Finish
$81.70
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie EPC4RZ Description

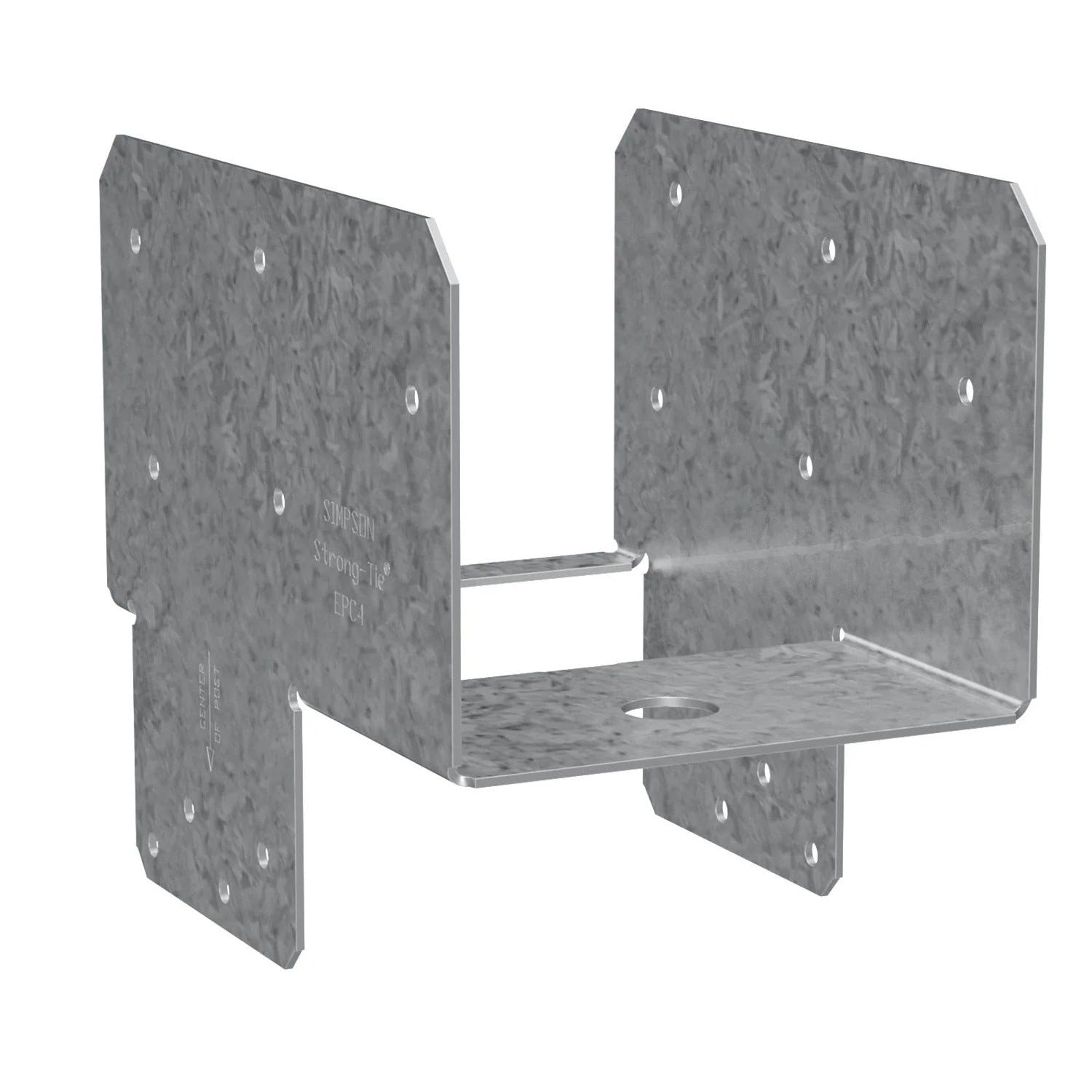

The Simpson EPC4RZ 4X Rough End Post Cap with ZMAX Finish is designed for rough cut lumber, providing a durable and easy post-to-beam connection.
Simpson Strong-Tie EPC4RZ Includes
- (1) 4X Rough End Post Cap
Simpson Strong-Tie EPC4RZ Features

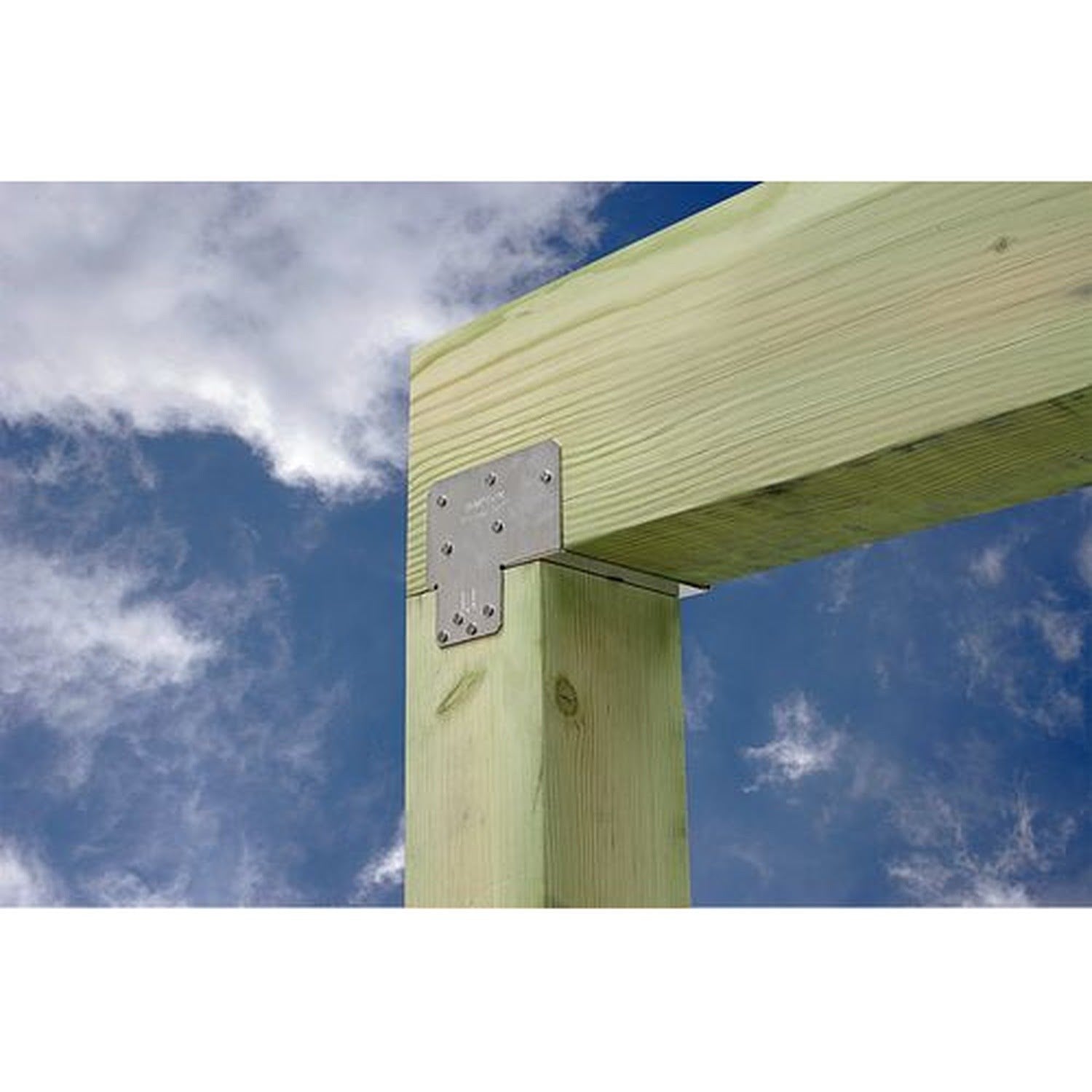

- Provides an easy post-to-beam end connection for posts
- Intended for use with Rough Cut 4x posts and beams
- Made from durable steel with ZMAX coating
- Certified welds for strength and increased uplift loads for earthquake or wind loading
Simpson Strong-Tie EPC4RZ Applications
- Post-to-beam connections in construction projects
- Use with rough cut 4x posts or columns
Simpson Strong-Tie EPC4RZ Installation Overview
- Align the post cap with the post and beam
- Secure using the specified nails or screws
Simpson Strong-Tie EPC4RZ Specifications
| Finish | ZMAX |
| Material | Steel |
| Fasteners required | Beam - (10) 0.148 x 3" Nails OR (10) SD9112 Screws, Post - (8) 0.148 x 3" Nails OR (8) SD9112 Screws |
| Post size | Rough Cut 4x |
NOTE: This item is made to order and is non-returnable.
