Simpson Anchors | SKU:
ET3G10

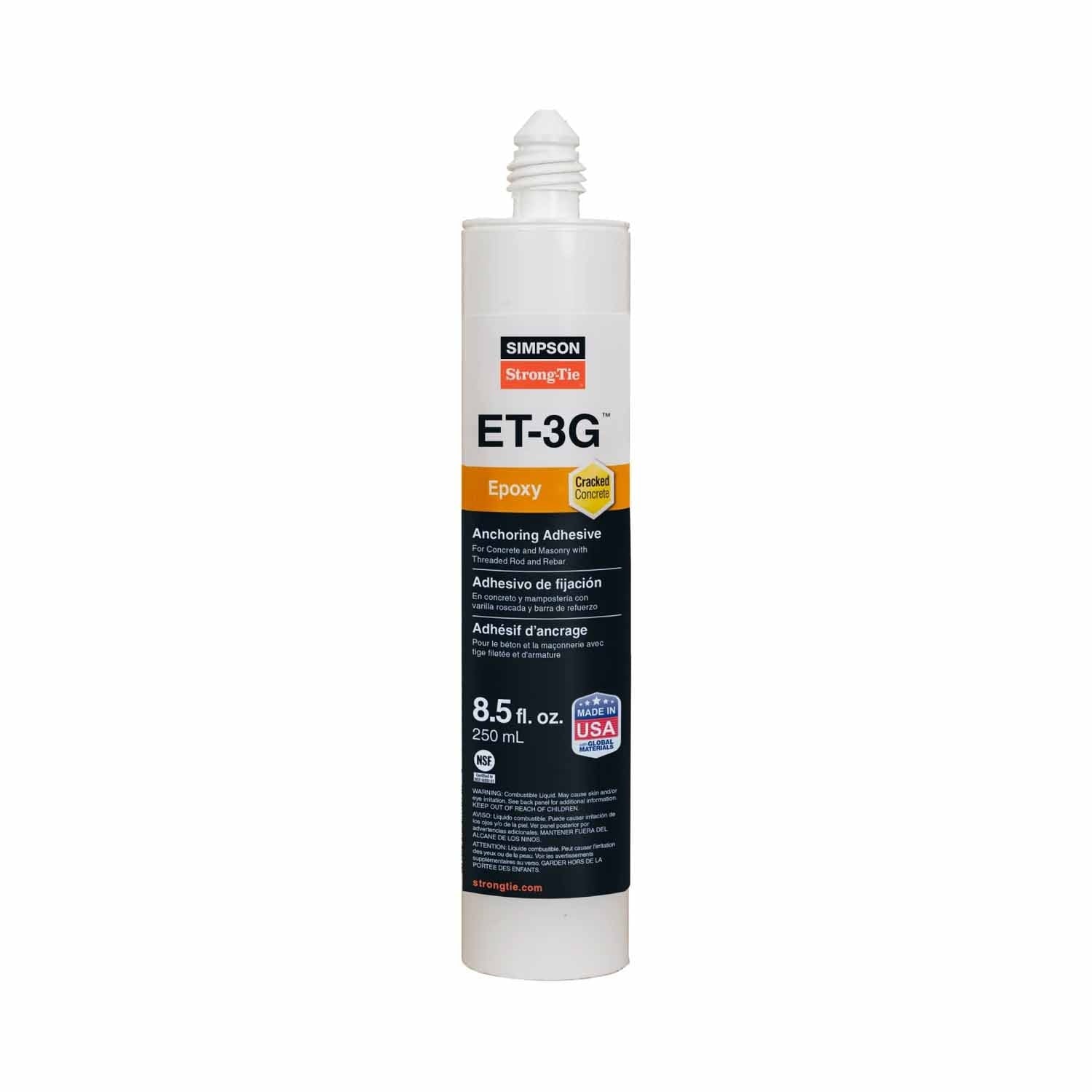

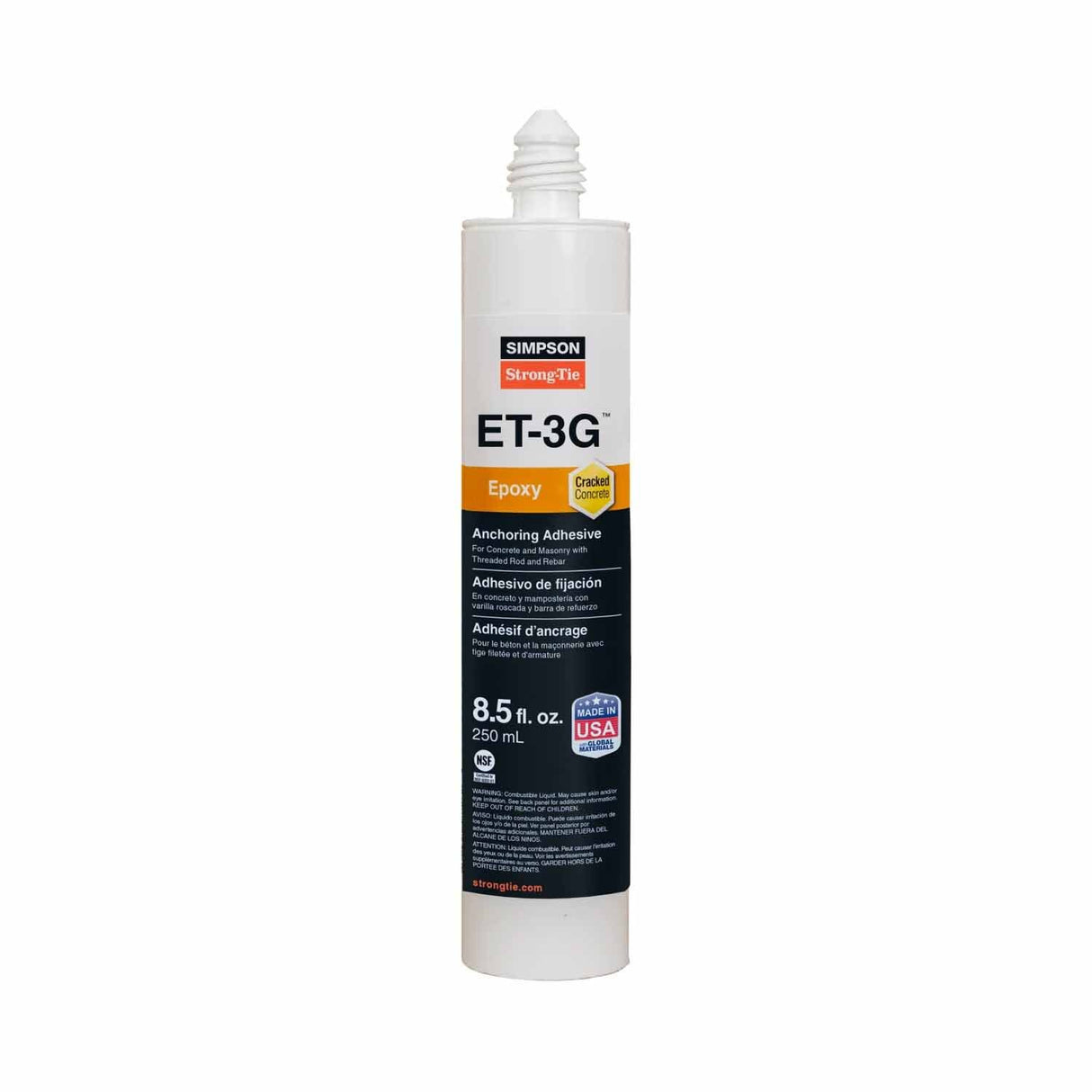

Simpson Strong-Tie ET3G10 (8.5 oz.) Epoxy Adhesive Cartridge with Nozzle and Extension (1 Piece)
$21.12
Unit price
/
Unavailable
Description
Description
Simpson ET3G10 Description
Simpson ET3G10 is a high-performance epoxy anchoring adhesive designed for use in concrete and masonry applications. It is suitable for static and seismic loading conditions and offers a long working time and reliable performance.
Simpson ET3G10 Includes
- (1) Epoxy Anchoring Adhesive Cartridge
- (1) EMN22i Mixing Nozzle
- (1) Extension
Simpson ET3G10 Features
- Suitable for use under static and seismic loading conditions
- Ideal for doweling and threaded rod applications
- Two-year shelf life for unopened cartridges
- Can be applied in dry or damp conditions
Simpson ET3G10 Applications
- Threaded rod anchoring and rebar doweling into concrete and CMU
- Suitable for horizontal, vertical, and overhead applications
- Multiple DOT listings
Simpson ET3G10 Installation Overview
- Ensure surfaces to receive epoxy are clean.
- Base material temperature must be 50°F (10°C) or above at the time of installation.
- Store cartridges in a warm, uniformly heated area to warm cold material.
- Mixed material in nozzle can harden in 30 minutes at temperatures of 70°F (21°C) and above.
- Use only Simpson Strong-Tie mixing nozzles as per instructions.
Simpson ET3G10 Specifications
| Mix Ratio/Type | 1:1 epoxy |
| Mixed Color | Teal |
| Base Materials | Concrete and masonry — cracked and uncracked |
| Base Material Conditions | Dry, water-saturated |
| Anchor Type | Threaded rod or rebar |
| Substrate Installation Temperature | 50°F (10°C) to 110°F (43°C) |
| In-Service Temperature Range | -40°F (-40°C) to 150°F (65°C) |
| Storage Temperature | 45°F (7°C) and 90°F (32°C) |
| Shelf Life | 24 Months |
| Volatile Organic Compound (VOC) | 3 g/L |
NOTE: This item is NOT eligible for express shipping, and must ship via Ground only.
