Simpson ET3G22-N Description

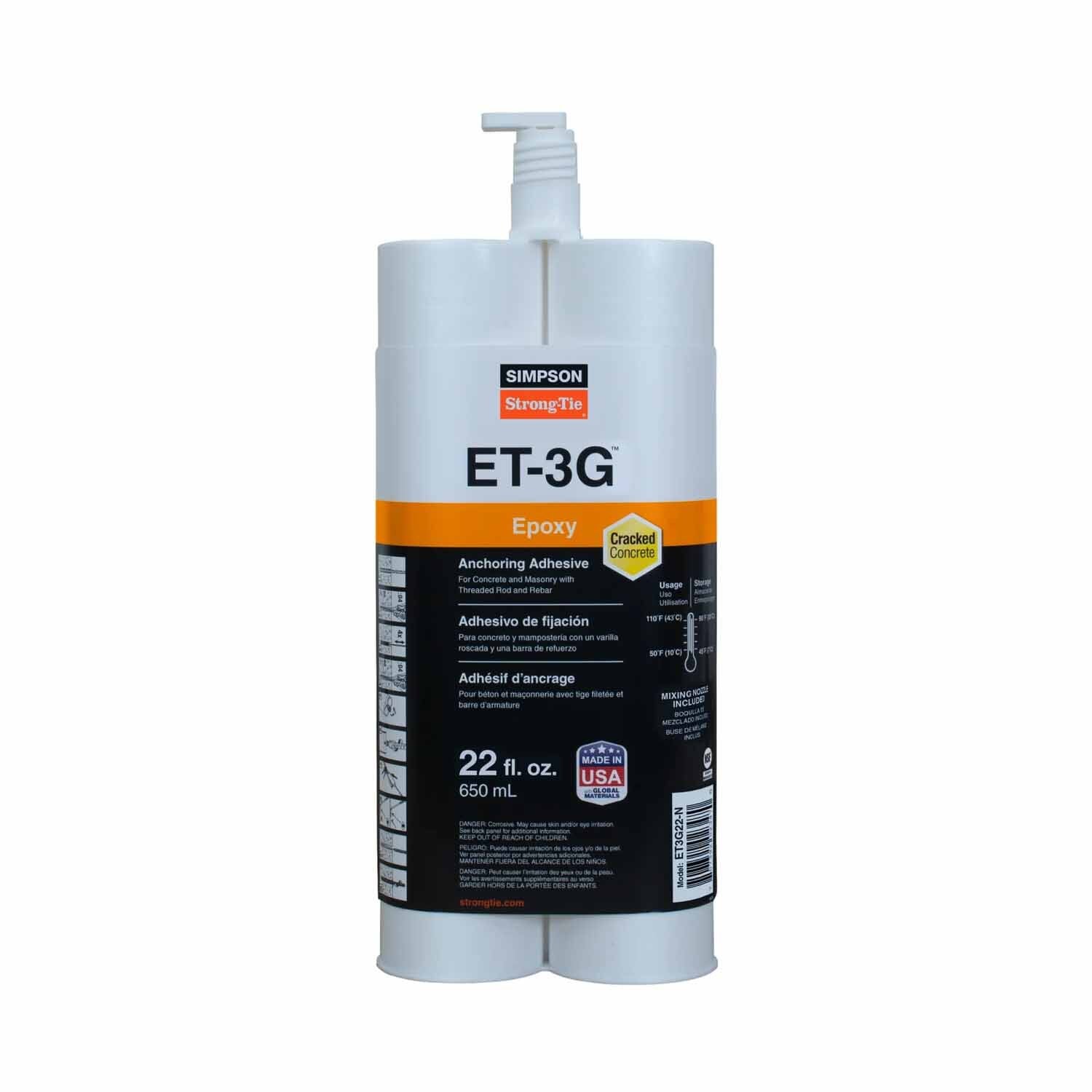

The ET3G22-N Epoxy Anchoring Adhesive Cartridge is a high-solids epoxy-based system designed for anchoring threaded rods and rebar into concrete and masonry. It is suitable for use in cracked and uncracked conditions and under static and seismic loads.
Simpson ET3G22-N Includes
- (1) 22-oz. Side-by-Side Cartridge
- (1) EMN22i Mixing Nozzle
- (1) Extension
Simpson ET3G22-N Features
- Suitable for use under static and seismic loading conditions in cracked and uncracked concrete and masonry
- Ideal for doweling and threaded rod applications
- Two-year shelf life for unopened cartridges stored between 45°F (7°C) and 90°F (32°C)
- Available in gallon bulk quantities for high volume applications
Simpson ET3G22-N Applications

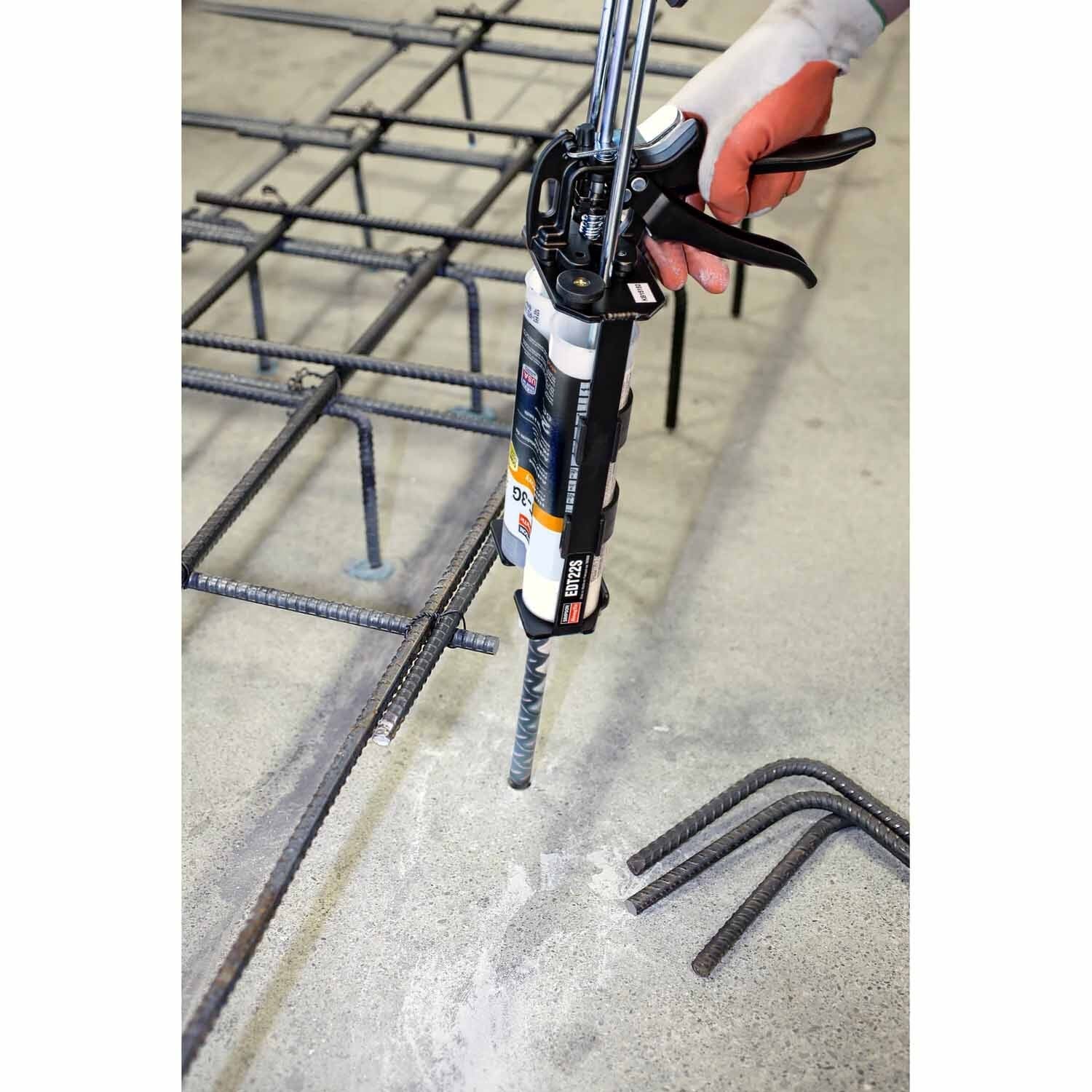

- Threaded rod anchoring and rebar doweling into concrete and CMU
- Suitable for horizontal, vertical, and overhead applications
- Multiple DOT listings
Simpson ET3G22-N Installation Overview
- Ensure surfaces to receive epoxy are clean.
- Base material temperature must be 50°F (10°C) or above at the time of installation.
- Warm cold material by storing cartridges in a uniformly heated area.
- Mixed material in nozzle can harden in 30 minutes at temperatures of 70°F (21°C) and above.
- Use only Simpson Strong-Tie mixing nozzles as per instructions.
Simpson ET3G22-N Specifications
| Mix Ratio/Type | 1:1 epoxy |
| Mixed Color | Teal |
| Base Materials | Concrete and masonry — cracked and uncracked |
| Base Material Conditions | Dry, water-saturated |
| Anchor Type | Threaded rod or rebar |
| Substrate Installation Temperature | 50°F (10°C) to 110°F (43°C) |
| In-Service Temperature Range | -40°F (-40°C) to 150°F (65°C) |
| Storage Temperature | 45°F (7°C) and 90°F (32°C) |
| Shelf Life | 24 Months |
| Volatile Organic Compound (VOC) | 3 g/L |
