Simpson Anchors | SKU:
ETB160A-SCRB

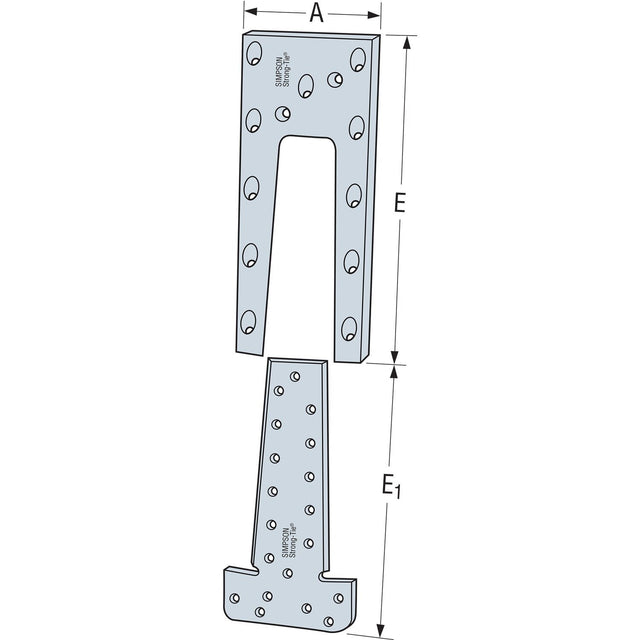

Simpson Strong-Tie ETB160A-SCRB Hidden Timber Connector with Screws for Glulam Beams
$68.08
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ETB160A-SCRB Description
The ETB160A-SCRB Hidden Timber Connector is designed for glulam beams, offering a flush installation and efficient fastening.
Simpson Strong-Tie ETB160A-SCRB Includes

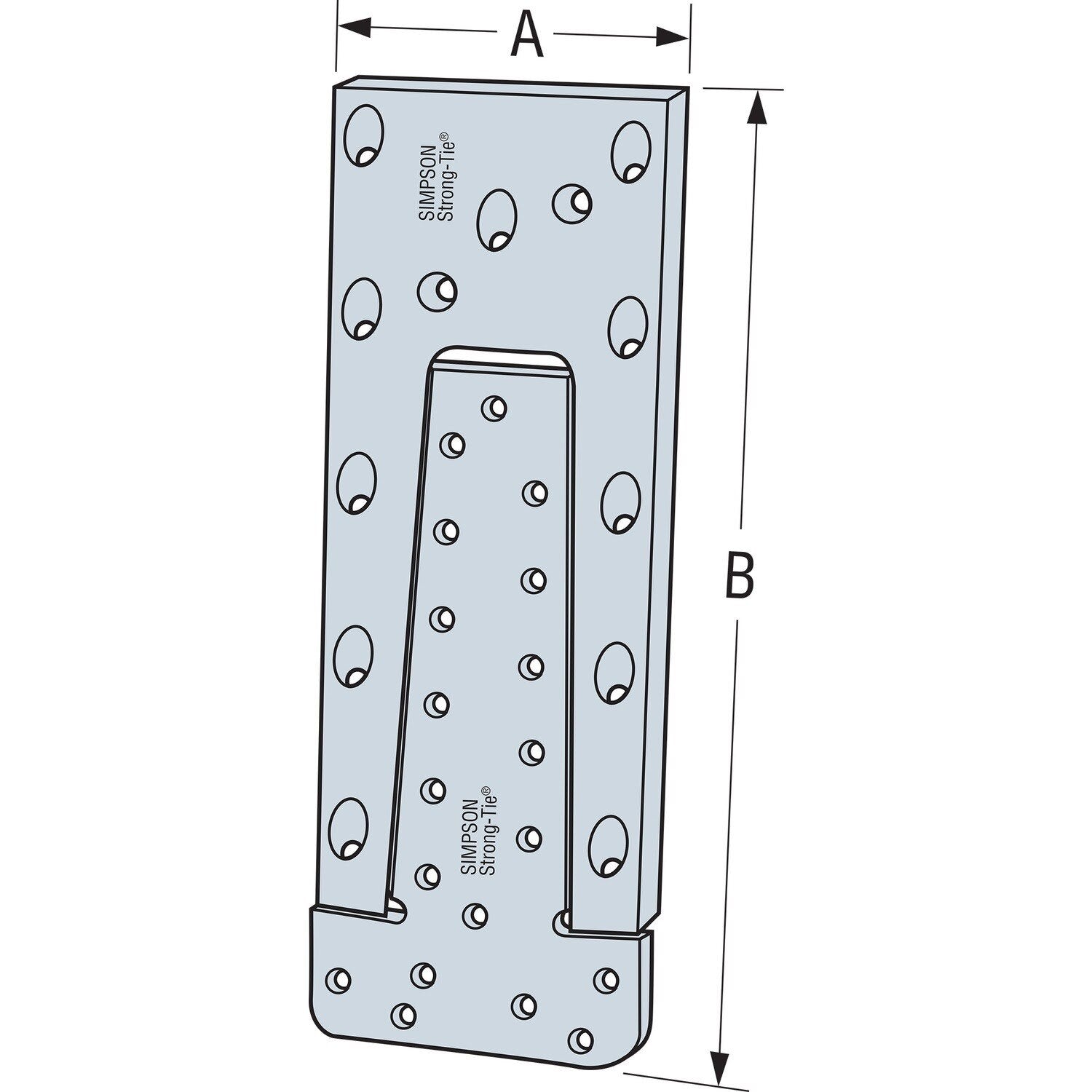

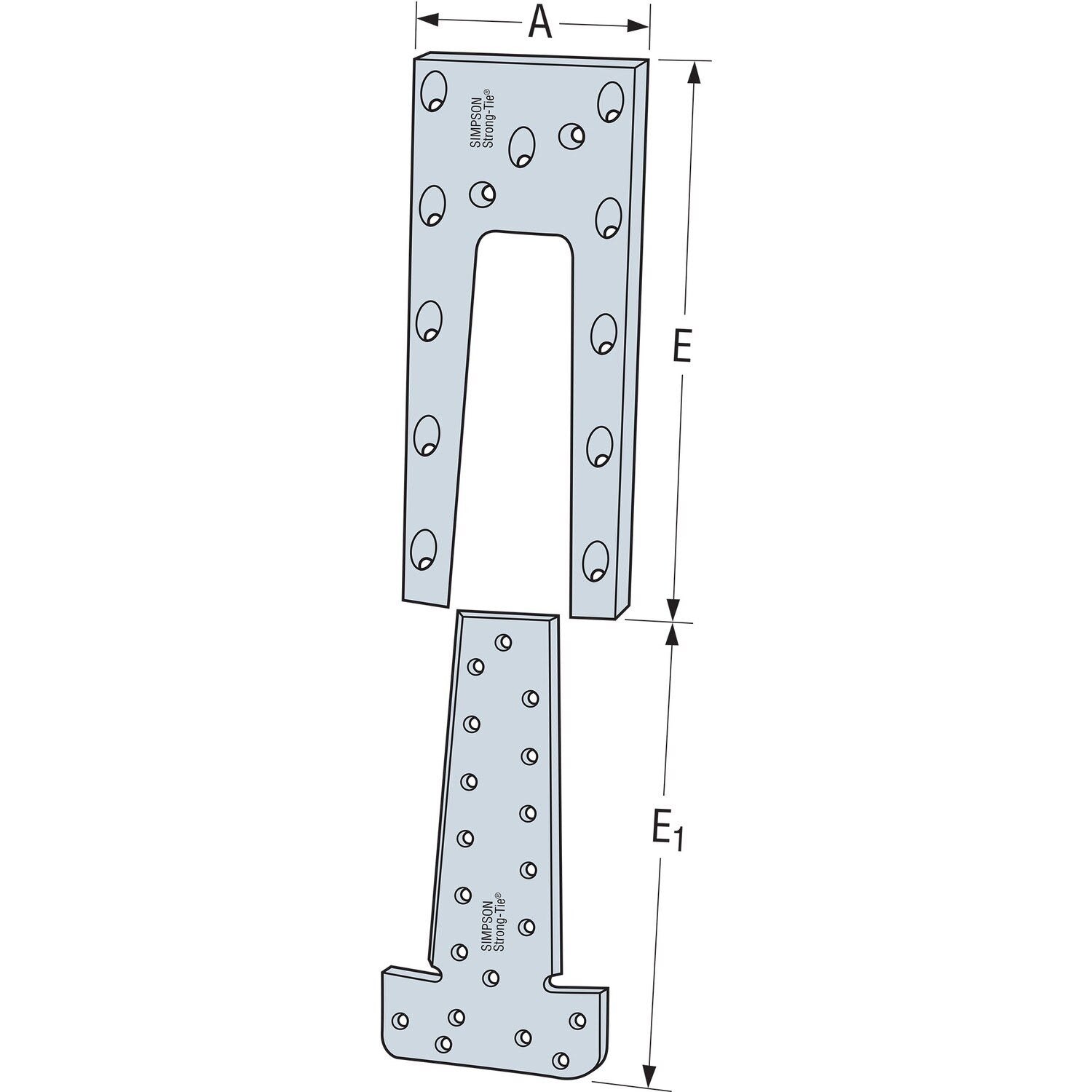

- (1) ETB160A Hidden Timber Connector
- (1) Set of SCRB Screws
Simpson Strong-Tie ETB160A-SCRB Features
- Faster than other time-consuming methods and requires removal of less beam material
- Three sizes address common beam sizes from 4x6 through 6x12
- Connector can be routed into the beam end for a completely flush installation
- Templates available to make accurate installation more efficient
Simpson Strong-Tie ETB160A-SCRB Applications
- Glulam beam connections for structural support
- Indoor architectural projects requiring hidden connectors
Simpson Strong-Tie ETB160A-SCRB Installation Overview

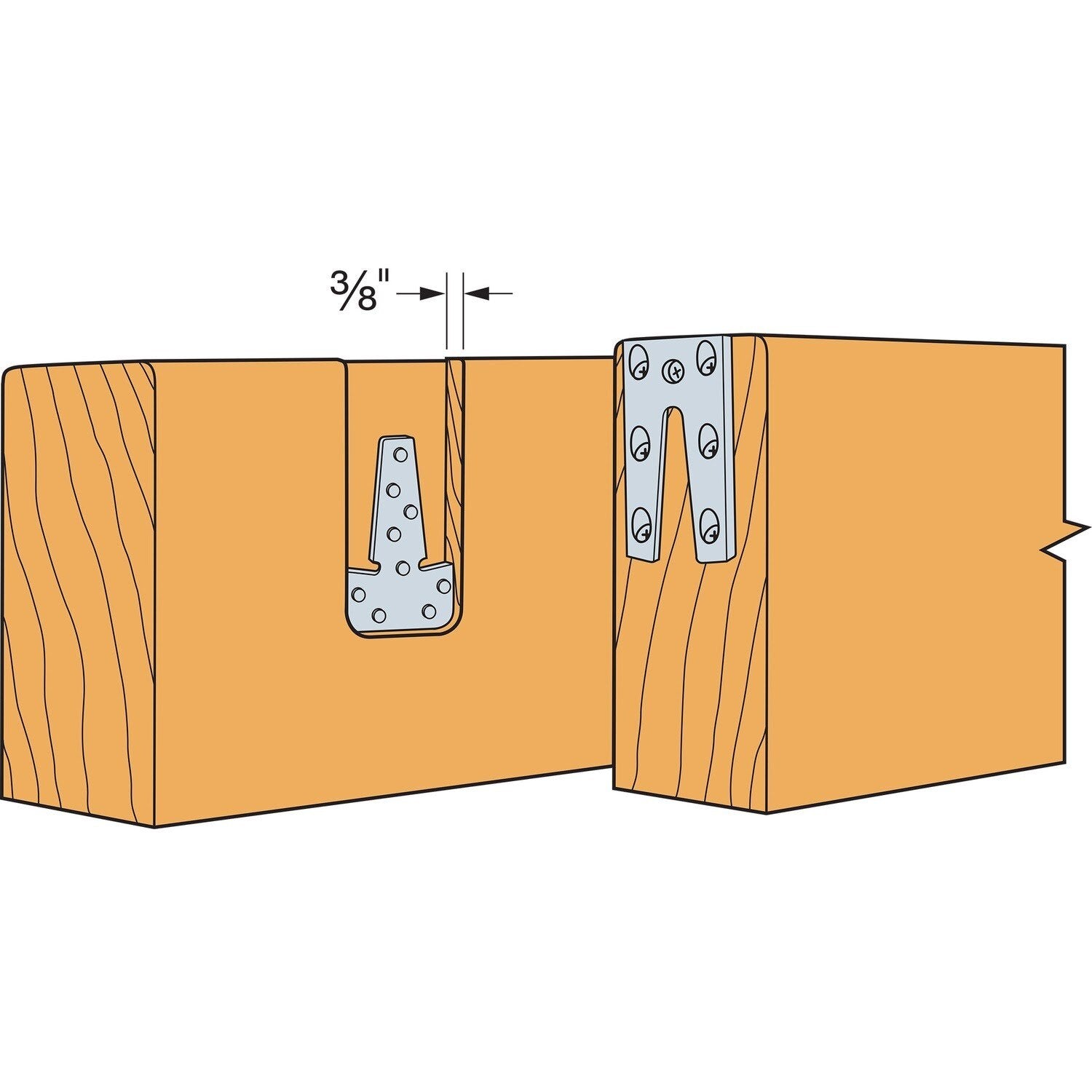

- Rout a 3/8" (10mm) deep pocket into the side of the supporting beam for the lower plate.
- Install lower plate with 16d hot-dip galvanized nails (not included in kit).
- Attach horseshoe plate onto the end of the supported beam using SCRB screws supplied in the kit.
- Ensure screws are installed at a downward angle (approx. 45°).
Simpson Strong-Tie ETB160A-SCRB Specifications
| Material | Plates — Aluminum 6082-T6 |
| Finish | Plates — none; screws — Dacromet corrosion-resistant coating |
NOTE: Do not use ETB connectors with preservative-treated woods.
