Simpson Anchors | SKU:
ETB90A-SCRB
Simpson Strong-Tie ETB90A-SCRB Hidden Timber Connector with Screws for Glulam Beam Connections
$46.78
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ETB90A-SCRB Description
The ETB90A Hidden Timber Connector is designed for efficient and secure glulam beam connections, offering a flush installation and corrosion-resistant screws.
Simpson Strong-Tie ETB90A-SCRB Includes
- (1) ETB90 Hidden Timber Connector
- (1) Set of SCRB screws
Simpson Strong-Tie ETB90A-SCRB Features
- Faster than other time-consuming methods and requires removal of less beam material
- Three sizes address common beam sizes from 4x6 through 6x12
- Connector can be routed into the beam end for a completely flush installation
- Templates available to make accurate installation more efficient
Simpson Strong-Tie ETB90A-SCRB Applications
- Glulam beam connections in architectural and structural projects
- Indoor architectural products requiring decorative and functional hardware
Simpson Strong-Tie ETB90A-SCRB Installation Overview
- Use all specified fasteners as per General Notes.

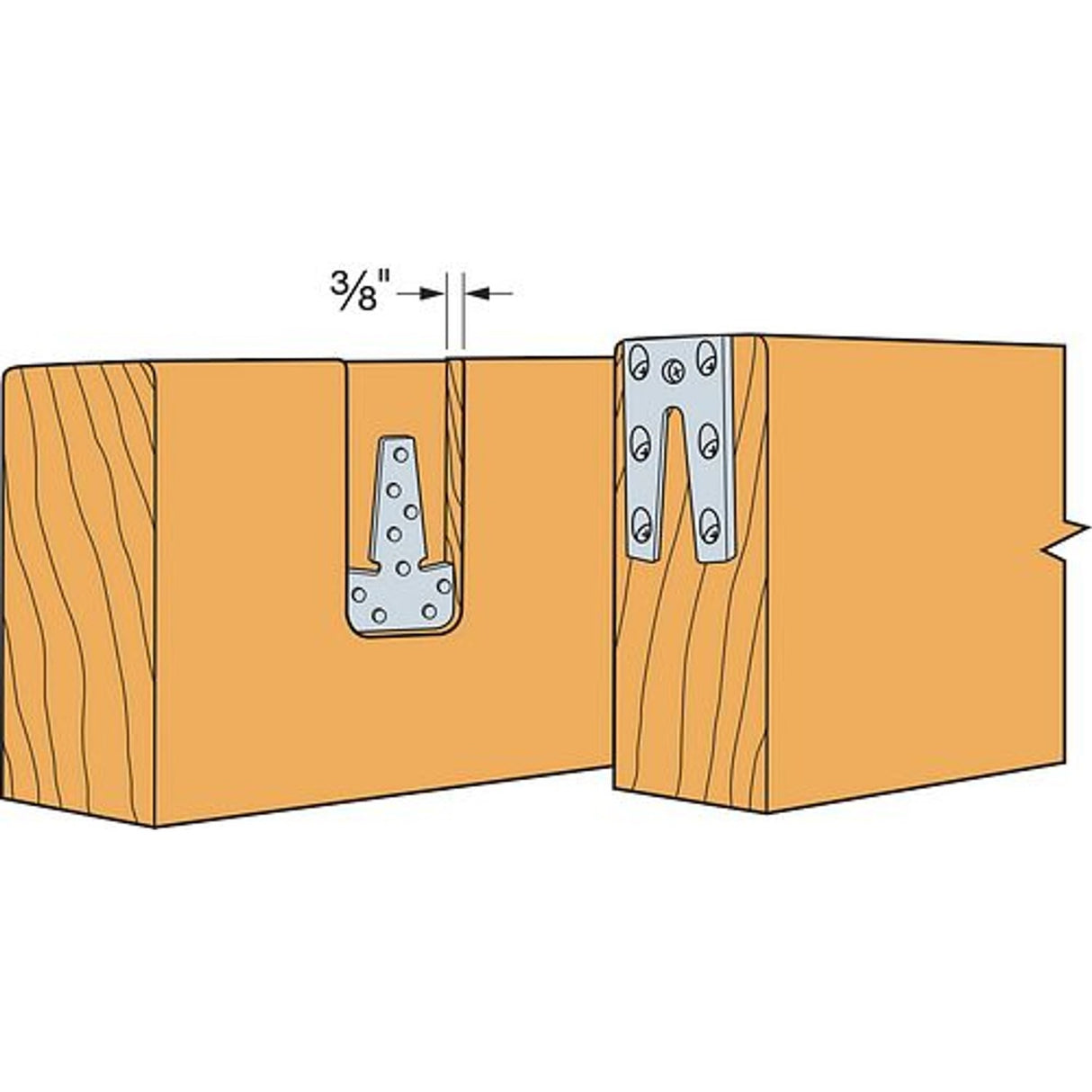

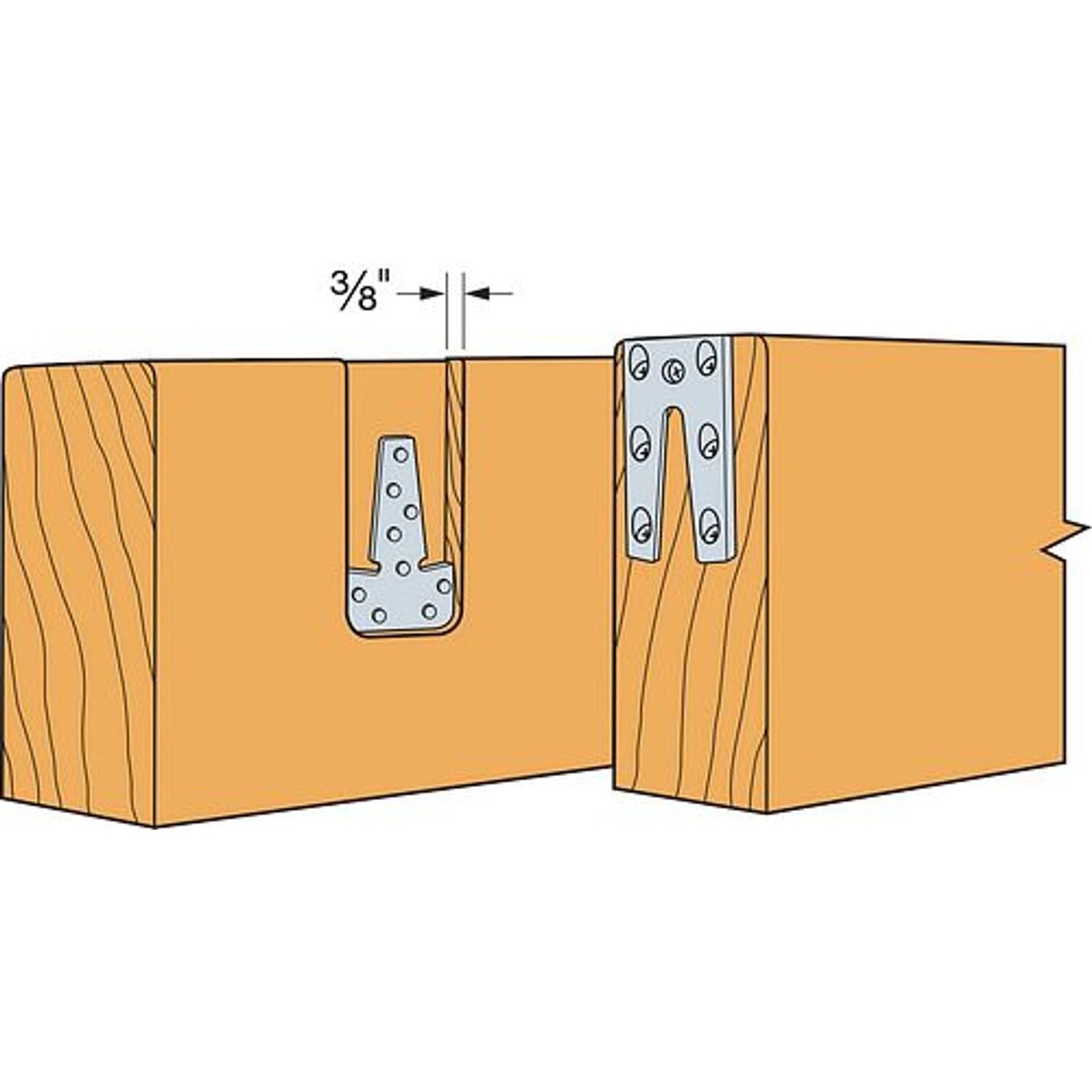

- Rout a 3/8" (10mm) deep pocket into the side of the supporting beam for the lower plate.
- Install lower plate with 16d hot-dip galvanized nails (not included in kit).
- Install horseshoe plate onto end of supported beam using SCRB screws supplied in kit.

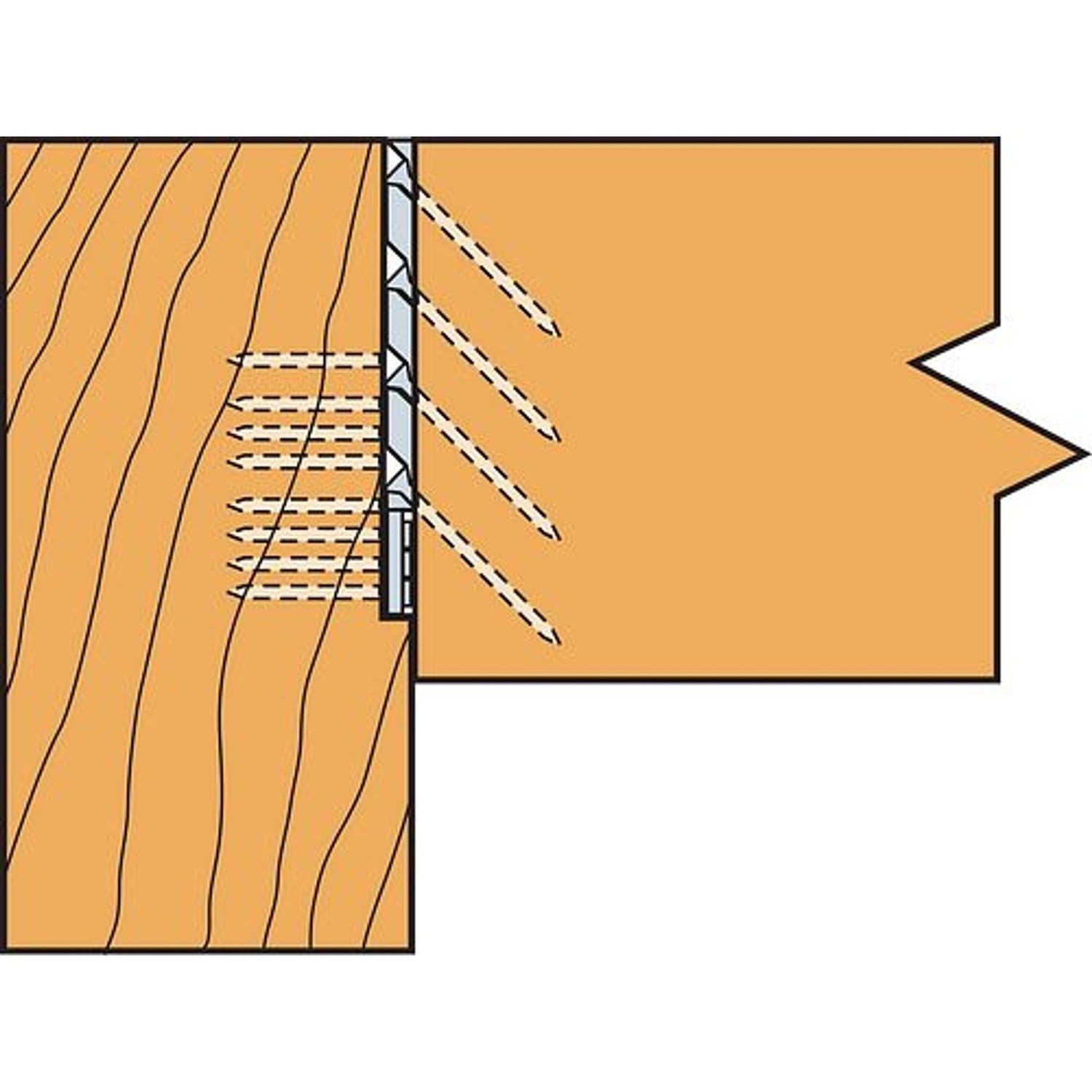

- Screws are installed at a downward angle (approx. 45°).
Simpson Strong-Tie ETB90A-SCRB Specifications
| Material | Plates — Aluminum 6082-T6 |
| Finish | Plates — none; screws — Dacromet corrosion-resistant coating |
NOTE: Do not use ETB connectors with preservative-treated woods.
