Simpson Anchors  |  SKU: ETS5010  |  Barcode: 044315143601

Simpson Strong-Tie ETS5010 (10-in.) Steel Epoxy-Adhesive Screen Tube for 1/2-in. Rod

$3.75 $5.40

Description

Simpson Strong-Tie ETS5010 Description

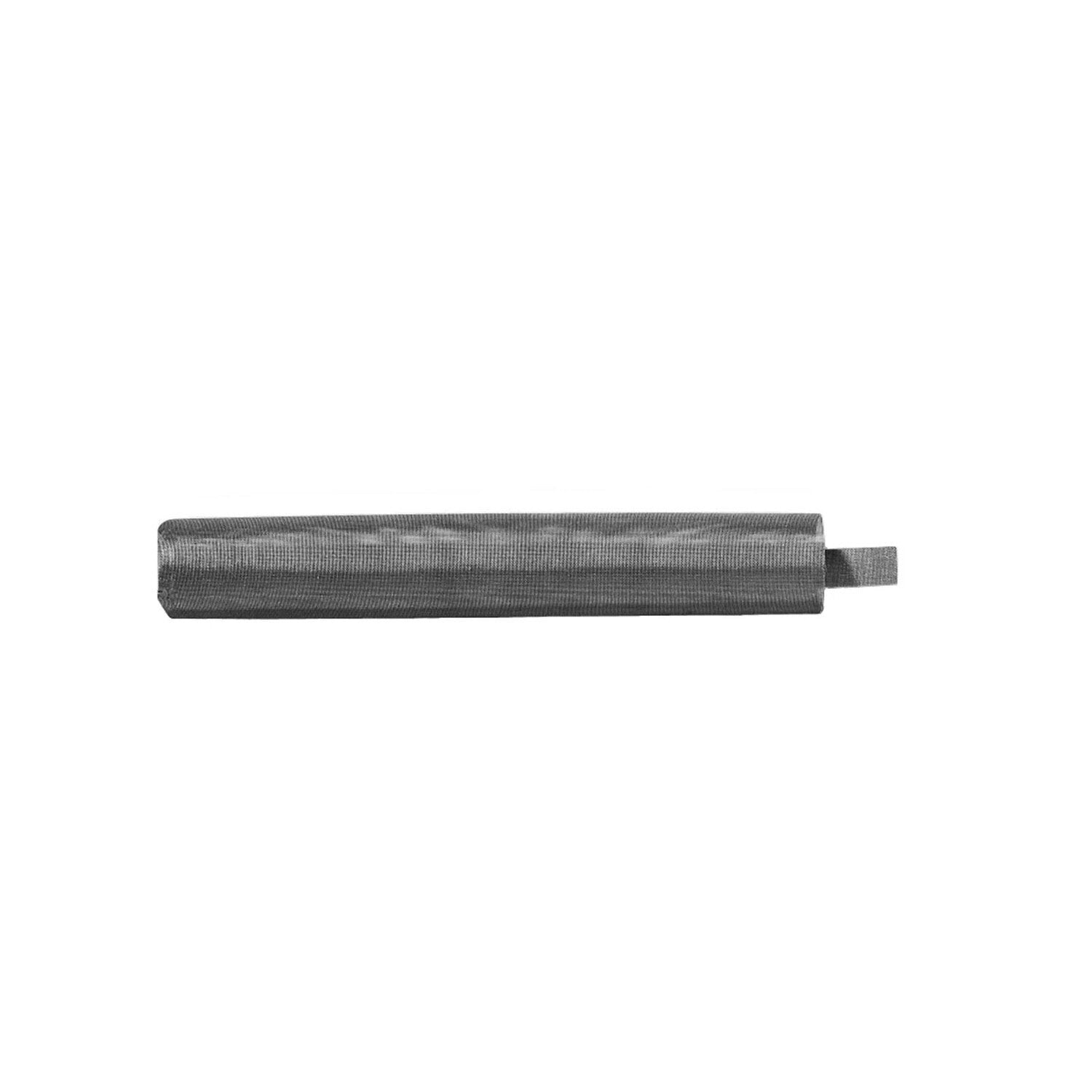

The Simpson Strong-Tie ETS5010 is a carbon steel epoxy adhesive screen tube designed for securely anchoring rods in hollow base materials.

Simpson Strong-Tie ETS5010 Includes

  • (1) Carbon Steel Epoxy Adhesive Screen Tube

Simpson Strong-Tie ETS5010 Features

  • Made from durable carbon steel mesh
  • Compatible with SET and ET-HP adhesives
  • Designed for 1/2 in. rod diameter
  • Prevents excess adhesive from running into void spaces

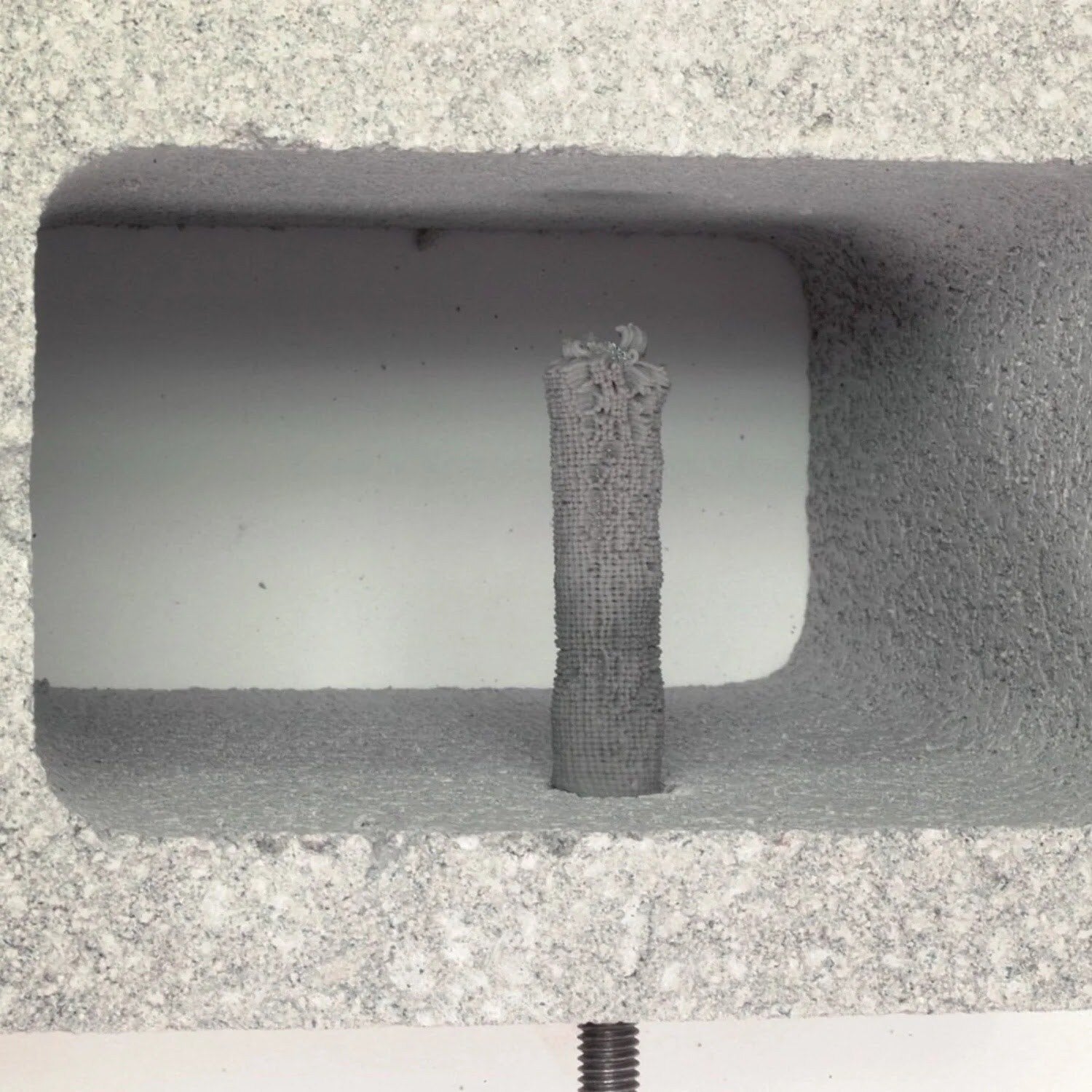

Simpson Strong-Tie ETS5010 Applications

  • Hollow CMU anchoring
  • Hollow brick anchoring
  • Unreinforced masonry applications

Simpson Strong-Tie ETS5010 Installation Overview

  1. Fill the screen tube with the appropriate adhesive.
  2. Insert the filled tube into the pre-drilled hole.
  3. Slowly turn and insert the rod into the filled tube.
  4. Allow to cure according to the specific adhesive instructions.

Simpson Strong-Tie ETS5010 Specifications

Material Carbon Steel
Length 10 in.
Rod Diameter 1/2 in.
Hole Diameter 11/16 in.
Outside Diameter 19/32 in.
Carton Quantity 50

NOTE: Screen Tubes are designed specifically for certain types of adhesives. Acrylic Screen Tubes are made from stainless steel mesh, and are compatible with AT adhesives. Epoxy Screen Tubes are made from carbon steel mesh and are compatible with SET and ET-HP adhesives.
