Simpson Anchors | SKU:
ETS7521

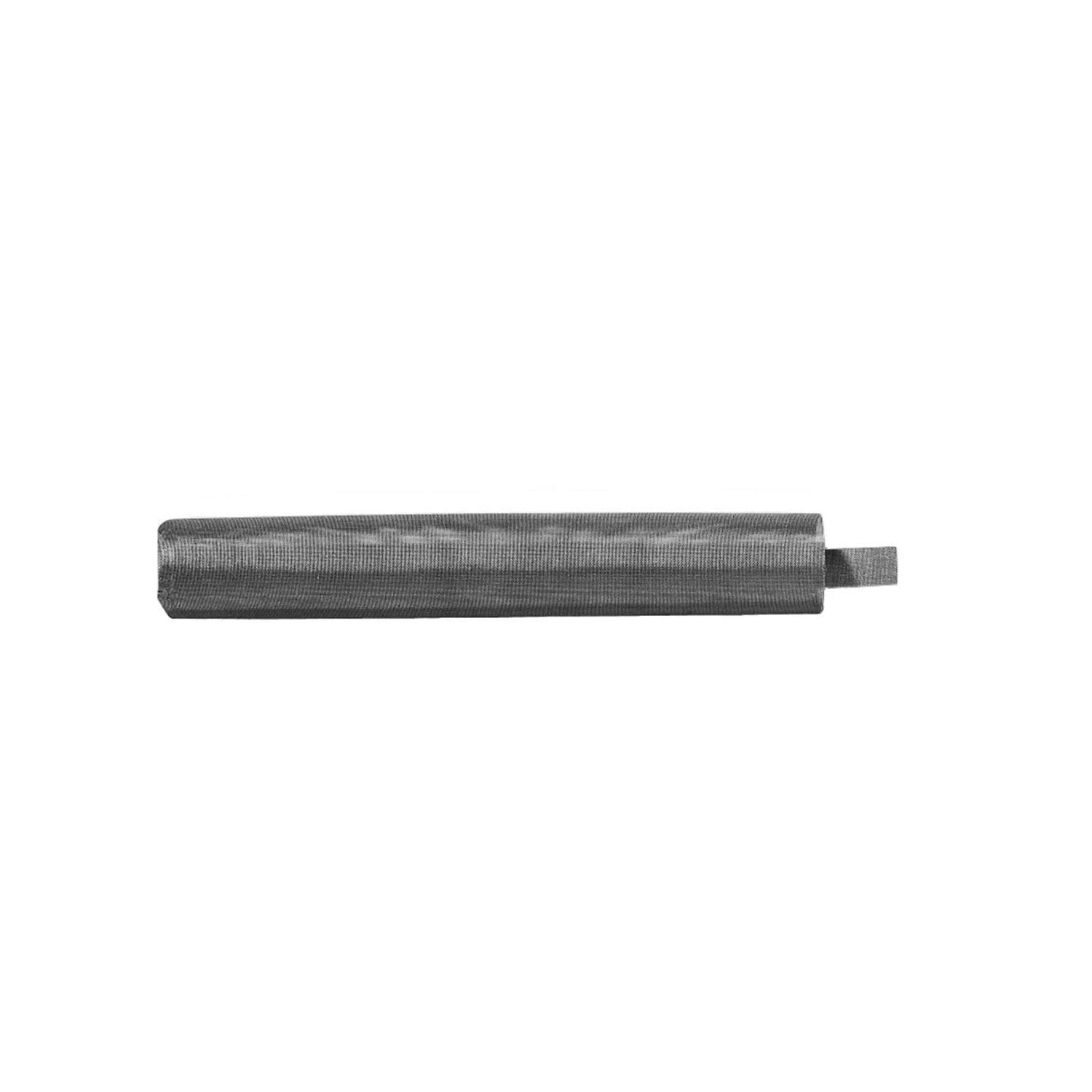

Simpson Strong-Tie ETS7521 (21-in.) Steel Epoxy-Adhesive Screen Tube for 3/4-in. Rod
$9.06
Unit price
/
Unavailable
Description
Description
Simpson Anchors ETS7521 Description
The ETS7521 is a carbon-steel screen tube designed for use with SET-XP and ET-3G adhesives, ideal for anchoring threaded rods in hollow masonry applications.
Simpson Anchors ETS7521 Includes
- (25) ETS7521 Steel Epoxy-Adhesive Screen Tube
Simpson Anchors ETS7521 Features
- Made from 60 mesh carbon steel for durability
- Compatible with SET-XP and ET-3G adhesives
- Designed for 3/4-inch rod diameter

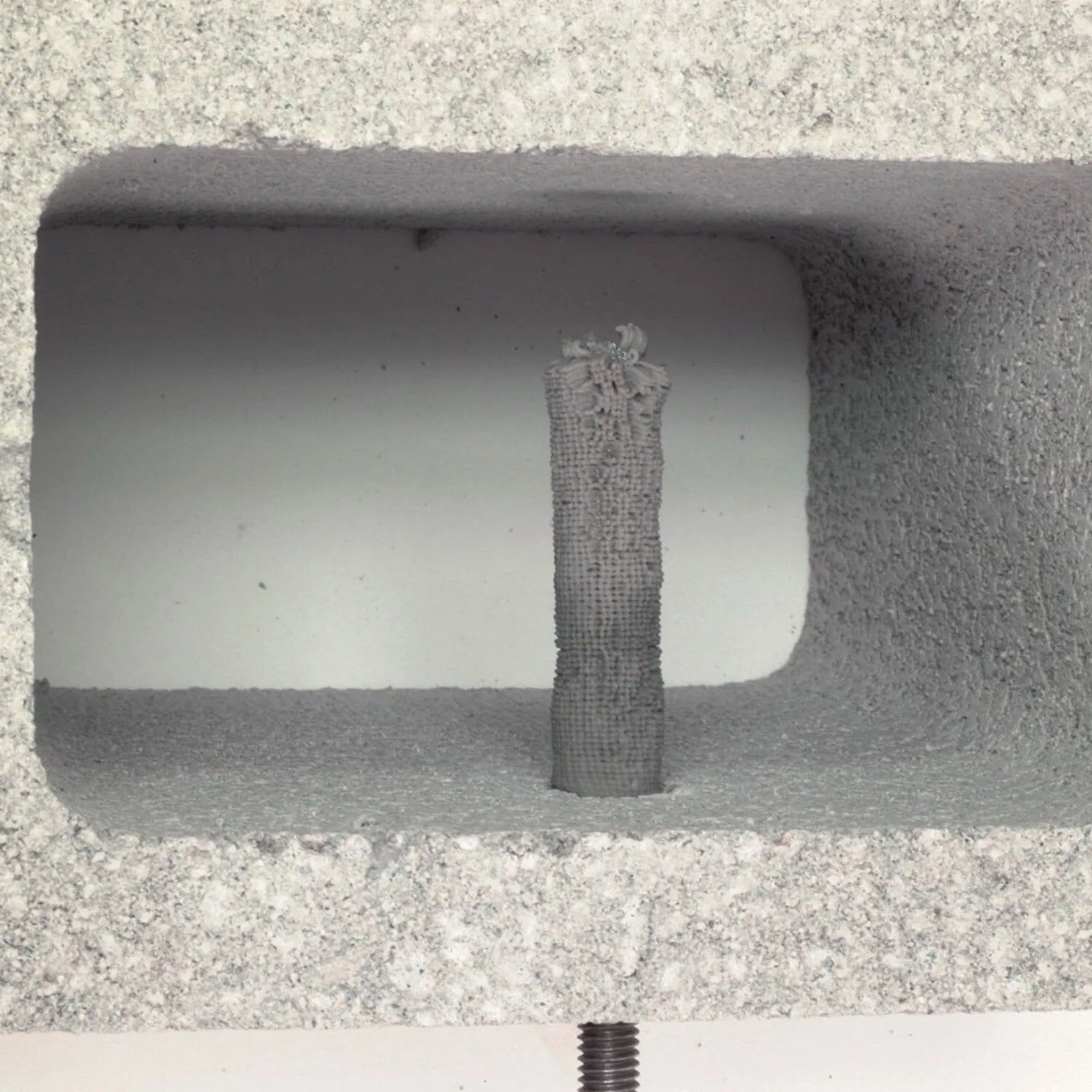

- Provides secure anchoring in hollow masonry
Simpson Anchors ETS7521 Applications
- Threaded-Rod Anchoring
- Hollow CMU, hollow brick, and unreinforced masonry applications
Simpson Anchors ETS7521 Installation Overview
- Ensure the adhesive type matches the screen tube specification
- Insert the screen tube into the drilled hole
- Fill the tube with the specified adhesive
- Insert the threaded rod into the adhesive-filled tube
- Allow the adhesive to cure as per manufacturer guidelines
Simpson Anchors ETS7521 Specifications
| Material | 60 mesh carbon steel |
| Rod Diameter | 3/4 in. |
| Hole Diameter | 1 in. |
| Outside Diameter | 31/32 in. |
| Length | 21 in. |
| Carton Quantity | 25 |
NOTE: Screen tubes are designed for a specific adhesive type. ETS screen tubes must be used with ET-3G or SET-XP formulations, and ATS screen tubes must be used with AT-XP.
