Simpson Anchors | SKU:
ETS758
Simpson Strong-Tie ETS758 (8") Steel Epoxy-Adhesive Screen Tube for 3/4-in. Rod
$5.02
Unit price
/
Unavailable
Description
Description

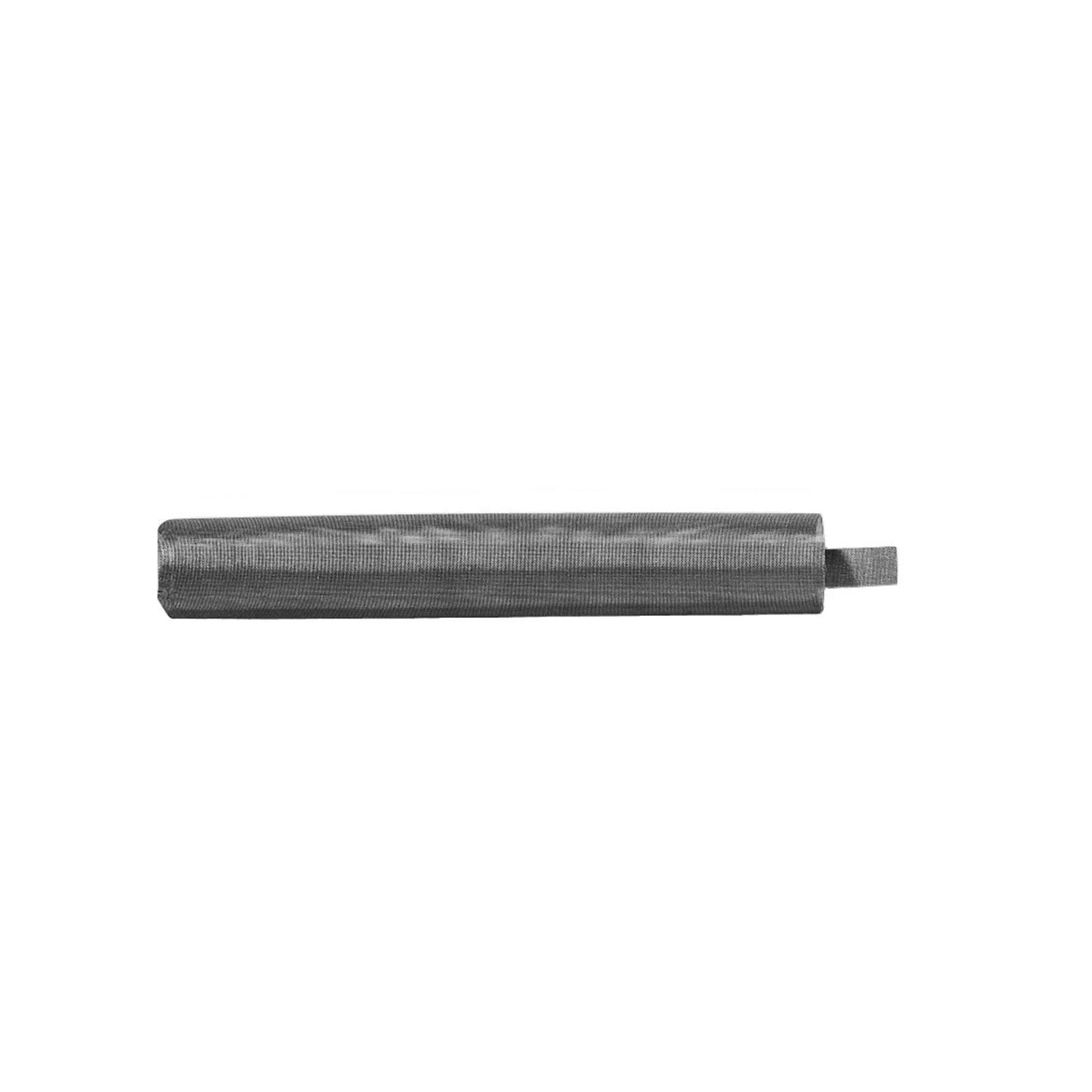

Simpson Strong-Tie ETS758 Description
The Simpson Strong-Tie ETS758 is a steel epoxy-adhesive screen tube designed for 3/4-inch rods, ideal for anchoring in hollow base materials.
Simpson Strong-Tie ETS758 Includes
- (1) Steel Epoxy-Adhesive Screen Tube
Simpson Strong-Tie ETS758 Features
- Made from durable carbon steel mesh
- Compatible with SET-XP and ET-3G adhesives
- Designed for 3/4-inch rods
- Prevents excess adhesive from running into void spaces
Simpson Strong-Tie ETS758 Applications

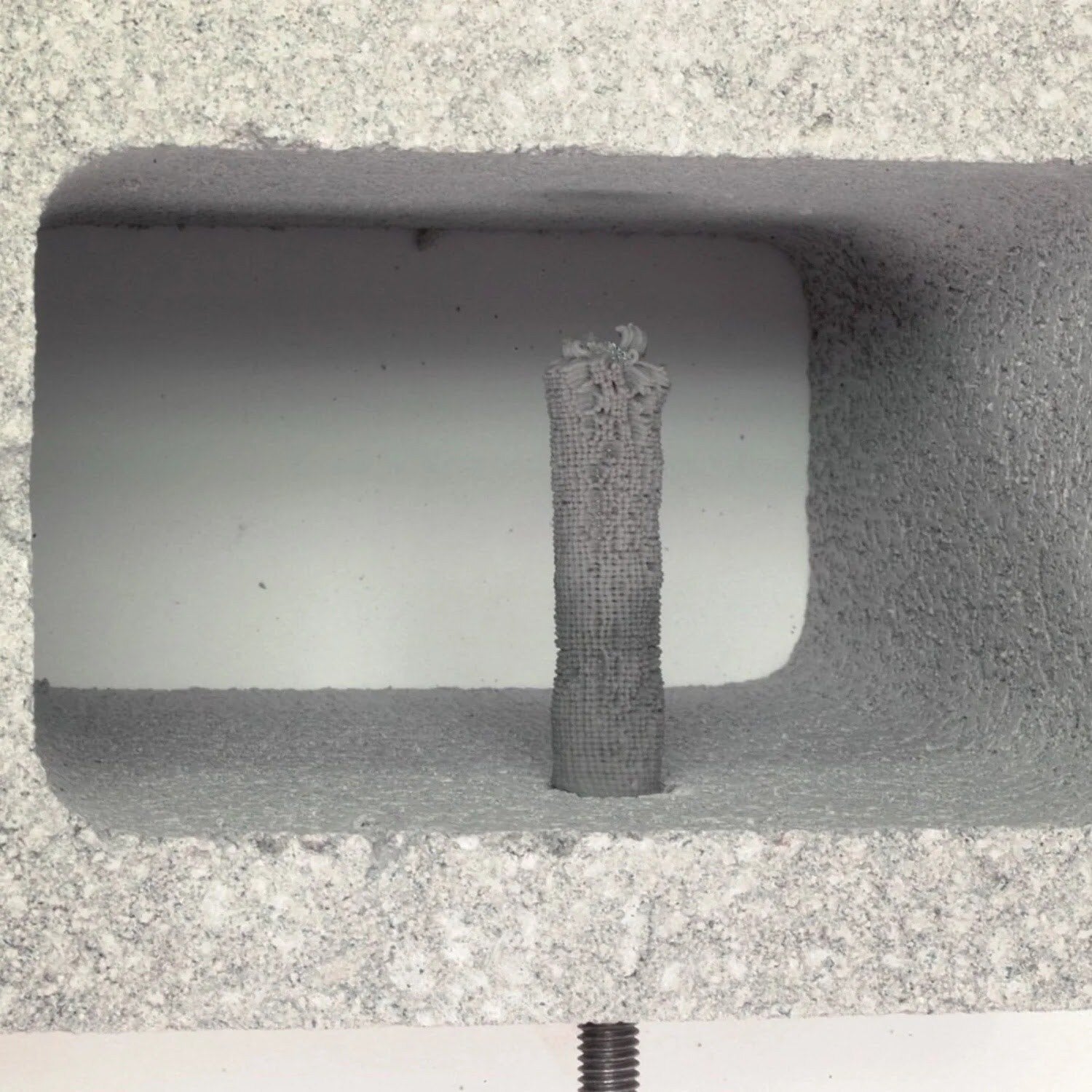

- Hollow CMU anchoring
- Hollow brick anchoring
- Unreinforced masonry applications
Simpson Strong-Tie ETS758 Installation Overview
- Fill the screen tube with the appropriate adhesive
- Insert the filled tube into the pre-drilled hole
- Slowly turn and insert the rod into the filled tube
- Allow to cure according to adhesive instructions
Simpson Strong-Tie ETS758 Specifications
| Material | Carbon Steel |
| Length | 8 inches |
| Rod Diameter | 3/4 inch |
| Hole Diameter | 1 inch |
| Outside Diameter | 31/32 inch |
| Carton Quantity | 25 |
NOTE: Screen Tubes are designed specifically for certain types of adhesives. Acrylic Screen Tubes are made from stainless steel mesh, and are compatible with AT adhesives. Epoxy Screen Tubes are made from carbon steel mesh and are compatible with SET and ET-HP adhesives.
