Simpson Anchors | SKU:
EZAC37238

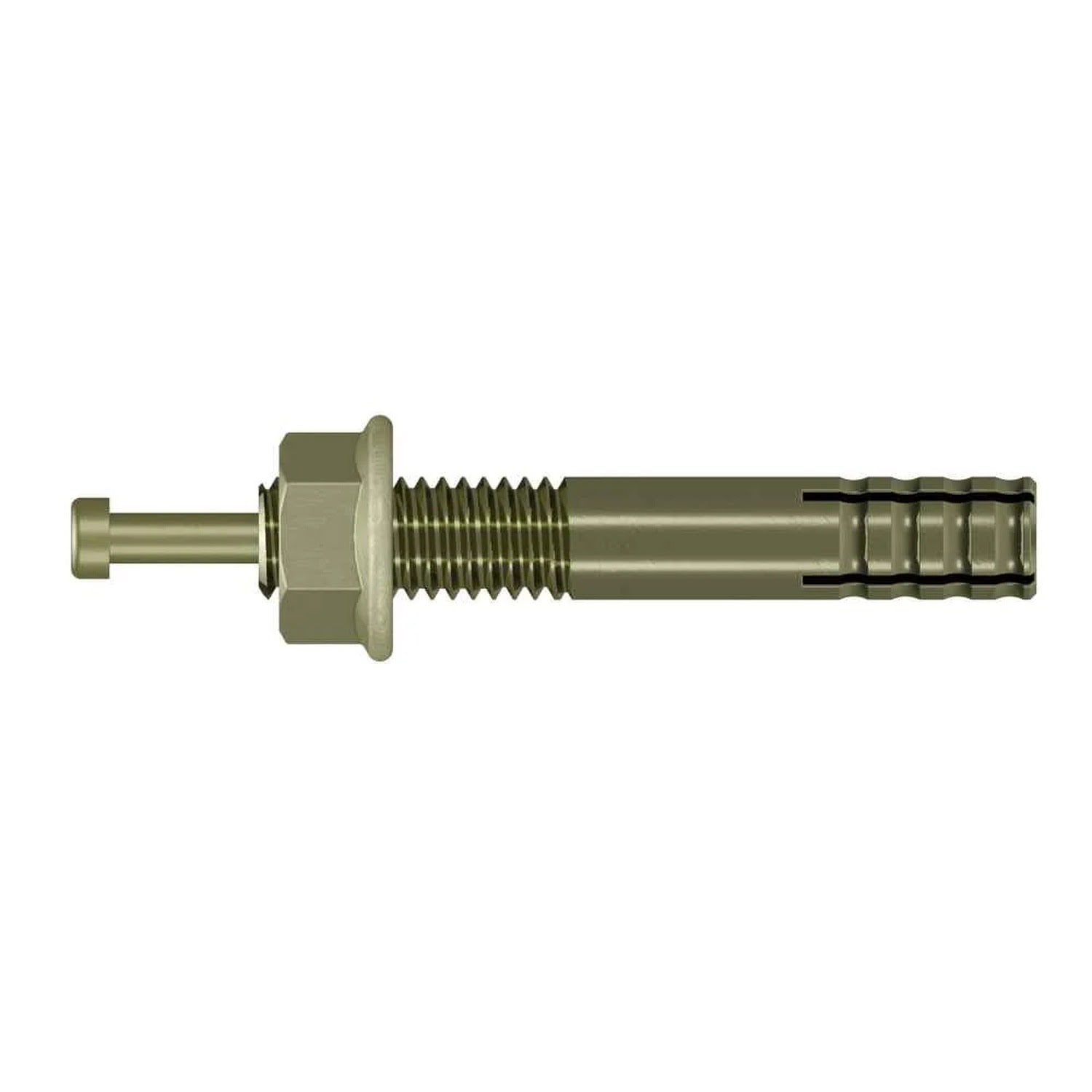

Simpson Strong-Tie EZAC37238 (3/8" x 2-3/8") Easy-Set Pin-Drive Expansion Anchor (50 Pack)
$85.26
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie EZAC37238 Description
Simpson pin-drive expansion anchors are coated in yellow zinc dichromate and used for medium and heavy-duty fastening applications into concrete and grout-filled block.
Simpson Strong-Tie EZAC37238 Includes
- (50) Pin-Drive Expansion Anchor
Simpson Strong-Tie EZAC37238 Features
- Integrated nut and washer to help keep track of parts
- Provides a strong connection of elements to concrete through expansion
- Increases overall strength of masonry projects
Simpson Strong-Tie EZAC37238 Applications
- Concrete Block — Grouted: Ideal for securing fixtures to concrete surfaces.
- Medium and Heavy-Duty Fastening: Suitable for robust applications requiring reliable anchoring.

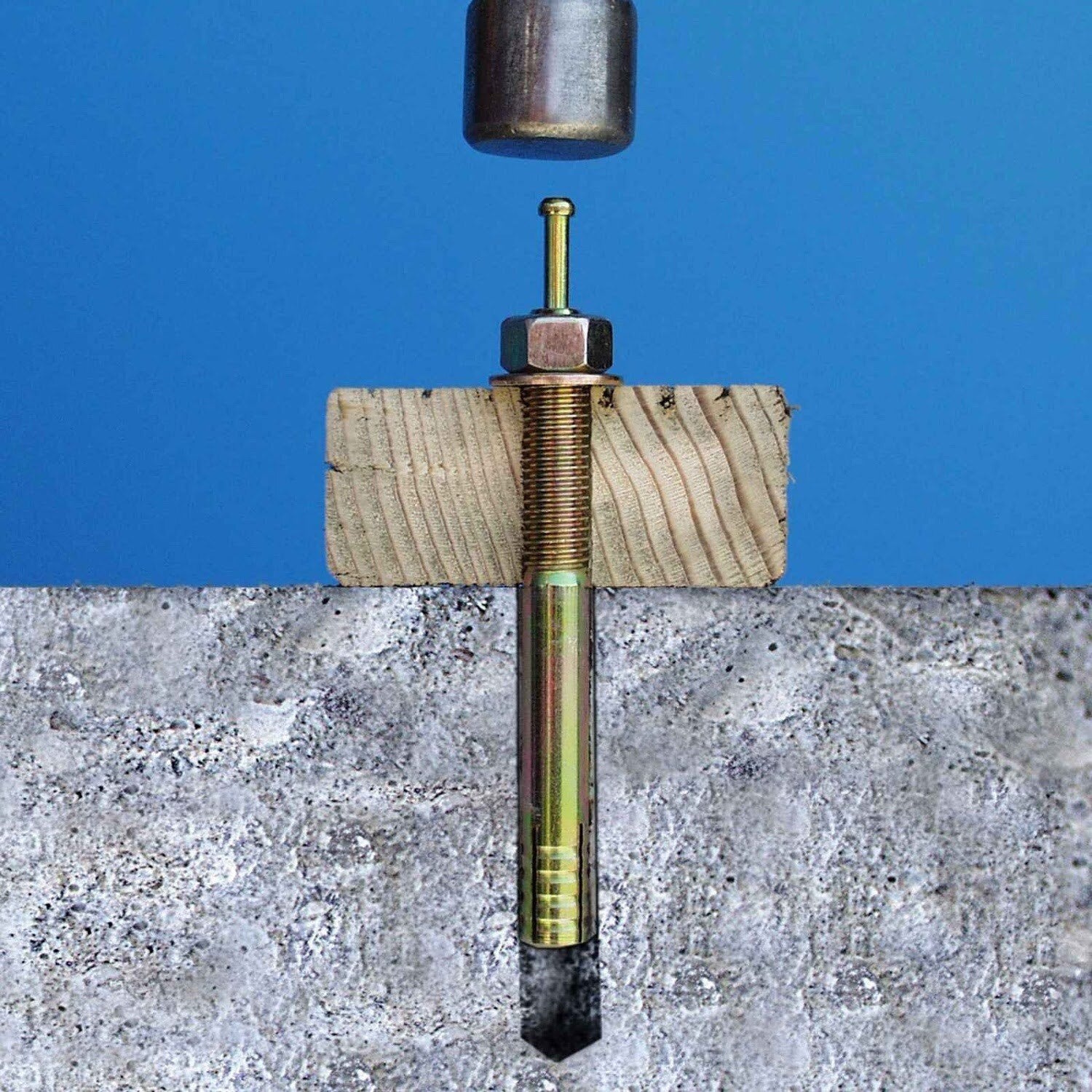

Simpson Strong-Tie EZAC37238 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Adjust the nut for required embedment and place the anchor through the fixture and into the hole.
- Hammer the center pin until the bottom of the head is flush with the top of the anchor.
Simpson Strong-Tie EZAC37238 Specifications
| Material | Carbon Steel |
| Finish | Yellow Zinc Dichromate Plated |
| Diameter | 3/8" |
| Length | 2-3/8" |
| Drill Bit Size | 3/8" |
| Thread Length | 1" |
| Quantity | 50 |
NOTE: Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
