Simpson Anchors | SKU:
EZAC37312

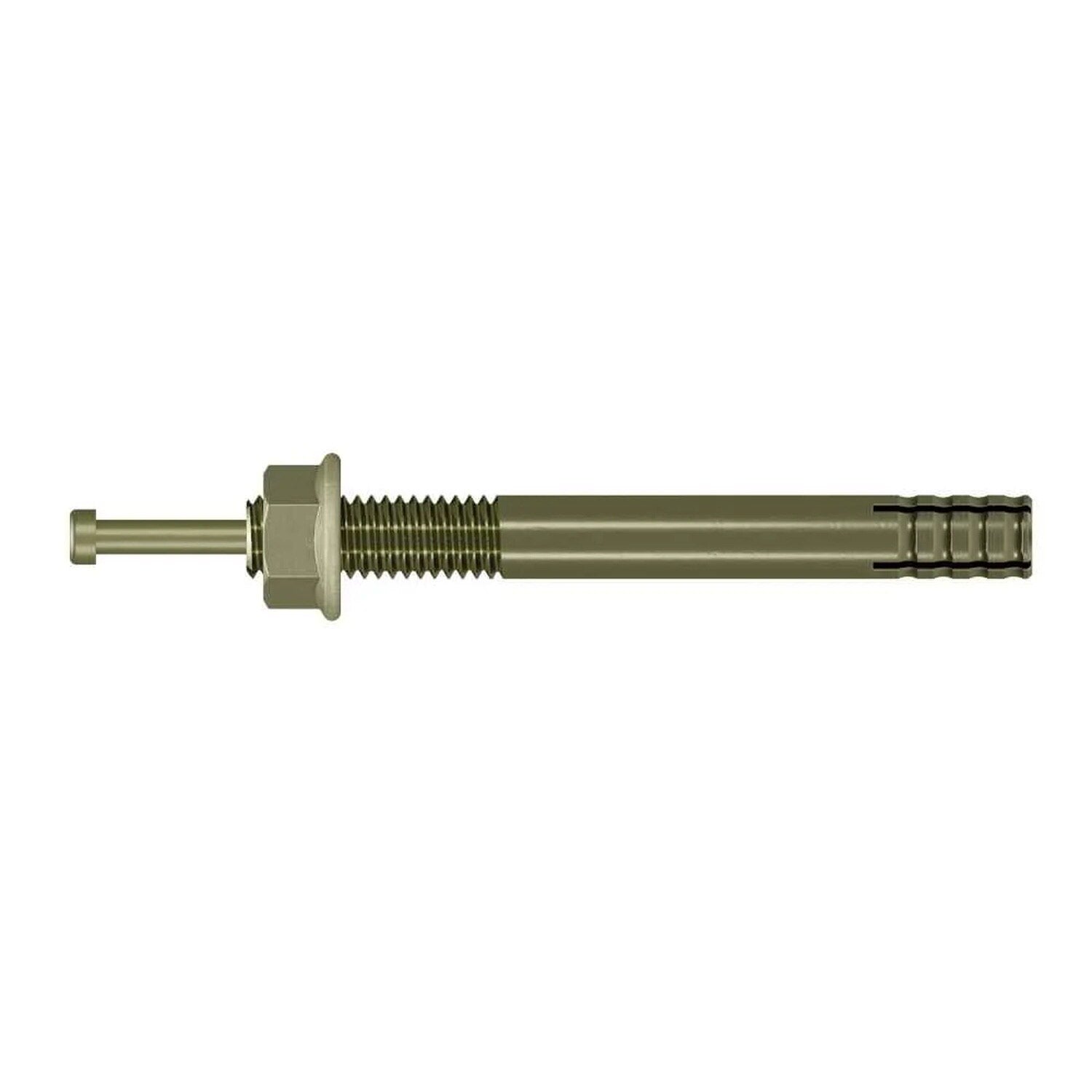

Simpson Strong-Tie EZAC37312 (3/8" x 3-1/2") Easy-Set Pin-Drive Expansion Anchor (50 Pack)
$95.44
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie EZAC37312 Description
The Easy-Set Pin-Drive Expansion Anchor is a reliable solution for medium and heavy-duty fastening applications into concrete and grout-filled block. Coated in yellow zinc dichromate, it ensures durability and strength.
Simpson Strong-Tie EZAC37312 Includes
- (50) Easy-Set Pin-Drive Expansion Anchor
Simpson Strong-Tie EZAC37312 Features
- Integrated nut and washer for convenience
- Provides a strong connection to concrete through expansion
- Enhances the strength of masonry projects
Simpson Strong-Tie EZAC37312 Applications
- Concrete Block: Suitable for grouted applications
- Medium and Heavy-Duty Fastening: Ideal for structural and construction uses

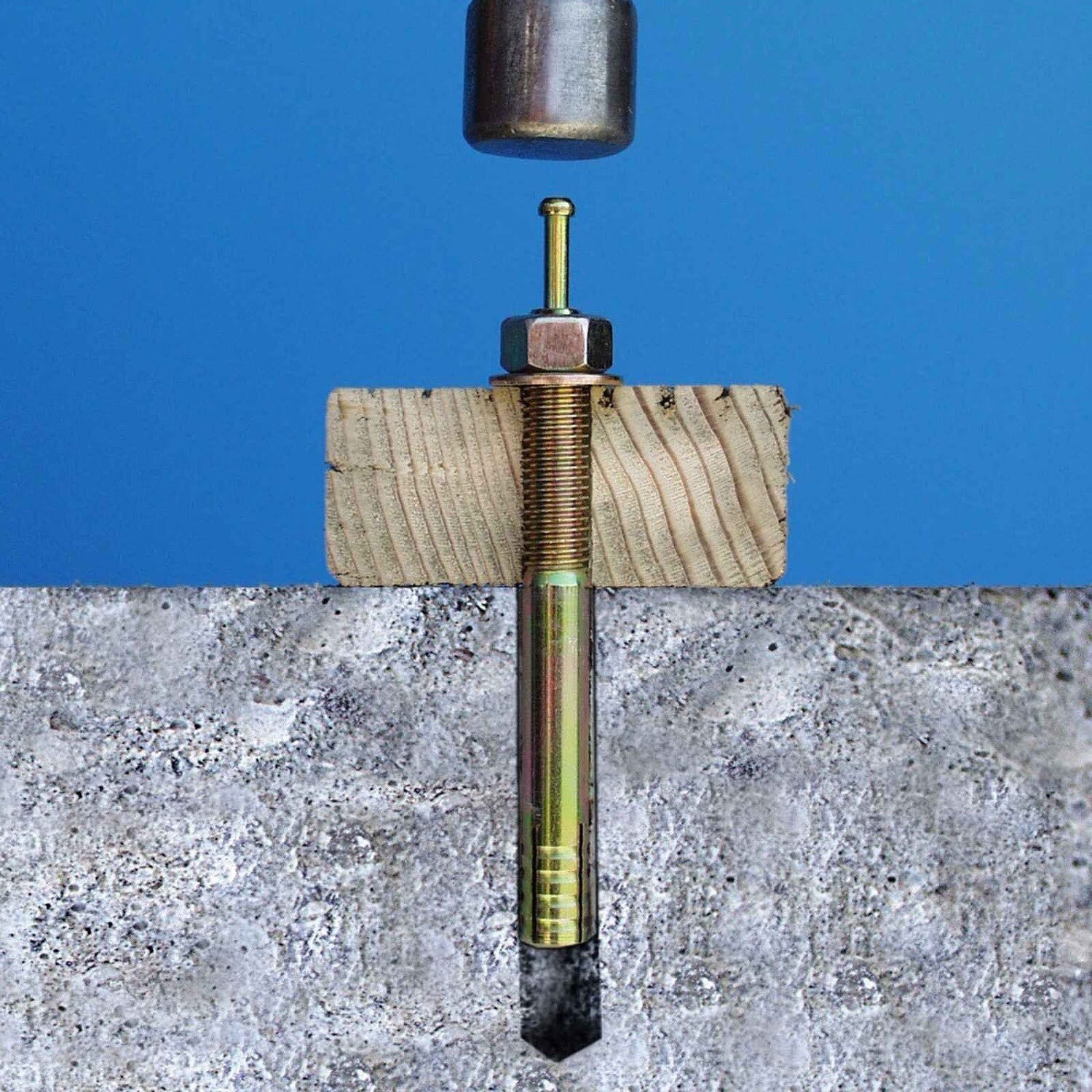

Simpson Strong-Tie EZAC37312 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Adjust the nut for the required embedment and place the anchor through the fixture into the hole.
- Hammer the center pin until the bottom of the head is flush with the top of the anchor.
Simpson Strong-Tie EZAC37312 Specifications
| Material | Carbon Steel |
| Finish | Yellow Zinc Dichromate Plated |
| Diameter | 3/8 in. |
| Length | 3-1/2 in. |
| Thread Length | 1-1/8 in. |
| Drill Bit Size | 3/8 in. |
| Min. Fixture Hole Size | 7/16 in. |
| Wrench Size | 9/16 in. |
NOTE: Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
