Simpson Anchors | SKU:
EZAC37434

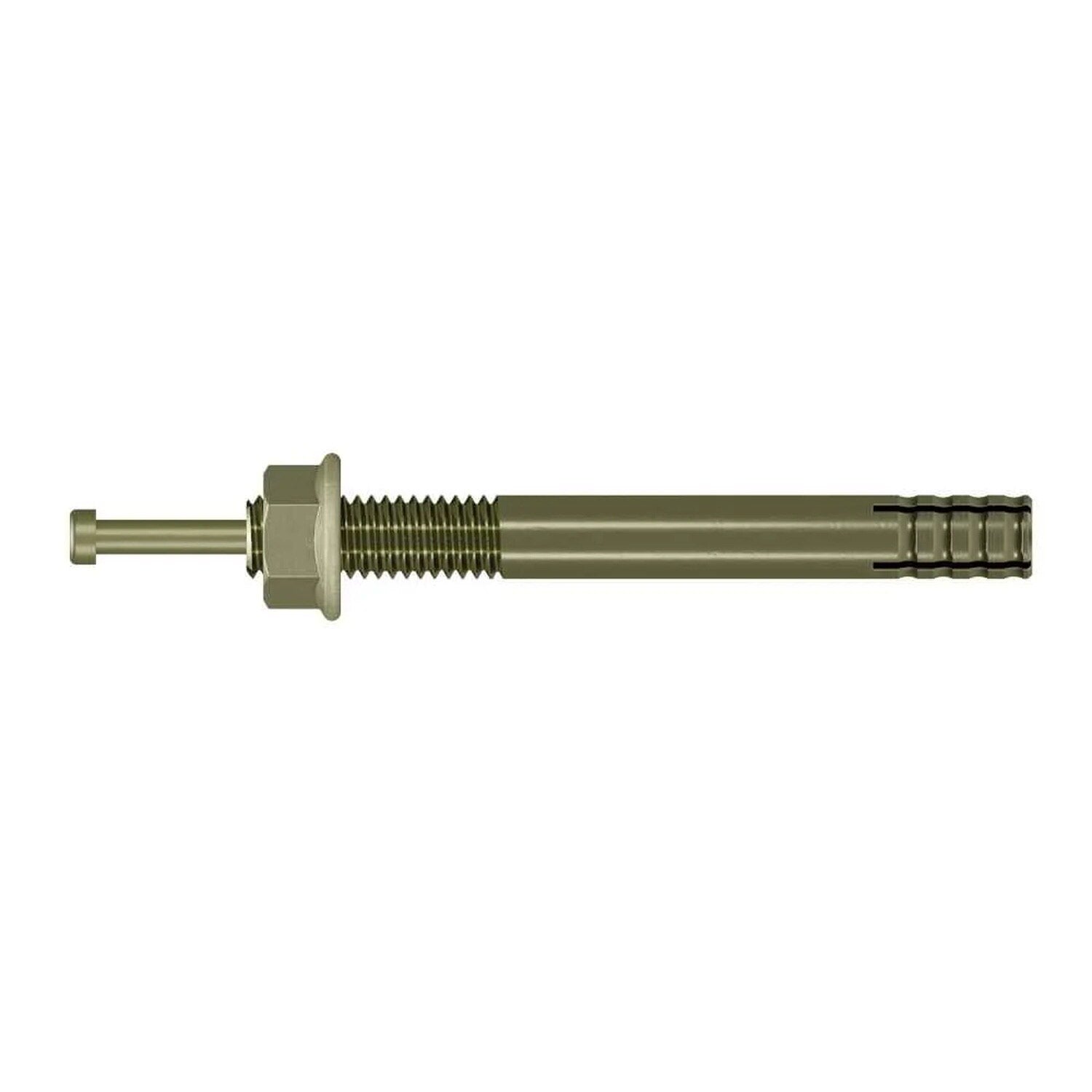

Simpson Strong-Tie EZAC37434 (3/8" x 4-3/4") Easy-Set Pin-Drive Expansion Anchor (50 Pack)
$109.51
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie EZAC37434 Description
The Easy-Set Pin-Drive Expansion Anchor is a reliable solution for medium and heavy-duty fastening applications into concrete and grout-filled block. Coated in yellow zinc dichromate, it ensures durability and corrosion resistance.
Simpson Strong-Tie EZAC37434 Includes
- (50) Easy-Set Pin-Drive Expansion Anchor
Simpson Strong-Tie EZAC37434 Features
- Integrated nut and washer for convenience
- Provides a strong connection to concrete through expansion
- Enhances the strength of masonry projects
- Yellow zinc dichromate plating for corrosion resistance
- Made from durable carbon steel
Simpson Strong-Tie EZAC37434 Applications
- Concrete block anchoring for grouted applications
- Medium and heavy-duty fastening tasks

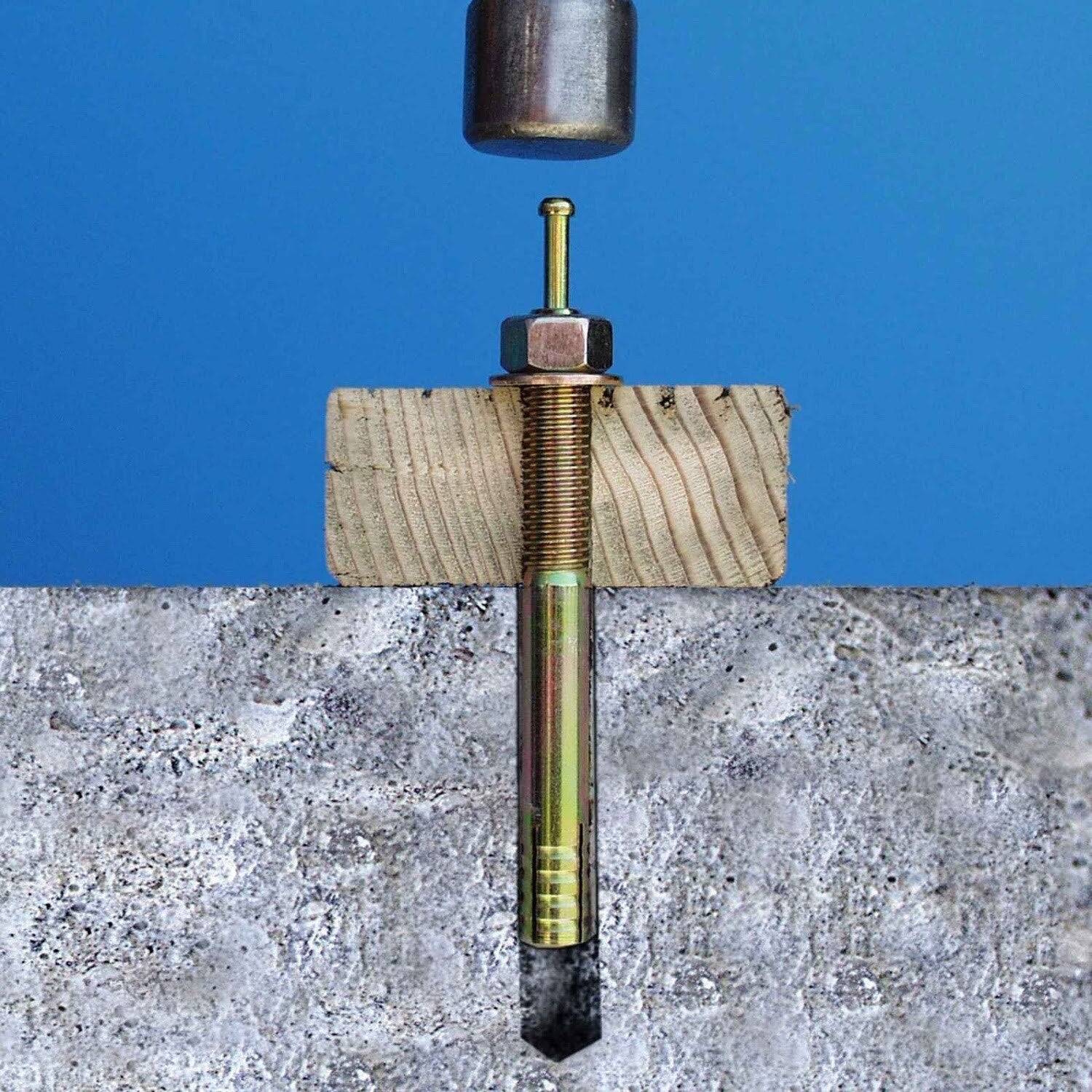

Simpson Strong-Tie EZAC37434 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Adjust the nut for the required embedment and place the anchor through the fixture into the hole.
- Hammer the center pin until the head is flush with the anchor top.
Simpson Strong-Tie EZAC37434 Specifications
| Material | Carbon steel |
| Finish | Yellow zinc dichromate plated |
| Diameter | 3/8 in. |
| Length | 4-3/4 in. |
| Drill Bit Size | 3/8 in. |
| Thread Length | 1-1/2 in. |
| Quantity | 50 |
NOTE: Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
