Simpson Anchors | SKU:
EZAC50234

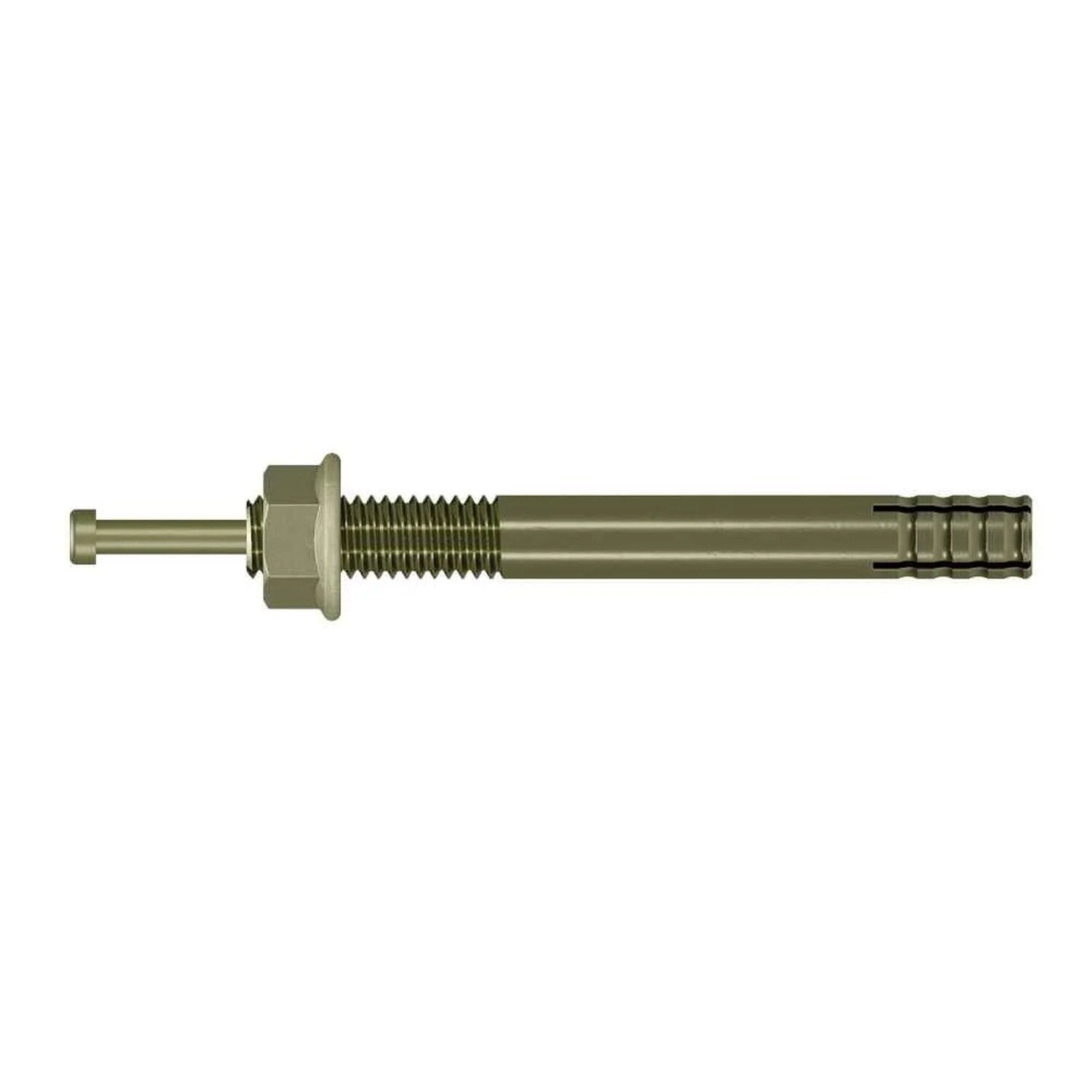

Simpson Strong-Tie EZAC50234 (1/2" x 2-3/4") Easy-Set Pin-Drive Expansion Anchor (25 Pack)
$62.58
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie EZAC50234 Description
The Easy-Set Pin-Drive Expansion Anchor is a reliable solution for medium and heavy-duty fastening applications into concrete and grout-filled block. Coated in yellow zinc dichromate, it ensures durability and corrosion resistance.
Simpson Strong-Tie EZAC50234 Includes
- (25) Easy-Set Pin-Drive Expansion Anchor
Simpson Strong-Tie EZAC50234 Features
- Integrated nut and washer for convenience
- Provides a strong connection to concrete through expansion
- Enhances the strength of masonry projects
Simpson Strong-Tie EZAC50234 Applications
- Medium and heavy-duty fastening into concrete and grout-filled block
- Structural reinforcement in masonry projects

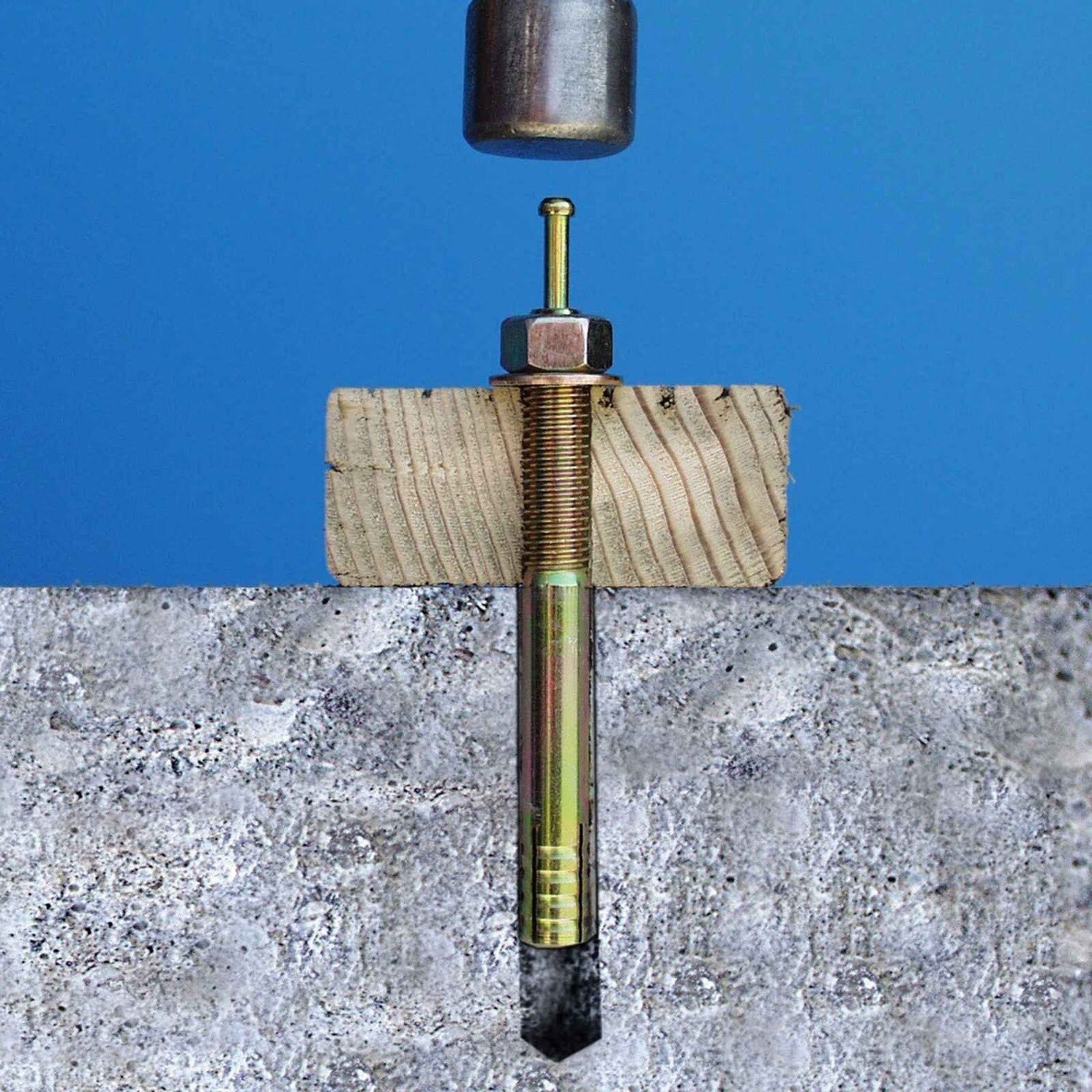

Simpson Strong-Tie EZAC50234 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Adjust the nut for the required embedment and place the anchor through the fixture into the hole.
- Hammer the center pin until the bottom of the head is flush with the top of the anchor.
Simpson Strong-Tie EZAC50234 Specifications
| Material | Carbon Steel |
| Finish | Yellow Zinc Dichromate Plated |
| Diameter | 1/2 in. |
| Length | 2-3/4 in. |
| Thread Length | 1 in. |
| Drill Bit Size | 1/2 in. |
| Quantity | 25 |
NOTE: Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
