Simpson Anchors | SKU:
EZAC50312

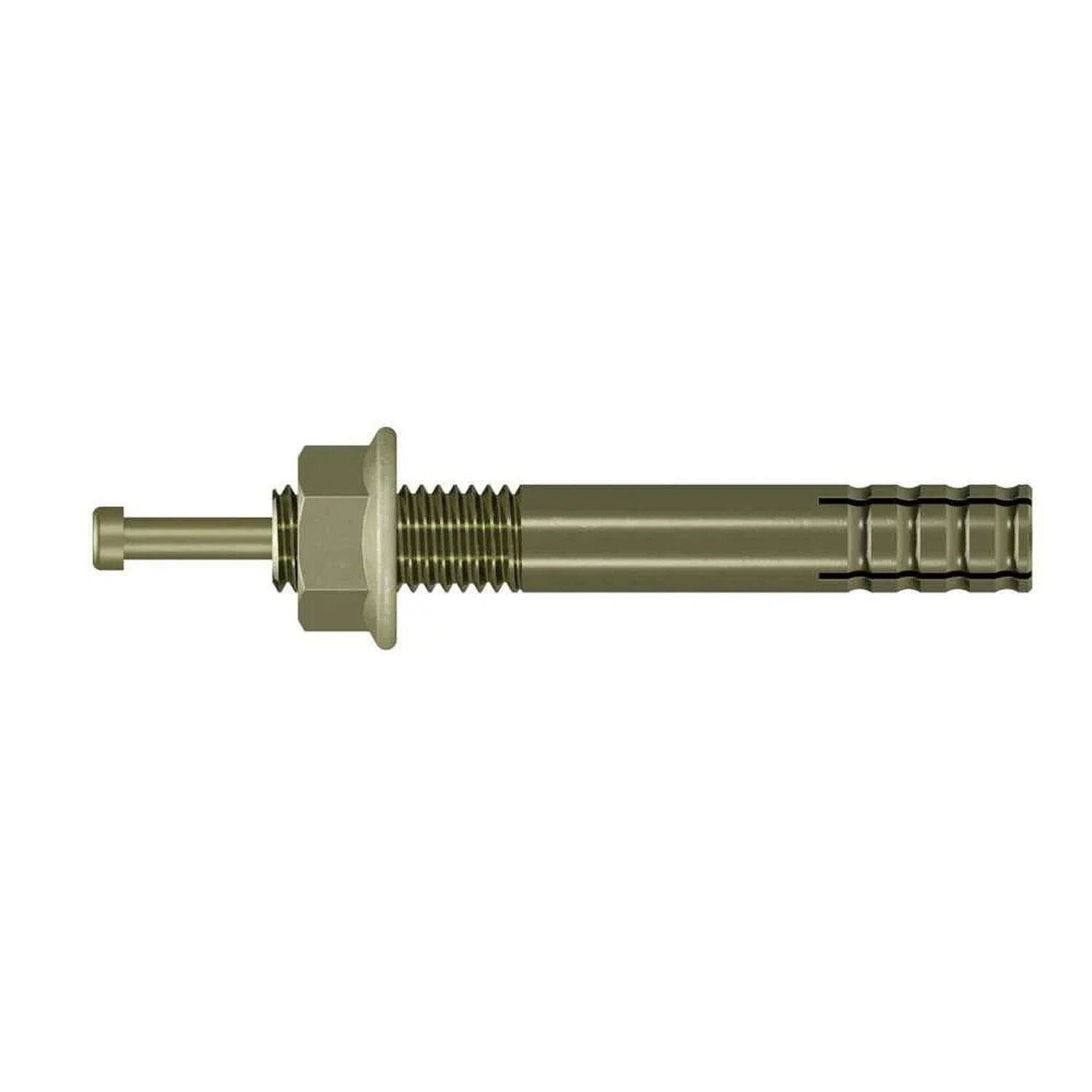

Simpson Strong-Tie EZAC50312 (1/2" x 3-1/2") Easy-Set Pin-Drive Expansion Anchor Yellow-Zinc Dichromate Plated (25 Pack)
$73.54
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie EZAC50312 Description
The Easy-Set Pin-Drive Expansion Anchor provides a reliable and strong connection for concrete and masonry projects, featuring an integrated nut and washer for convenience.
Simpson Strong-Tie EZAC50312 Includes
- (25) Easy-Set Pin-Drive Expansion Anchor
Simpson Strong-Tie EZAC50312 Features
- Integrated nut and washer to help keep track of parts
- Provides a strong connection of elements to concrete through expansion
- Increases overall strength of masonry projects
Simpson Strong-Tie EZAC50312 Applications
- Concrete Block — Grouted

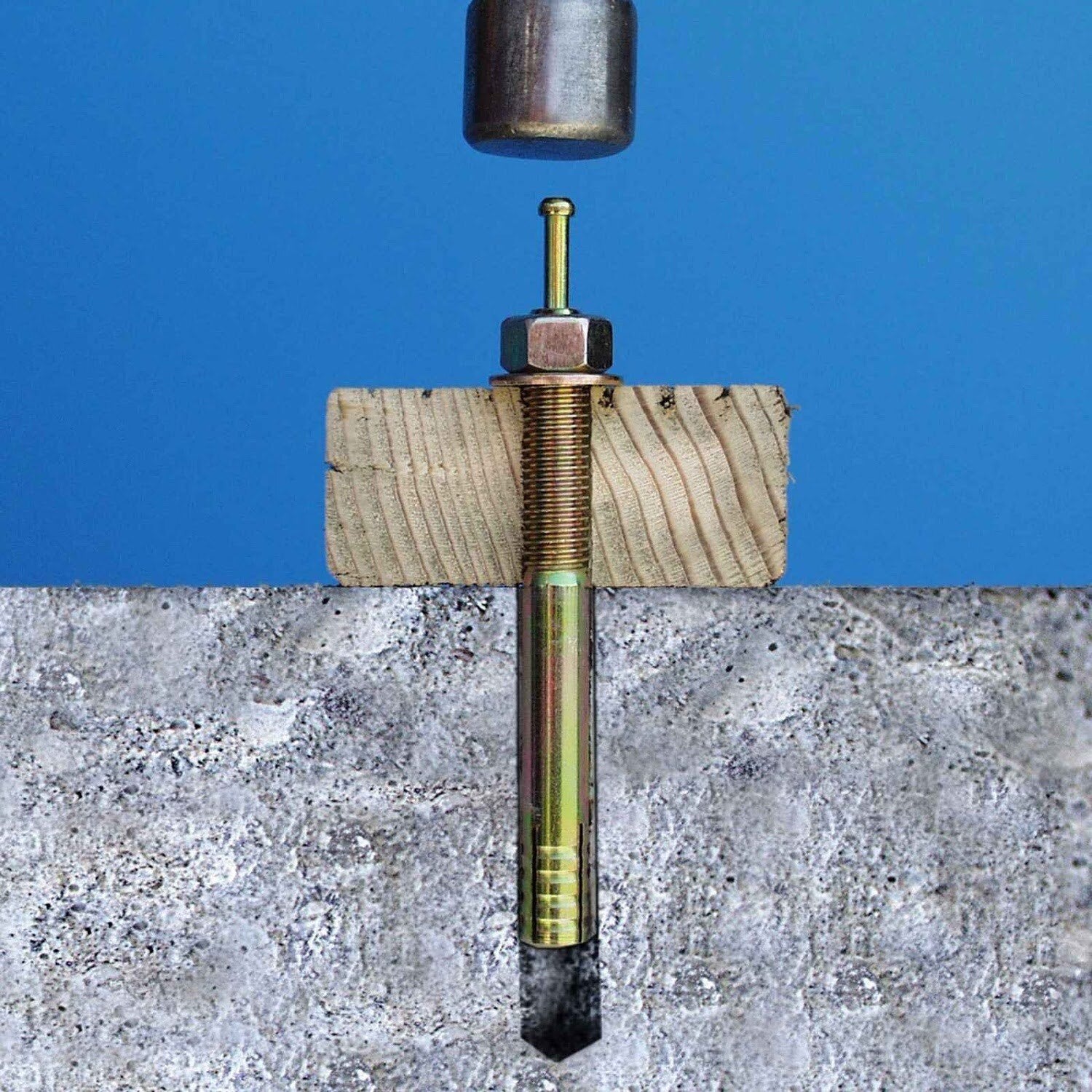

Simpson Strong-Tie EZAC50312 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified embedment depth plus 1/4" to allow for pin extension and blow it clean using compressed air.
- Adjust the nut for required embedment. Place the anchor through the fixture and into the hole.
- Hammer the center pin until the bottom of the head is flush with top of anchor.
Simpson Strong-Tie EZAC50312 Specifications
| Material | Carbon steel |
| Finish | Yellow zinc dichromate plated |
| Size | 1/2 x 3 1/2 in. |
| Drill Bit Size | 1/2 in. |
| Wrench Size | 3/4 in. |
| Thread Length | 1 1/8 in. |
| Min. Fixture Hole Size | 9/16 in. |
NOTE: Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
