Simpson Anchors | SKU:
EZAC50434

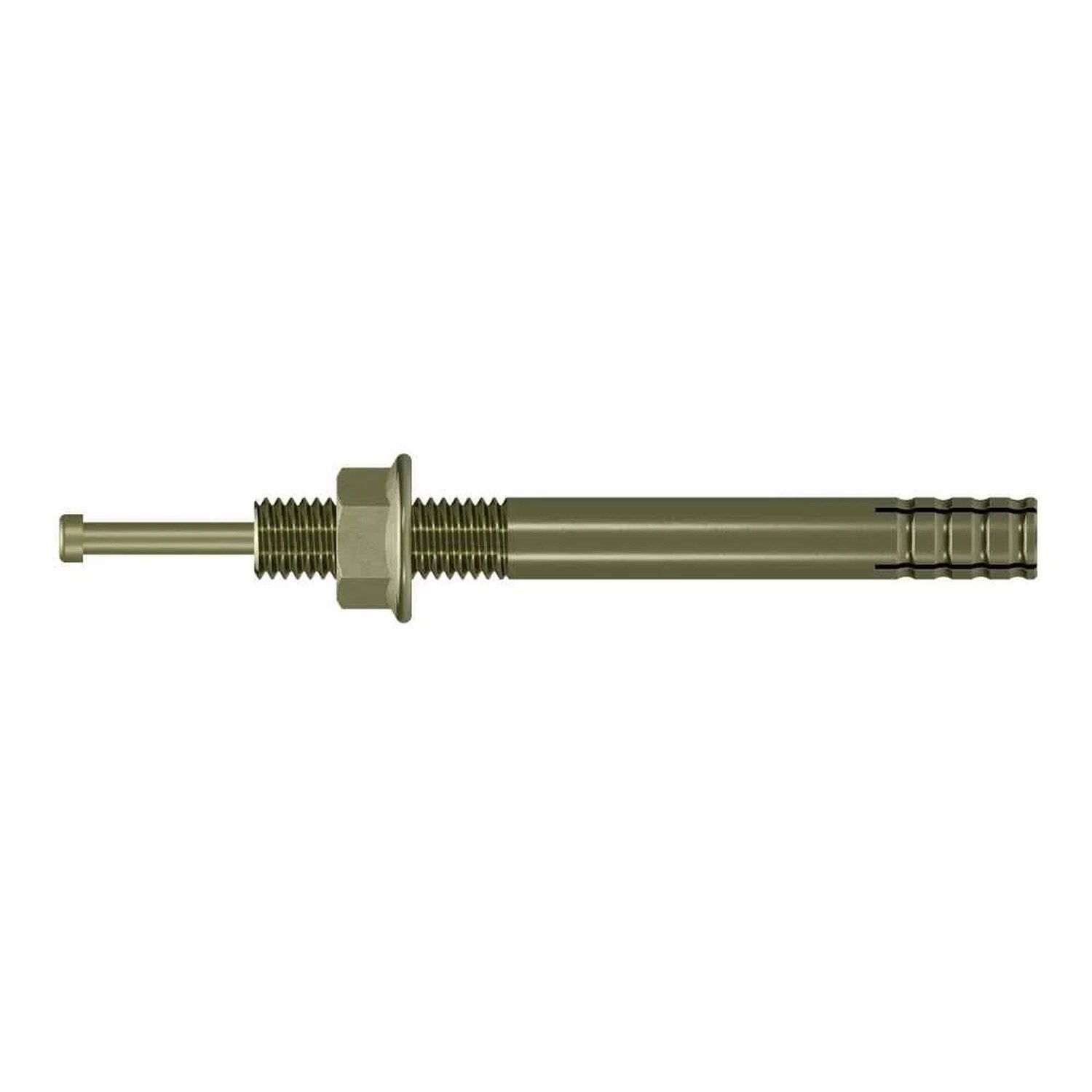

Simpson Strong-Tie EZAC50434 (1/2" x 4-3/4") Easy-Set Pin-Drive Expansion Anchor (25 Pack)
$104.04
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie EZAC50434 Description
Simpson pin-drive expansion anchors are coated in yellow zinc dichromate and used for medium and heavy-duty fastening applications into concrete and grout-filled block.
Simpson Strong-Tie EZAC50434 Includes
- (25) Pin-Drive Expansion Anchor
Simpson Strong-Tie EZAC50434 Features
- Integrated nut and washer to help keep track of parts
- Provides a strong connection of elements to concrete through expansion
- Increases overall strength of masonry projects
Simpson Strong-Tie EZAC50434 Applications
- Concrete Block — Grouted: Suitable for medium and heavy-duty fastening applications

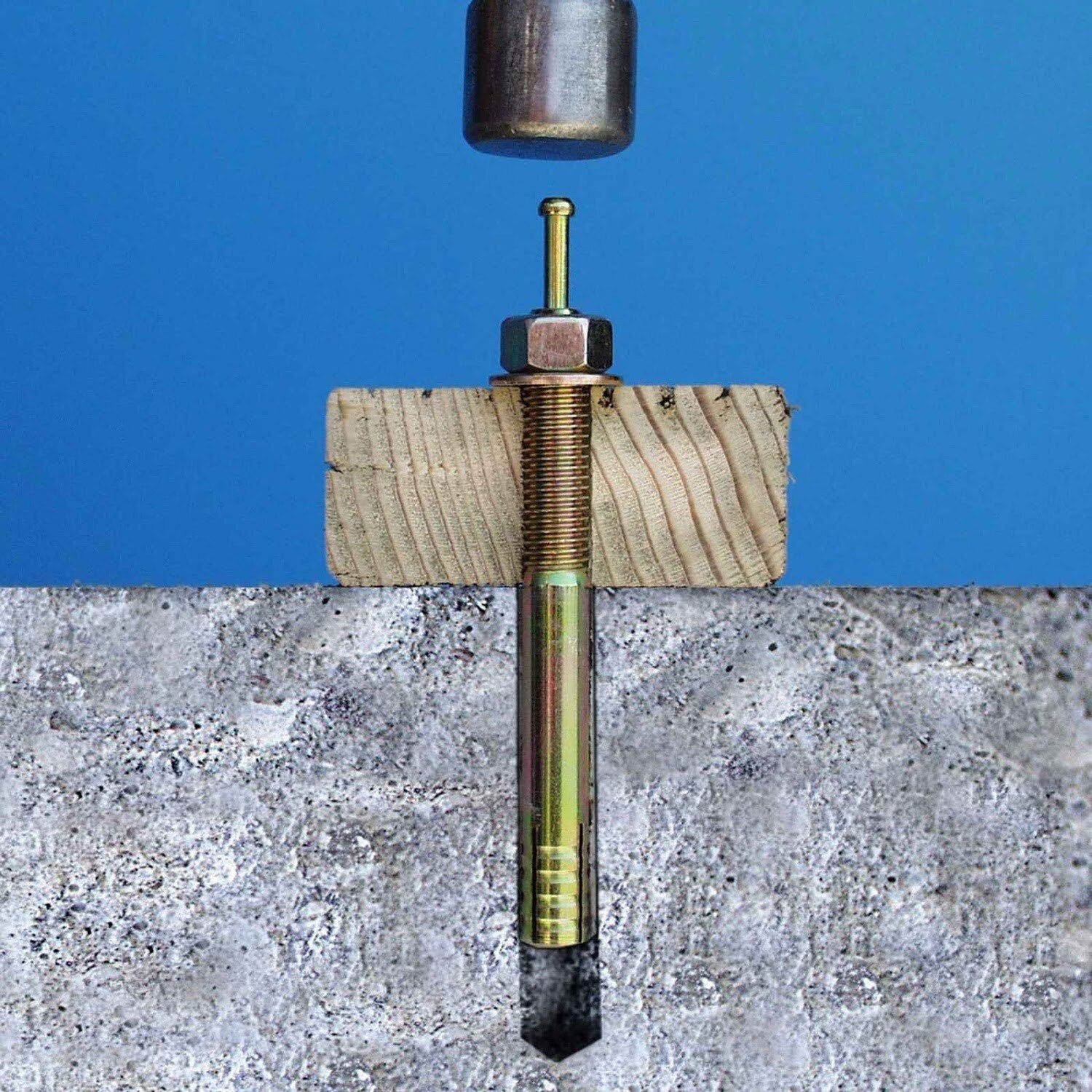

Simpson Strong-Tie EZAC50434 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified embedment depth plus 1/4" to allow for pin extension and blow it clean using compressed air.
- Adjust the nut for required embedment. Place the anchor through the fixture and into the hole.
- Hammer the center pin until the bottom of the head is flush with top of anchor.
Simpson Strong-Tie EZAC50434 Specifications
| Material | Carbon steel |
| Finish | Yellow zinc dichromate plated |
| Diameter | 1/2 in. |
| Length | 4-3/4 in. |
| Drill Bit Size | 1/2 in. |
| Thread Length | 1-1/2 in. |
| Quantity | 25 |
NOTE: Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
