Simpson Strong-Tie FBR24Z Description

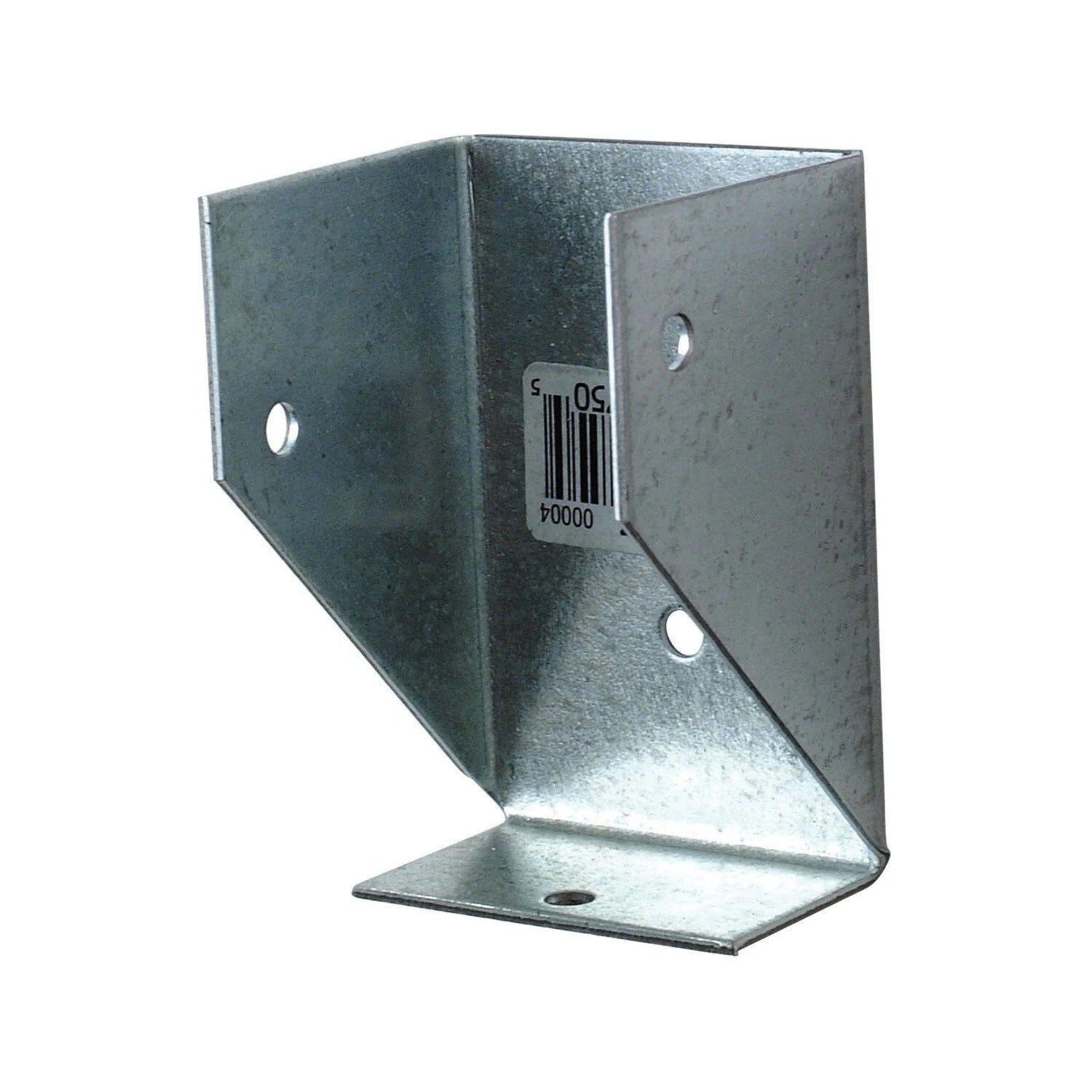

The FBR24Z fence bracket is designed to make connections between fence rails and posts. It provides strong, simple connections without the need for toe nails or screws, making it ideal for fences, deck/porch railings, and louvers.
Simpson Strong-Tie FBR24Z Includes
- (1) Fence Bracket
Simpson Strong-Tie FBR24Z Features
- Preinstallation of brackets allows rails to slide into place easily
- Eliminates need for toe nails and screws
Simpson Strong-Tie FBR24Z Applications

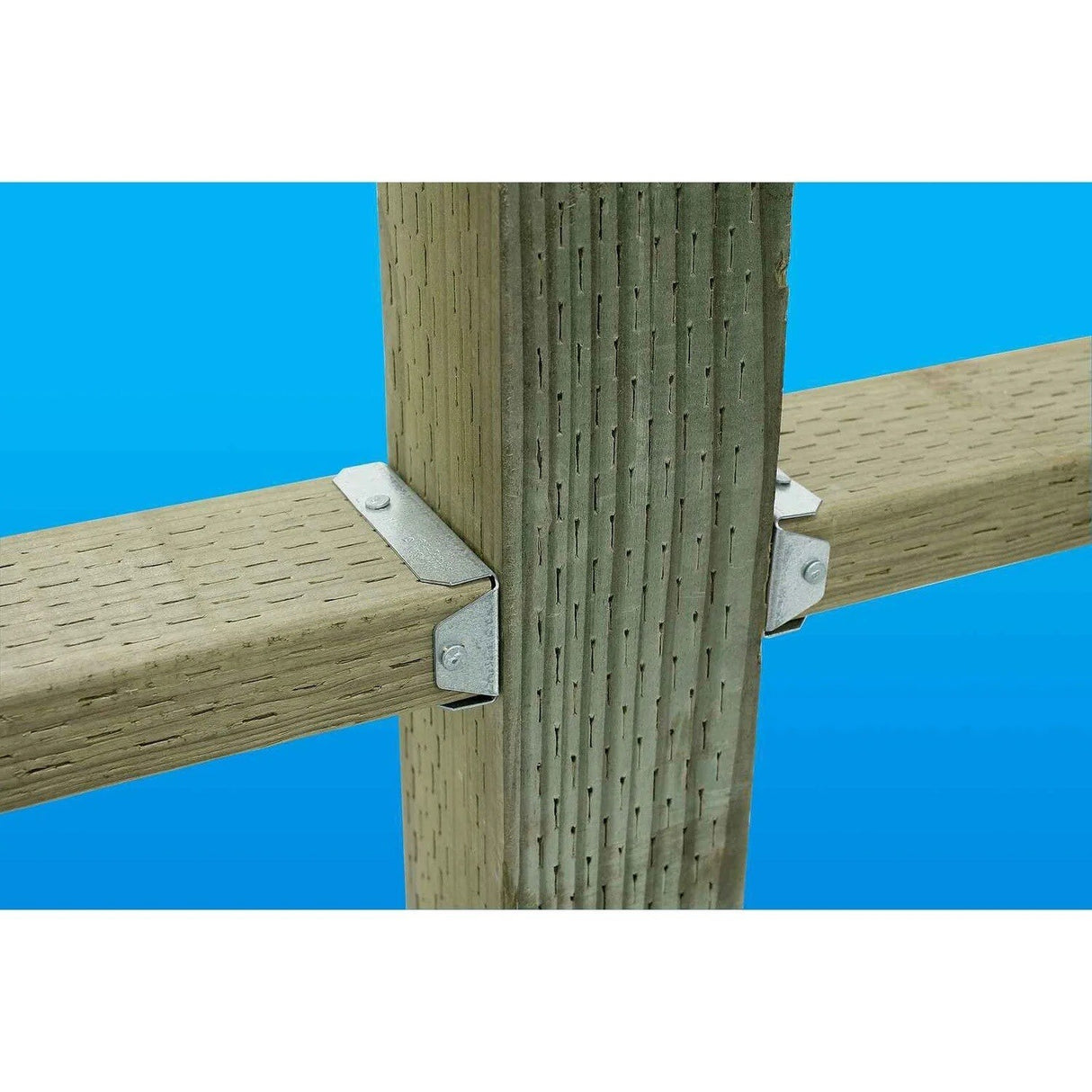

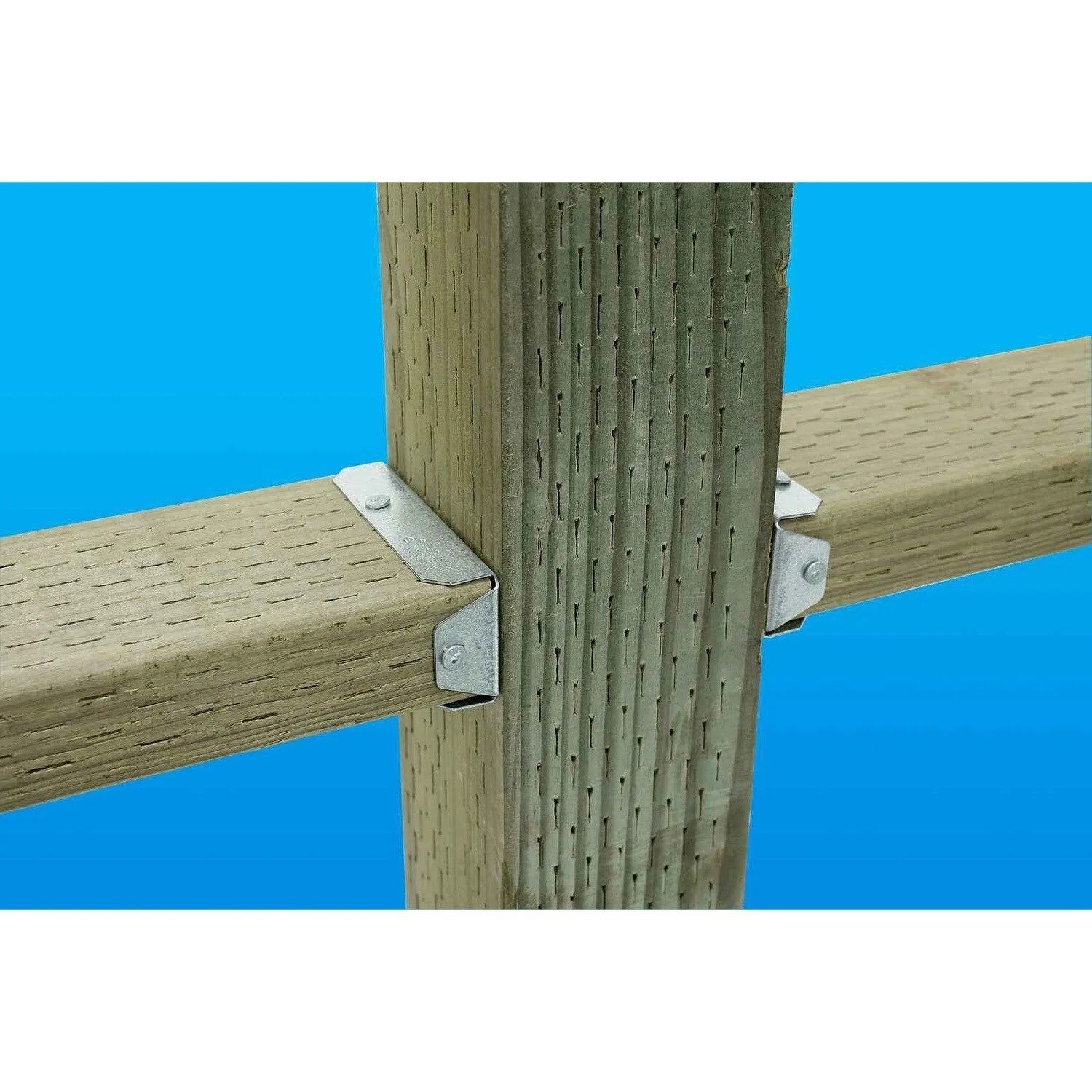

- Fencing: Securely connects fence rails to posts
- Deck/Porch Railings: Provides strong and simple connections
- Louvers: Facilitates easy and versatile installations
Simpson Strong-Tie FBR24Z Installation Overview
- Install the FBR24Z using 0.148" x 1 1/2" nails or #9 x 1 1/2" Strong-Drive SD Connector screws
- FBR24Z installs with (3) fasteners into the rail and (2) fasteners into the supporting member
Simpson Strong-Tie FBR24Z Specifications
| Material | Galvanized Steel |
| Finish | ZMAX |
| Thickness | 18 Gauge |
| Width | 1-9/16" |
| Height | 2-7/16" |
| Fasteners required | 0.131" x 1 1/2" nails or #9 x 1 1/2" Strong-Drive SD Connector screws |
| Quantity | 1 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
