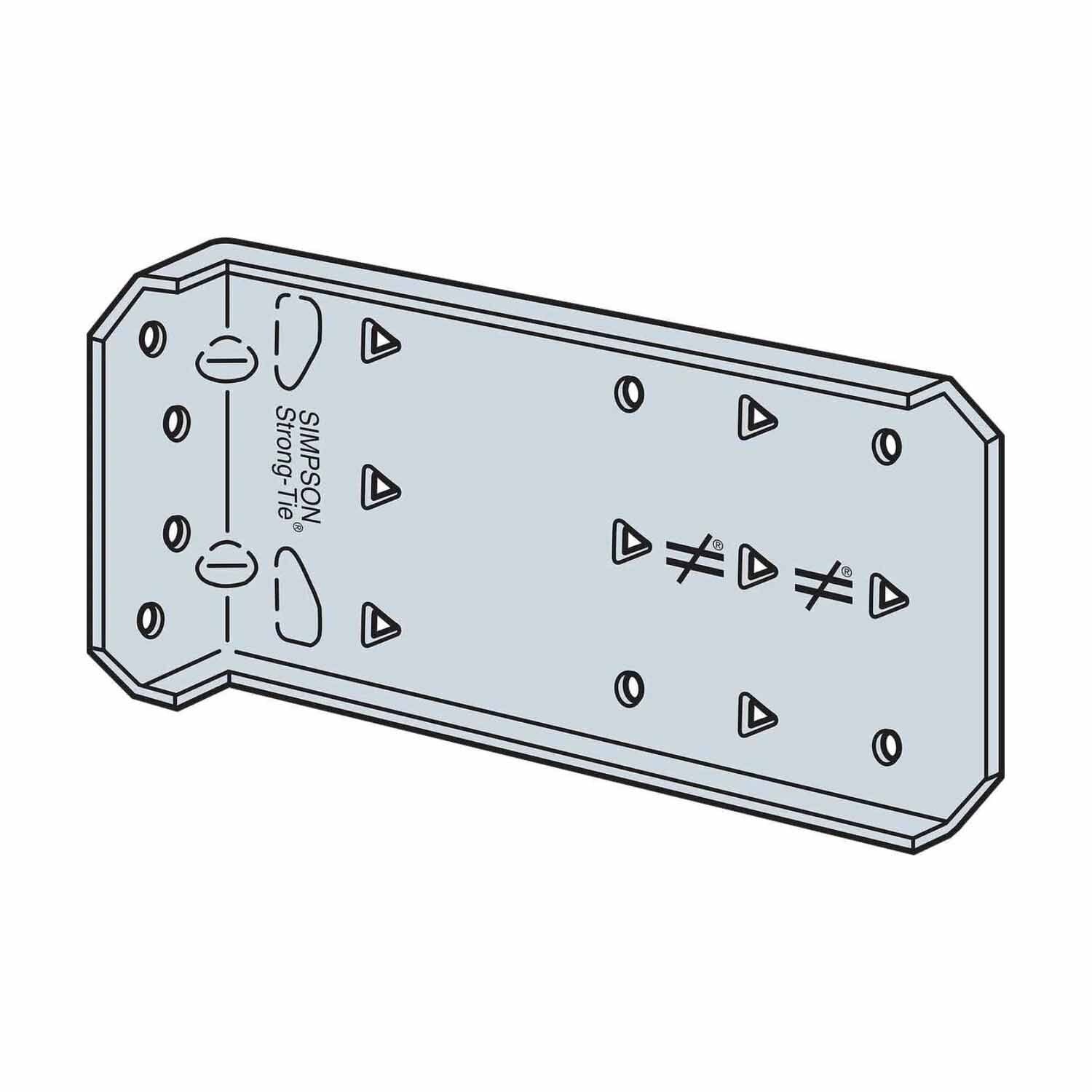

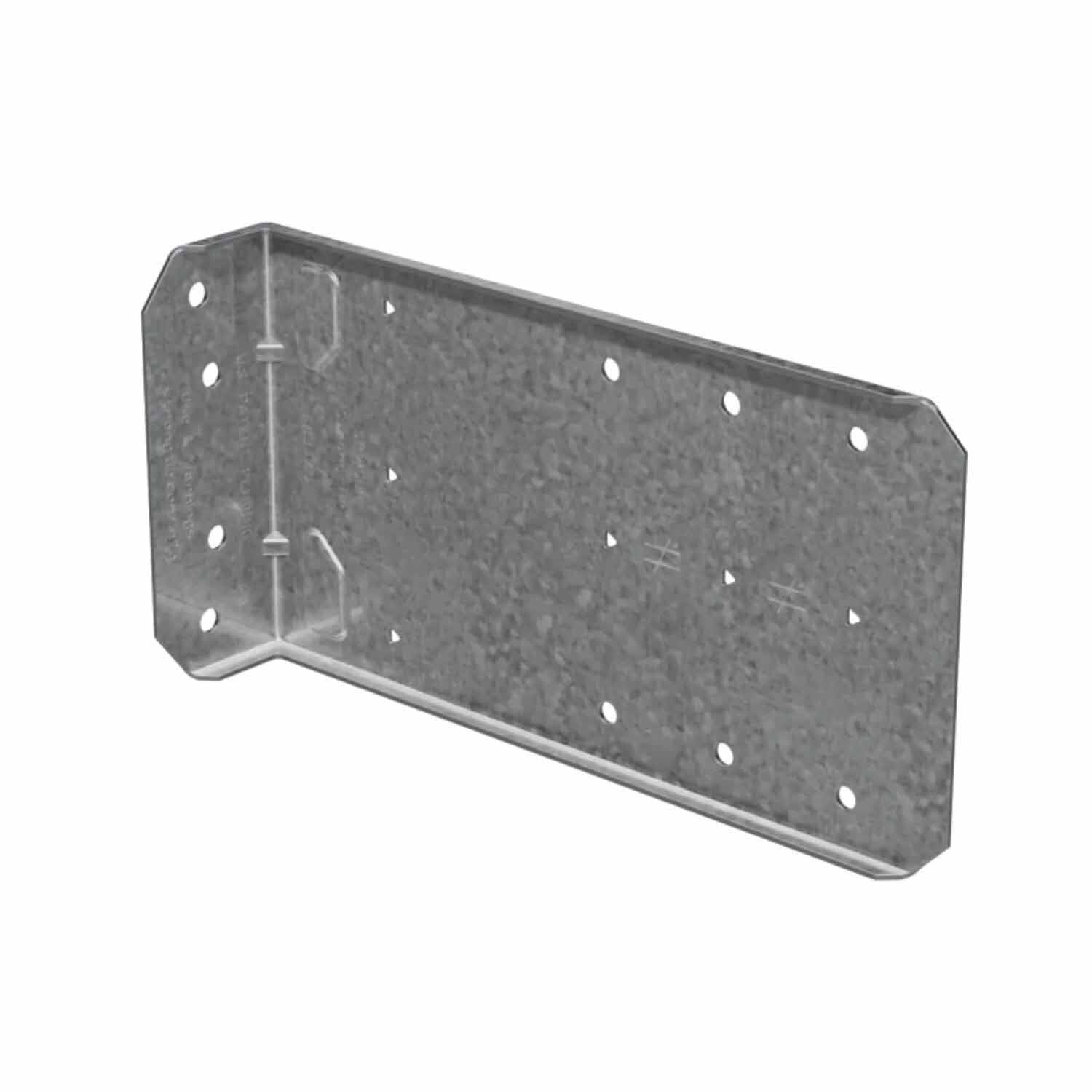

Simpson FCB47.5-R25 Description
The FCB clip is an economical, high-performance fixed-clip connector rated for tension, compression, and shear loads, offering design flexibility with varying screw and anchorage patterns.
Simpson FCB47.5-R25 Includes
- (25) Bypass Framing Fixed-Clip Connector
Simpson FCB47.5-R25 Features

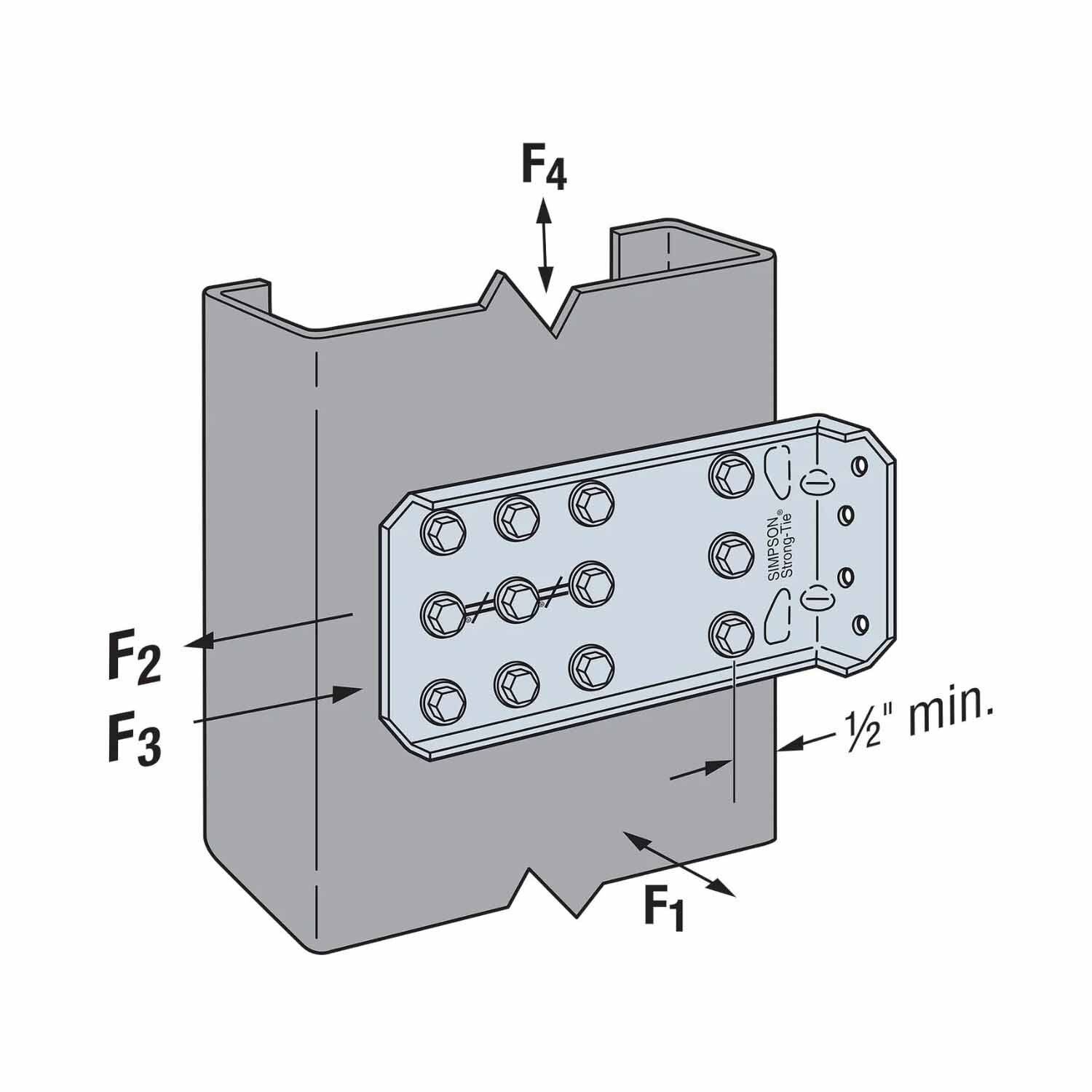

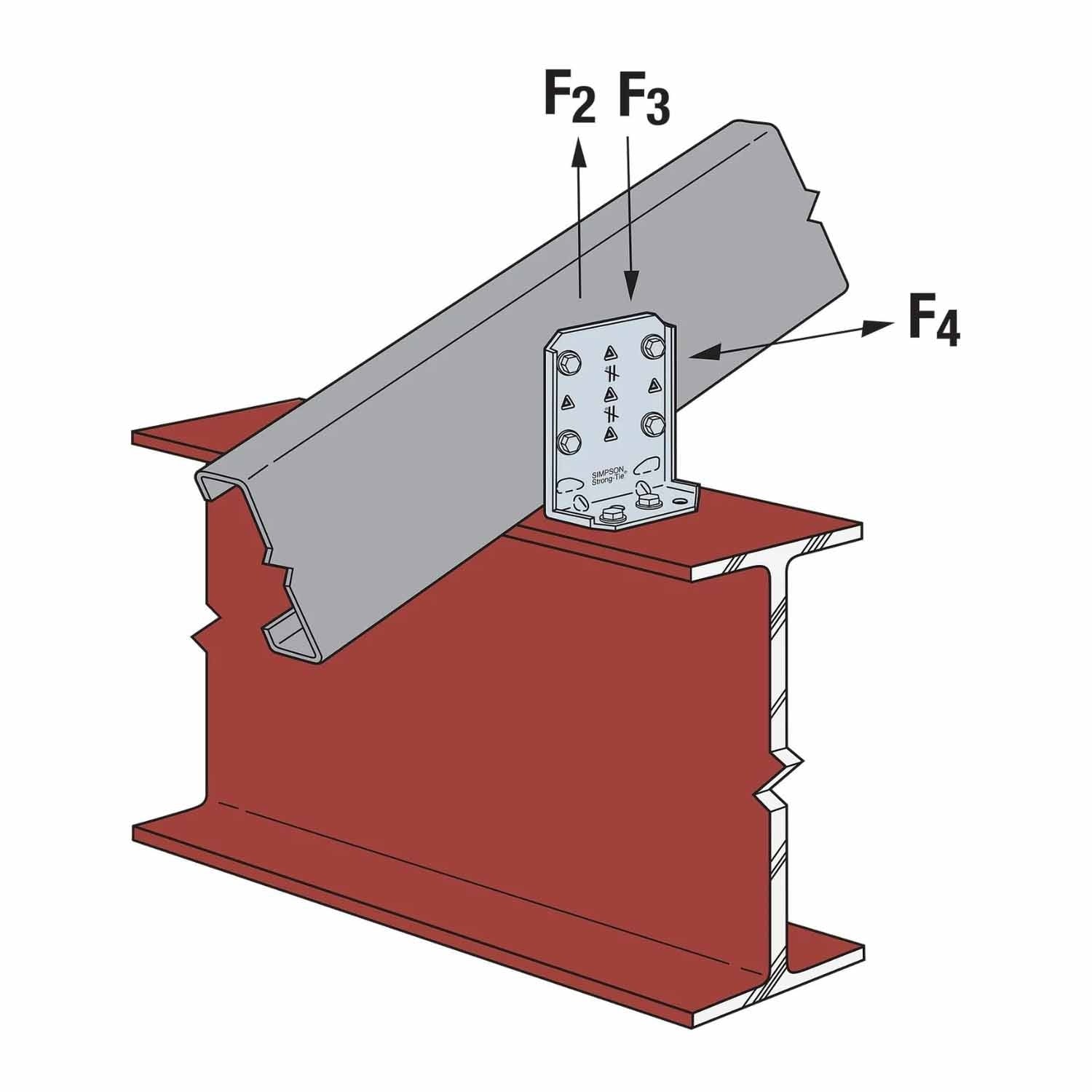

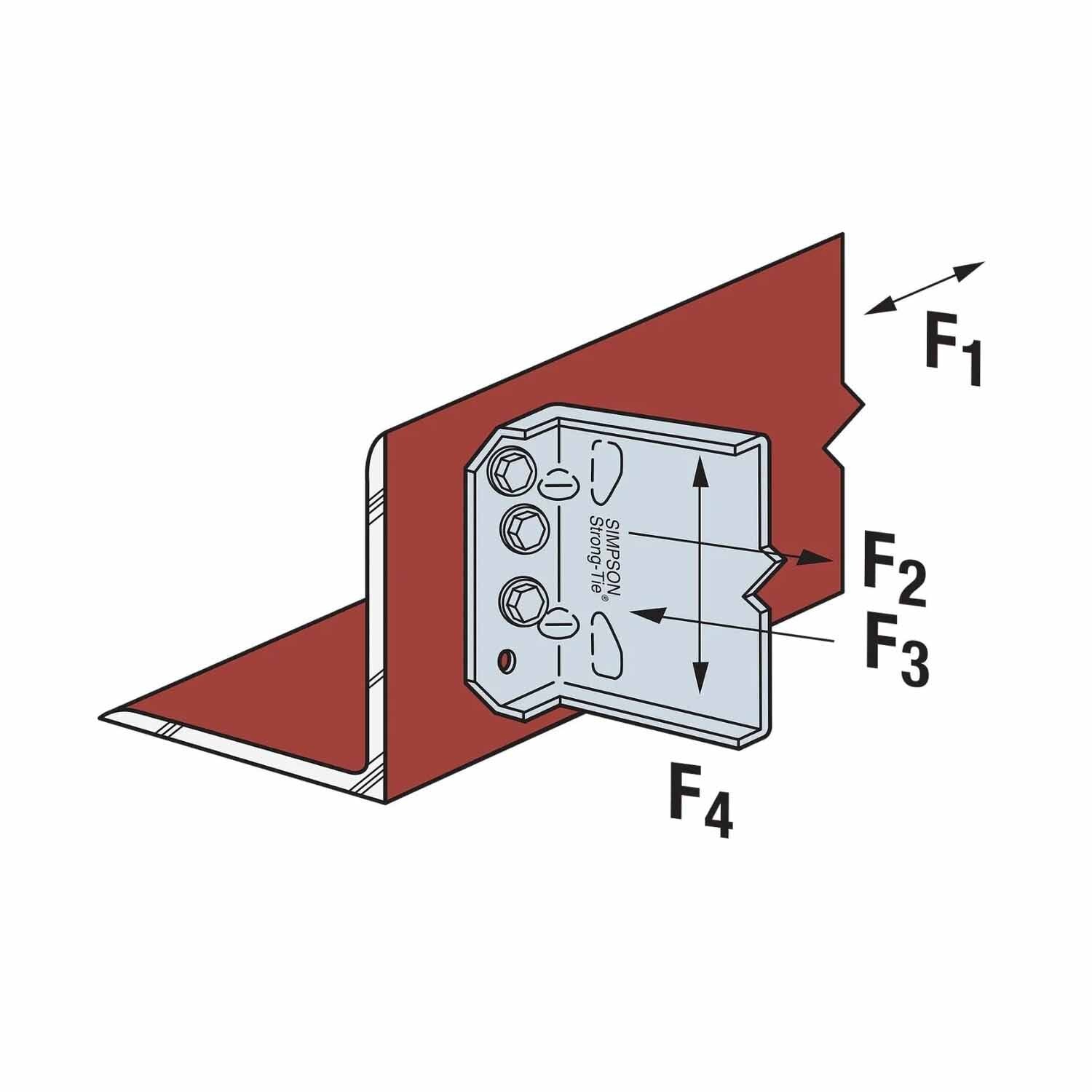

- Rated for tension, compression, shear, and in-plane loads
- Provides design flexibility with varying screw and anchorage patterns
- Strategically placed stiffeners, embossments, and anchor holes maximize connector performance
- G90 Galvanized finish for added corrosion resistance
Simpson FCB47.5-R25 Applications

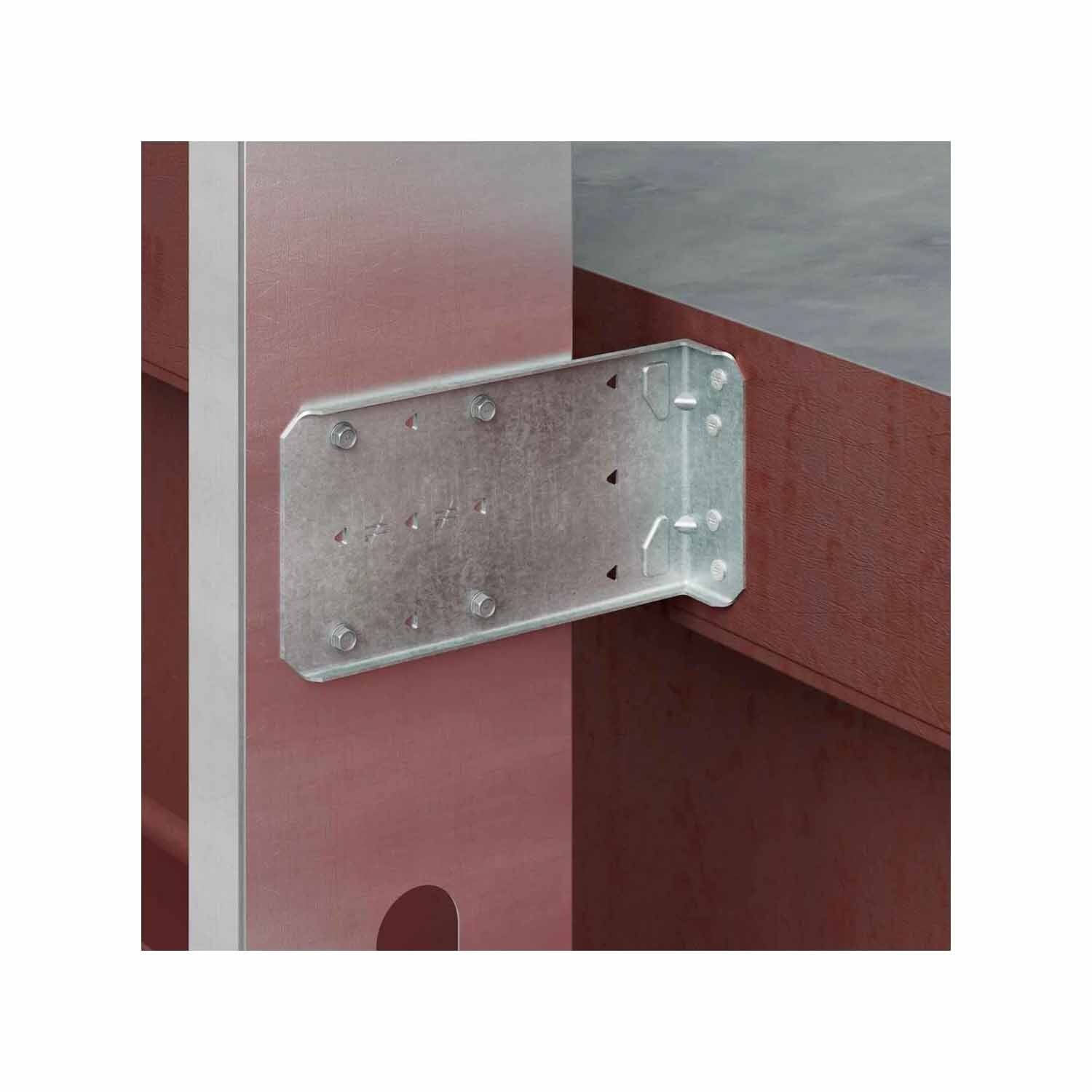

- Framing applications requiring tension, compression, and shear load support
- Bypass framing in cold-formed steel construction
- General structural support in residential and commercial buildings

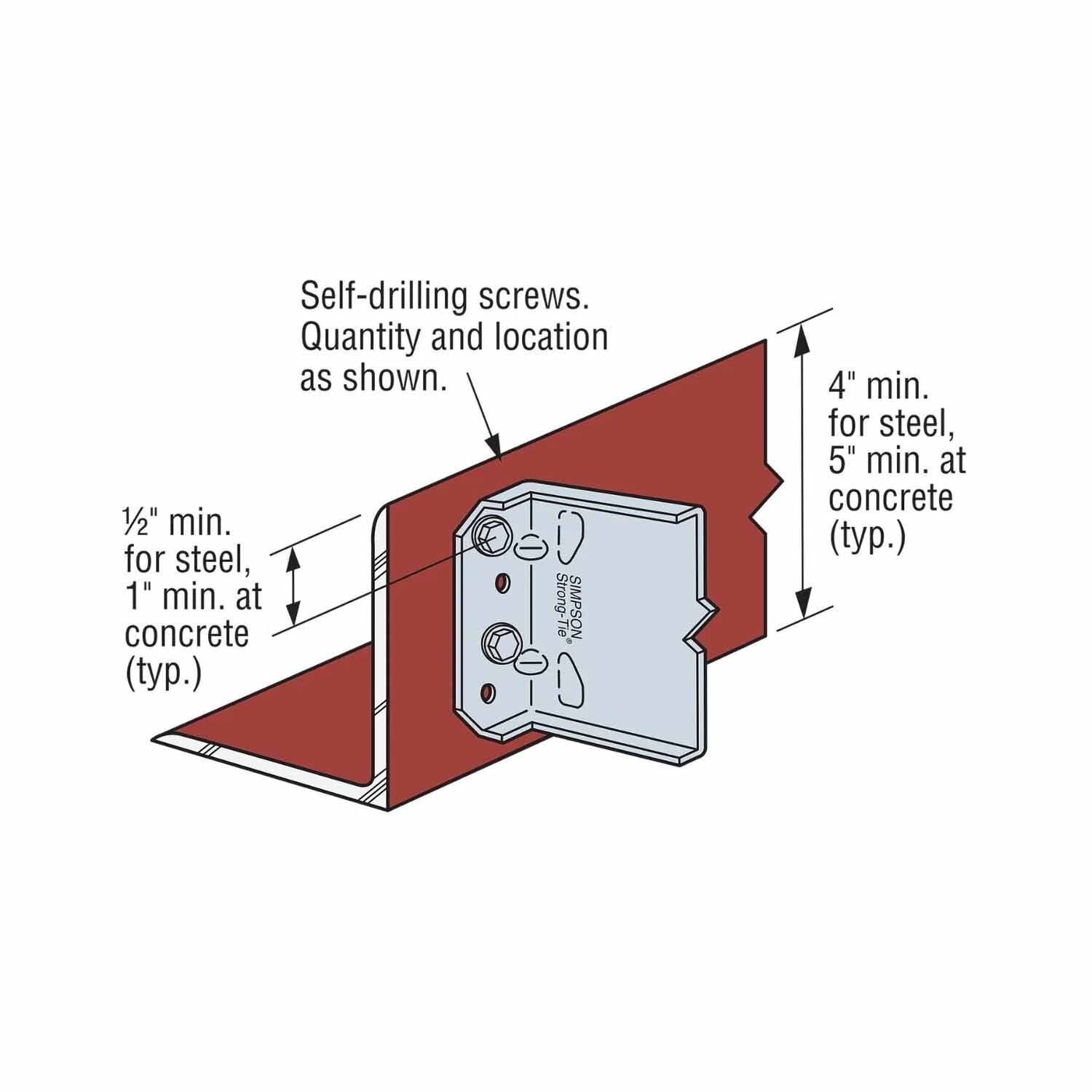

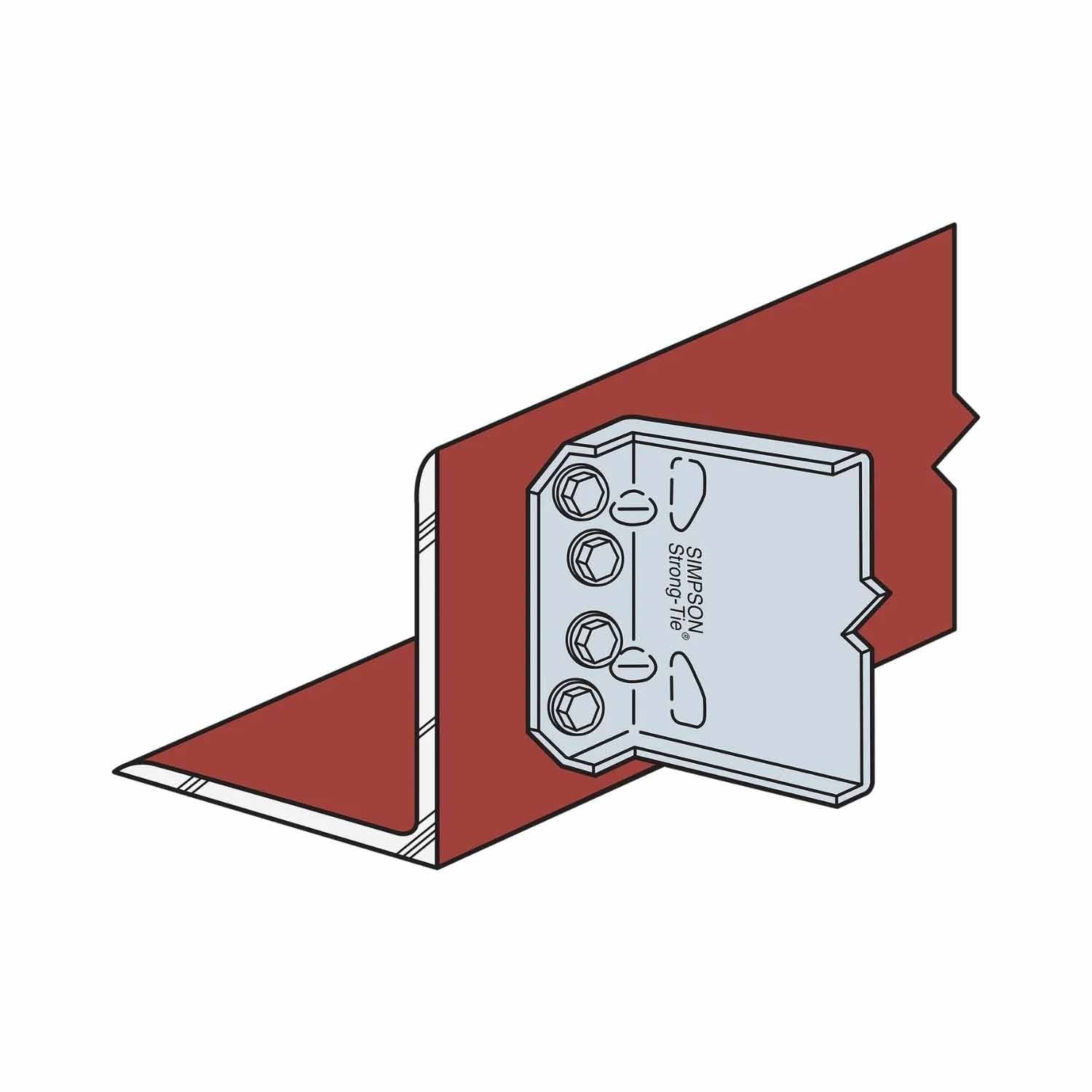

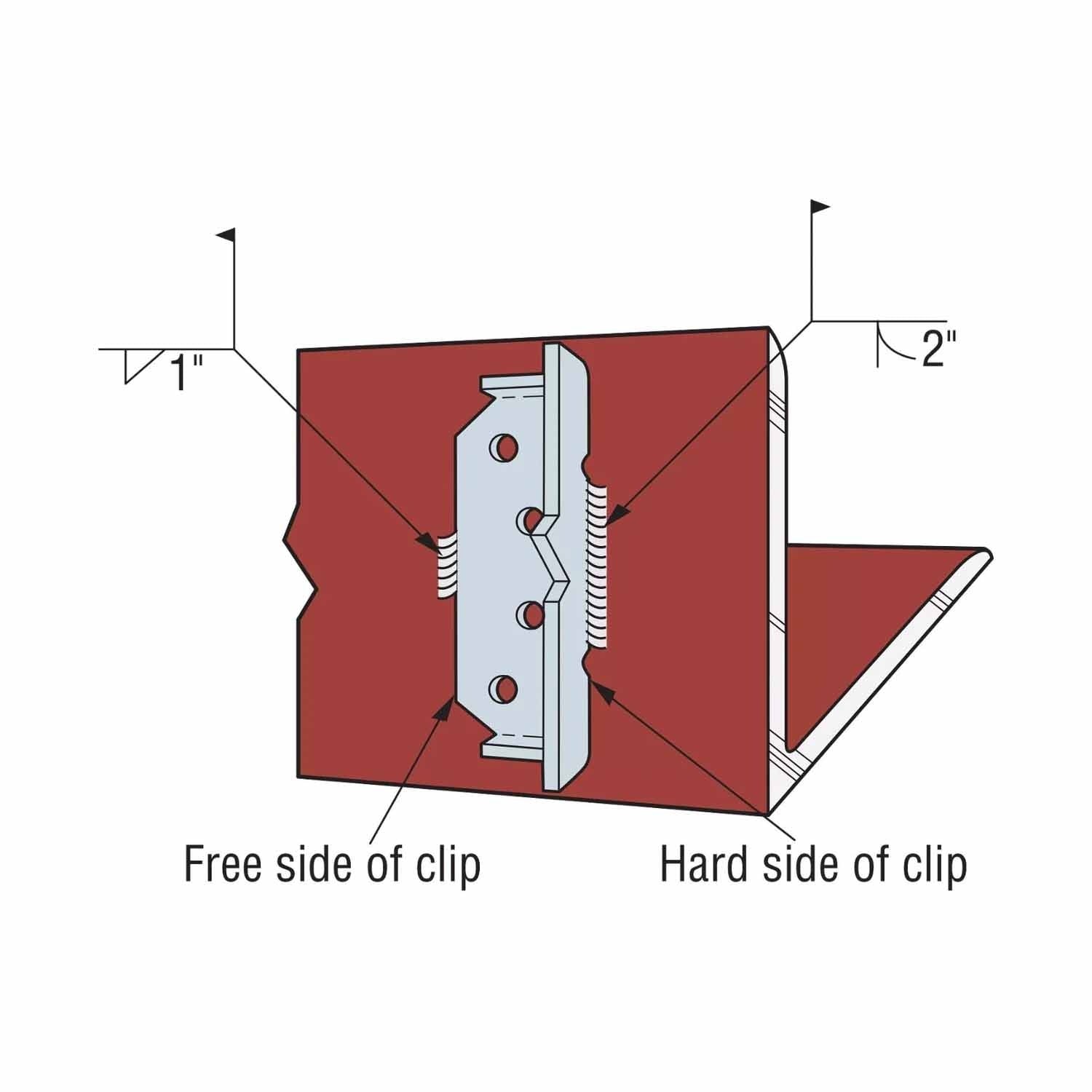

Simpson FCB47.5-R25 Installation Overview
- Use the specified type and number of anchors
- Use the specified number of #12 self-drilling screws to CFS framing
- For installations to wood framing, refer to Simpson Strong-Tie engineering letter

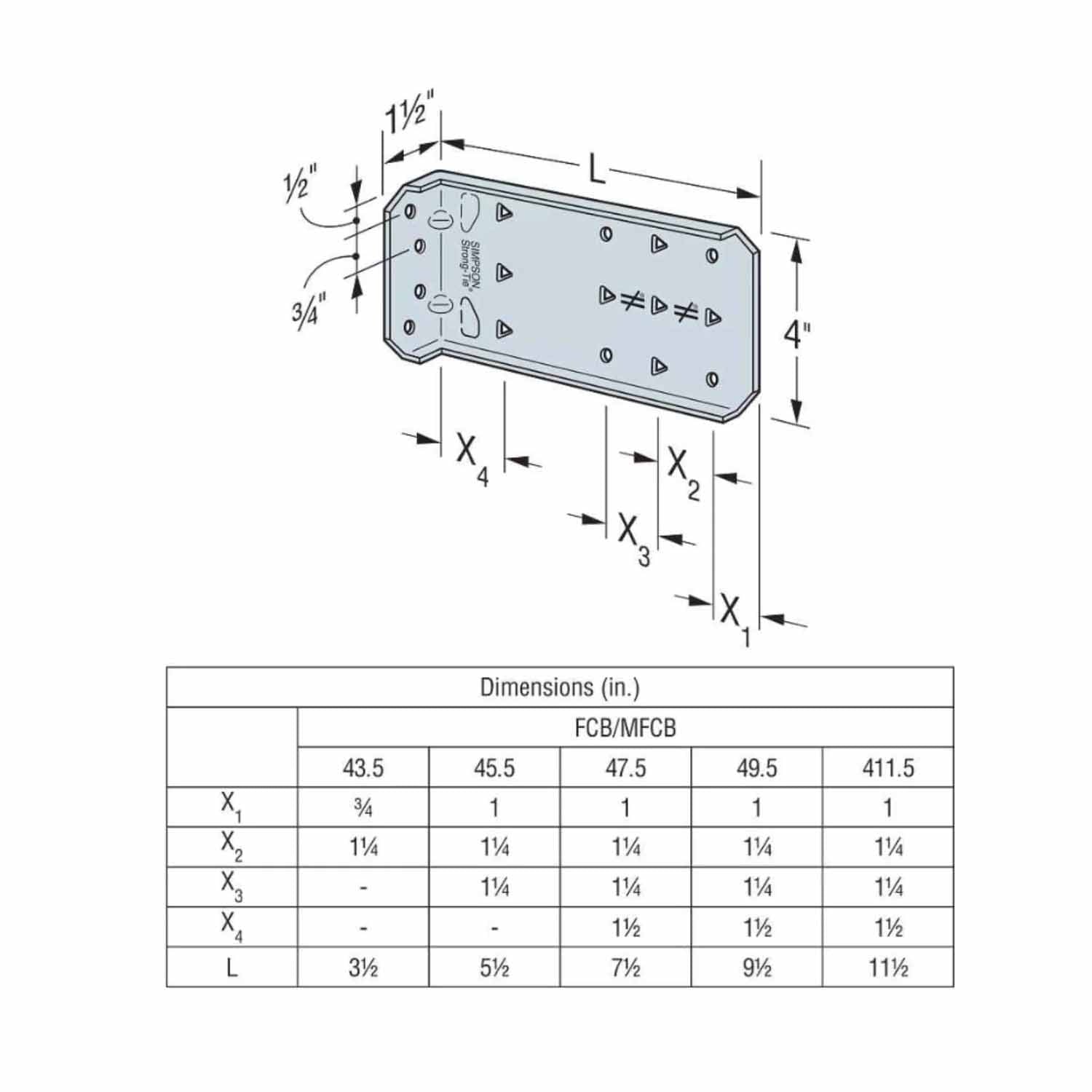

Simpson FCB47.5-R25 Specifications
| Finish | G90 Galvanized |
| Length | 7-1/2" |
| Height | 4" |
| Thickness | 54 mil (16 ga.) |
| Material | Zinc Galvanized |
| Packaging Quantity | 25 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
820776
