Simpson Strong-Tie FRFP Description

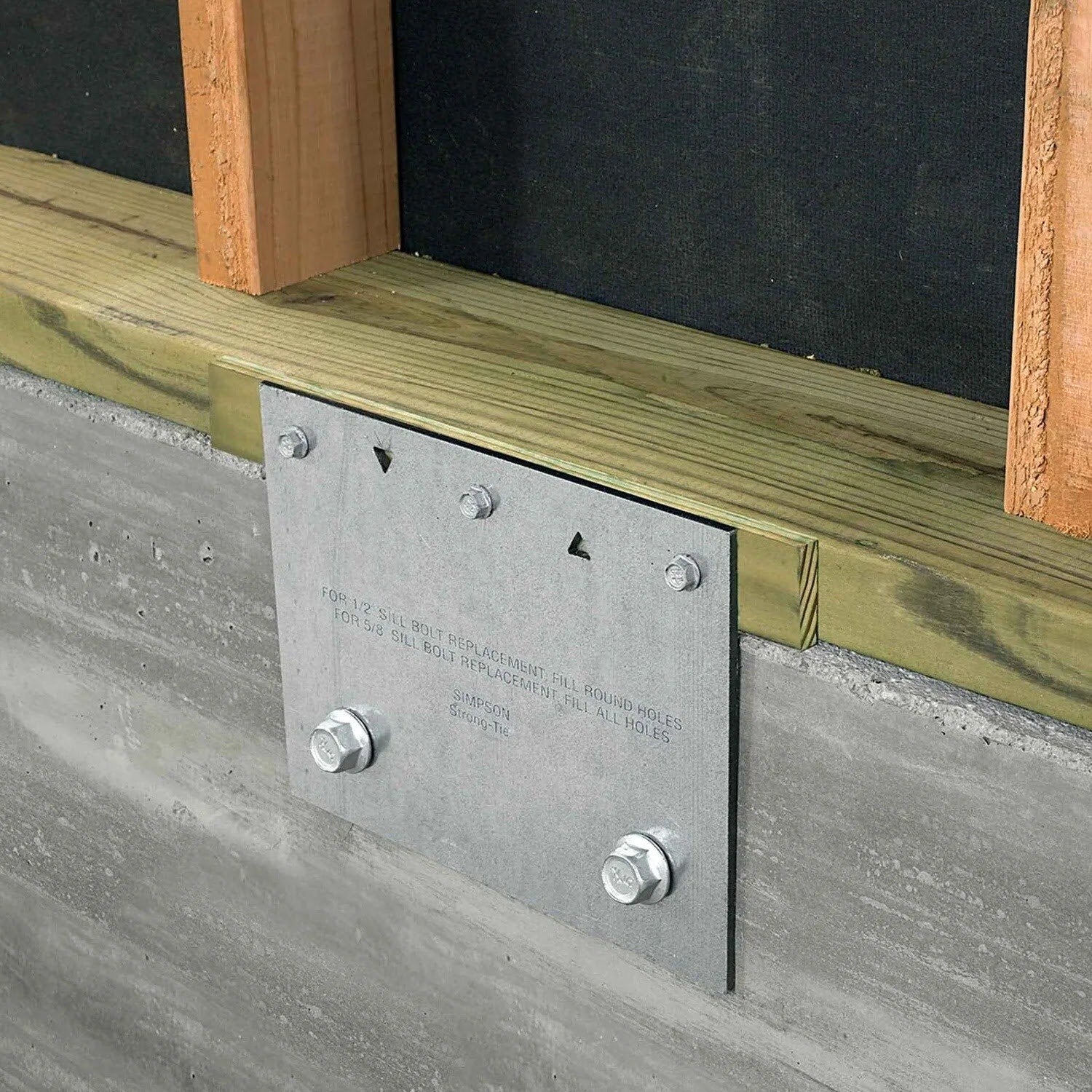

The FRFP flat retrofit foundation plate connects the mudsill to the foundation and provides lateral load resistance.
Simpson Strong-Tie FRFP Includes

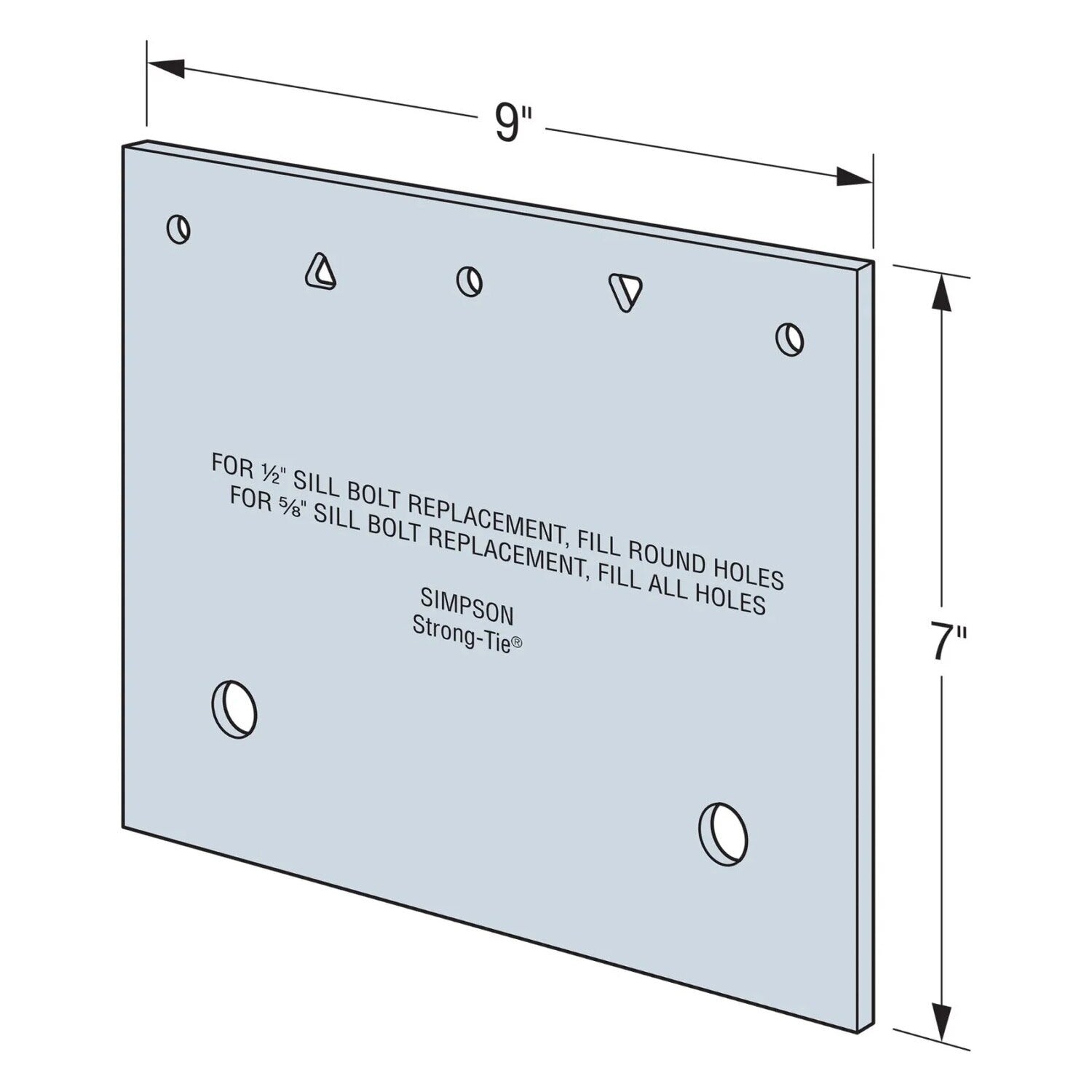

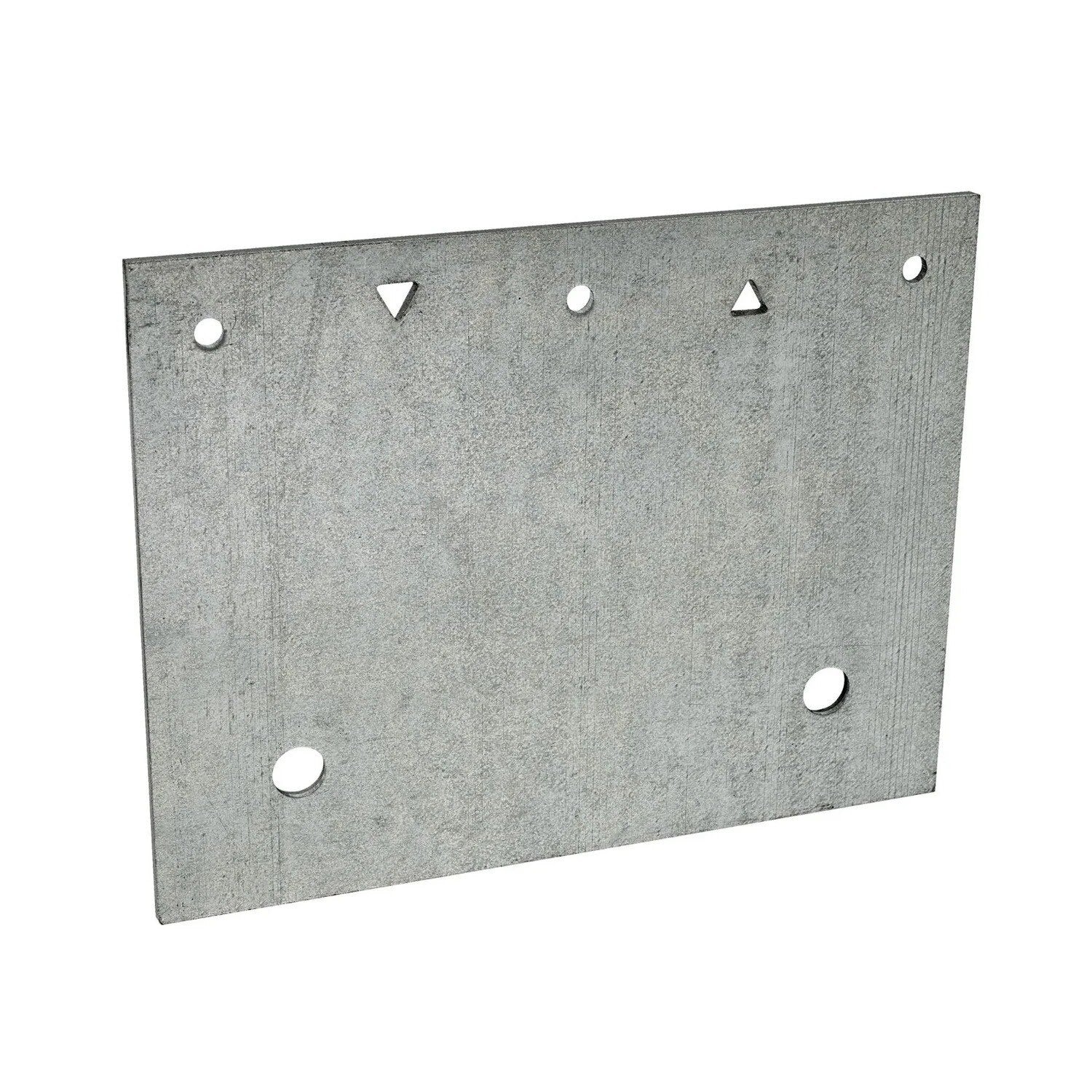

- (1) 7" x 9" Flat Retrofit Foundation Plate - G90 Galvanized
Simpson Strong-Tie FRFP Features
- Connects mudsill to foundation
- Provides lateral load resistance
- Allows for prescriptive requirements or increased loads with alternate hole filling
- Made with G90 Galvanized finish for durability
Simpson Strong-Tie FRFP Applications
- Foundation reinforcement
- Mudsill connection
- Lateral load resistance in construction

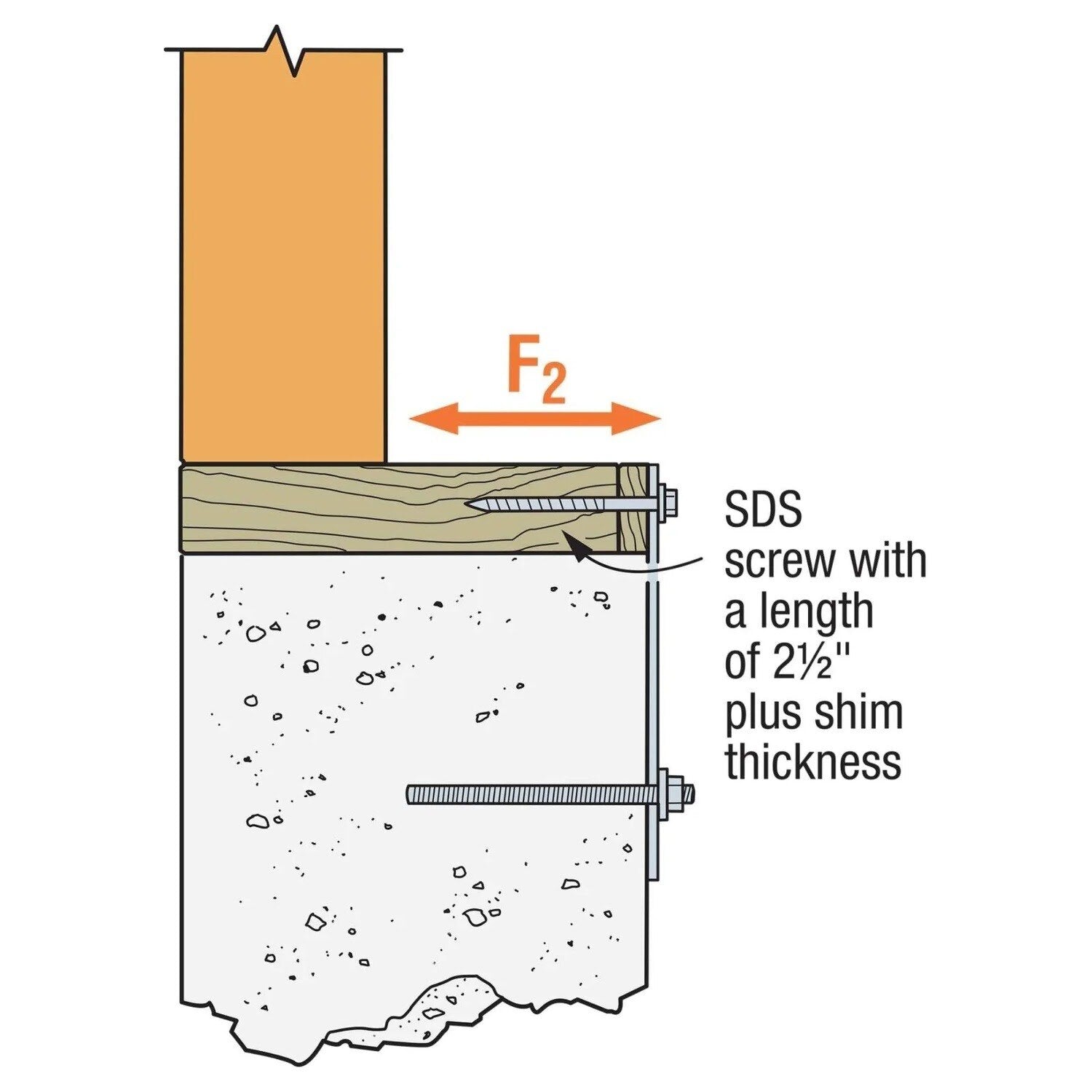

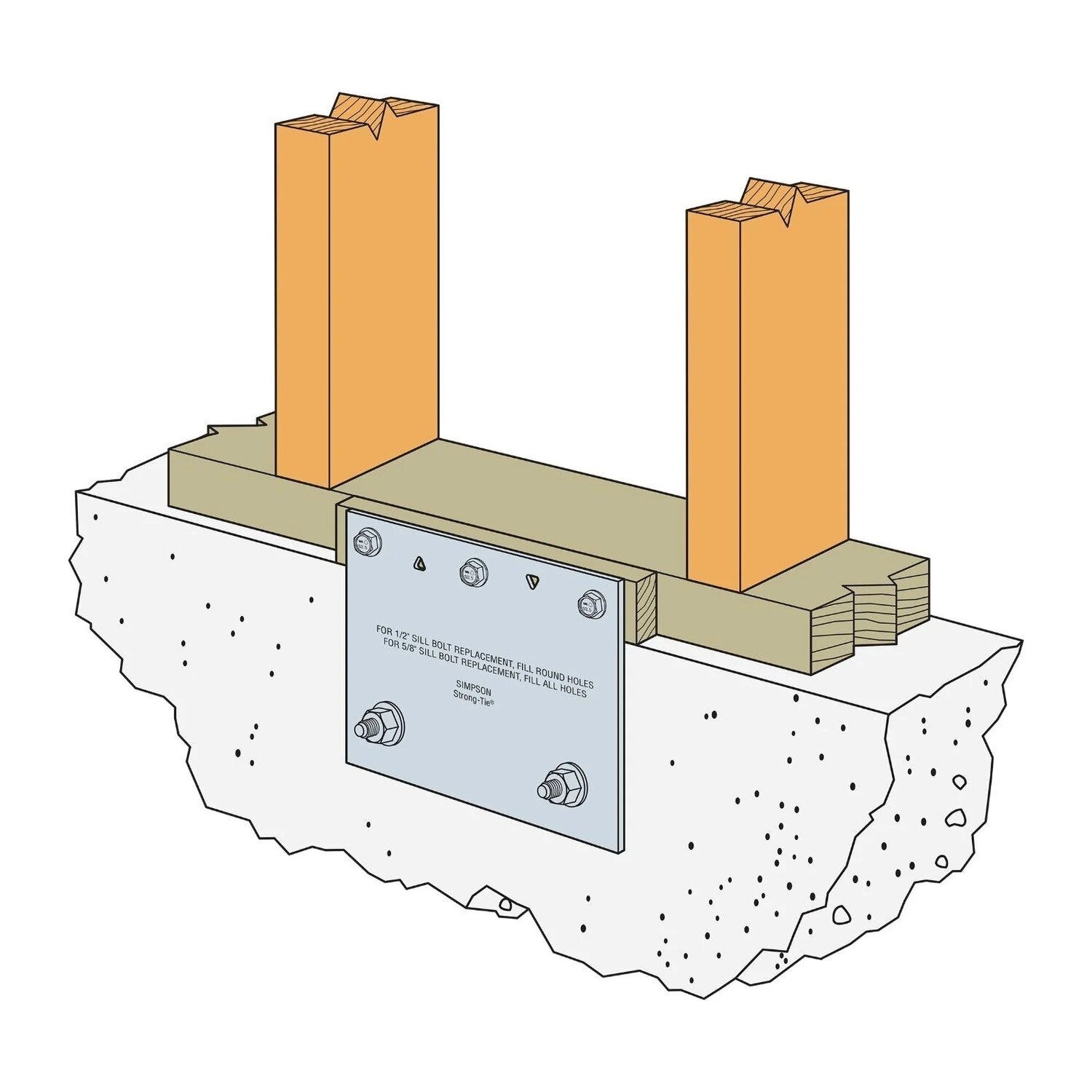

Simpson Strong-Tie FRFP Installation Overview
- Position the plate on the foundation and mudsill.
- Fill three holes for prescriptive requirements or two triangle holes for increased loads.
- Secure using the specified fasteners as per the product guide.
Simpson Strong-Tie FRFP Specifications
| Finish | G90 Galvanized |
| Weight | 4.0 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
