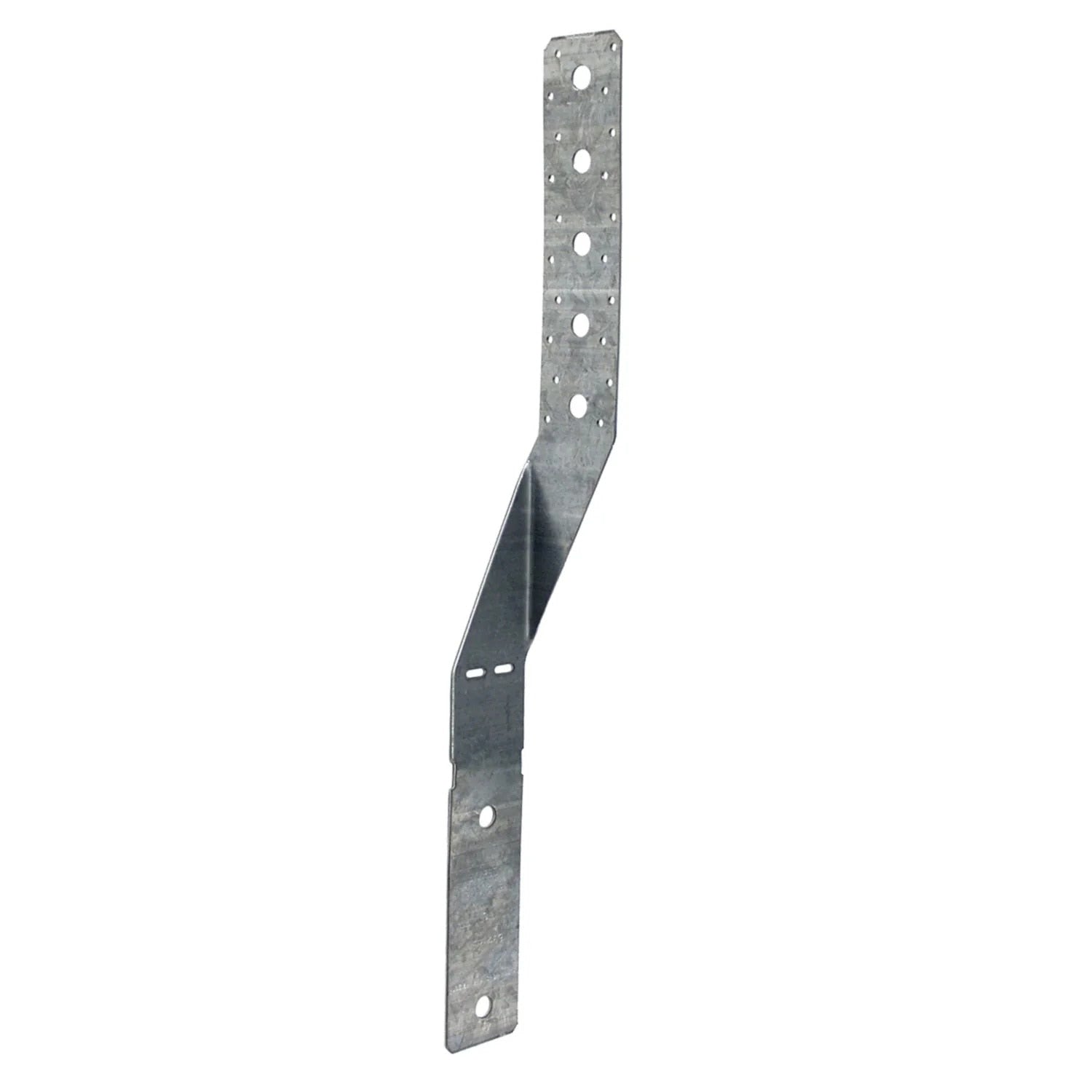

Simpson Strong-Tie FSA Description
The FSA Foundation Stud Anchor provides a direct connection between the foundation and a stud or joist, designed to resist uplift and accommodate light- or heavy-duty projects.
Simpson Strong-Tie FSA Includes
- (1) Foundation Stud Anchor G90 Galvanized
Simpson Strong-Tie FSA Features

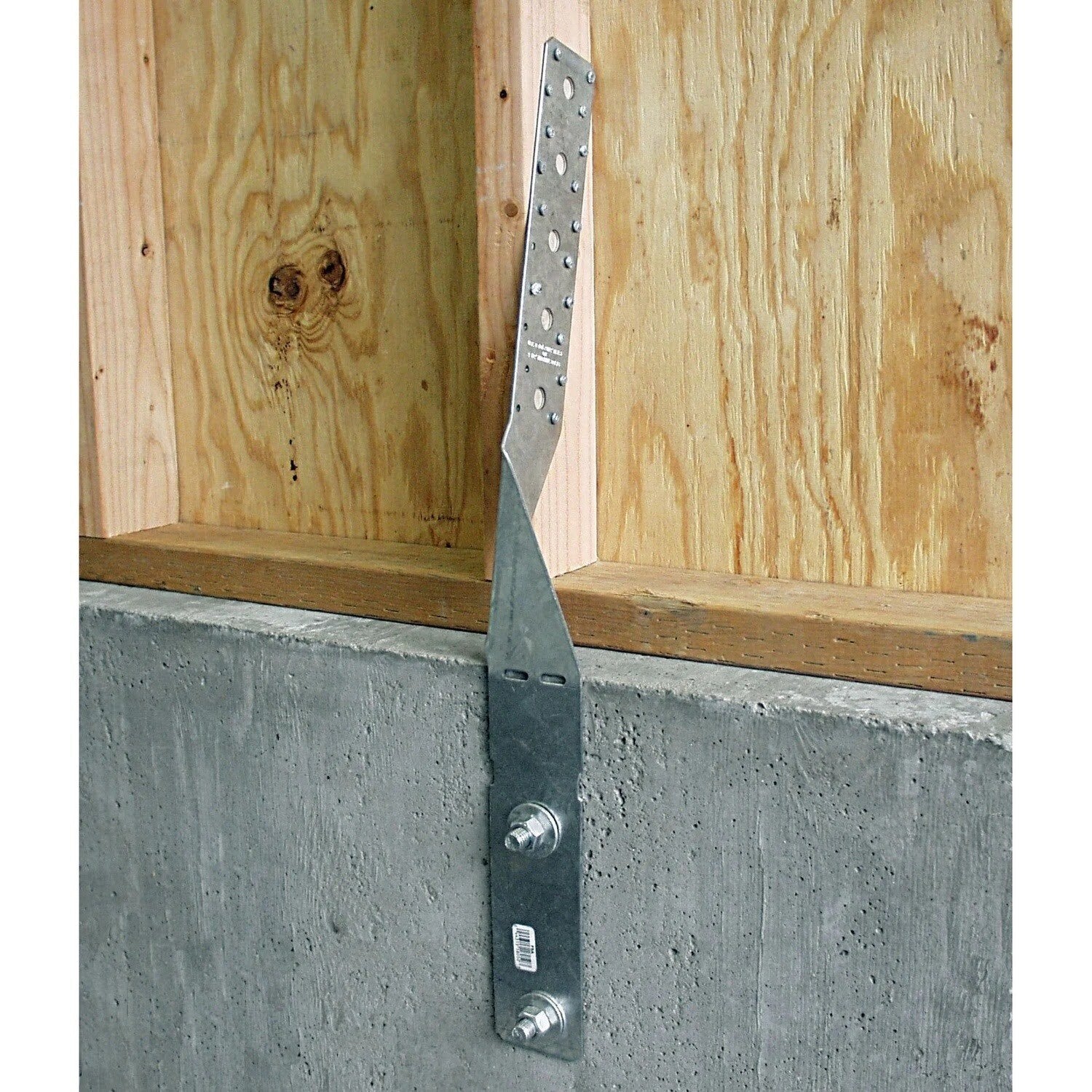

- Connects a joist or stud to a floor or a foundation
- May be bent, one time only, along bend line up to 20° to accommodate installation
- Increased loads for wind or seismic forces
- Install with 0.148 x 1 1/2" nails or 1/2"-diameter anchor bolts
Simpson Strong-Tie FSA Applications
- Foundation anchoring for raised floors
- Securing joists or studs to resist uplift
- Suitable for light- or heavy-duty projects
Simpson Strong-Tie FSA Installation Overview
- Position the anchor to align with the stud or joist.
- Secure using specified nails or bolts.
- Bend along the bend line if necessary, up to 20°.
Simpson Strong-Tie FSA Specifications
| Finish | G90 Galvanized |
| Length | 25-1/2" |
| Fasteners required | See Spec Sheet |
| Thickness | 12 Gauge |
| Width | 2-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
822804
