Simpson Strong-Tie FSS Furring Stabilizer Strap - G90 Galvanized
$1.11
Unit price
/
Unavailable
Description
Description
Furring Stabilizer Strap Description
The FSS Furring Stabilizer Strap is designed to provide a 1" separation between the furring channel and joist, allowing for the use of Thermafiber insulation and attachment of the furring channel to all joists.
Furring Stabilizer Strap Includes
- (1) Furring Stabilizer Strap
Furring Stabilizer Strap Features
- Field-bent design to accommodate application conditions
- Provides an efficient sound barrier
- One-hour UL-listed fire rating
Furring Stabilizer Strap Applications
- I-Joist: Provides stabilization and separation for furring channels
- Thermafiber insulation: Facilitates installation and attachment
- General wood construction: Enhances structural integrity
Furring Stabilizer Strap Installation Overview
- Fasten FSS to channel with #8 self-tapping steel screw (not provided)
- Twist 90 degrees
- Bend upward and fasten to the side of joist bottom flange with screw or nail

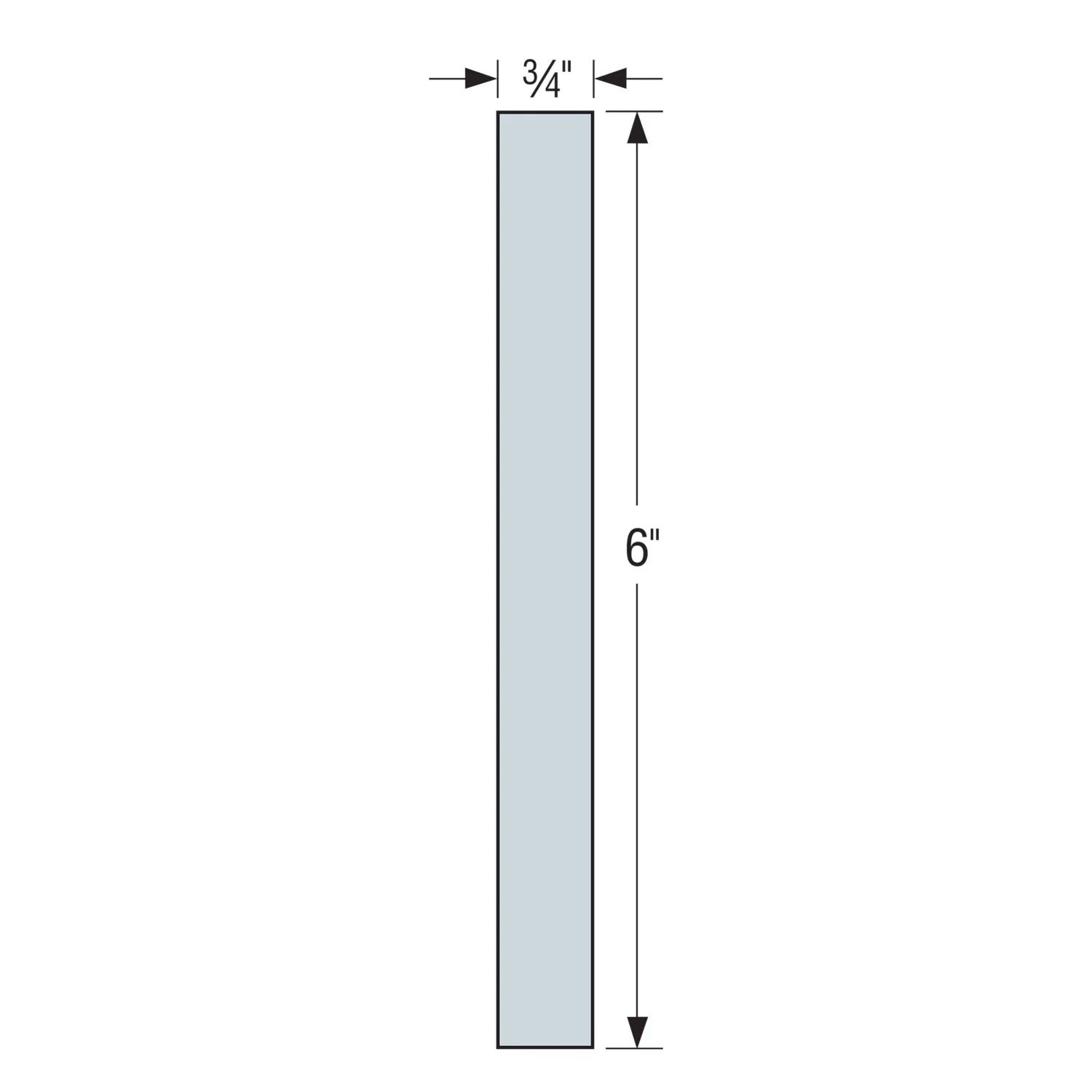

Furring Stabilizer Strap Specifications
| Finish | G90 Galvanized |
| Length | 6" |
| Thickness | 22 Gauge |
| Width | 3/4" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
