Simpson GBC Description

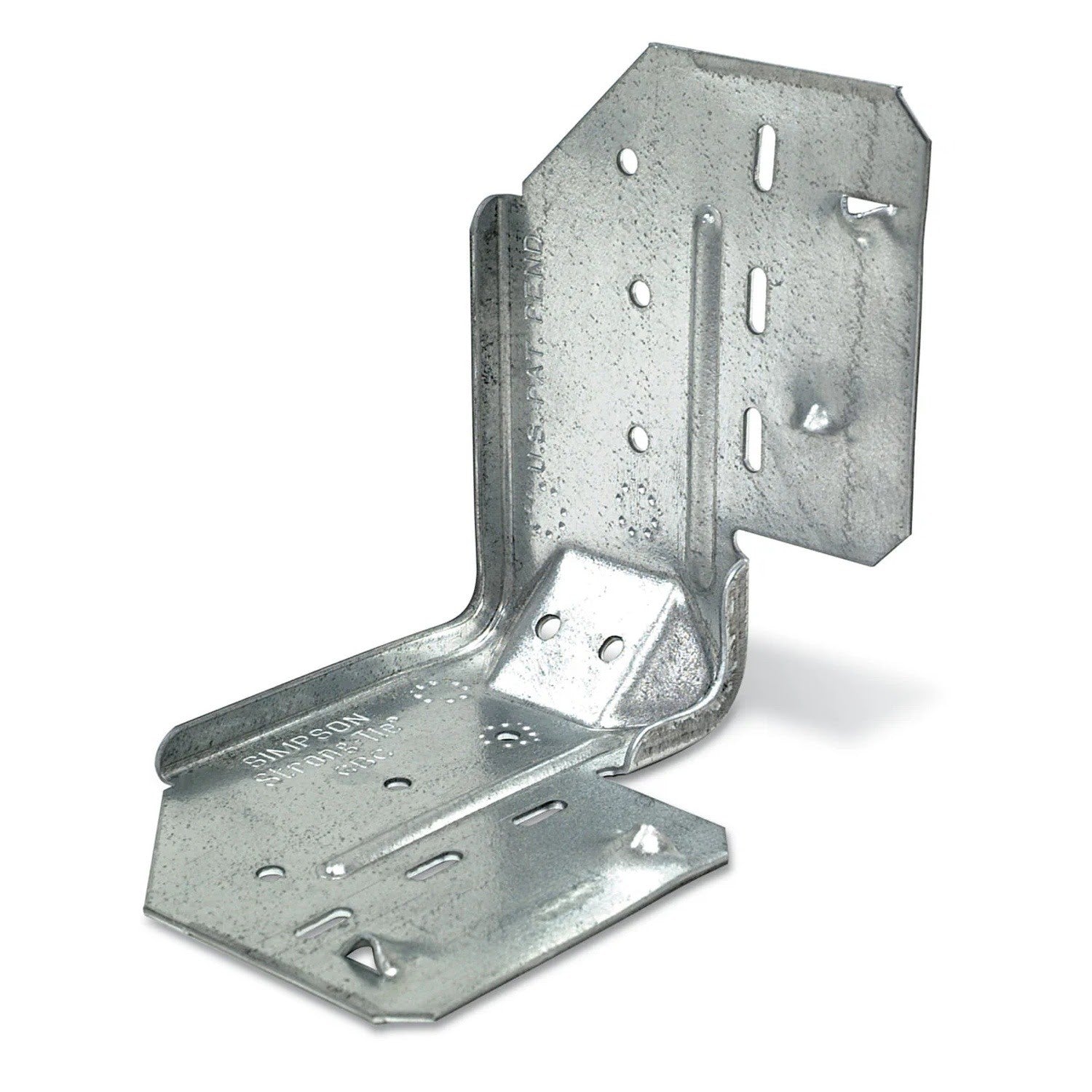

The GBC Gable Brace Connector provides a tested solution for anchoring building stability bracing to the top of gable end walls, accommodating bracing angles between 40 and 60 degrees.
Simpson GBC Includes
- (1) Gable Brace Connector
Simpson GBC Features
- Rated for tension and compression loads
- Allows bracing installation angles between 40° and 60°
- Constructed with G90 galvanized finish for durability
Simpson GBC Applications

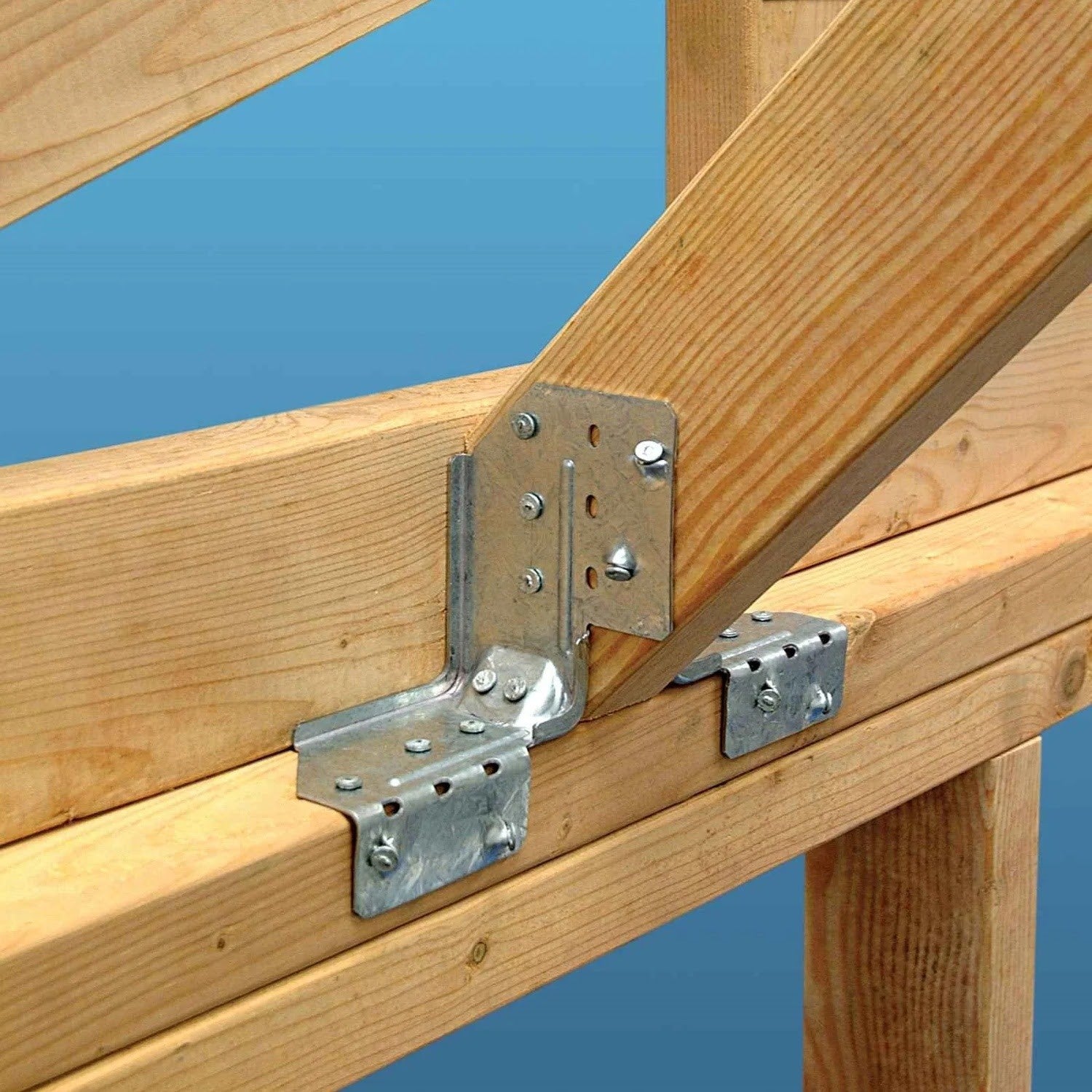

- Anchoring building stability bracing to gable end walls
- Providing structural support in tension and compression scenarios

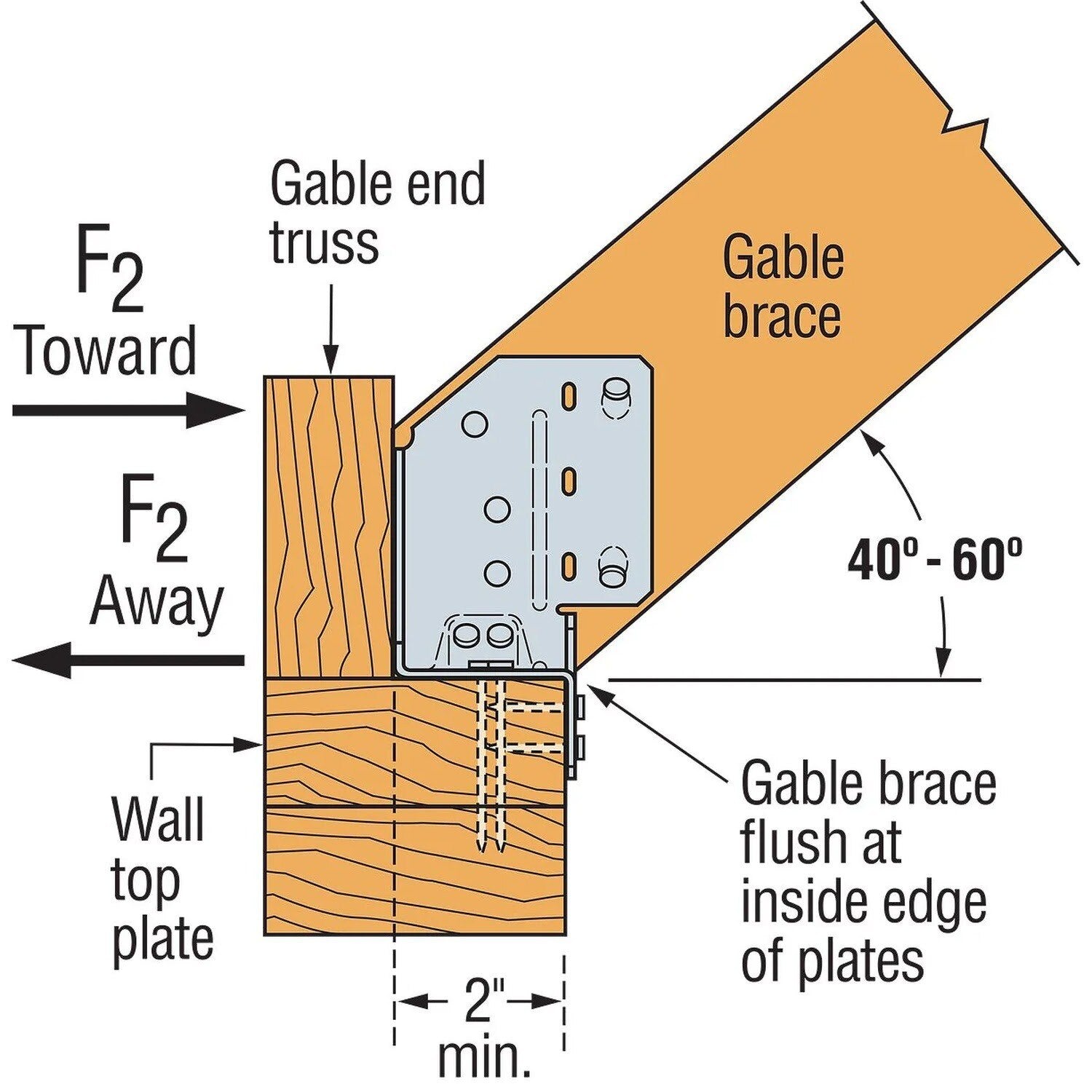

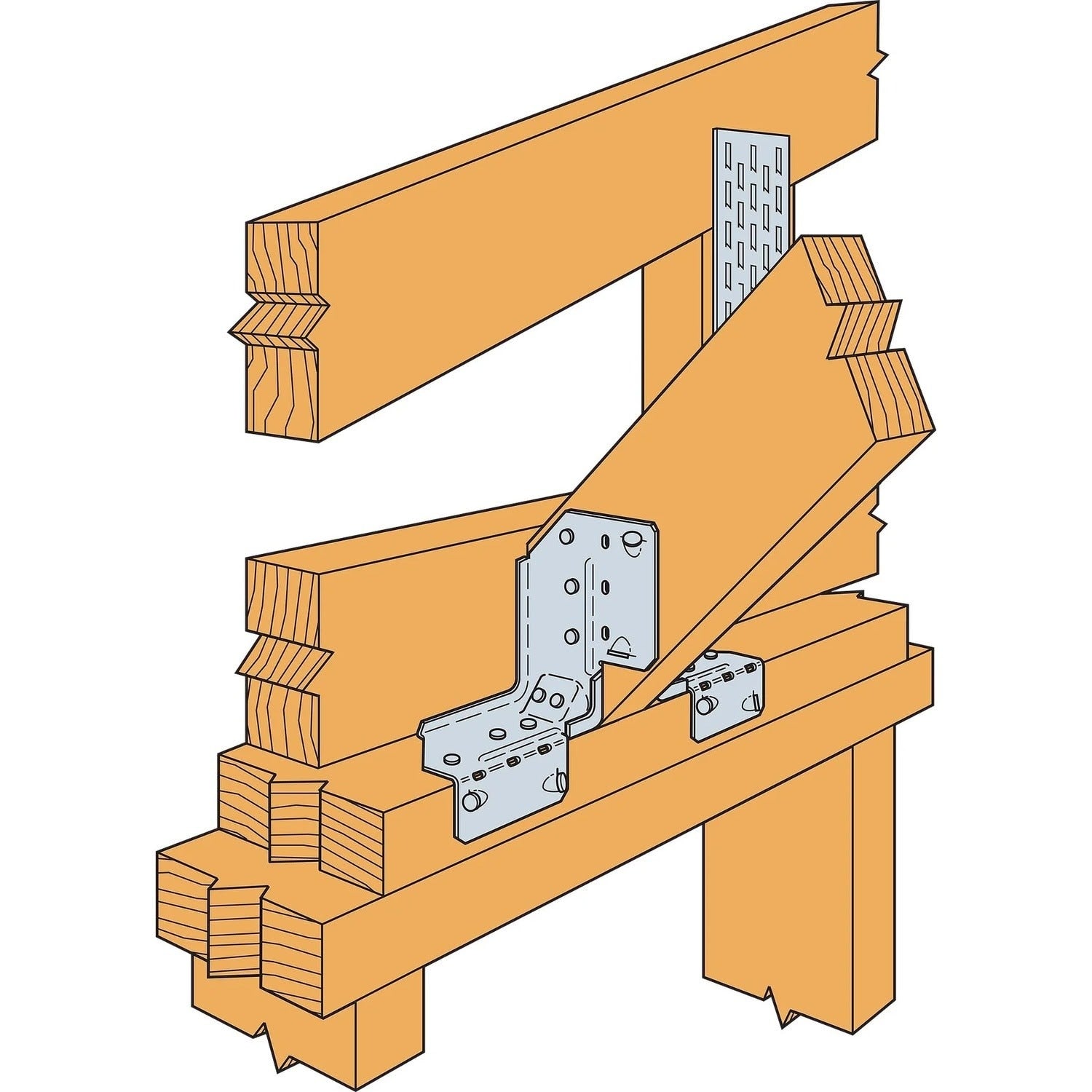

Simpson GBC Installation Overview
- Position the GBC connector at the top of the gable end wall.
- Secure using specified nails for gable brace and joist connections.
- Ensure bracing installation angles are between 40° and 60°.

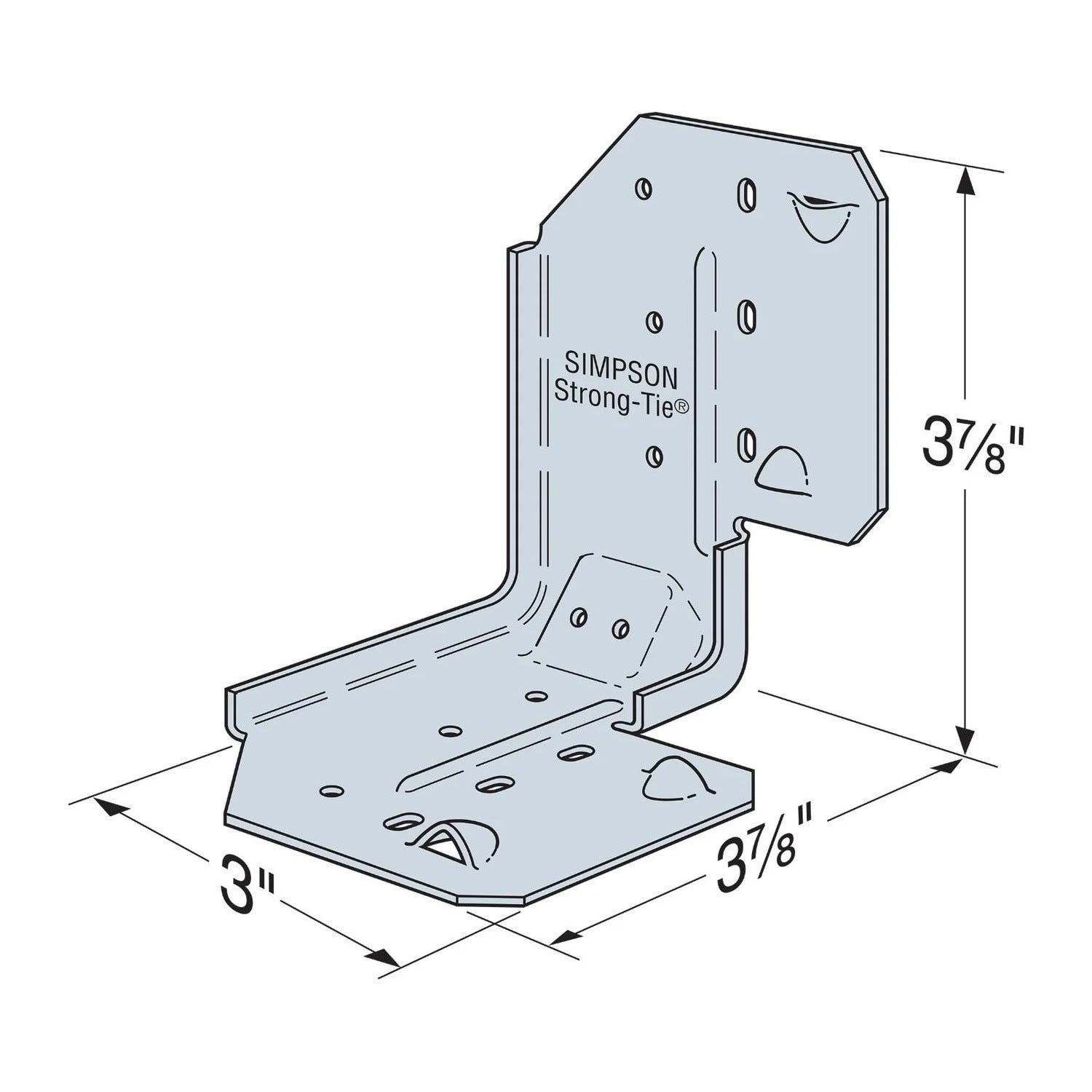

Simpson GBC Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Fasteners Required | Gable Brace - (5) 0.131 x 1-1/2" Nails, Joist - (7) 0.131 x 2-1/2" Nails |
NOTE: Ensure proper fasteners are used in the correct positions to achieve published load values
