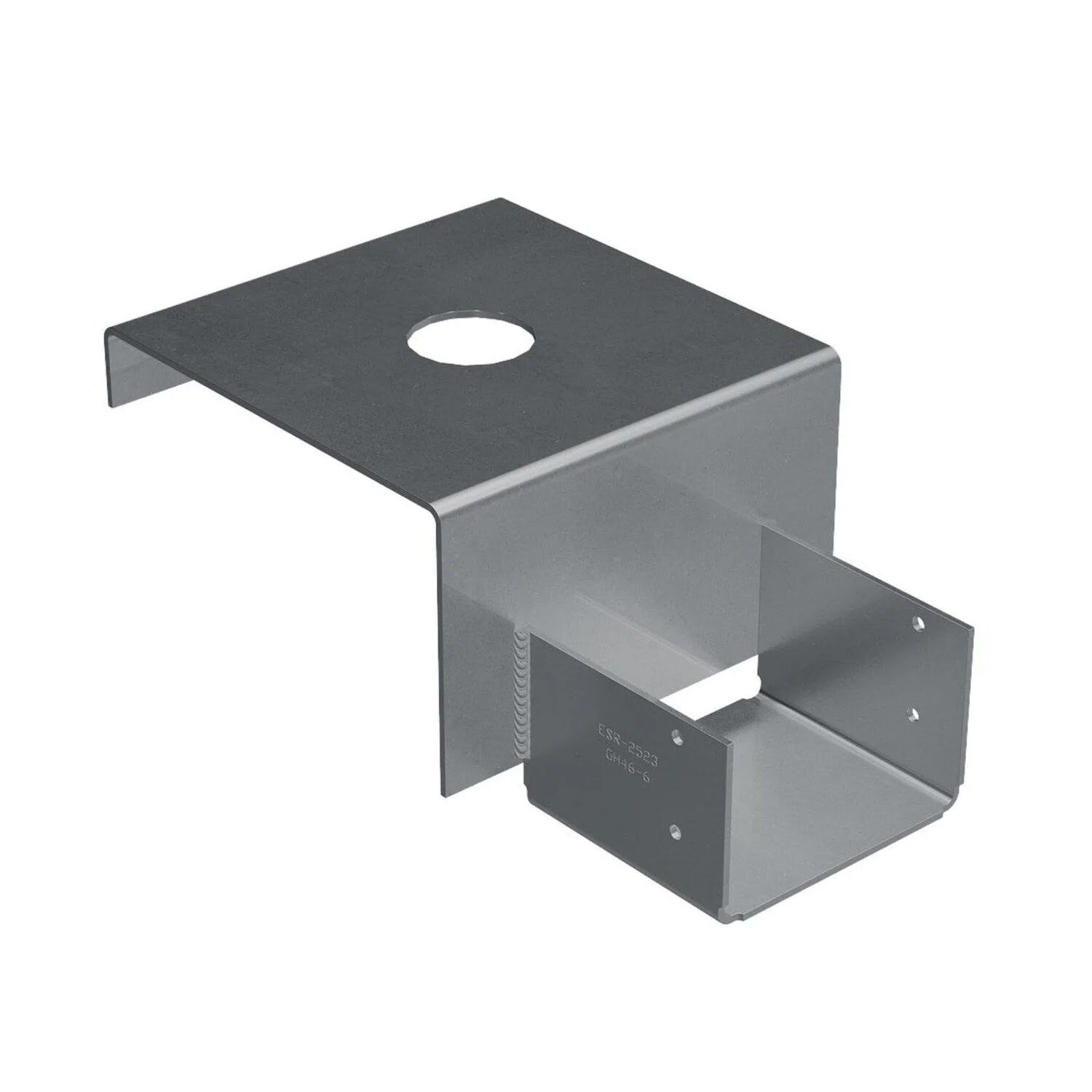

Simpson Strong-Tie GH46-6 Description
The Simpson Strong-Tie GH Top-Flange Girder Hanger is designed to securely connect girders to foundation walls, ensuring structural integrity in wood construction projects.
Simpson Strong-Tie GH46-6 Includes
- (1) GH Top-Flange Hanger for 4x6 Girder, 6-in. Foundation Wall
Simpson Strong-Tie GH46-6 Features
- Manufactured from 12-gauge steel for durability and strength
- Standard Simpson Strong-Tie gray paint finish with optional hot-dip galvanized coating for corrosion resistance
- Capable of being skewed up to 45° with a bevel cut, maintaining load capacity
Simpson Strong-Tie GH46-6 Applications
- Wood construction projects requiring secure girder-to-foundation wall connections
- Structural framing in residential and commercial buildings

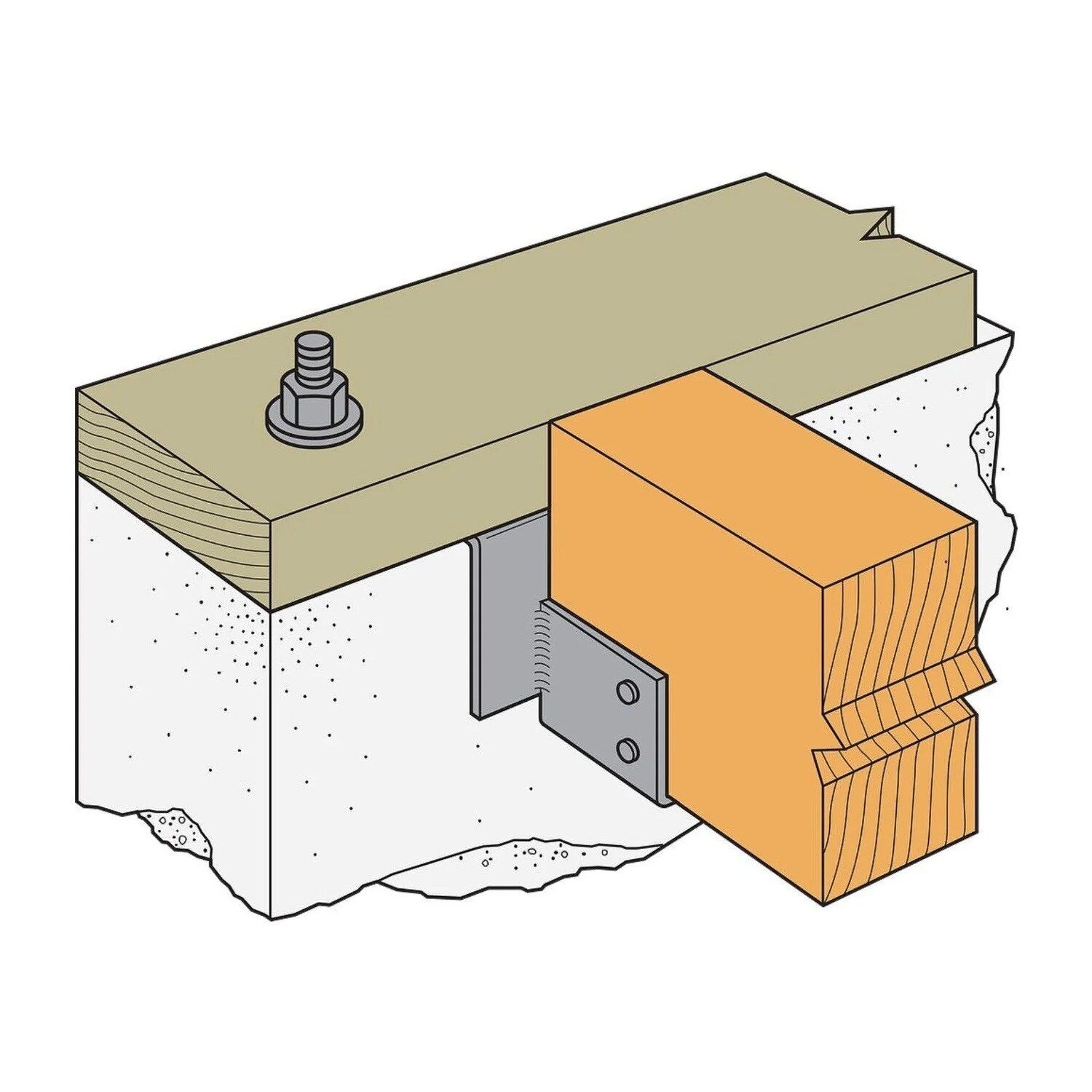

Simpson Strong-Tie GH46-6 Installation Overview
- Use all specified fasteners as per guidelines
- Install four 0.162" x 3 1/2" nails into the girder
- Ensure girder height minus mudsill thickness for proper alignment
- Optional clearance hole for rebar or anchor

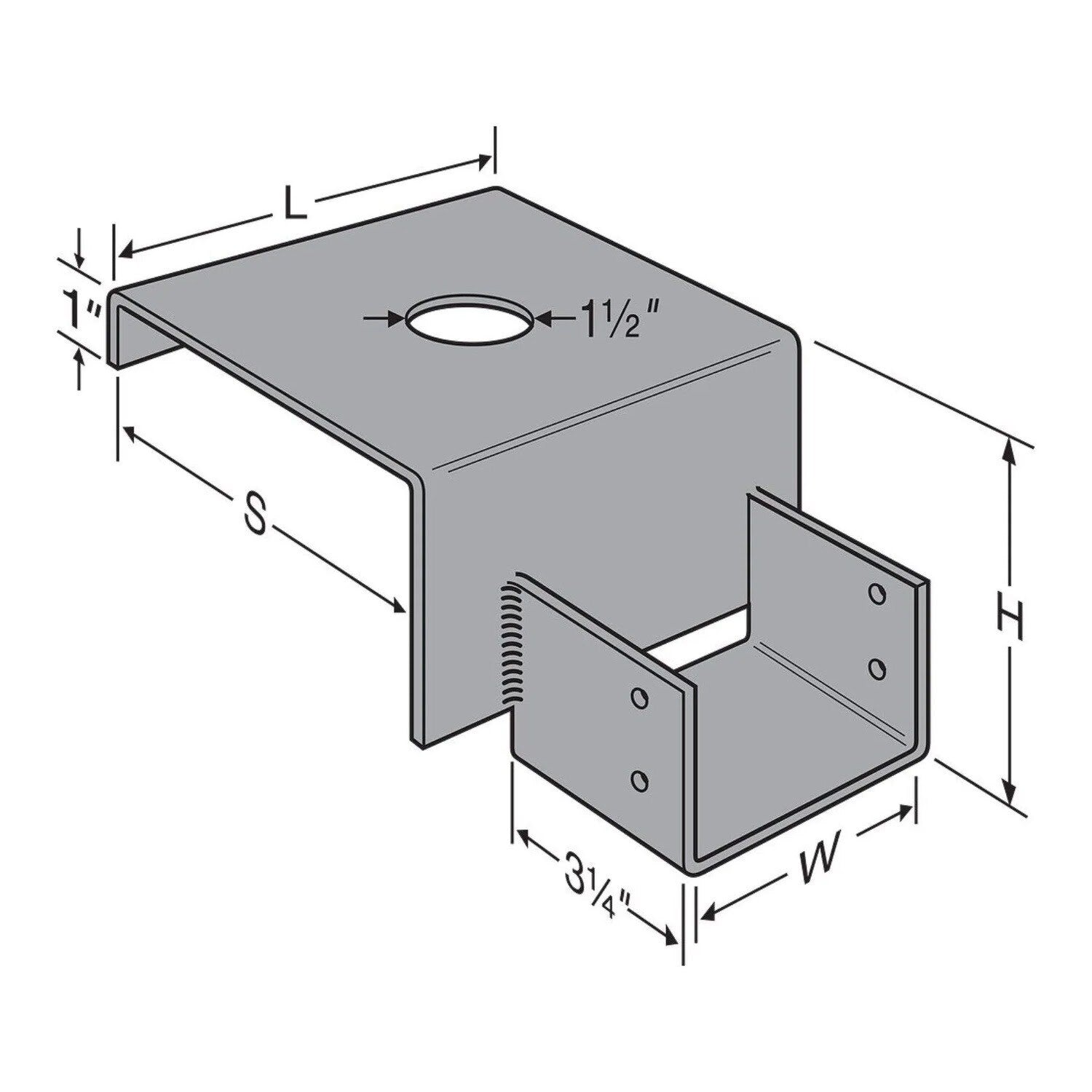

Simpson Strong-Tie GH46-6 Specifications
| Material | Carbon Steel |
| Joist size | 4" X 6" |
| Thickness | 12 Gauge |
| Finish | Simpson Strong-Tie gray paint; optional hot-dip galvanized |
NOTE: This item is made to order and is non-returnable.
