Simpson Strong-Tie GH48-6 Description

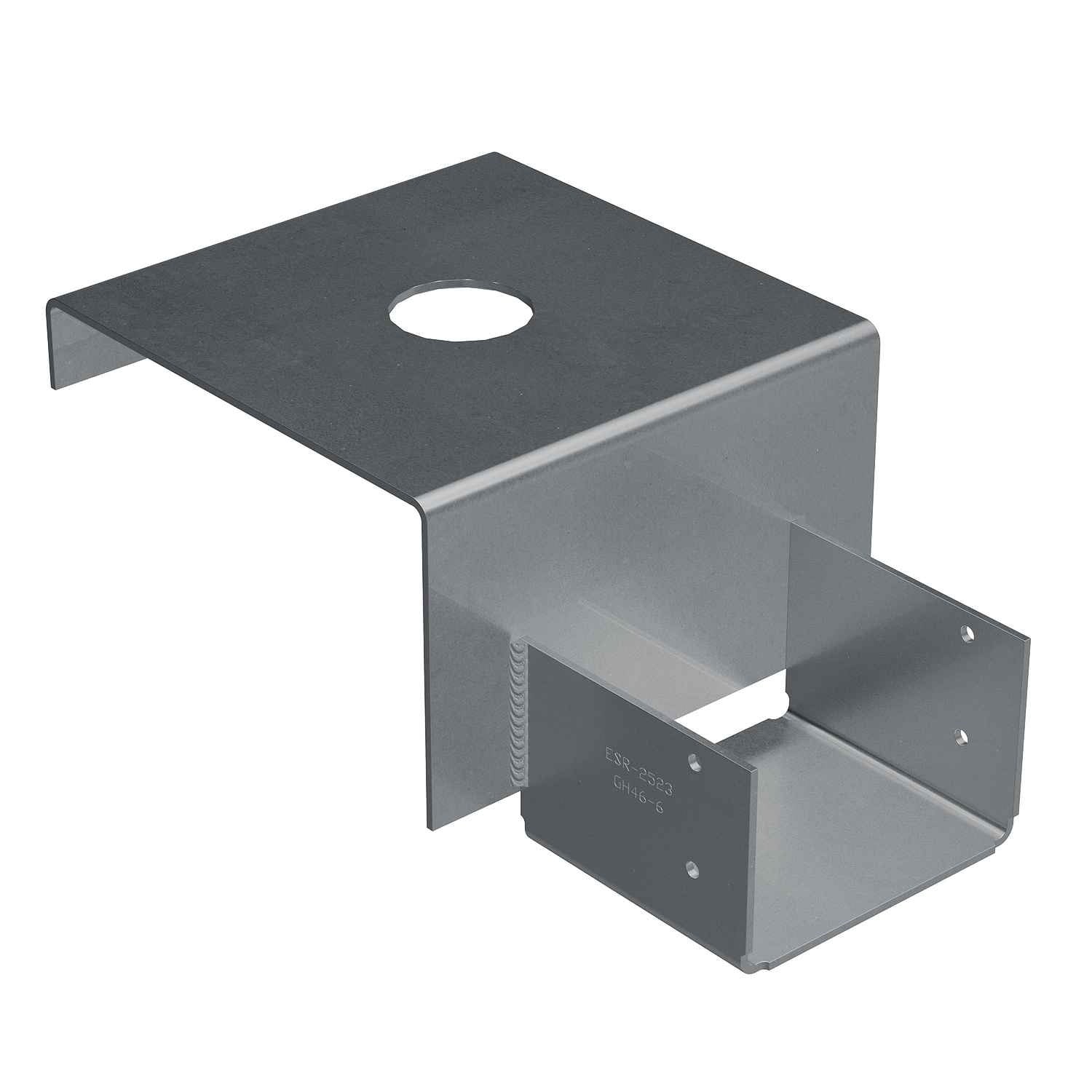

The GH48-6 is a top-flange hanger designed for connecting 4x8 girders to 6-inch foundation walls, offering reliable support and durability.
Simpson Strong-Tie GH48-6 Includes
- (1) GH48-6 Top-Flange Hanger
Simpson Strong-Tie GH48-6 Features
- Top-flange design for secure girder-to-foundation wall connections
- Compatible with 4x8 girders
- Made from 12-gauge steel for strength and durability
- Available in gray paint or hot-dip galvanized finish for corrosion resistance
- Can be skewed up to 45° with bevel cut
Simpson Strong-Tie GH48-6 Applications
- Concrete foundation wall connections
- Structural support for 4x8 girders
- Construction projects requiring durable girder hangers
Simpson Strong-Tie GH48-6 Installation Overview
- Use all specified fasteners as per guidelines.
- Install four 0.162" x 3-1/2" nails into the girder.

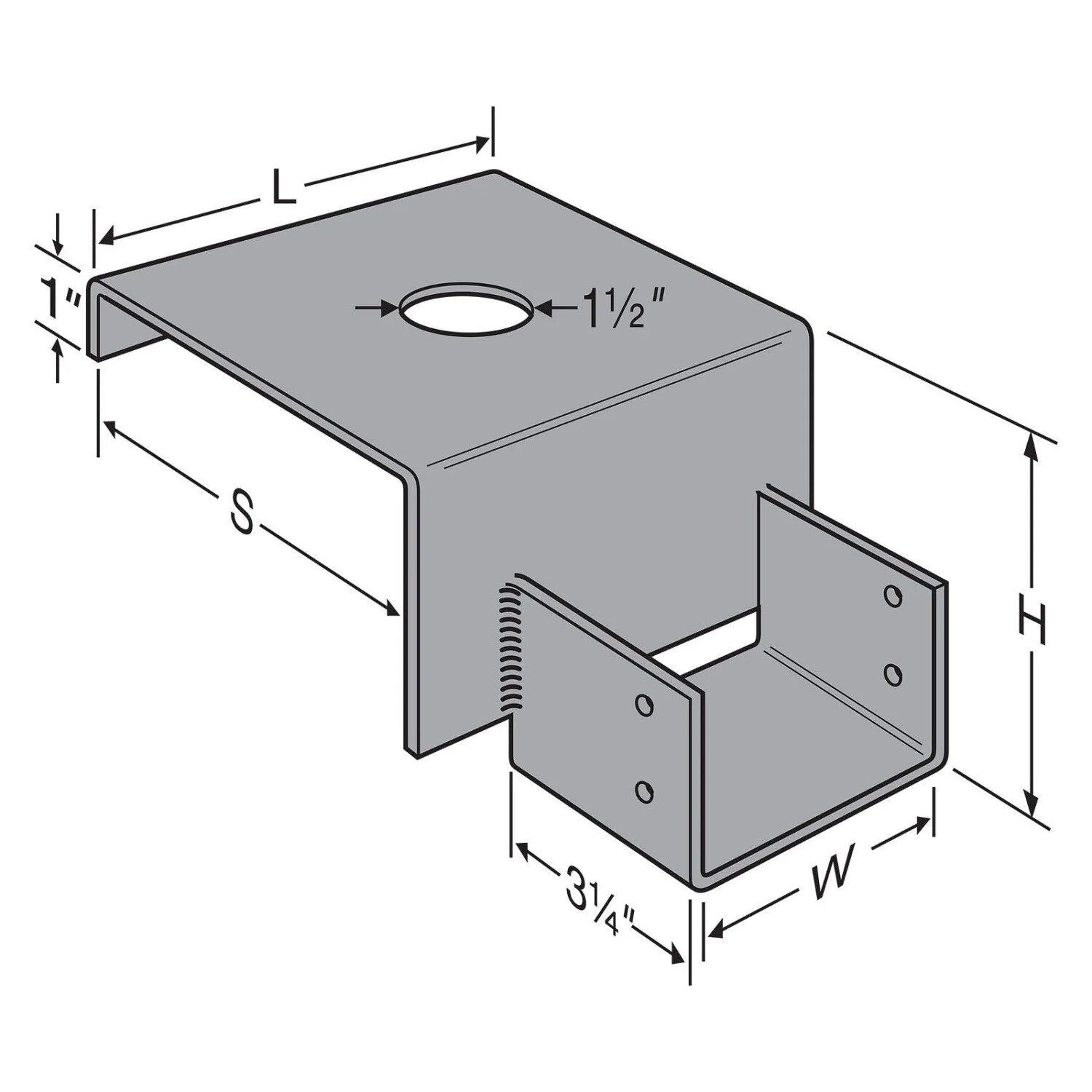

- Ensure a 1-1/2" clearance hole for rebar or anchor if required.
- Verify girder height minus mudsill thickness for proper fit.
Simpson Strong-Tie GH48-6 Specifications
| Material | 12 Gauge Steel |
| Finish | Gray Paint or Hot-Dip Galvanized |
| Width | 5-1/2" |
| Length | 8" |
| Fasteners Required | (4) 0.162 x 3-1/2" nails |
| Girder Size | 4x8 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
248731
