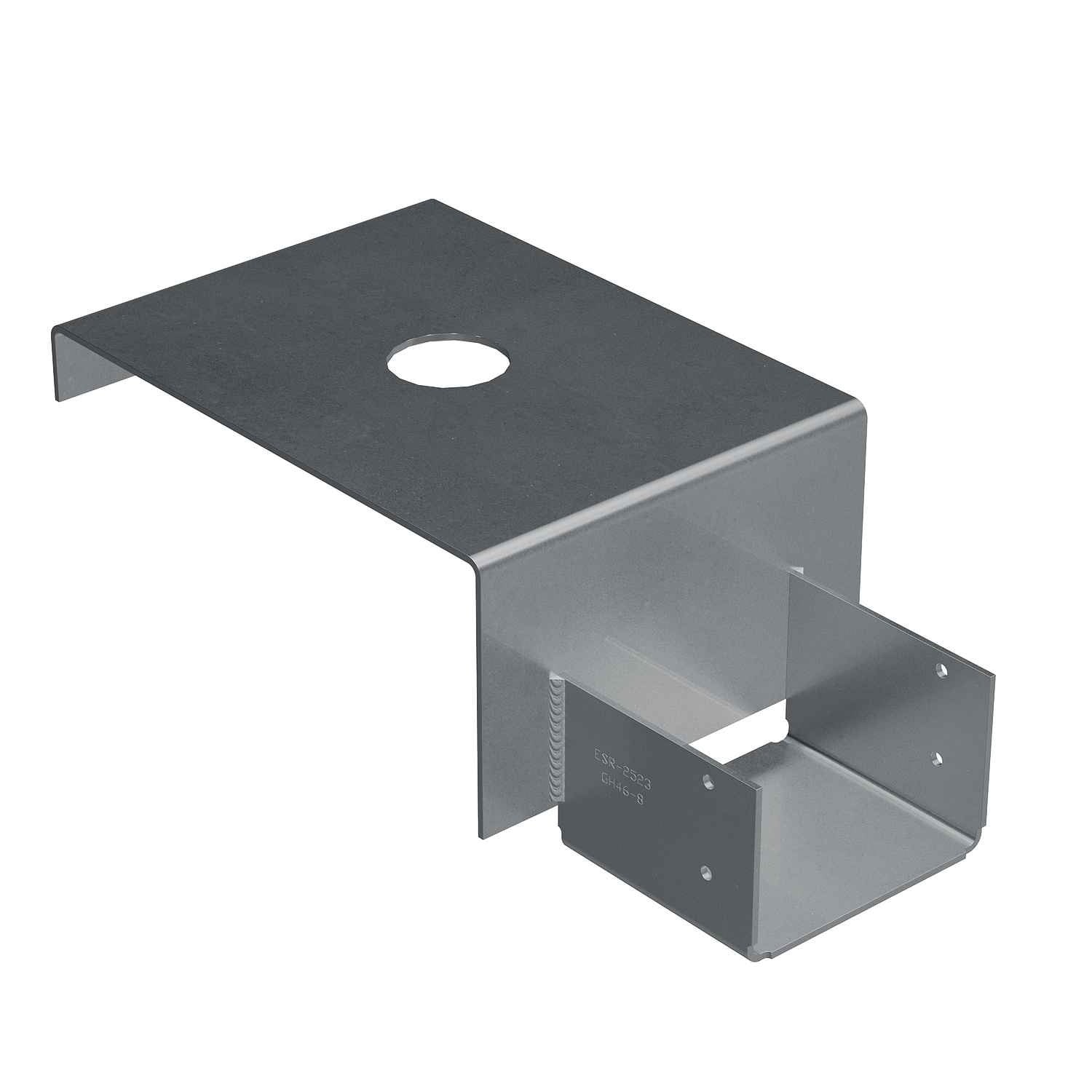

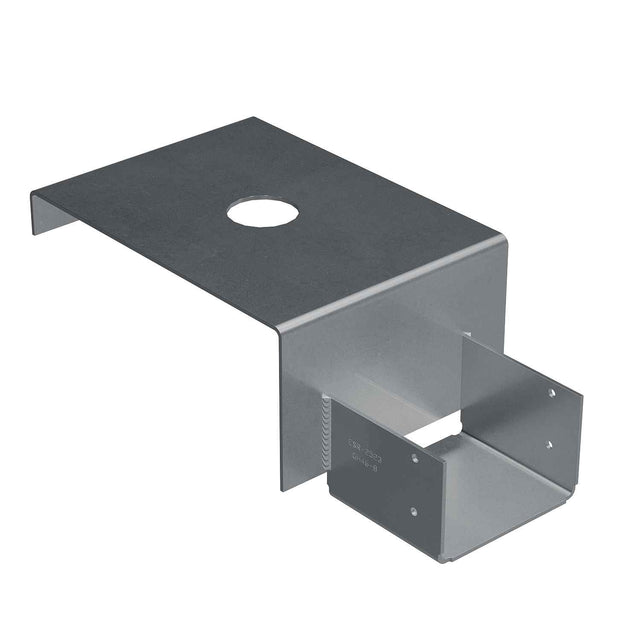

Simpson Strong-Tie GH48-8/3 Description
The GH48-8/3 is a top-flange girder hanger designed for connecting 4x8 girders to 8-inch foundation walls with a 3x sill plate. It provides a secure and durable connection for structural applications.
Simpson Strong-Tie GH48-8/3 Includes
- (1) GH48-8/3 Top-Flange Girder Hanger
Simpson Strong-Tie GH48-8/3 Features
- Made to order and non-returnable
- Can be skewed up to 45° with bevel cut required
- Available in hot-dip galvanized finish upon request
- Designed for girder-to-foundation wall connections
Simpson Strong-Tie GH48-8/3 Applications
- Girder-to-foundation wall connections
- Structural support for 4x8 girders
Simpson Strong-Tie GH48-8/3 Installation Overview
- Use all specified fasteners as per guidelines
- Install four 0.162" x 3-1/2" nails into the girder

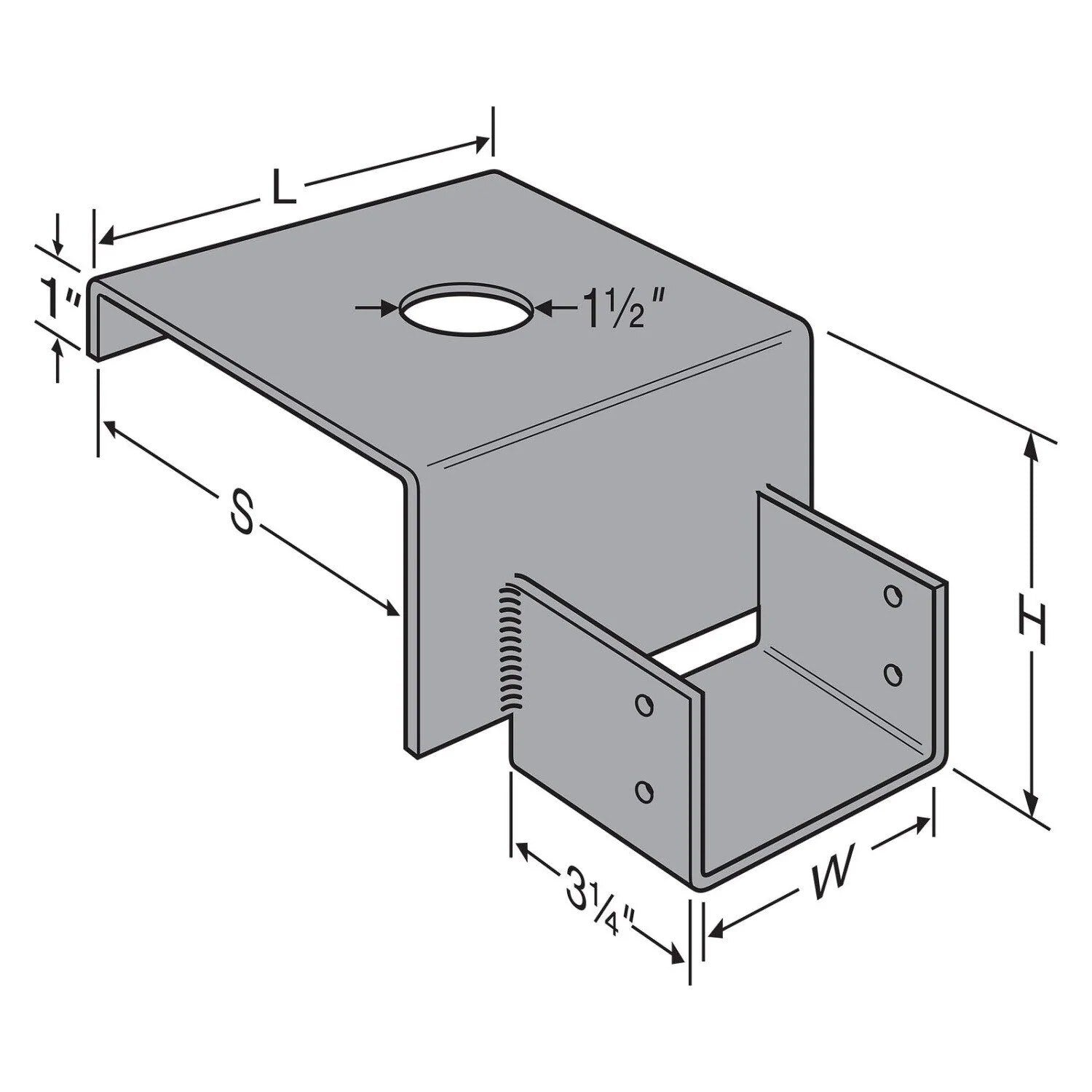

- Ensure a 1-1/2" clearance hole for rebar or anchor if required
Simpson Strong-Tie GH48-8/3 Specifications
| Material | 12 Gauge |
| Finish | Gray Paint |
| Width | 5-1/2" |
| Length | 8" |
| Fasteners Required | (4) 0.162 x 3-1/2 |
| Girder Size | 4x8 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
