Simpson Strong-Tie GH48-8 Description

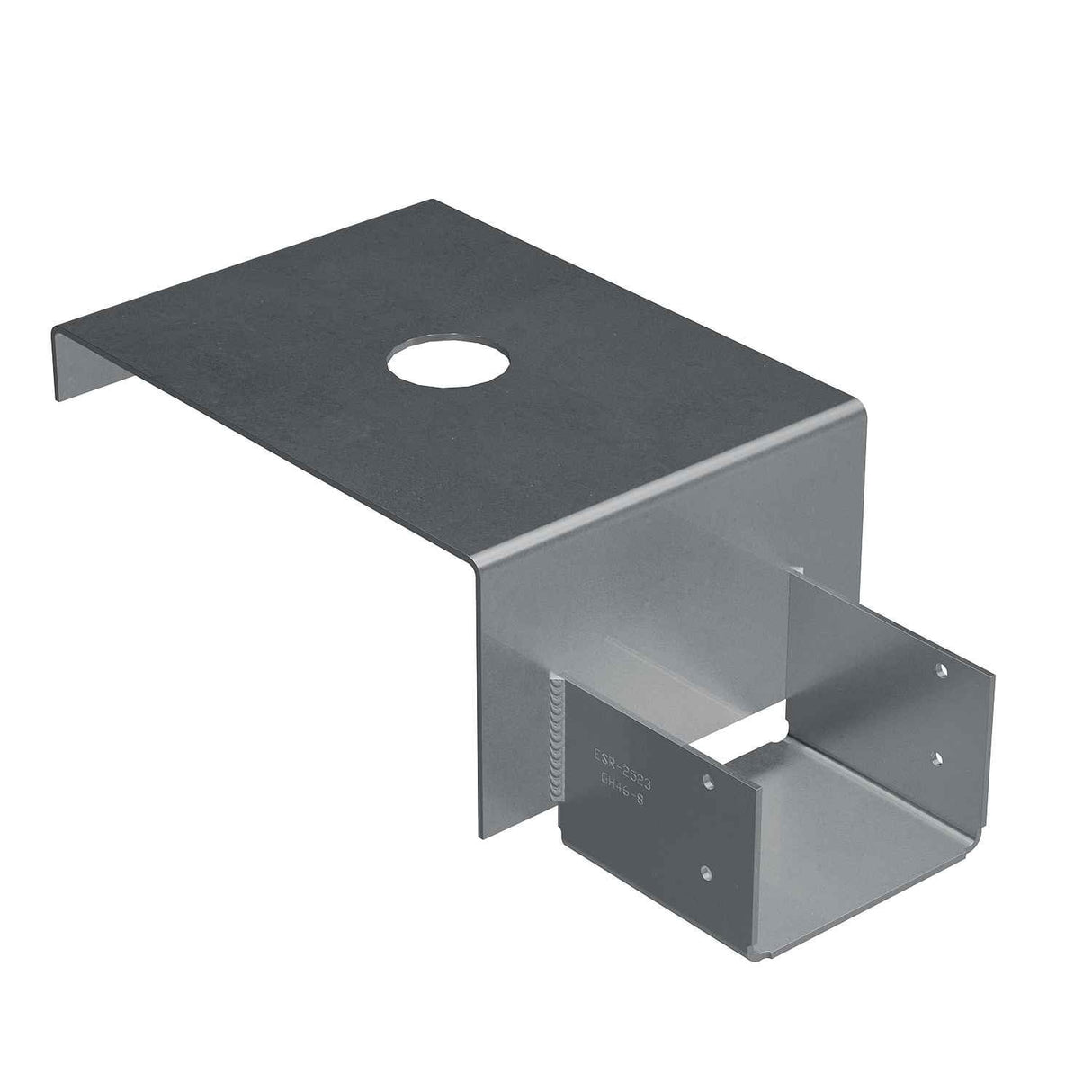

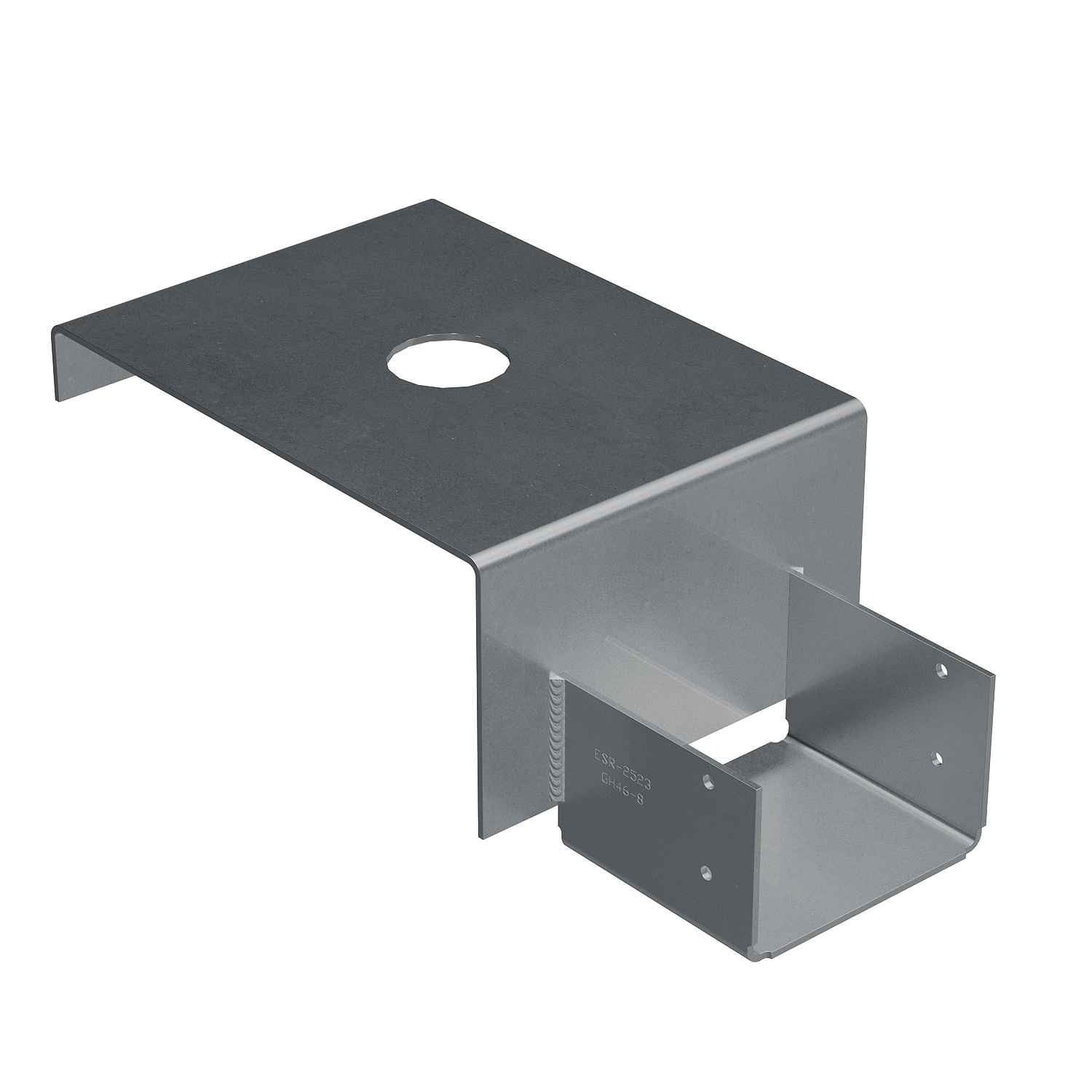

The GH48-8 Top-Flange Hanger is designed for secure girder-to-foundation wall connections, featuring a durable 12-gauge construction and a gray paint finish.
Simpson Strong-Tie GH48-8 Includes
- (1) GH48-8 Top-Flange Hanger
Simpson Strong-Tie GH48-8 Features
- Durable 12-gauge steel construction
- Gray paint finish for corrosion resistance
- Designed for girder-to-foundation wall connections
- Can be skewed up to 45° with bevel cut
- Accommodates 4x8 girders
Simpson Strong-Tie GH48-8 Applications
- Girder-to-foundation wall connections
- Structural support for 4x8 girders
Simpson Strong-Tie GH48-8 Installation Overview
- Use all specified fasteners as per guidelines.
- Install four 0.162" x 3-1/2" nails into the girder.
- Ensure a mudsill is on top of the hanger to achieve table loads.

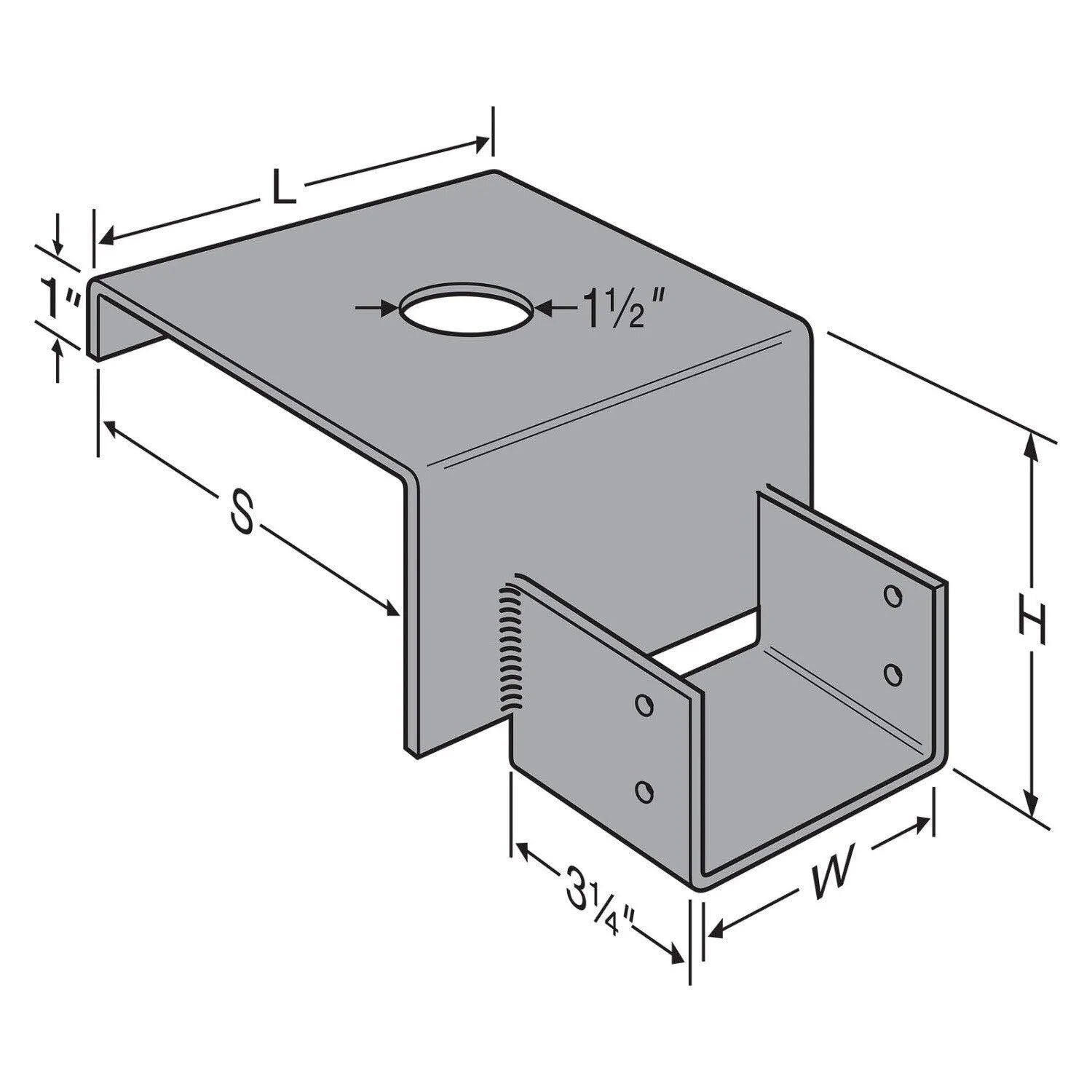

- Verify the H dimension for proper alignment.
Simpson Strong-Tie GH48-8 Specifications
| Material | 12 gauge |
| Finish | Gray Paint |
| Width | 5-1/2" |
| Length | 8" |
| Fasteners required | (4) 0.162 x 3-1/2 |
| Girder size | 4x8 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
248732
