Simpson Strong-Tie GH68-8 Description

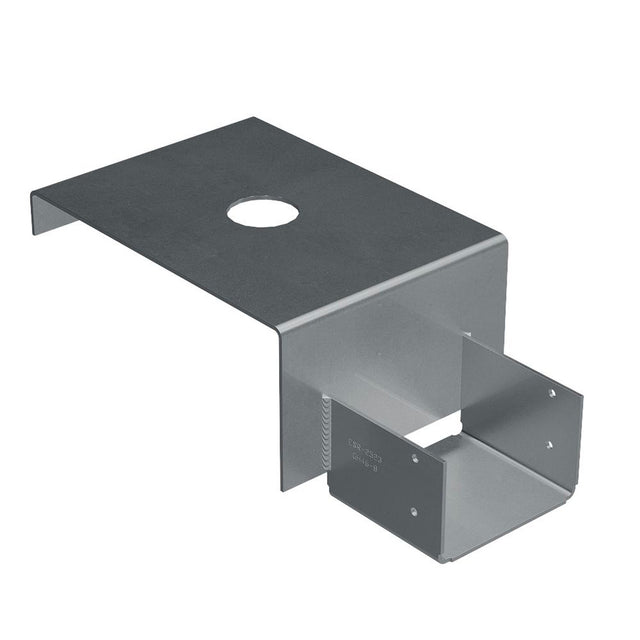

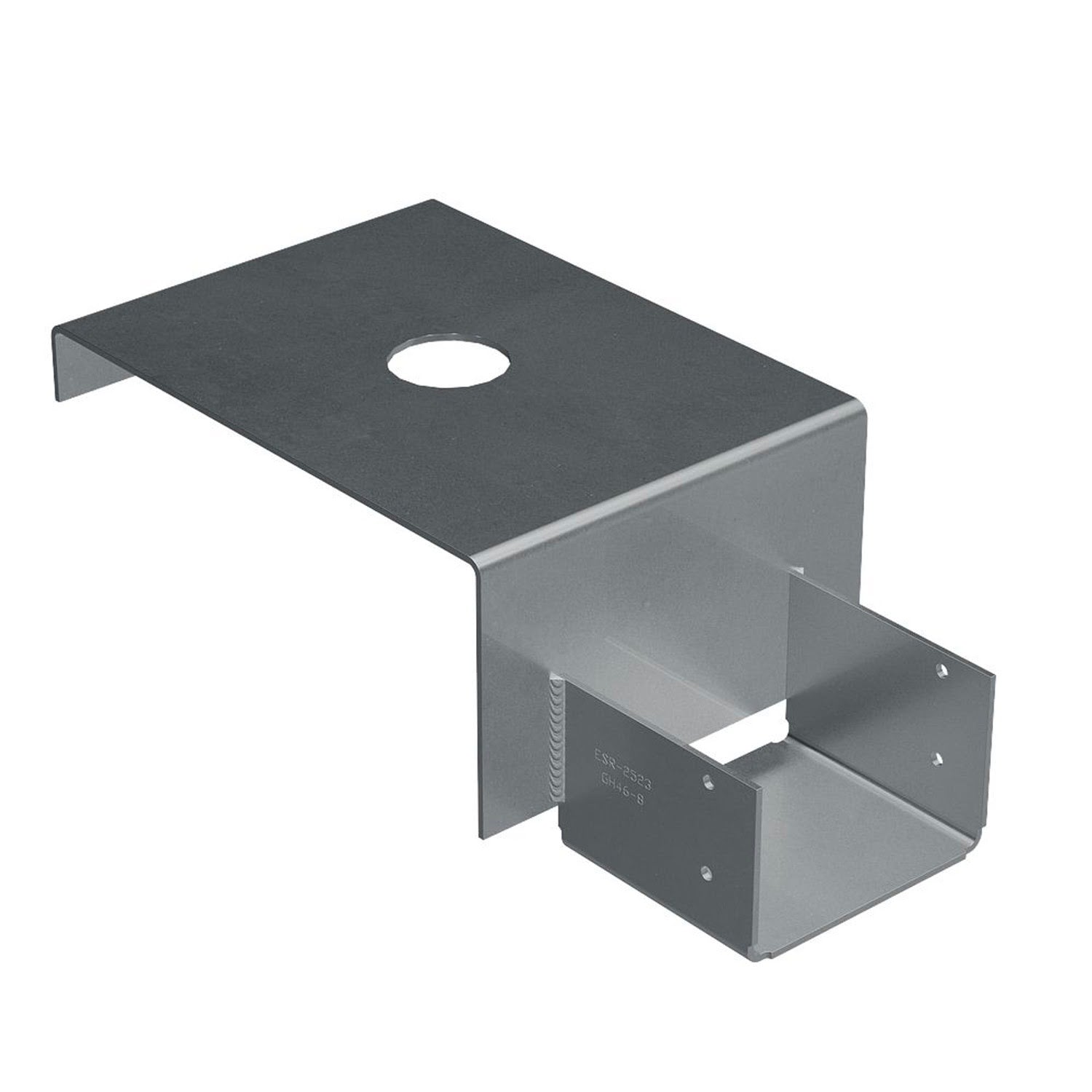

The GH68-8 is a top-flange hanger designed for connecting 6x8 girders to 8-inch foundation walls, providing a secure and durable connection.
Simpson Strong-Tie GH68-8 Includes
- (1) GH68-8 Top-Flange Hanger
Simpson Strong-Tie GH68-8 Features
- Designed for 6x8 girders
- Compatible with 8-inch foundation walls
- Made from 12-gauge steel
- Gray paint finish for durability
- Can be skewed up to 45°
Simpson Strong-Tie GH68-8 Applications

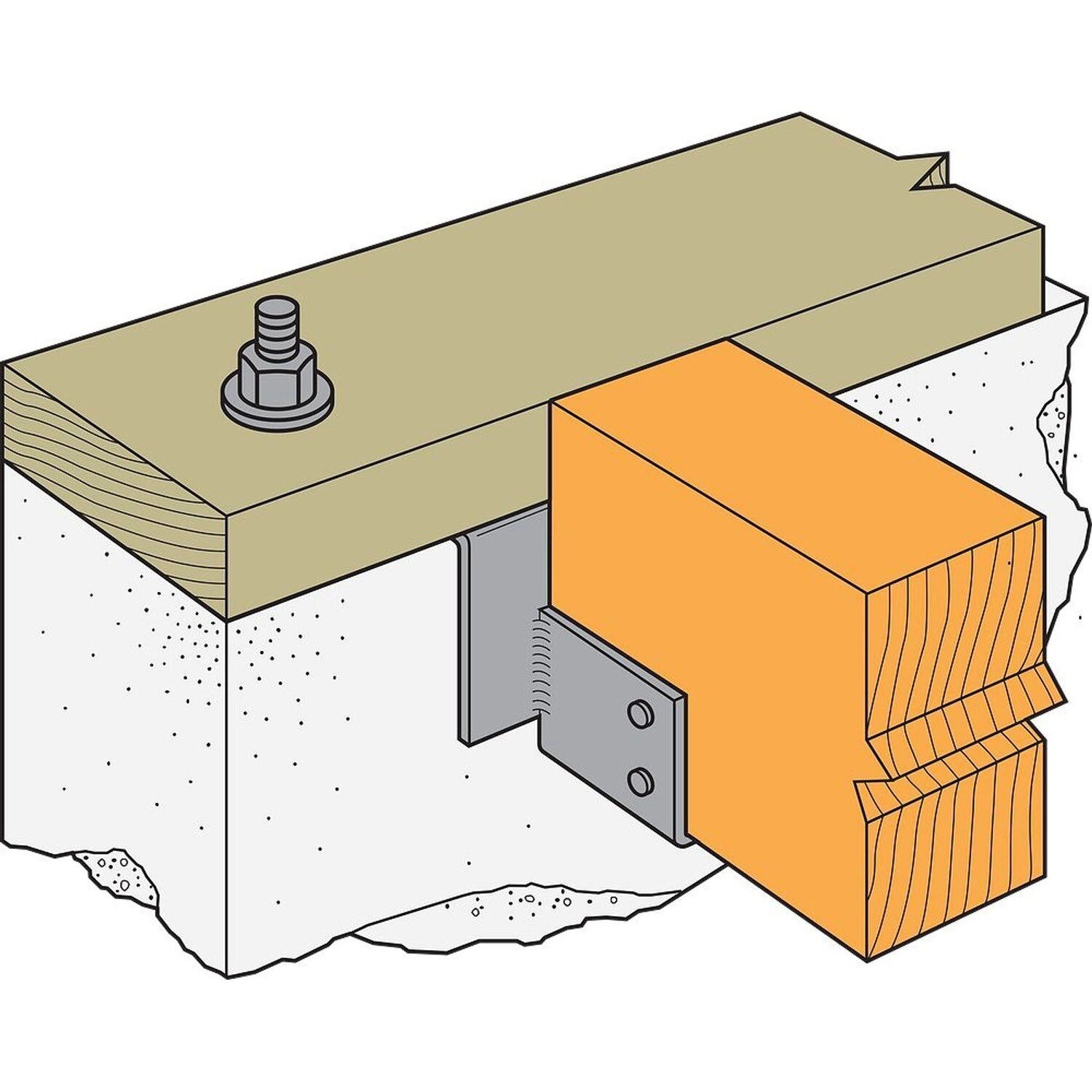

- Connecting girders to foundation walls
- Structural support for masonry and wood construction
Simpson Strong-Tie GH68-8 Installation Overview
- Use all specified fasteners as per guidelines.
- Install four 0.162" x 3-1/2" nails into the girder.
- Ensure a 1-1/2" clearance hole for rebar or anchor if required.
- Verify girder height minus mudsill thickness for proper fit.

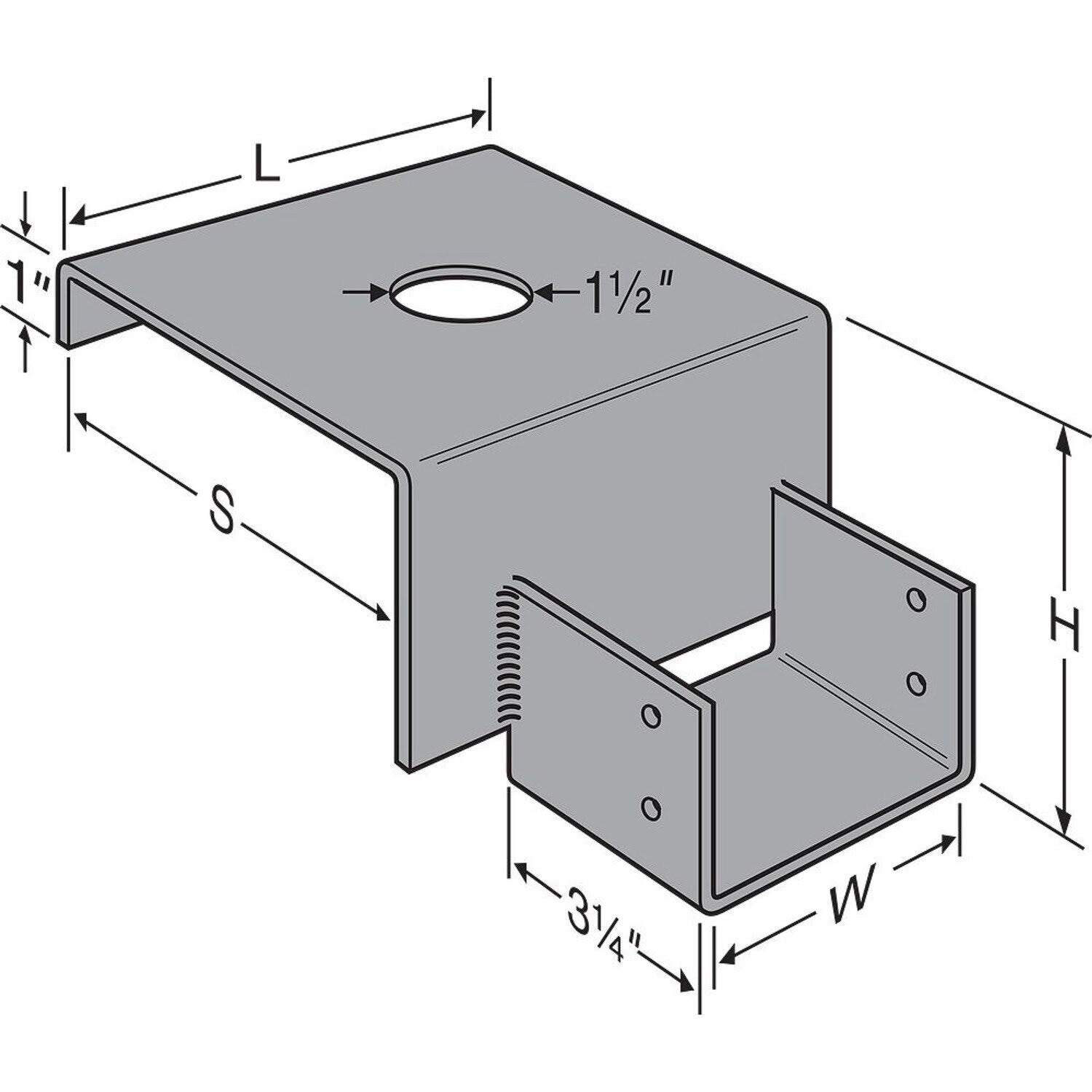

Simpson Strong-Tie GH68-8 Specifications
| Material | 12 Gauge Steel |
| Finish | Gray Paint |
| Girder Size | 6x8 |
| Width | 5-1/2" |
| Fasteners Required | (4) 0.162 x 3-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
