Simpson Strong-Tie GHD46-6 Description

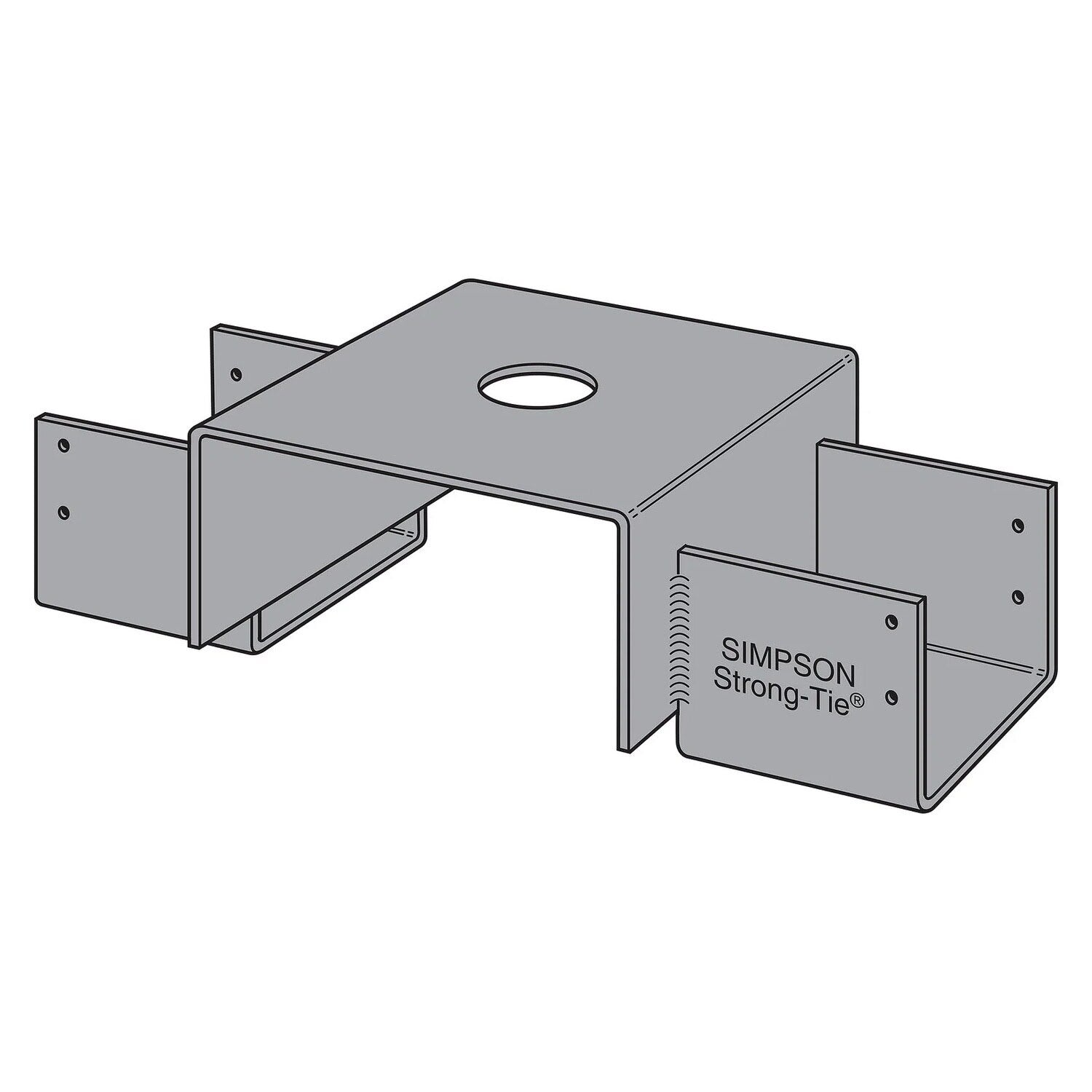

The GHD46-6 is a top-flange saddle hanger designed for connecting 4x6 girders to a 6-inch foundation wall, ensuring structural stability and durability.
Simpson Strong-Tie GHD46-6 Includes
- (1) Top-Flange Saddle Hanger
Simpson Strong-Tie GHD46-6 Features
- Designed for 4x6 girders
- Compatible with 6-inch foundation walls
- Made from 12-gauge steel for durability
- Gray paint finish for corrosion resistance
- Requires specific fasteners for optimal performance
Simpson Strong-Tie GHD46-6 Applications
- Connecting girders to foundation walls in construction projects
- Providing structural support for 4x6 girders
Simpson Strong-Tie GHD46-6 Installation Overview
- Use all specified fasteners as per guidelines.
- Install four 0.162" x 3-1/2" nails into the girder.
- Ensure a 1-1/2" clearance hole for rebar or anchor if required.
- Verify girder height minus mudsill thickness for proper fit.
Simpson Strong-Tie GHD46-6 Specifications
| Material | 12 Gauge Steel |
| Finish | Gray Paint |
| Width | 3-9/16" |
| Length | 6" |
| Fasteners Required | (4) 0.162 x 3-1/2" nails |
| Girder Size | 4x6 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
