Simpson Strong-Tie GHD46-8 Description

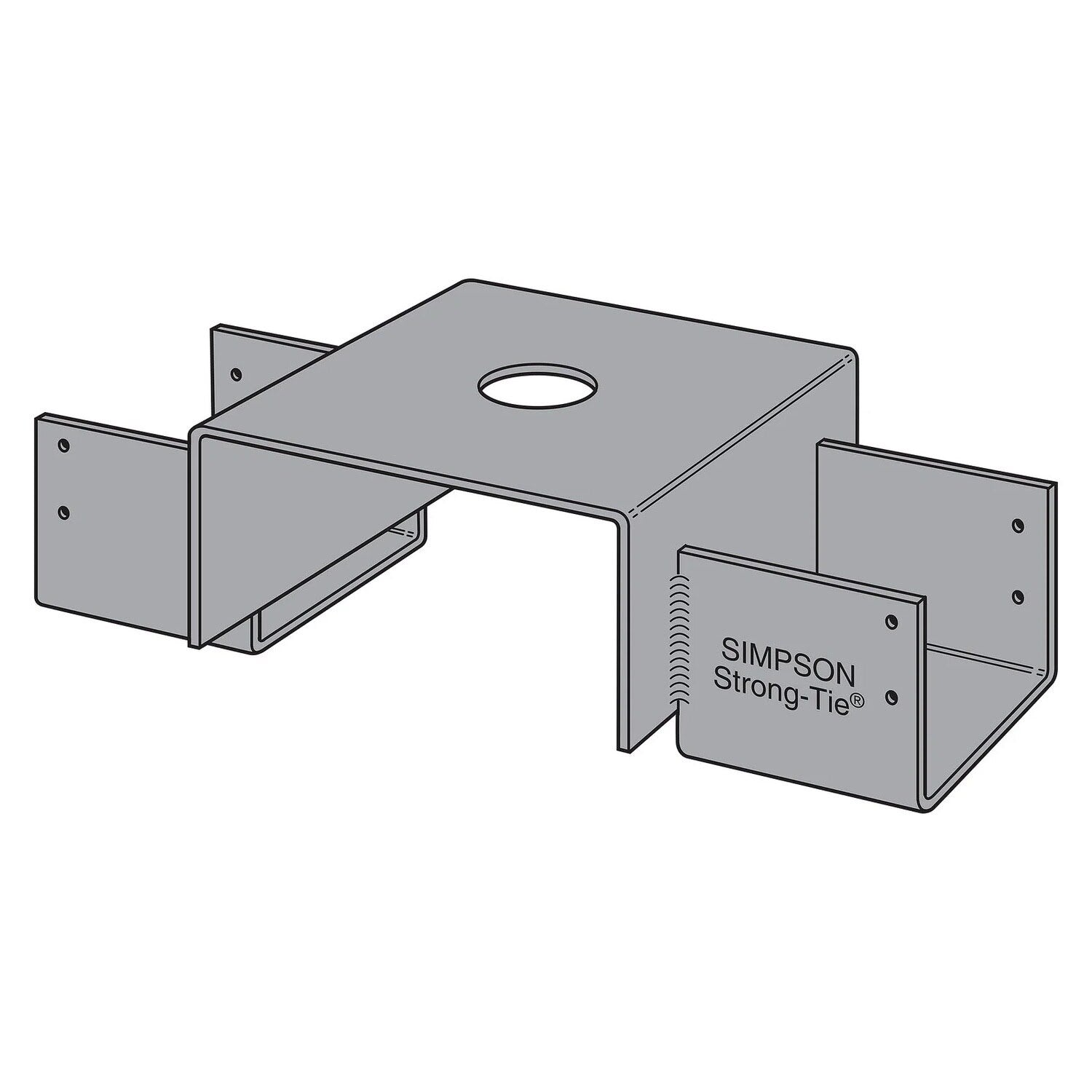

The GHD46-8 is a top-flange saddle hanger designed for connecting 4x6 girders to 8" foundation walls, ensuring structural integrity and ease of installation.
Simpson Strong-Tie GHD46-8 Includes
- (1) Top-Flange Saddle Hanger
Simpson Strong-Tie GHD46-8 Features
- Designed for 4x6 girders
- Compatible with 8" foundation walls
- Made from 12-gauge steel
- Gray paint finish for durability
- Hot-dip galvanized option available
Simpson Strong-Tie GHD46-8 Applications
- Concrete foundation wall connections
- Structural girder support
Simpson Strong-Tie GHD46-8 Installation Overview
- Use all specified fasteners as per guidelines.
- Install four 0.162" x 3-1/2" nails into the girder.
- Ensure girder height minus mudsill thickness is correct.
- 1-1/2" clearance hole accommodates rebar or anchor, though not required.
Simpson Strong-Tie GHD46-8 Specifications
| Material | 12 Gauge |
| Finish | Gray Paint |
| Girder size | 4x6 |
| Width | 3-9/16" |
| Fasteners required | (4) 0.162 x 3-1/2 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
