Simpson Anchors | SKU:
H10AZ

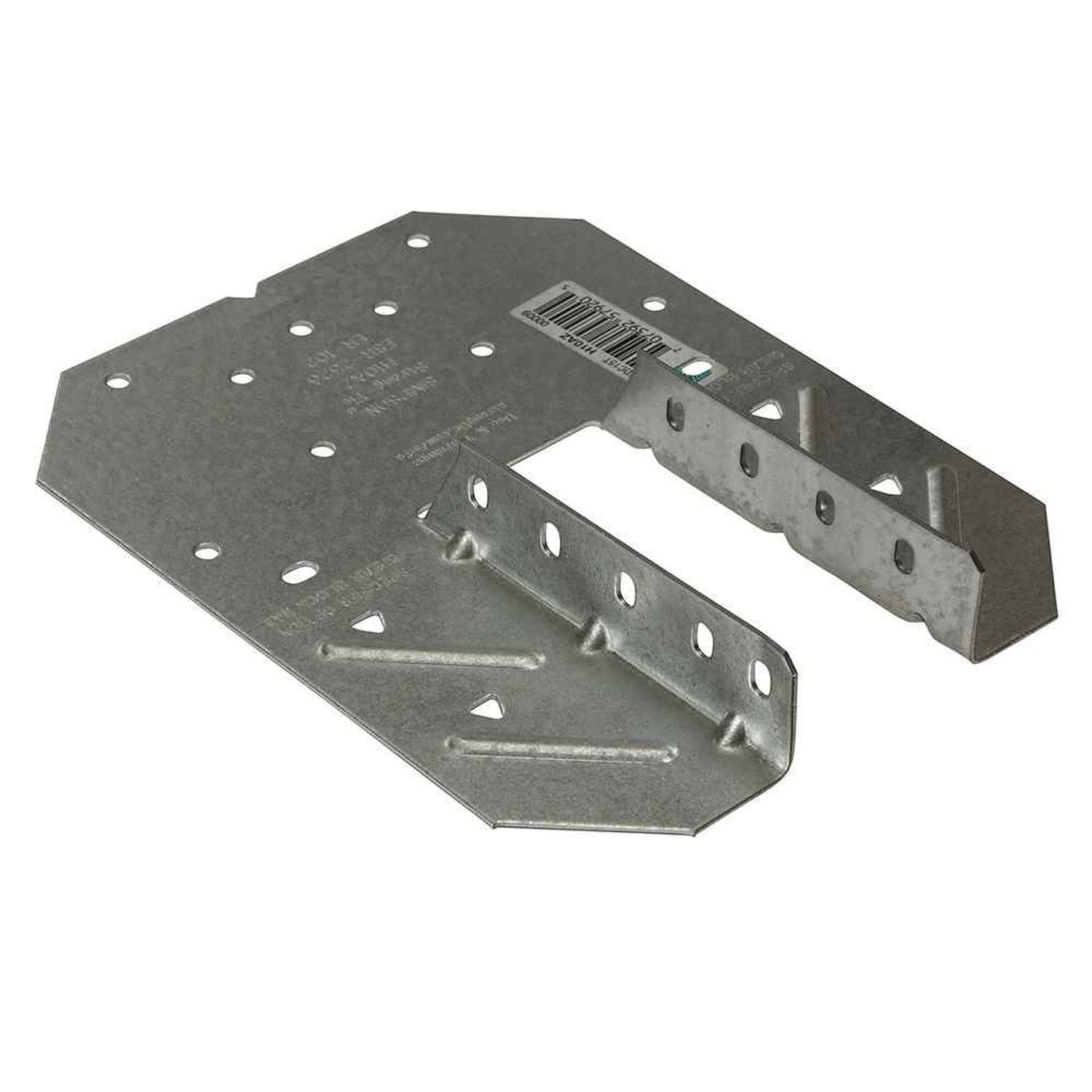

Simpson Strong-Tie H10AZ (18-Gauge) Hurricane Tie - ZMAX Finish
$4.53
Unit price
/
Unavailable
Description
Description
Simpson H10AZ Description

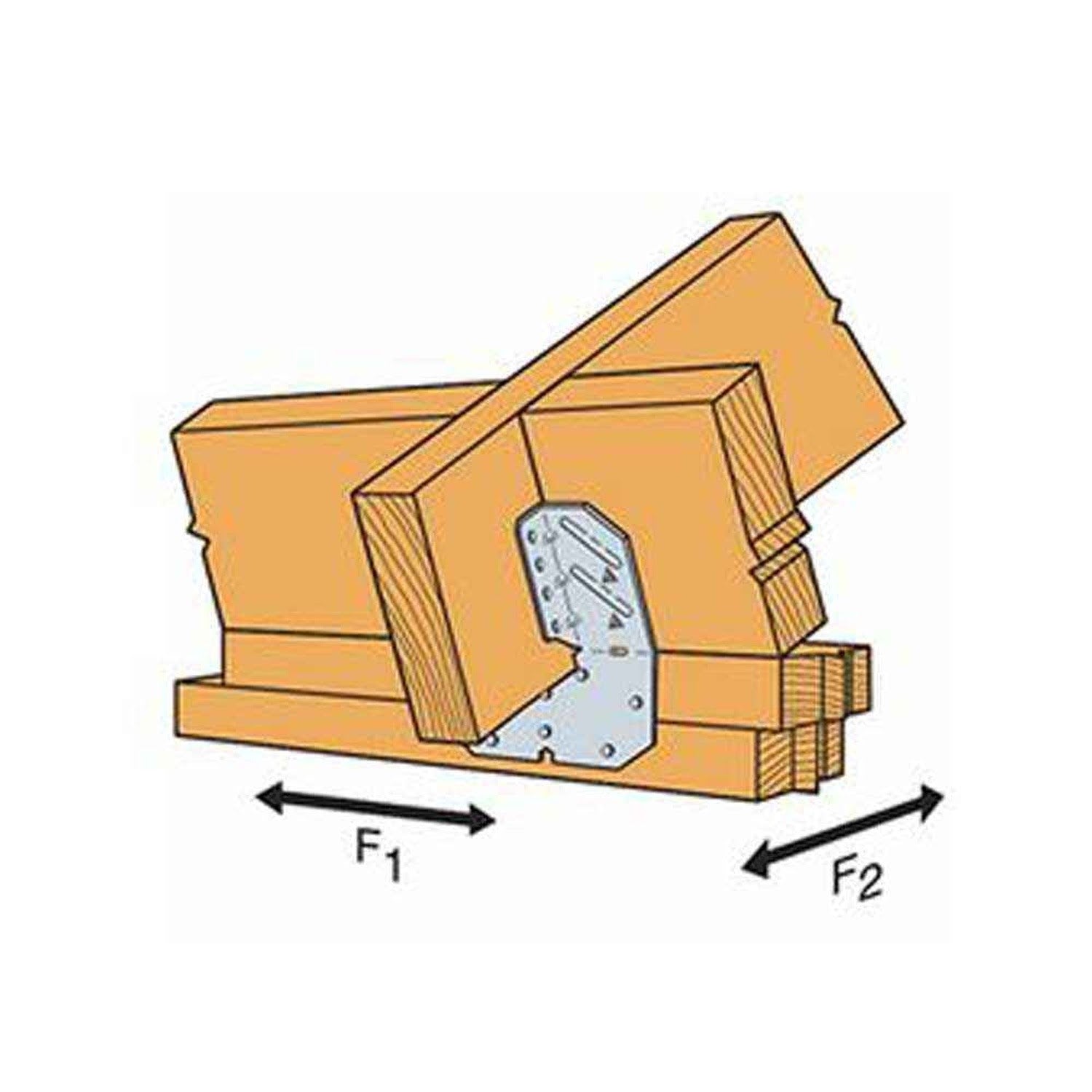

The Simpson H10AZ Hurricane Tie provides a secure connection between truss/rafter and the wall, resisting wind and seismic forces. It features a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson H10AZ Includes
- (1) Hurricane Tie ZMAX Finish
Simpson H10AZ Features
- Positive connection between truss/rafter and wall
- Resists wind and seismic forces
- ZMAX galvanized finish for corrosion resistance
- Requires ASTM A153 hot-dip galvanized fasteners
- Optional nailing for shear blocking
Simpson H10AZ Applications
- Securing truss/rafter to wall for wind resistance
- Seismic force resistance in structural connections
- Field bending for sloped installations up to 6:12 pitch
Simpson H10AZ Installation Overview
- Use all specified fasteners
- Utilize hot-dip galvanized nails with ZMAX products
- Do not fasten through truss plate from behind
- Optional nailing for shear blocking with 8d nails
- Field bending allowed up to 6:12 pitch

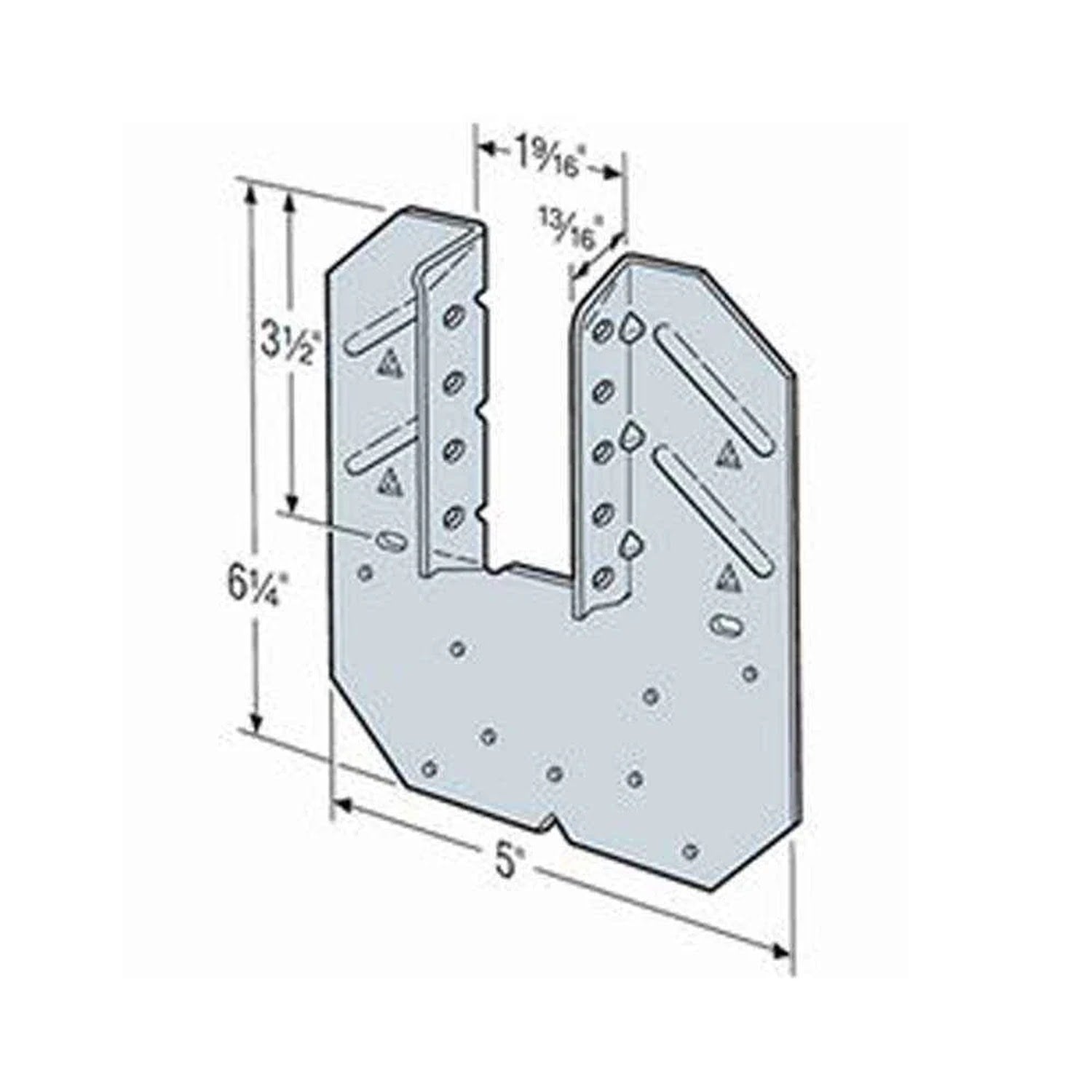

Simpson H10AZ Specifications
| Finish | ZMAX |
| Fasteners required | To Rafters/Truss - (9) 0.148" x 1-1/2" Nails, Top Plates - (9) 0.148" x 1-1/2" Nails |
| For Treated Lumber | Yes |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
