Simpson Anchors | SKU:
H10S
Simpson Strong-Tie H10S (11-5/8" 18-Gauge) Hurricane Tie - G90 Zinc Galvanized
$6.16
Unit price
/
Unavailable
Description
Description
Simpson H10S Description

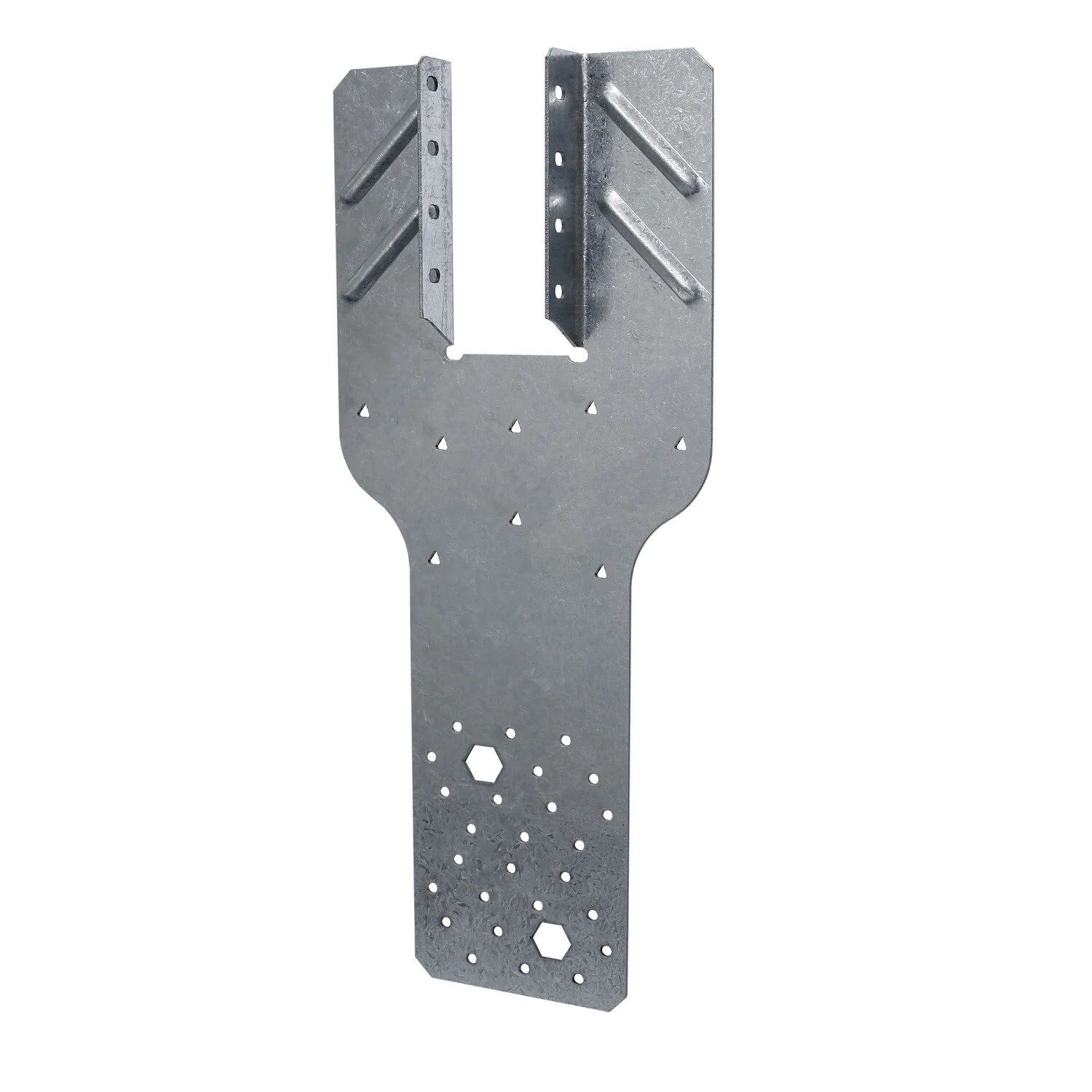

The Simpson H10S Hurricane Tie is a double-sided connector designed for high uplift applications, providing secure attachment between rafters or trusses and walls.
Simpson H10S Includes
- (1) Hurricane Tie
Simpson H10S Features
- Double-sided design for faster installation
- Provides high uplift and lateral capacity
- Embossments add stiffness for improved performance

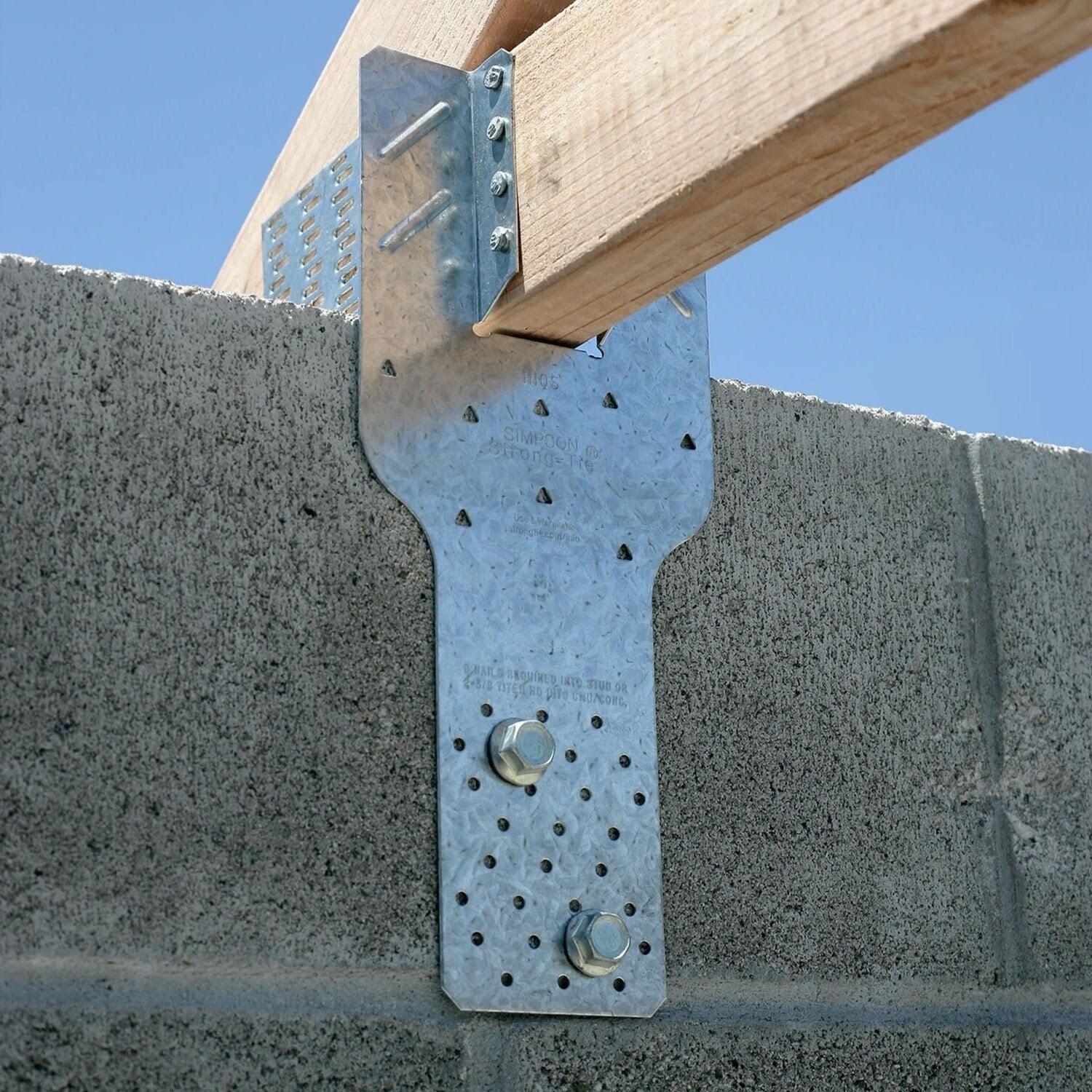

- Compatible with wood, concrete, or masonry walls
- Made from 18-gauge G90 galvanized steel for durability
Simpson H10S Applications

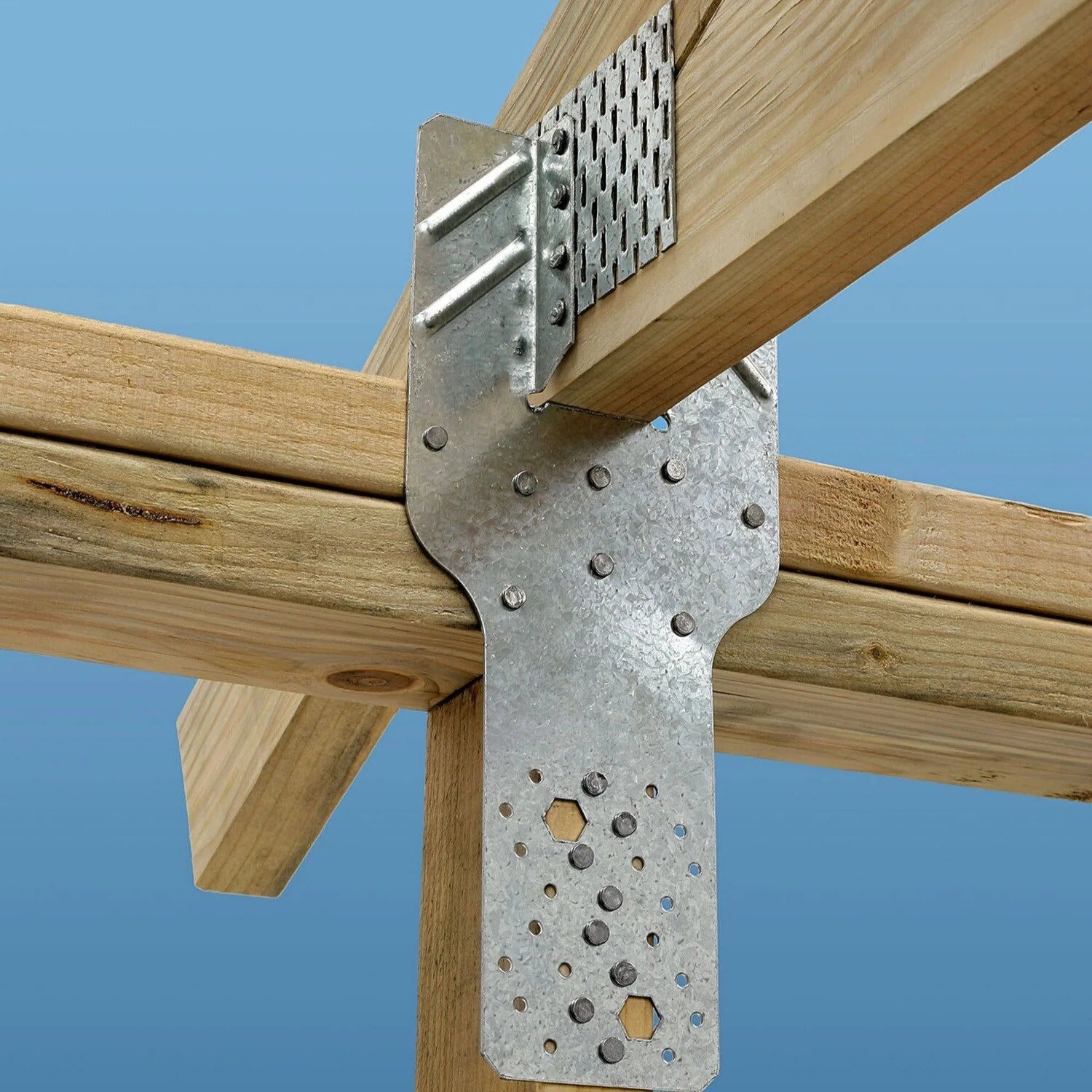

- Securing rafters or trusses to walls in wood-framed structures
- Enhancing structural resistance to wind and seismic forces
- Use in residential and commercial construction projects
Simpson H10S Installation Overview
- Use all specified fasteners
- Connect truss or rafter to the wall structure
- Ensure proper alignment and secure fastening
- Utilize Titen HD screw anchors for higher capacity
Simpson H10S Specifications
| Finish | G90 Galvanized |
| Fasteners required | To Rafters/Truss: (8) 0.131 x 1 1/2 To Plates: (8) 0.131 x 1 1/2 To Studs: (8) 0.131 x 2 1/2 |
| For Treated Lumber | No |

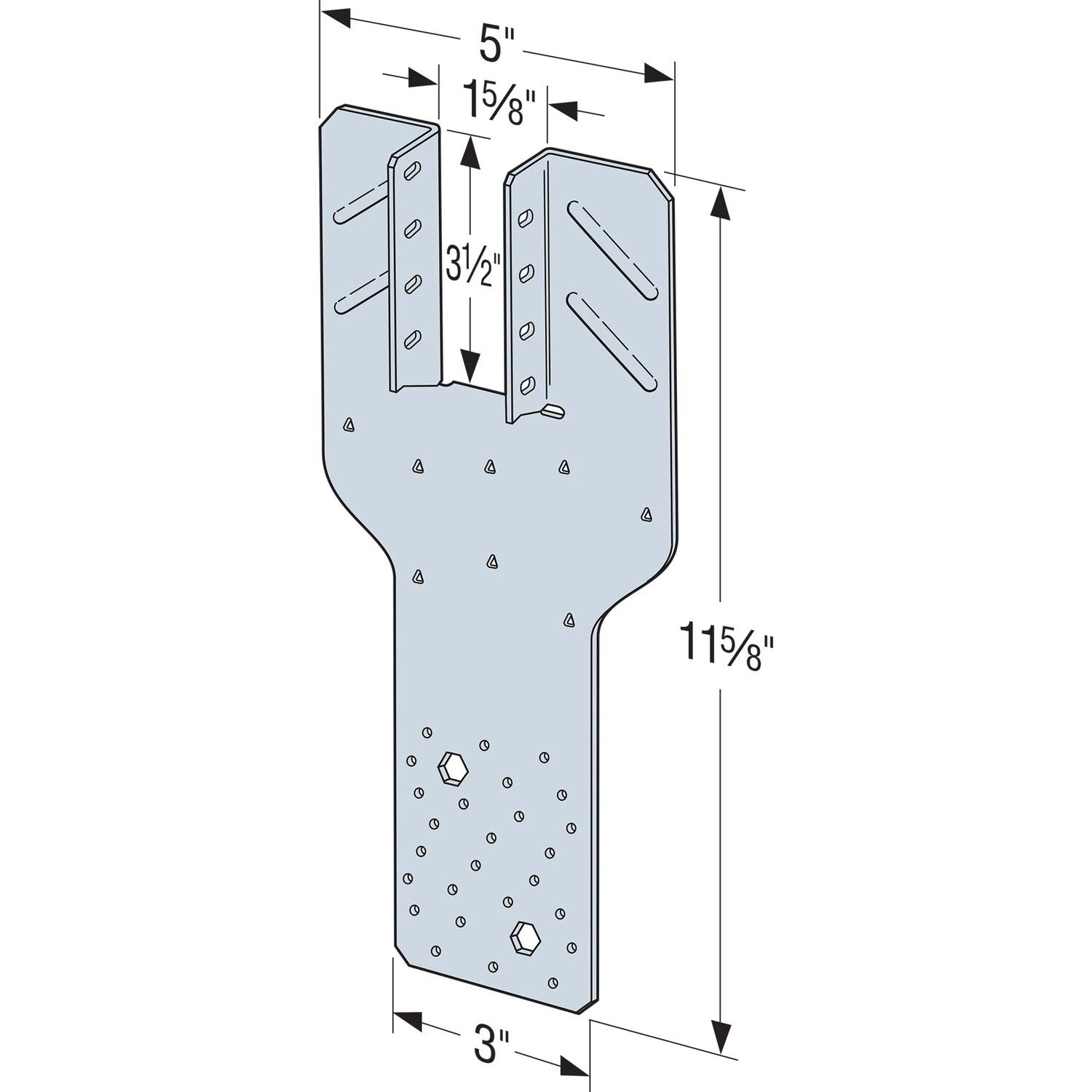

| Height | 11 5/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
