Simpson Anchors | SKU:
H1A

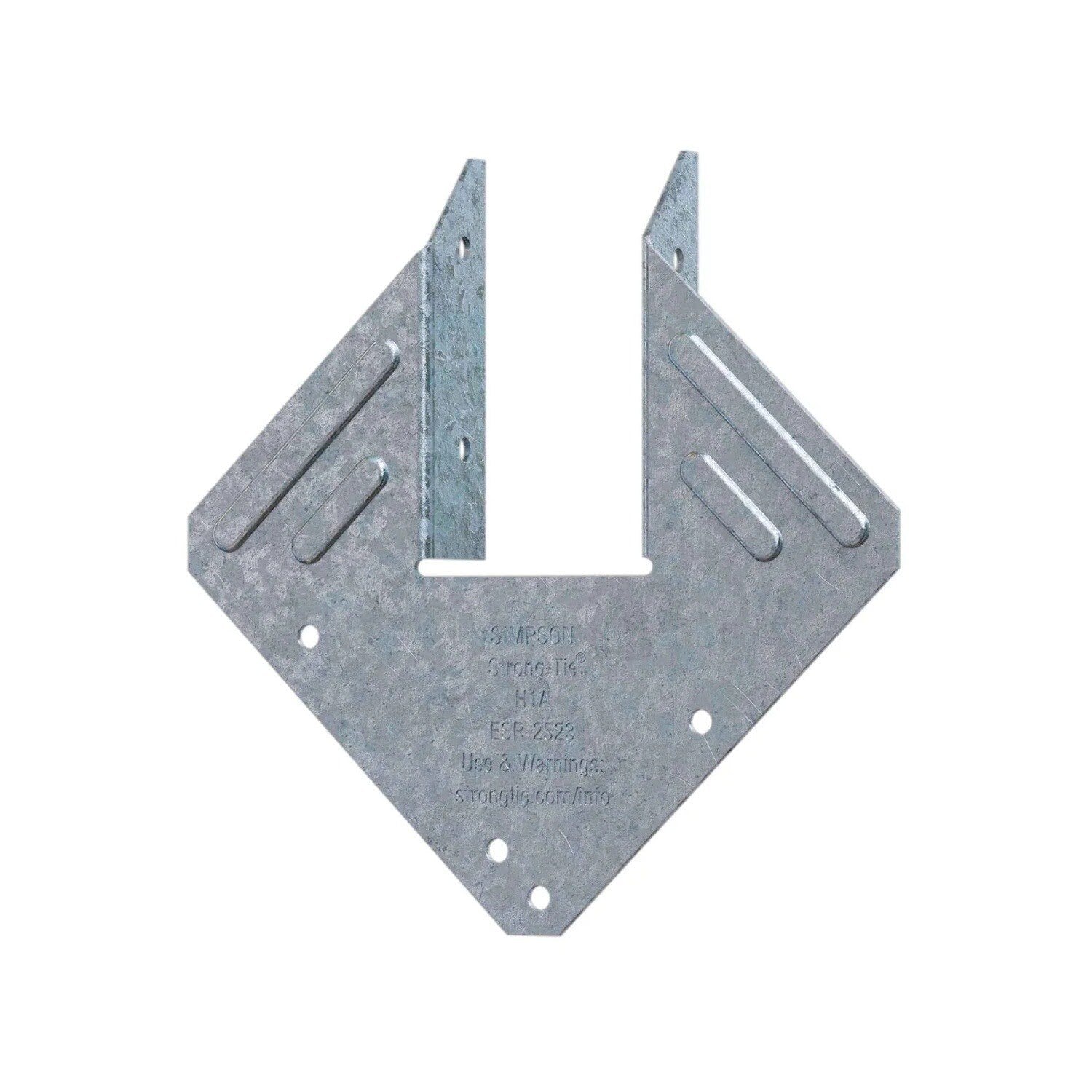

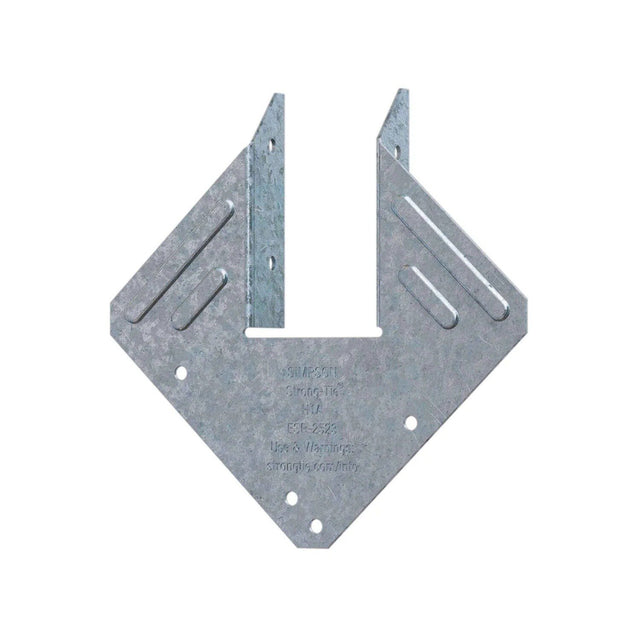

Simpson Strong-Tie H1A (18-Gauge) Hurricane Tie - G90 Zinc Galvanized for High-Wind Construction
$1.05
$1.59
Unit price
/
Unavailable
Description
Description
Simpson H1A Description

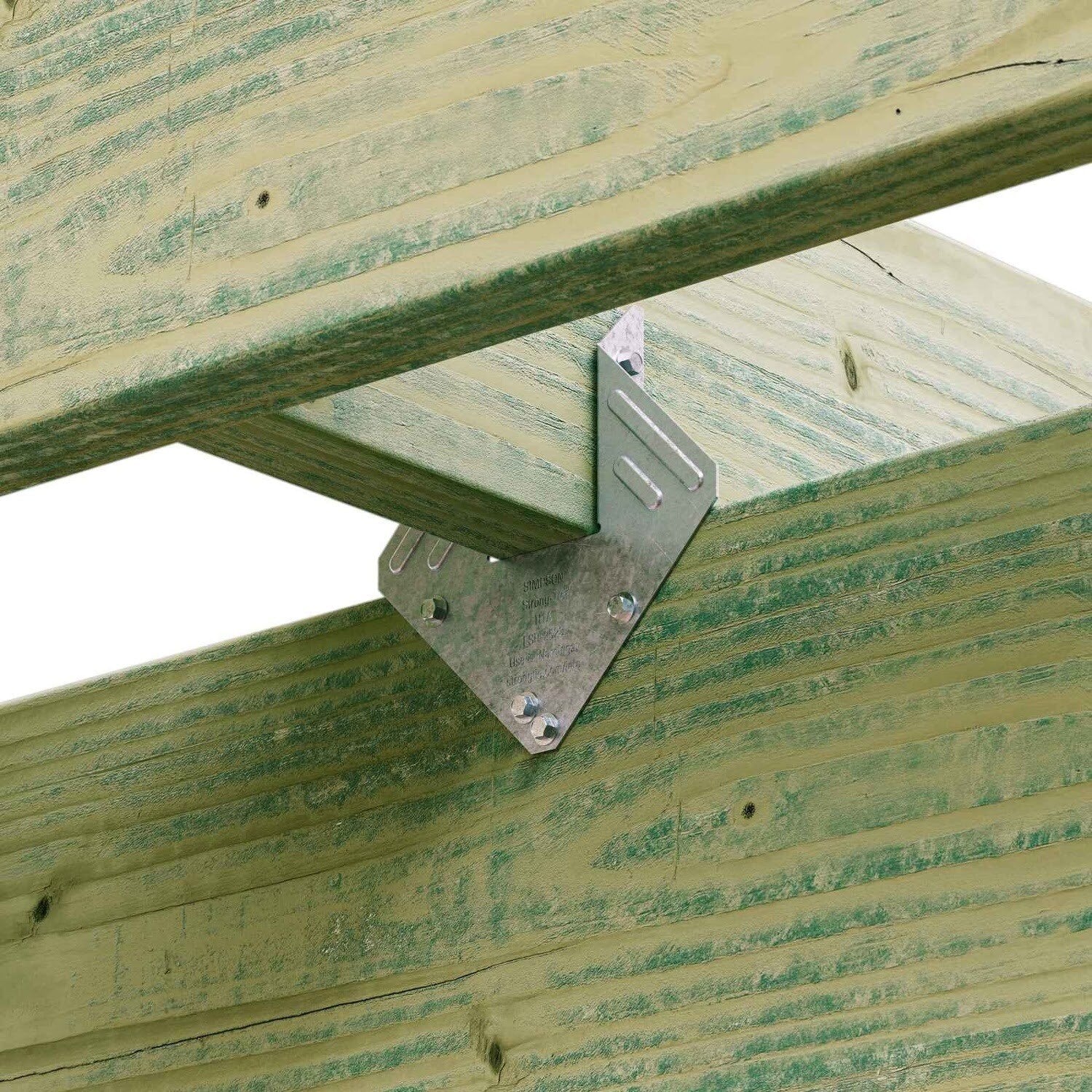

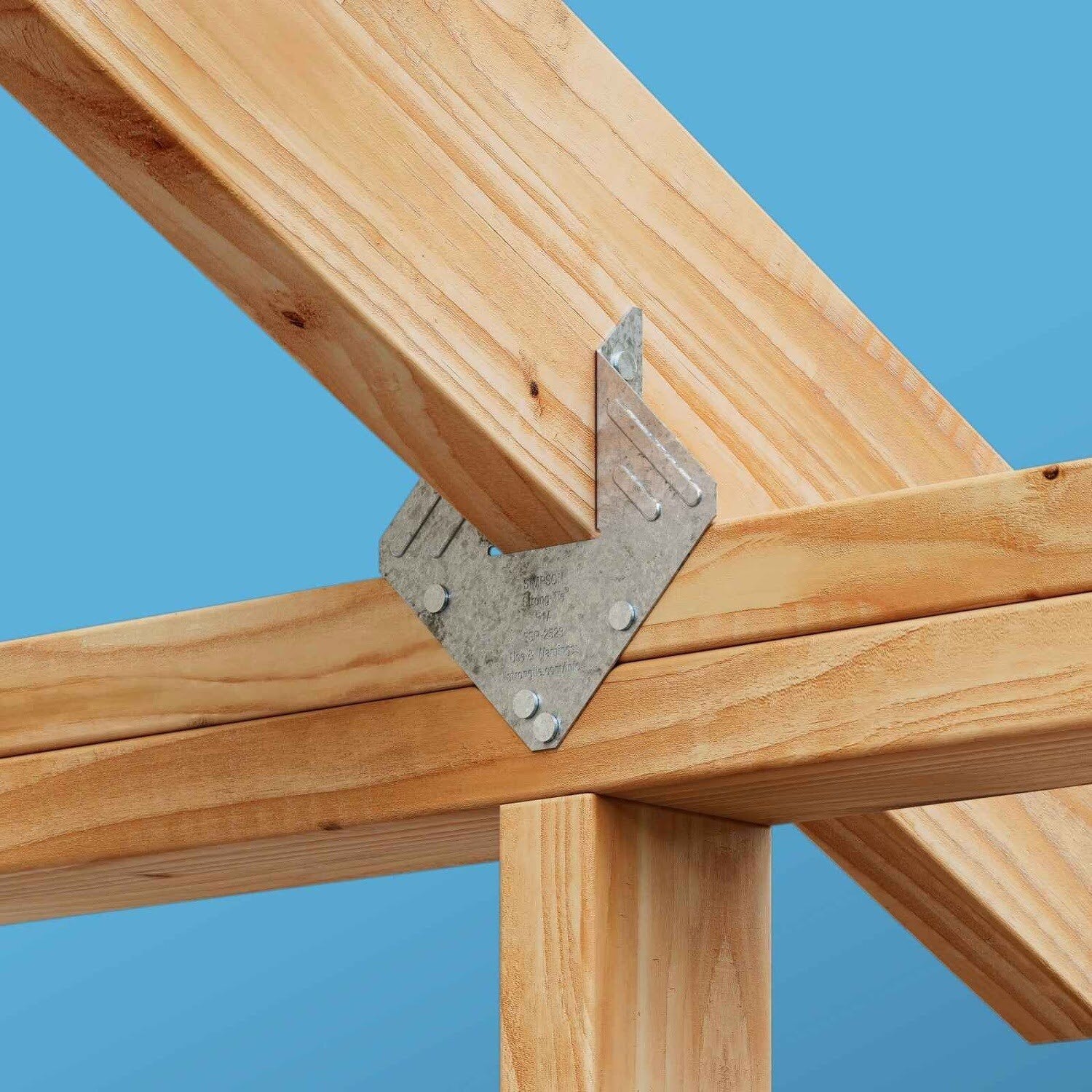

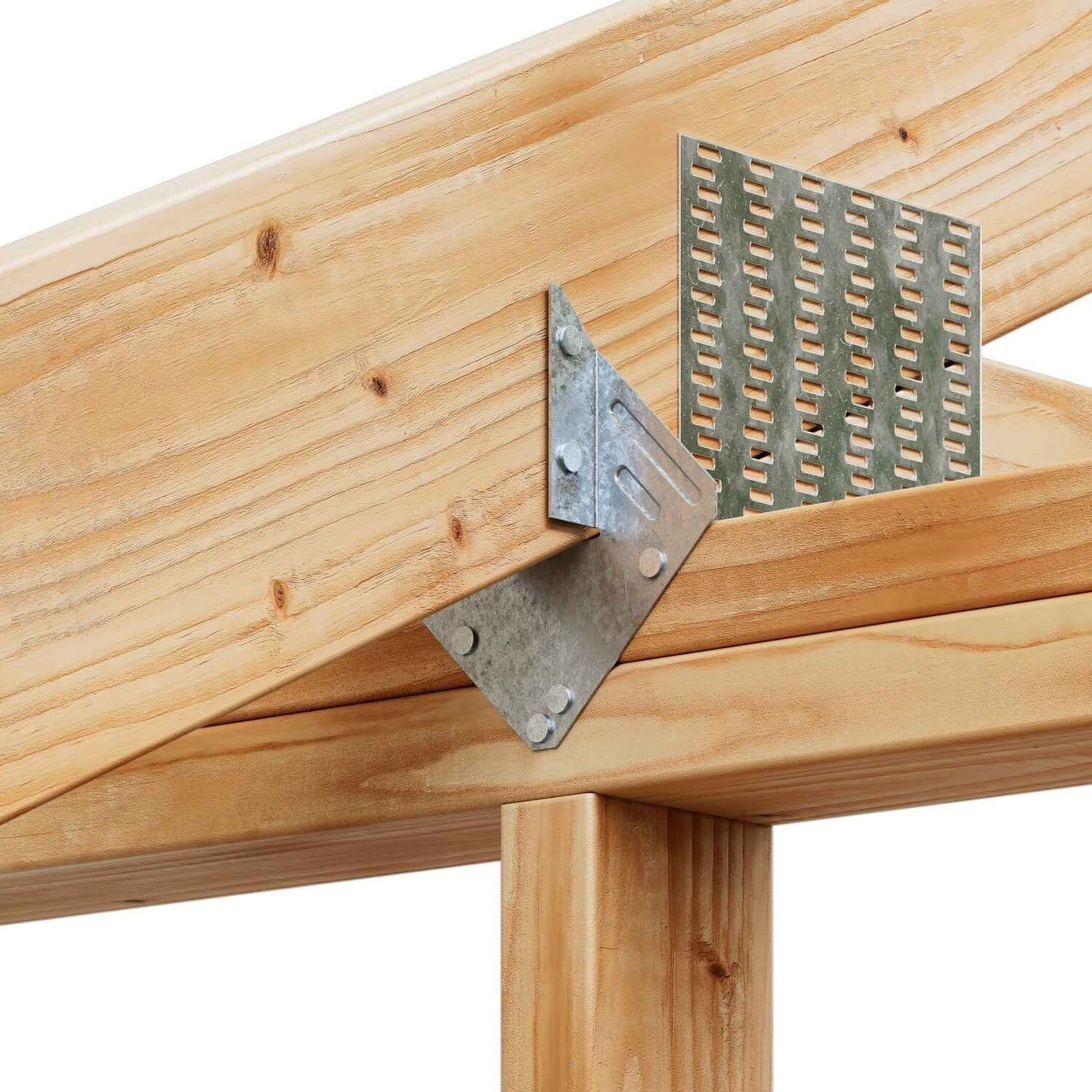

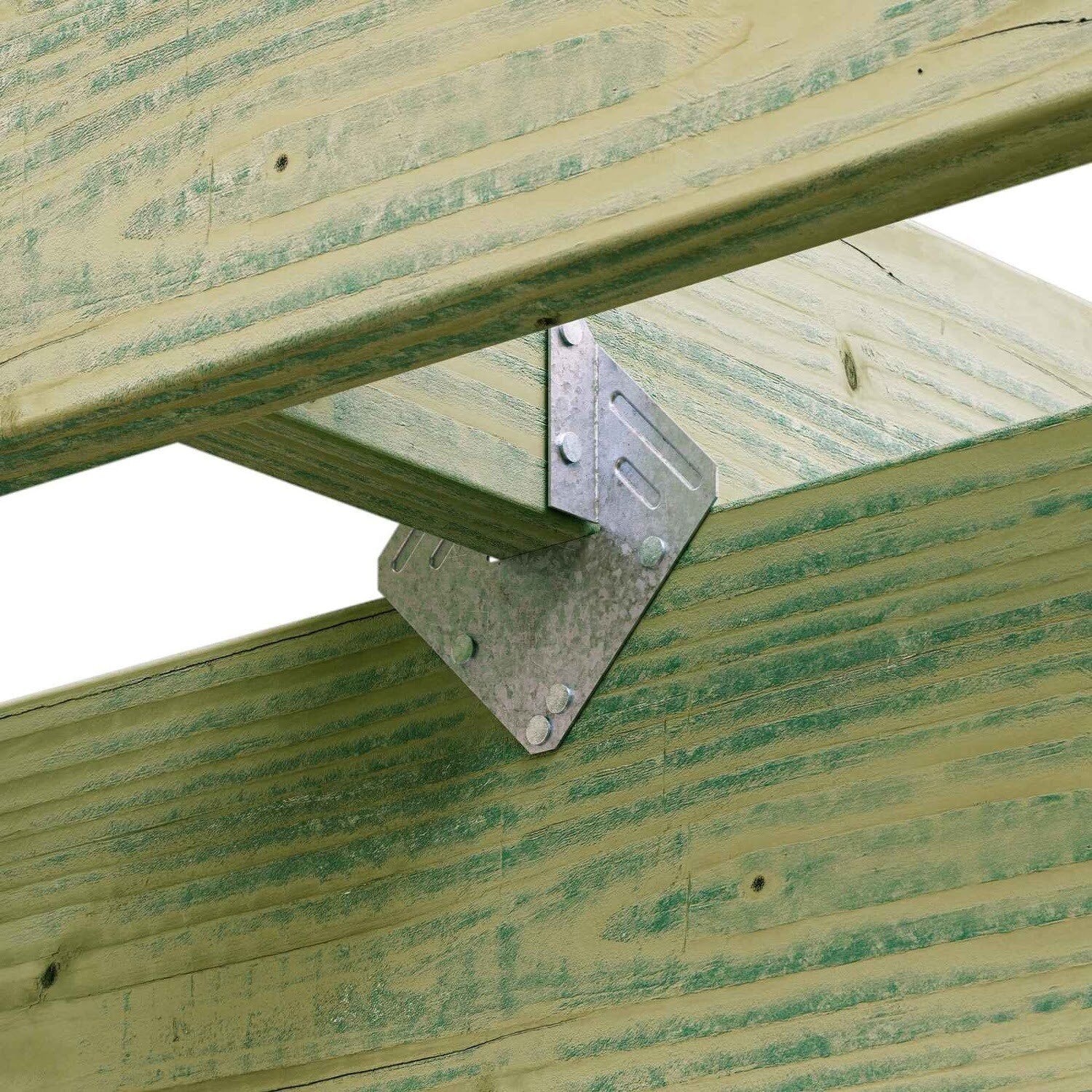

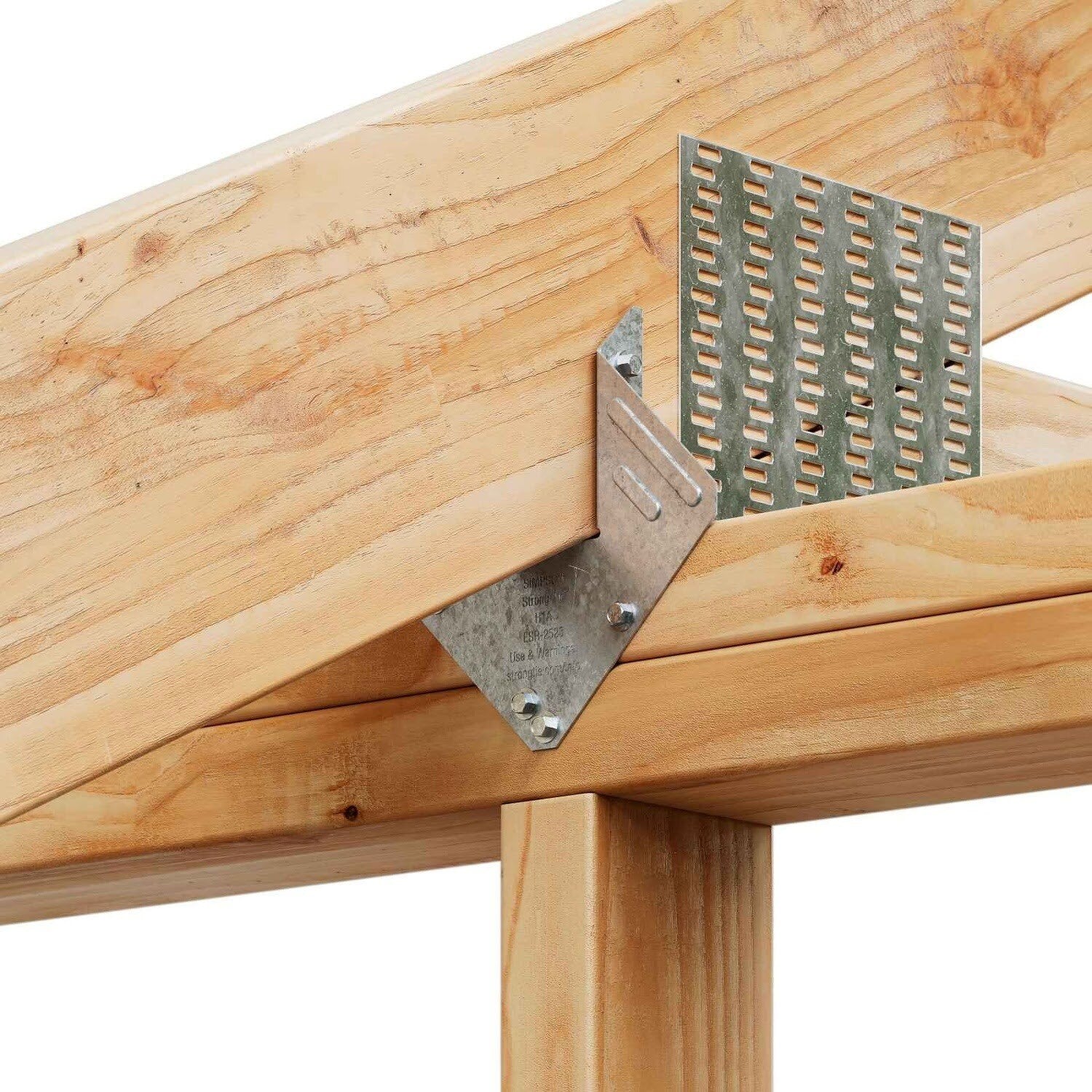

The Simpson Strong-Tie H1A hurricane tie provides a secure connection between the truss or rafter and the wall of the structure, designed for nominal 2x lumber and featuring a G90 Galvanized finish for added corrosion resistance.
Simpson H1A Includes
- (1) Hurricane Tie for High-Wind Construction
Simpson H1A Features
- Holds the rafter or truss on both sides for high lateral load resistance
- Can be installed on inside or outside of wall, or both sides
- Can be installed with flanges facing either inward or outward
- Provides faster installation than using two single-sided ties
Simpson H1A Applications
- Fastening wood-to-wood connections in high-wind areas
- Securing trusses or rafters to walls for enhanced structural integrity
- Resisting wind and seismic forces in construction projects
Simpson H1A Installation Overview
- Use all specified fasteners as per guidelines
- Ensure ties do not replace solid blocking
- Avoid fastening through truss plates from behind to prevent compromising truss performance
Simpson H1A Specifications
| Material | 18 Gauge |
| Finish | G90 Galvanized |
| Weight | 0.2 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
