Simpson Anchors | SKU:
H2.5AZ

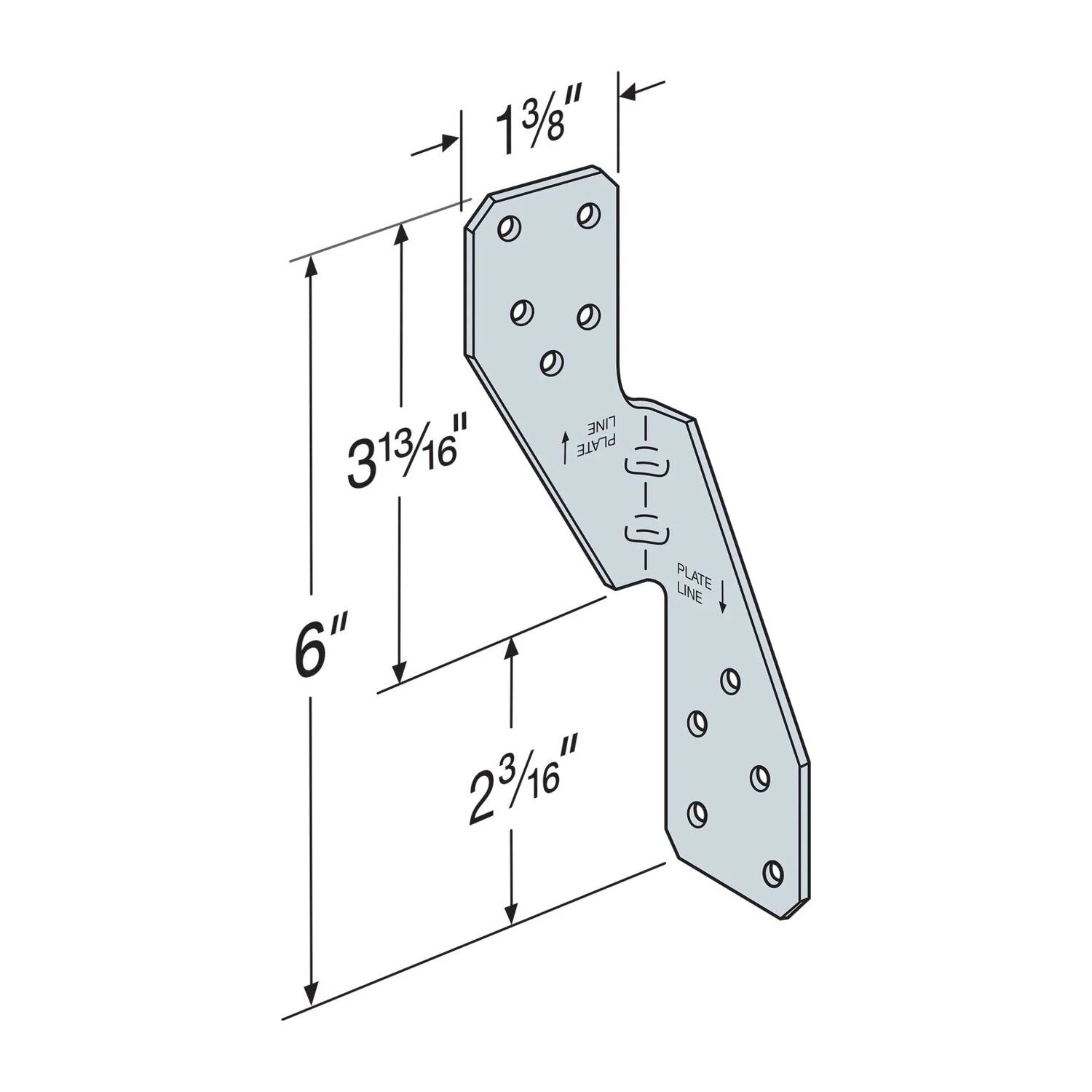

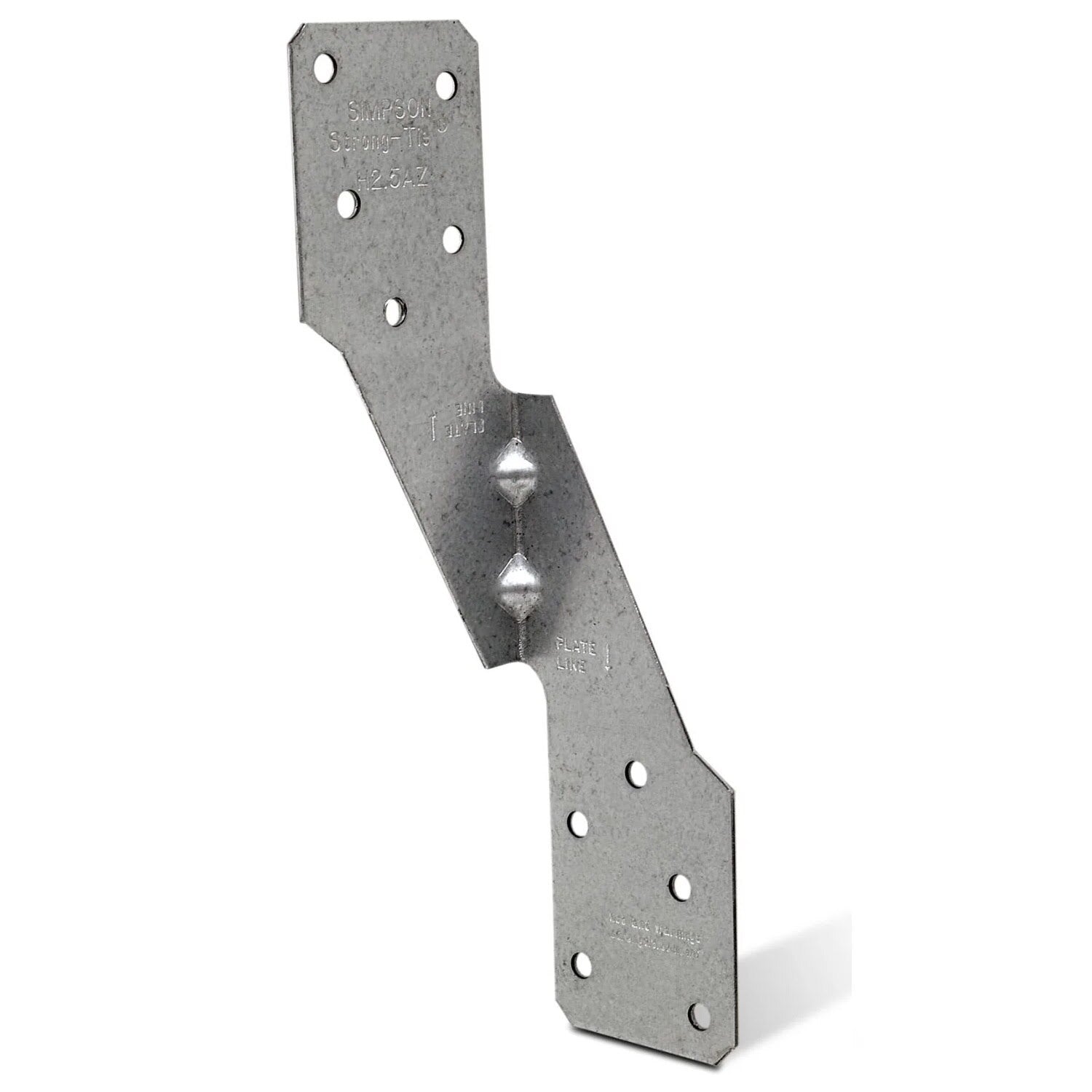

Simpson Strong-Tie H2.5AZ (1-3/8" x 6" 18-Gauge) Hurricane Tie - ZMAX Finish
$0.62
Unit price
/
Unavailable
Description
Description
Simpson H2.5AZ Description

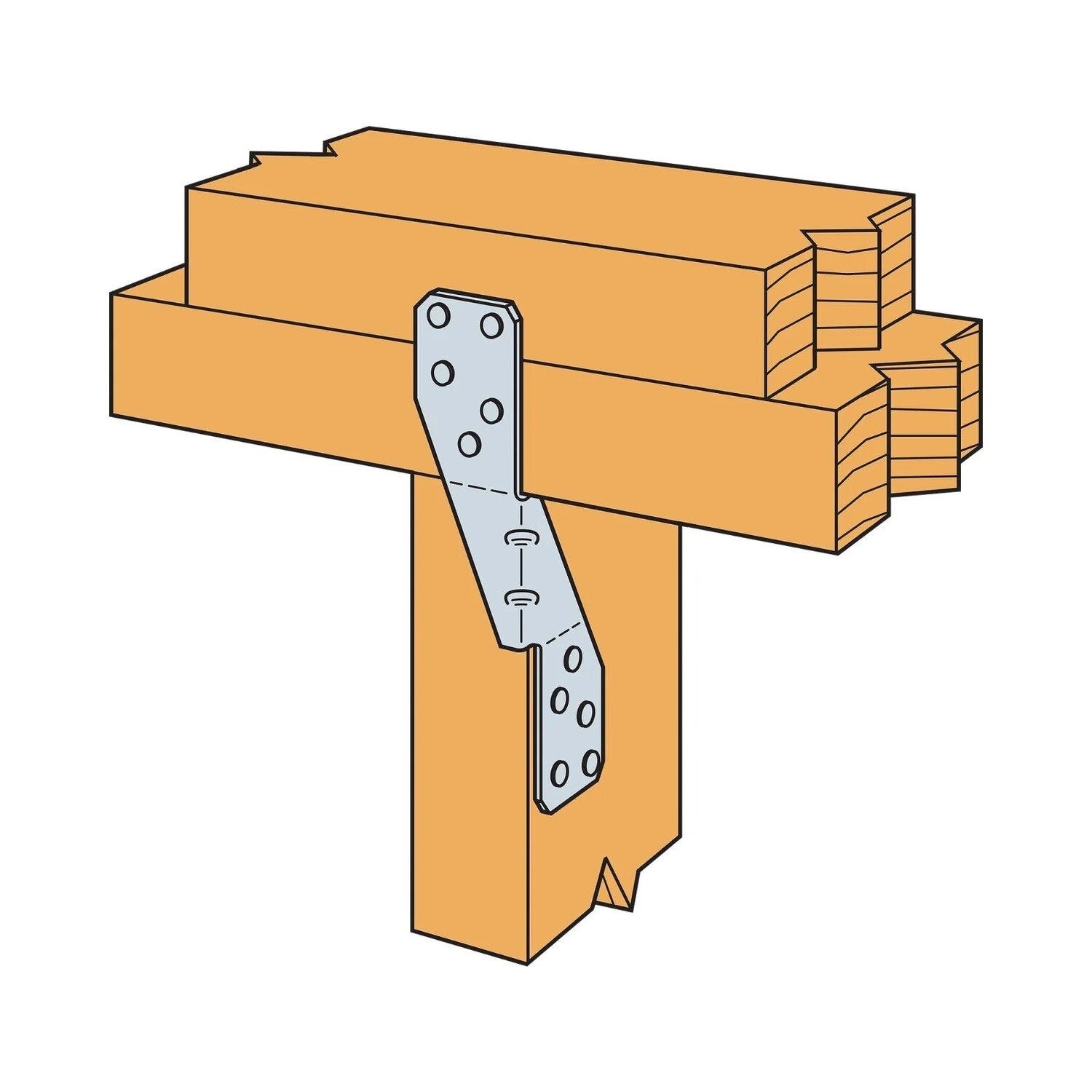

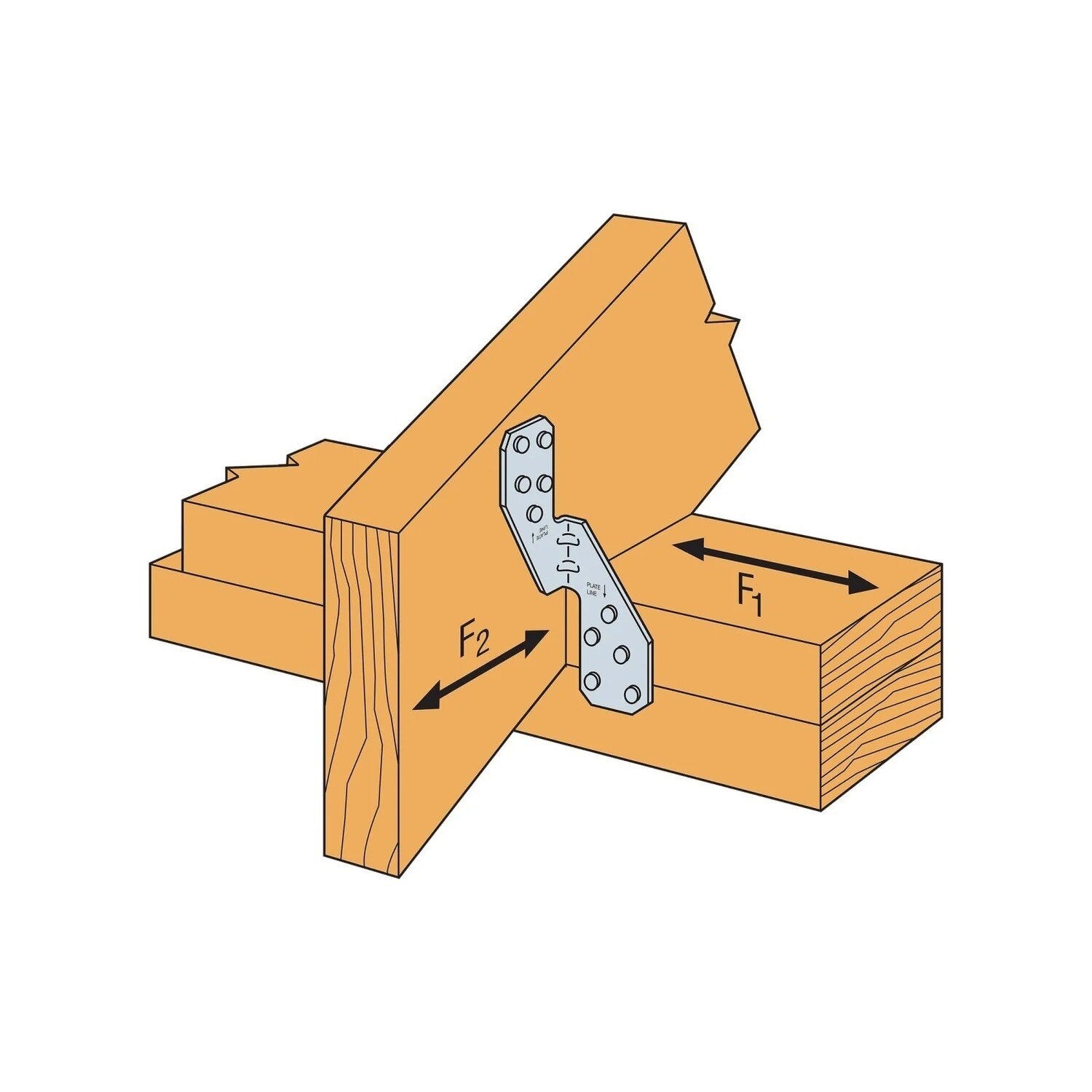

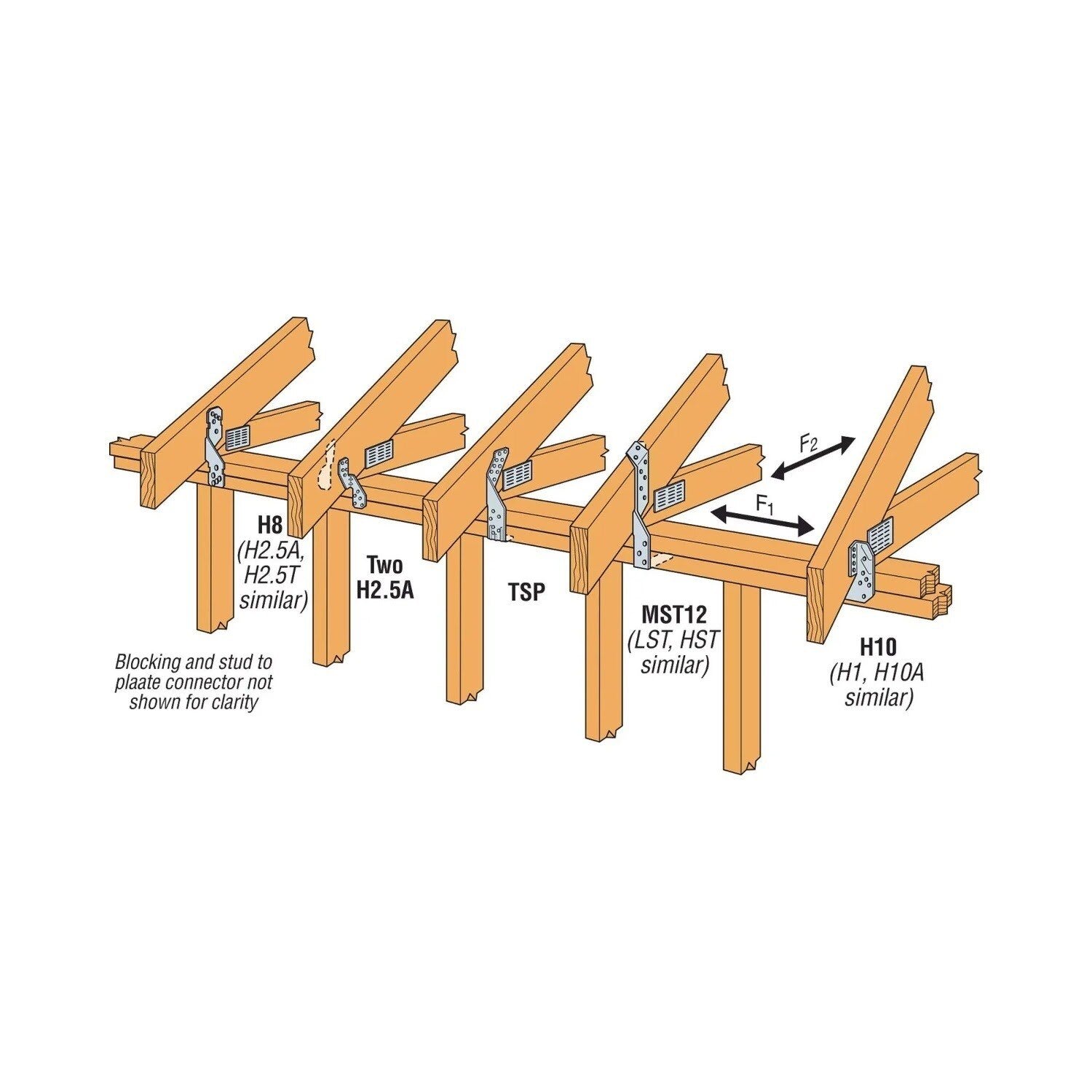

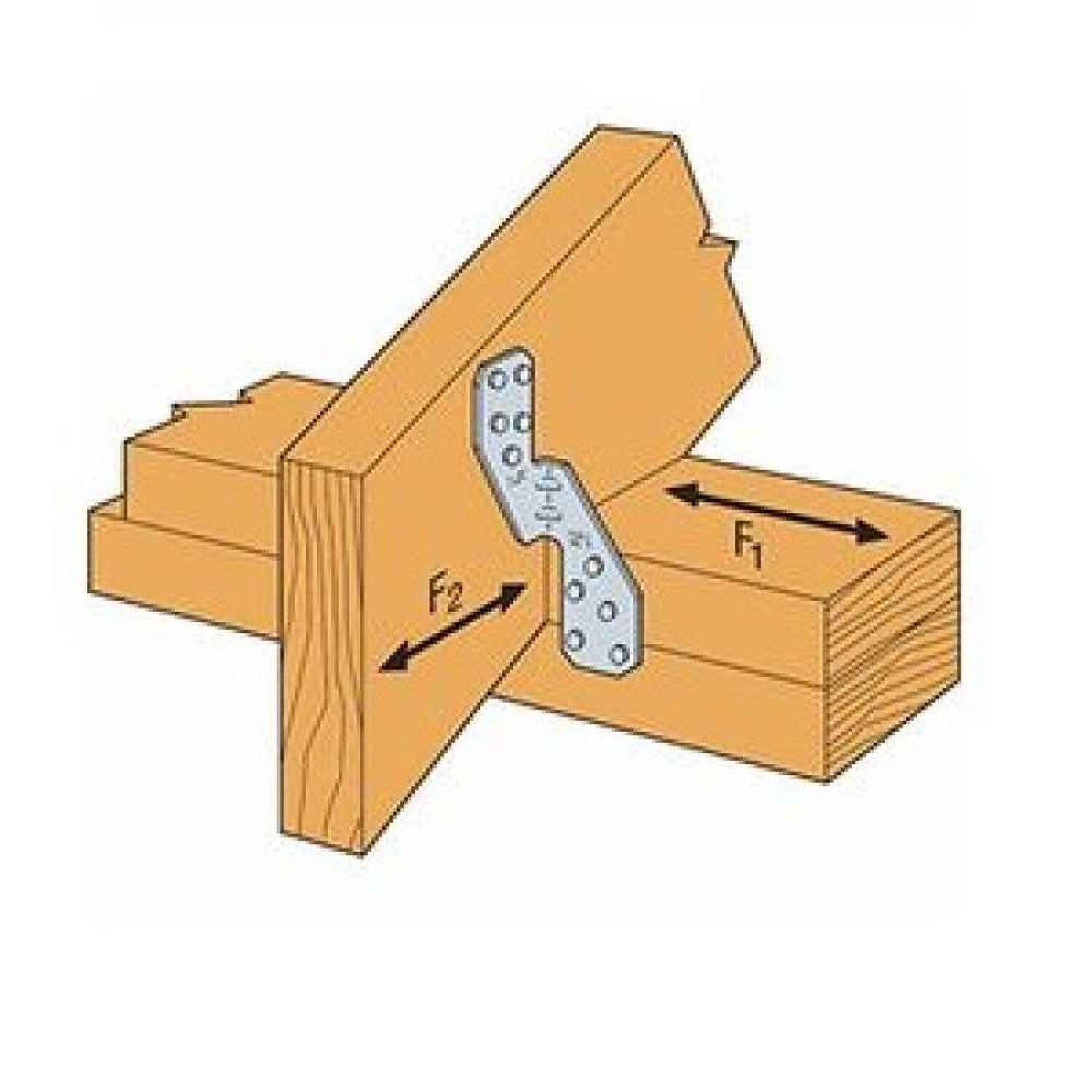

The Simpson H2.5AZ Hurricane Tie provides a secure connection between truss/rafter and wall structures, designed to resist wind and seismic forces.
Simpson H2.5AZ Includes
- (1) Hurricane Tie ZMAX Finish
Simpson H2.5AZ Features
- Symmetrical design eliminates the need for separate left and right parts
- G185 ZMAX galvanized finish for corrosion resistance
- Requires hot-dip galvanized fasteners meeting ASTM A153 specifications
Simpson H2.5AZ Applications

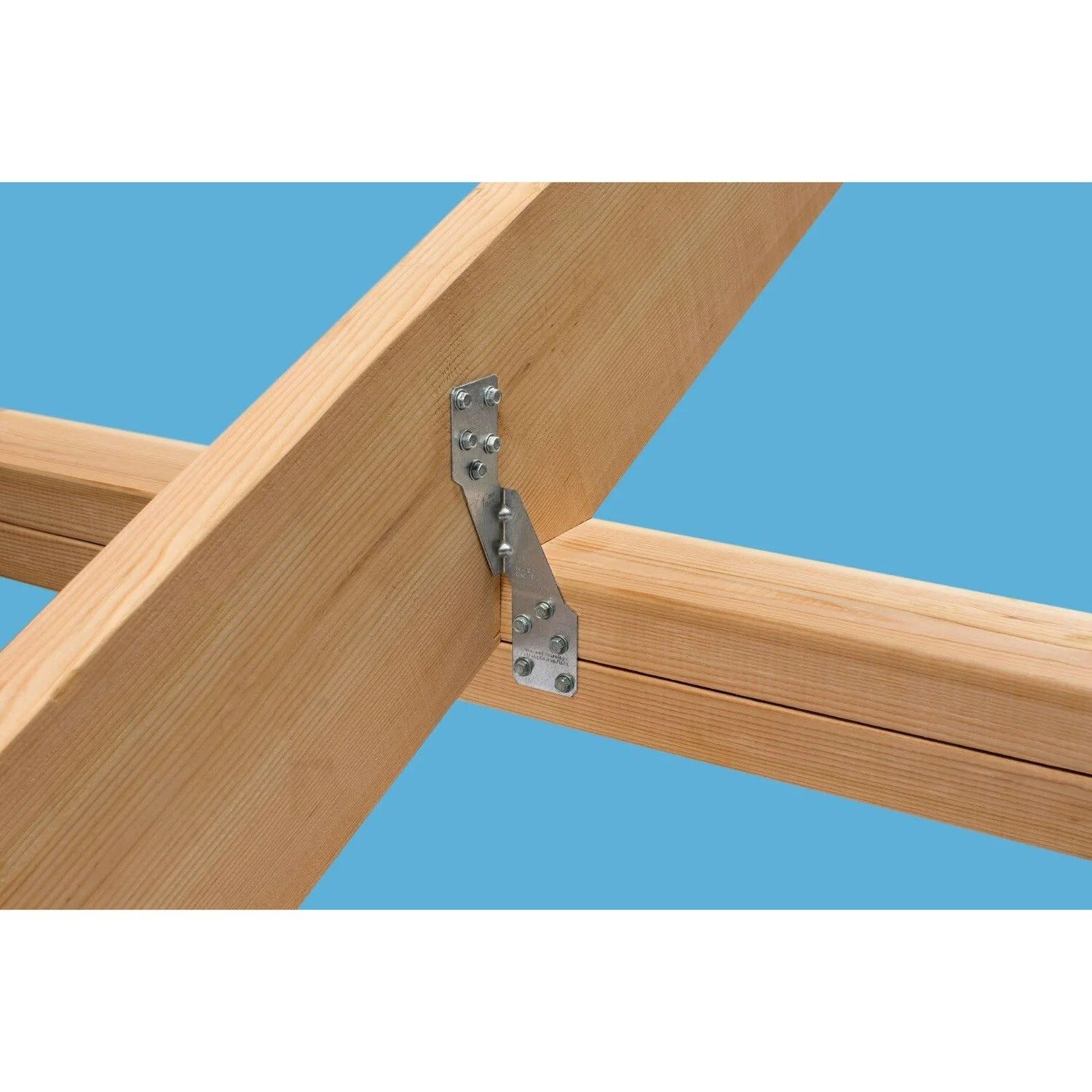

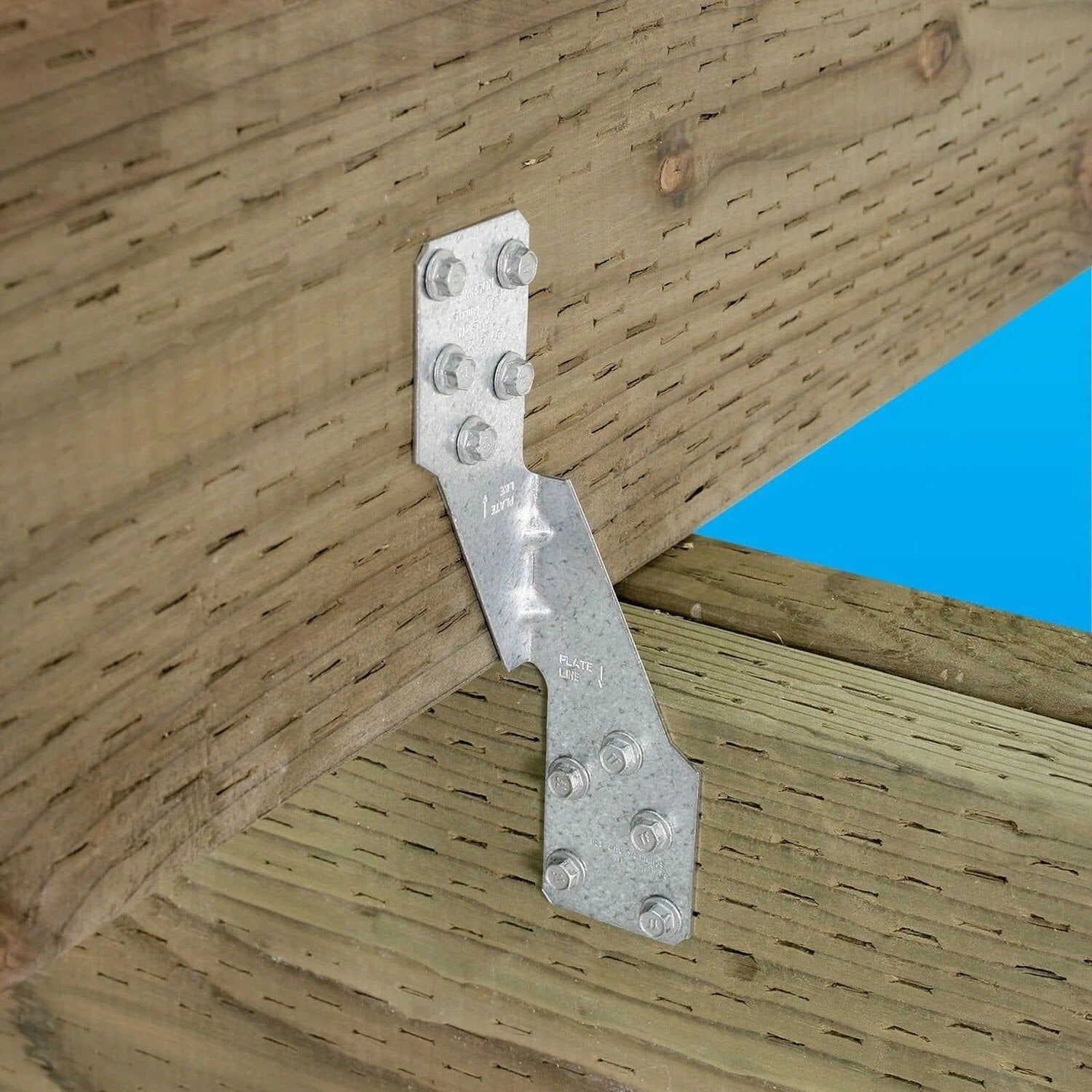

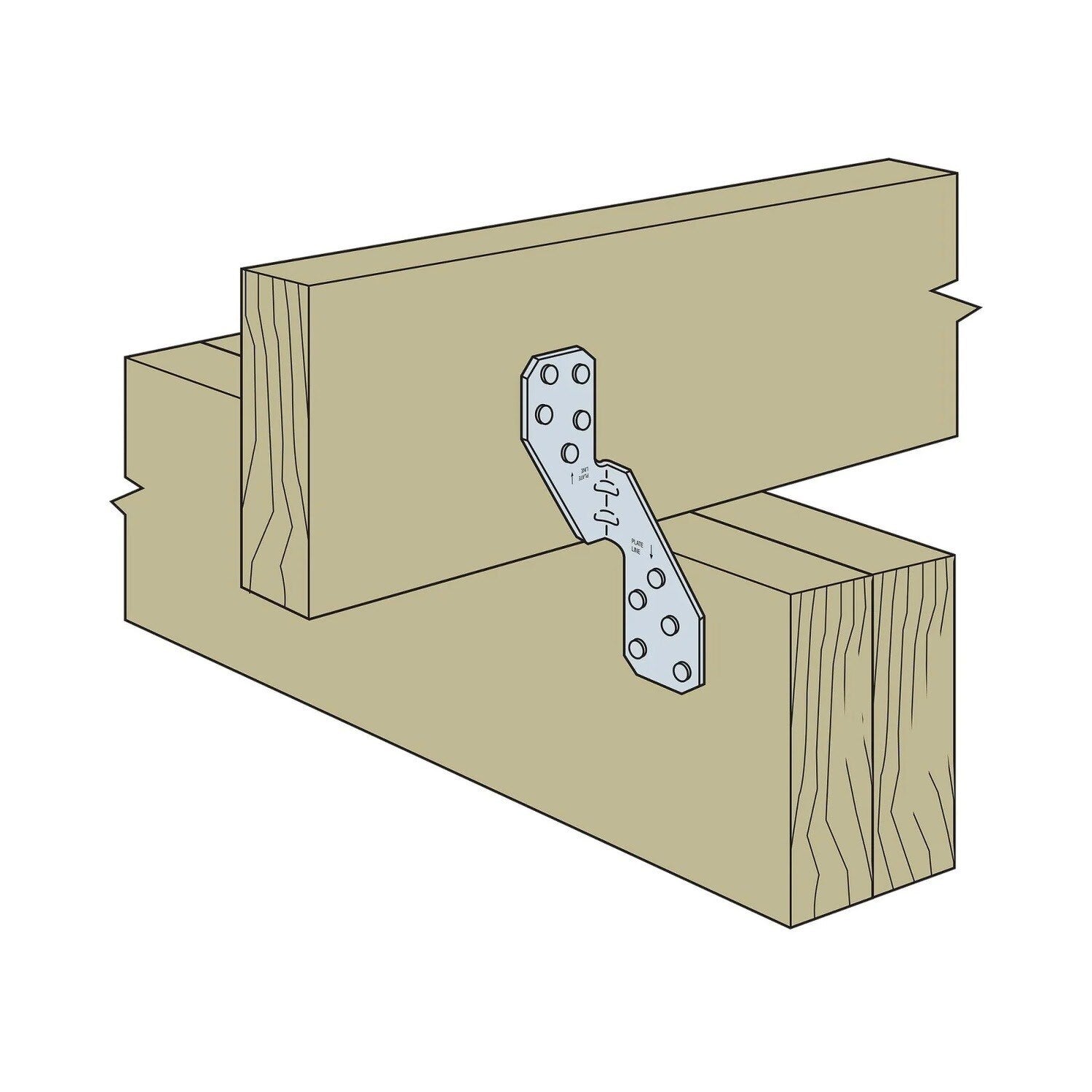

- Wind resistance: Secures truss/rafter to wall structures to withstand wind forces
- Seismic resistance: Provides stability during seismic activity
Simpson H2.5AZ Installation Overview
- Use all specified fasteners
- Utilize hot-dip galvanized nails with ZMAX and HDG connector products
- Do not fasten through the truss plate from behind when installing ties on plated trusses
- Ensure ties do not replace solid blocking
Simpson H2.5AZ Specifications
| Finish | ZMAX |

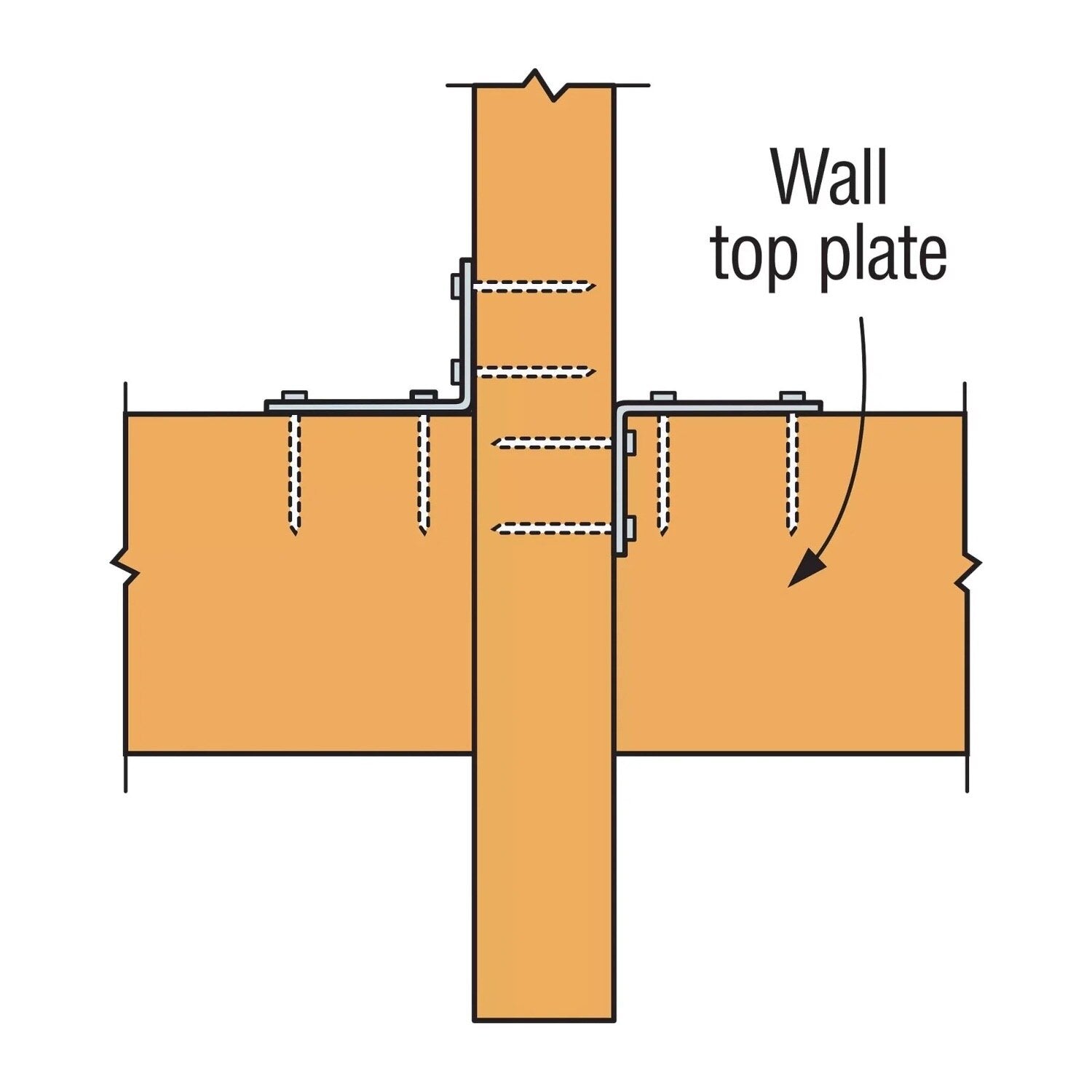

| Fasteners required | To Rafters/Truss - (5) 0.131" x 2-1/2" Nails OR (6) SD9112 Screws, Top Plates - (5) 0.131" x 2-1/2" Nails OR (6) SD9112 Screws |
| For Treated Lumber | Yes |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
