Simpson H8 Description

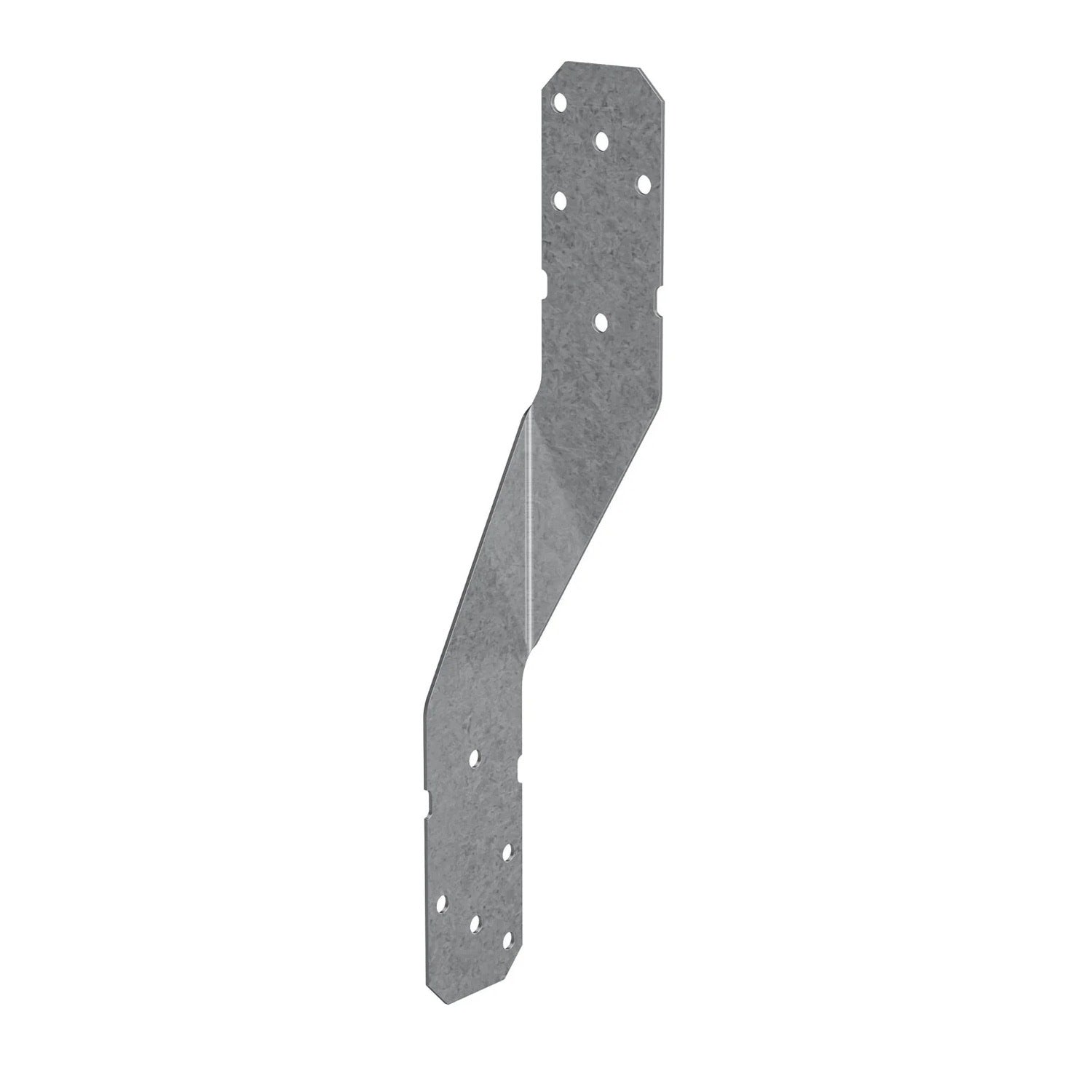

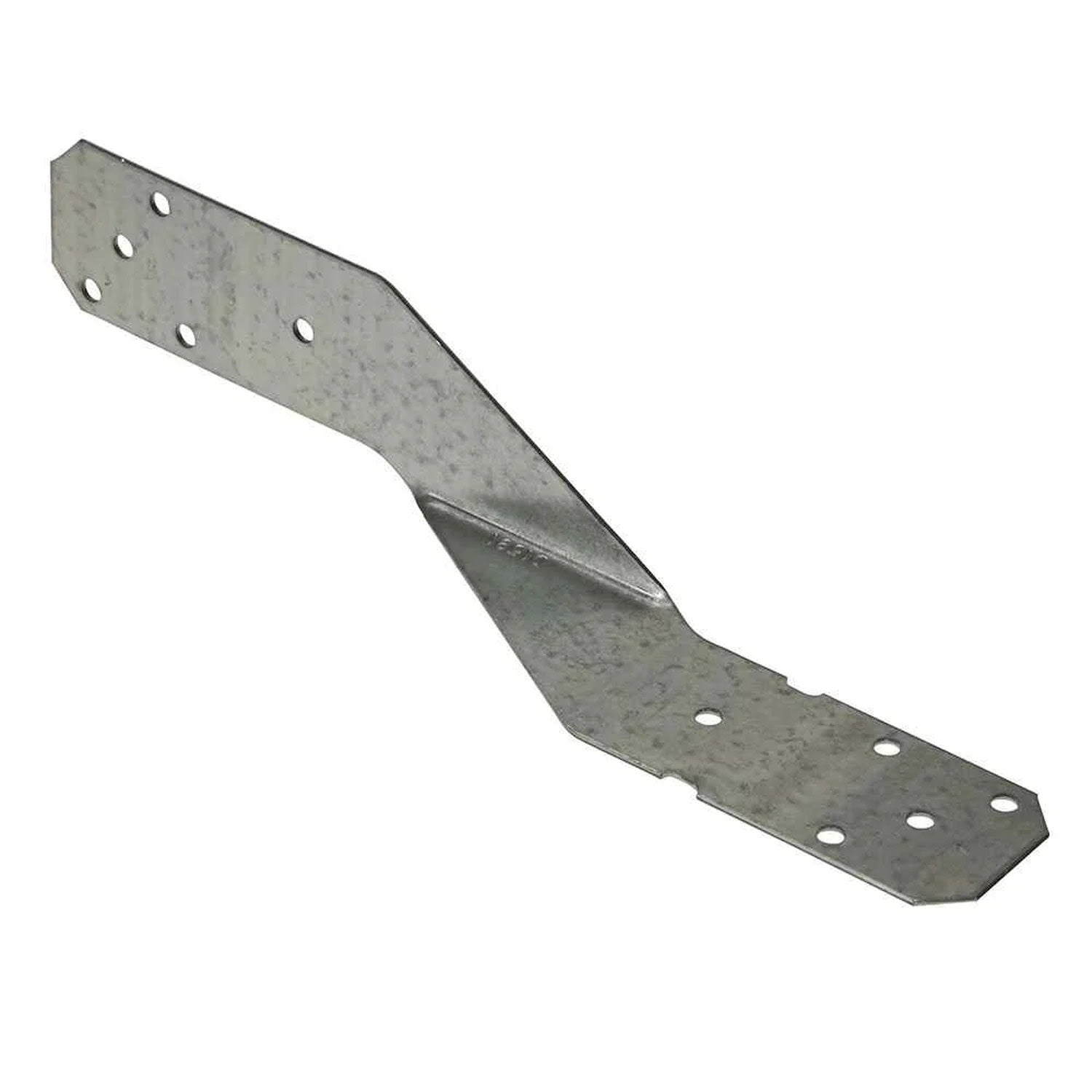

The Simpson H8 Hurricane Tie provides a secure connection between truss/rafter and the wall, resisting wind and seismic forces. It features a G90 Galvanized finish for enhanced corrosion resistance.
Simpson H8 Includes
- (1) Hurricane Tie
Simpson H8 Features
- Positive connection between truss/rafter and wall
- Resists wind and seismic forces
- G90 Galvanized finish for corrosion resistance
- Requires hot-dip galvanized fasteners meeting ASTM A153
Simpson H8 Applications

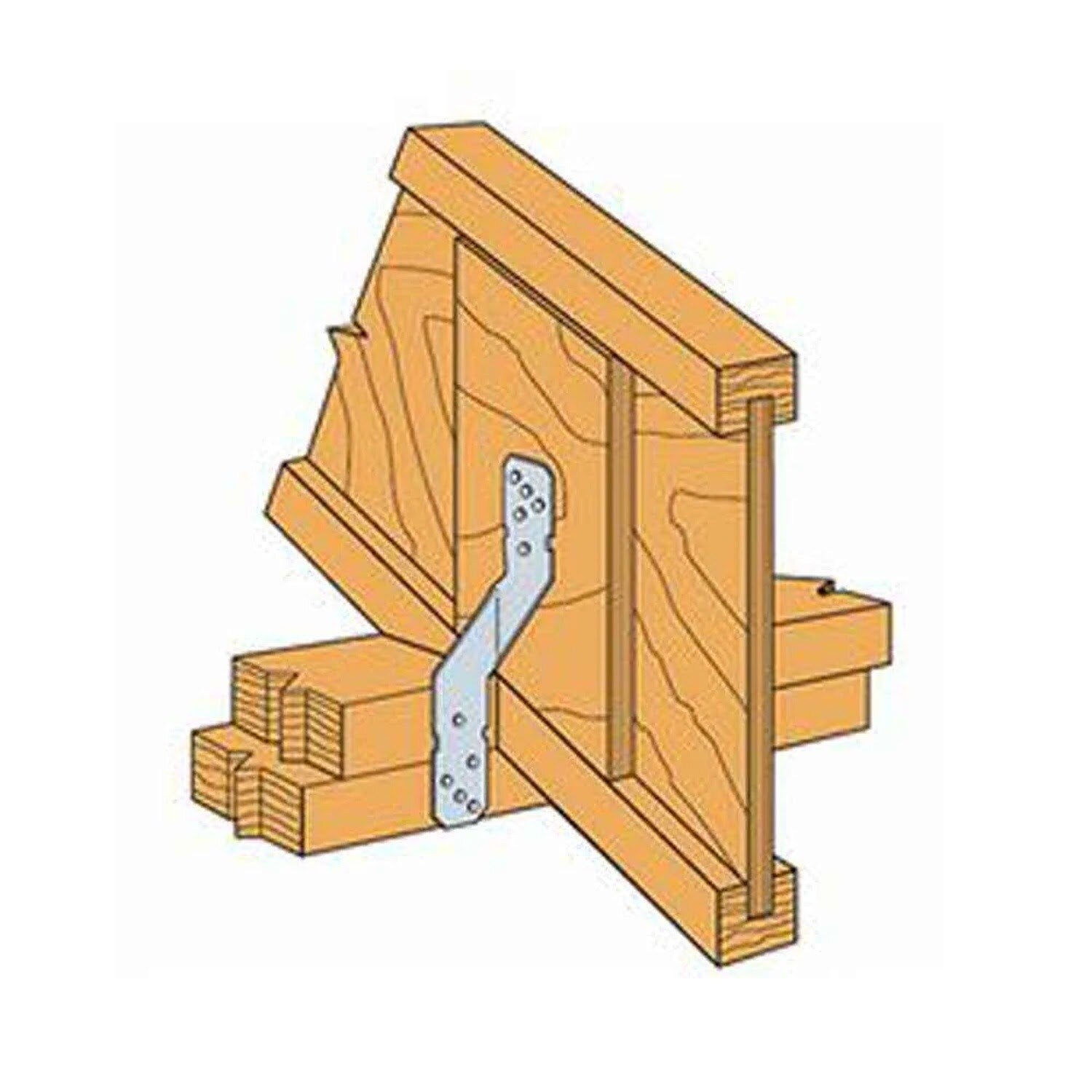

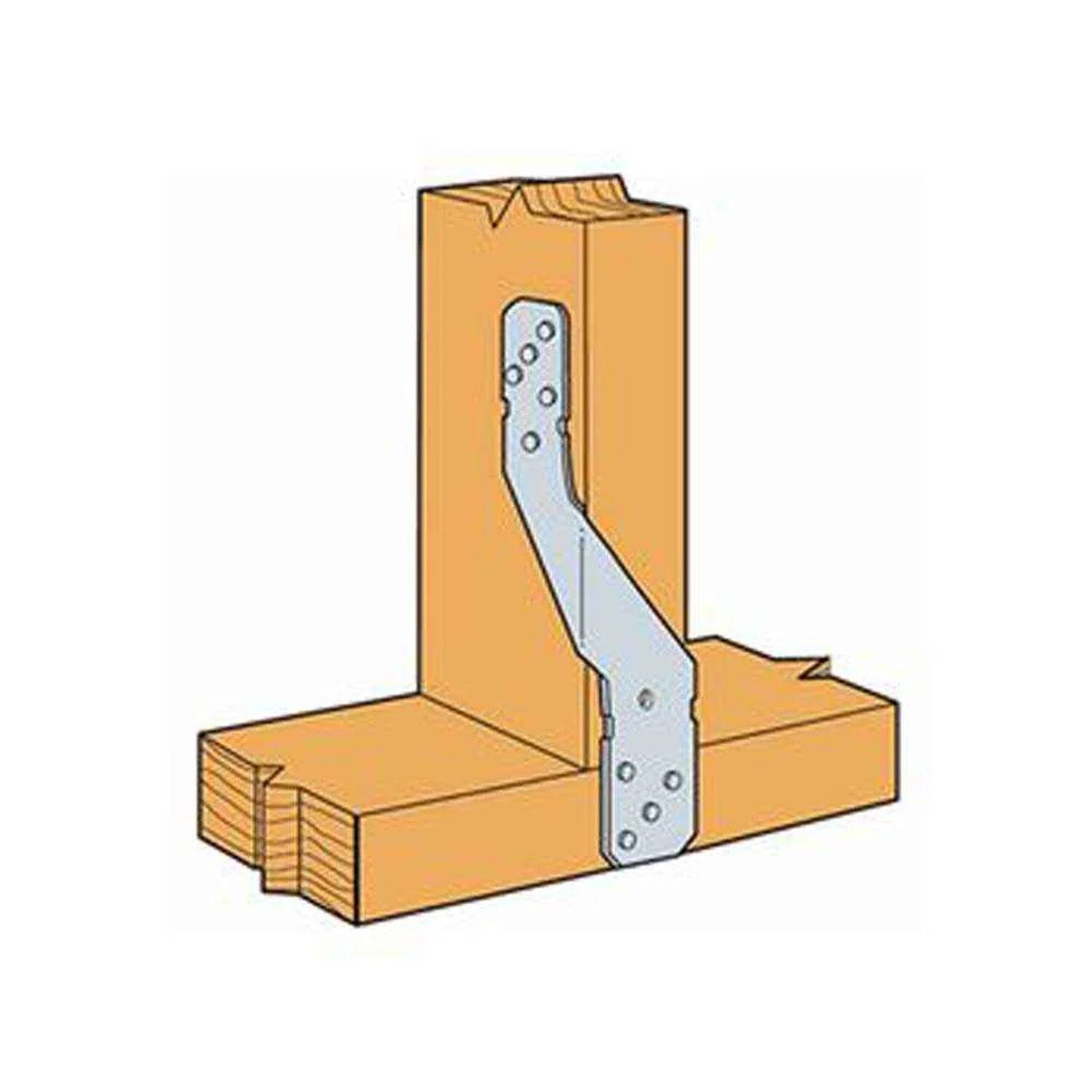

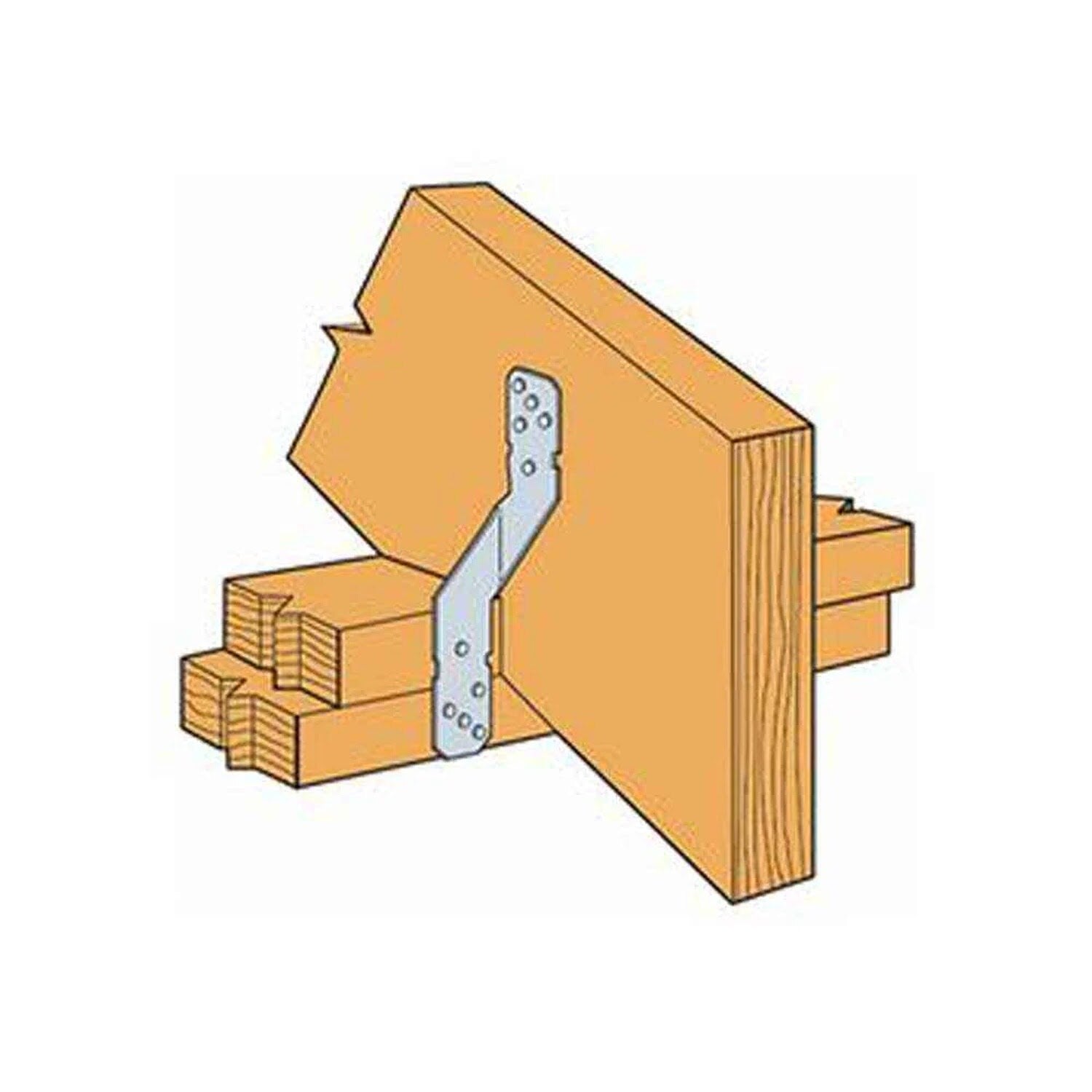

- Securing truss/rafter to wall for wind resistance
- Enhancing structural integrity against seismic forces
Simpson H8 Installation Overview
- Use all specified fasteners
- Utilize hot-dip galvanized nails with ZMAX and HDG connector products
- Do not replace solid blocking with hurricane ties
- Avoid fastening through truss plate from behind when installing ties on plated trusses

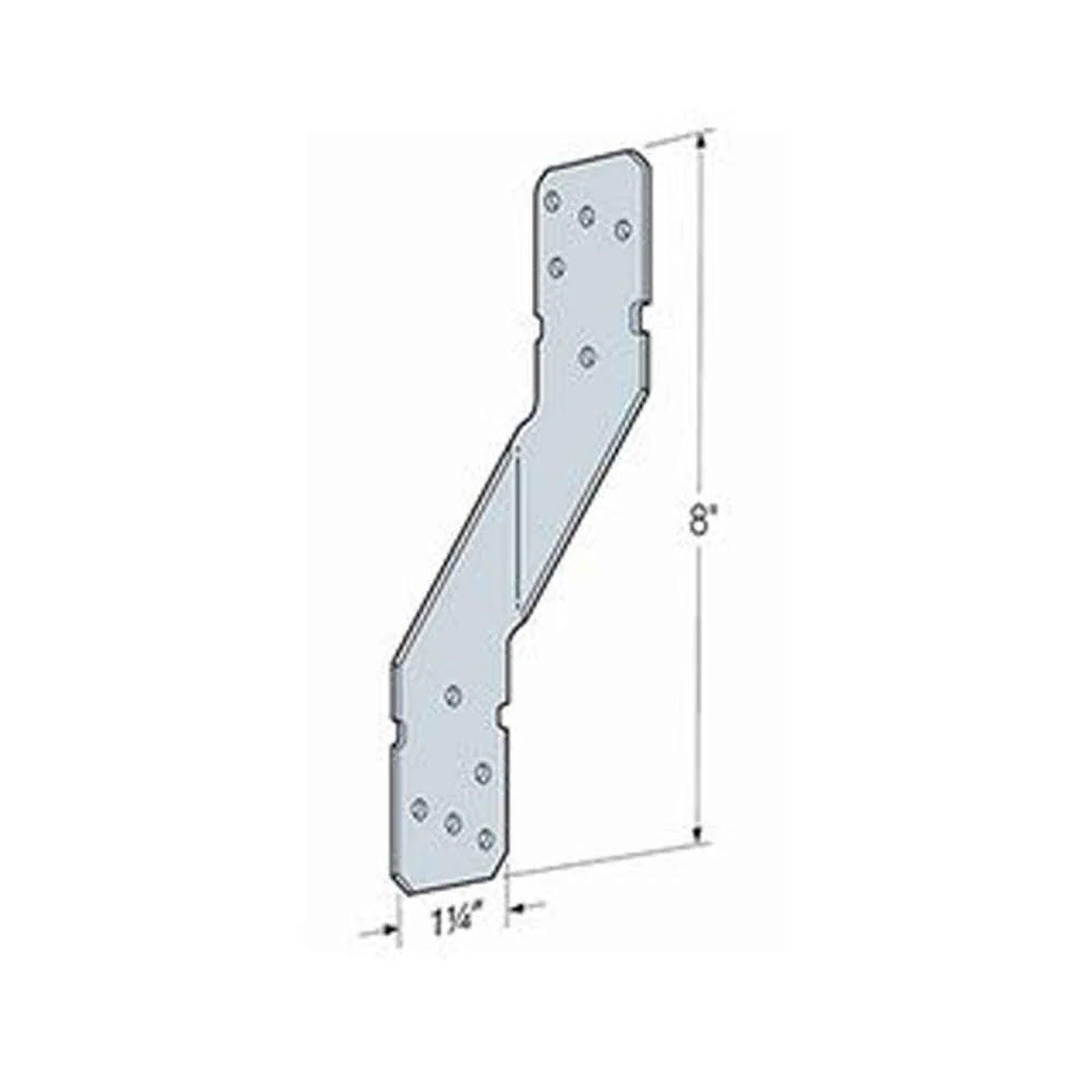

Simpson H8 Specifications
| Finish | G90 Galvanized |
| Fasteners required | To Rafters/Truss - (5) 0.148" x 1-1/2" Nails, Top Plates - (5) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
248739
