Simpson Anchors | SKU:
H8SS

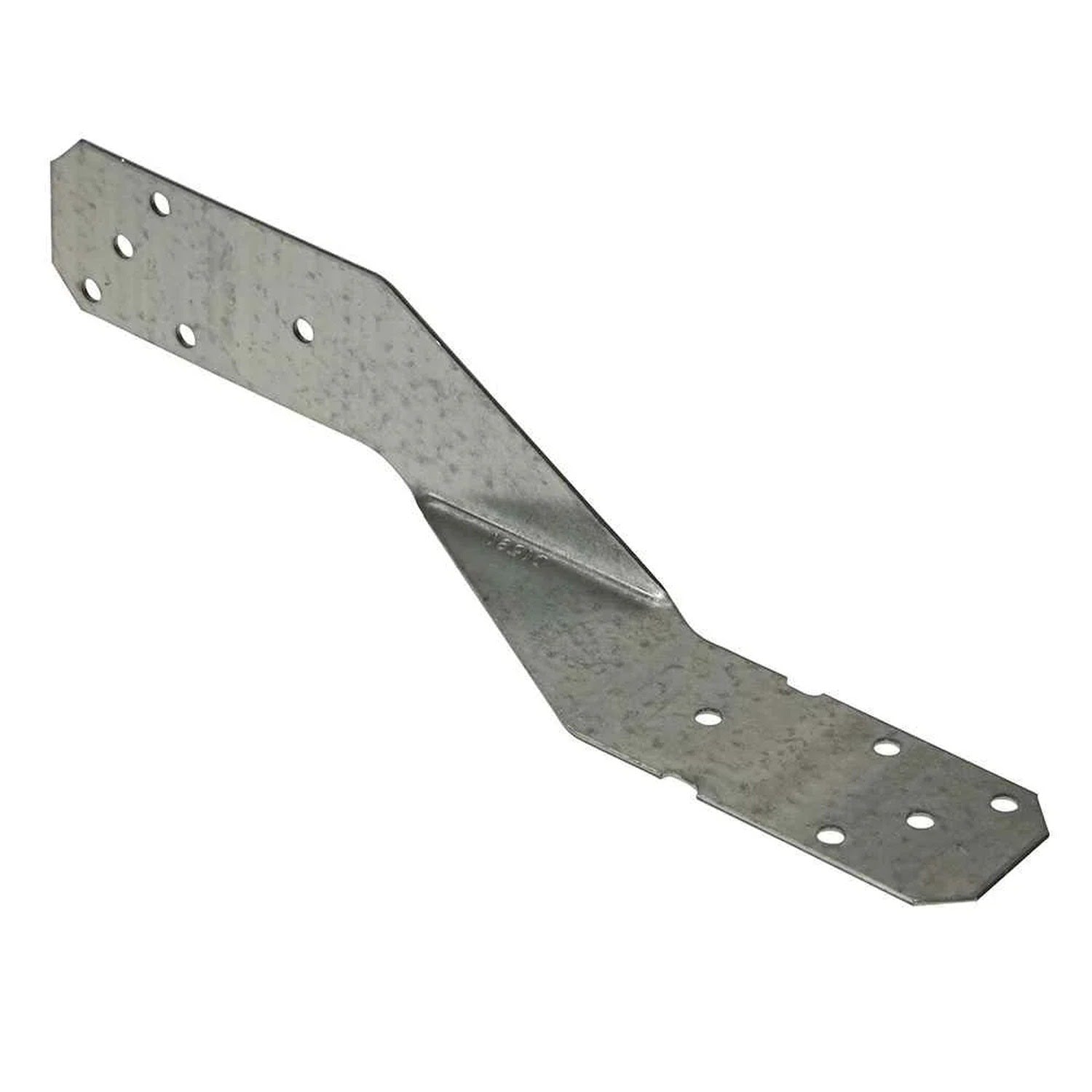

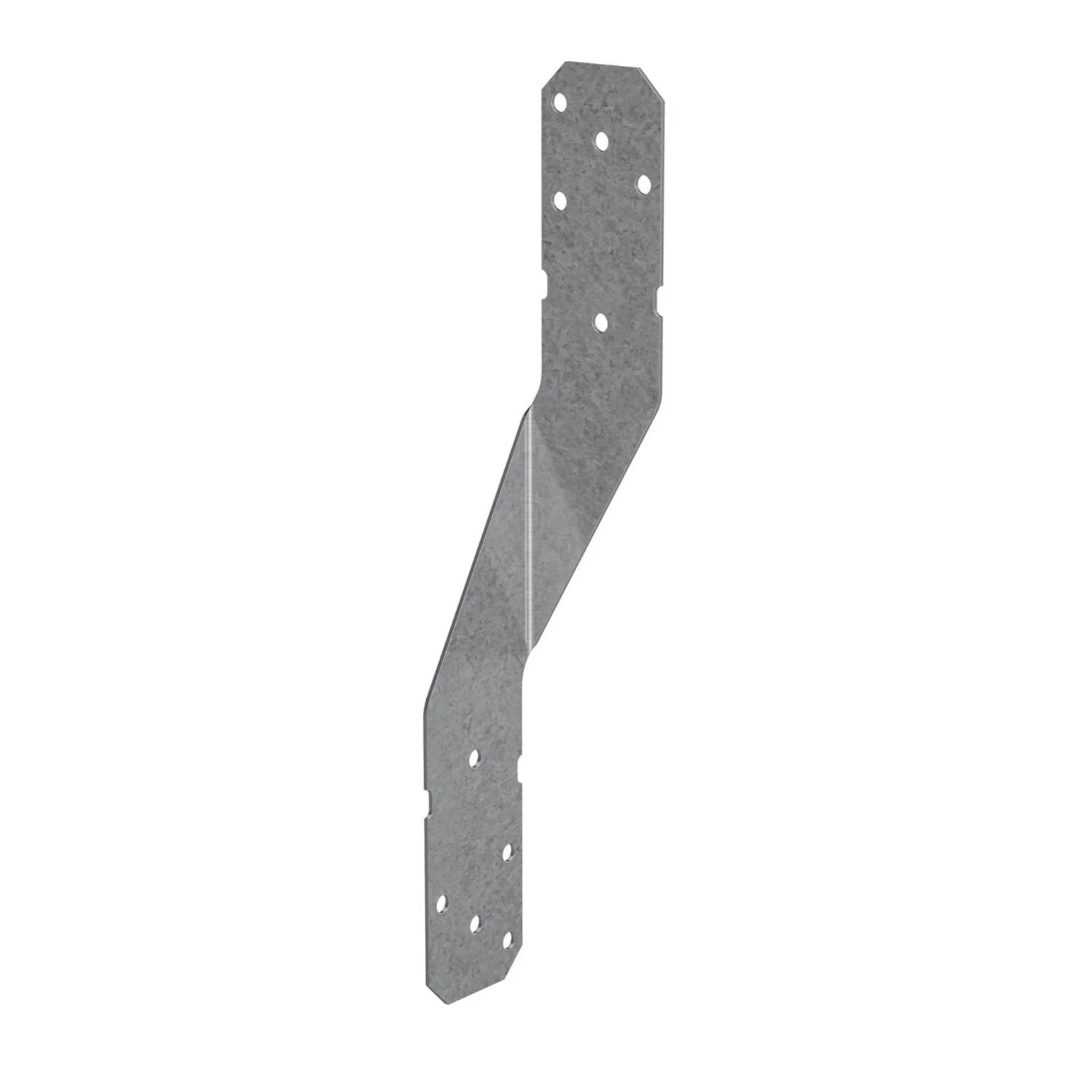

Simpson Strong-Tie H8SS (1-1/4" x 8" 18 Gauge) Hurricane Tie - Stainless Steel for Wood Construction
$13.31
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie H8SS Description

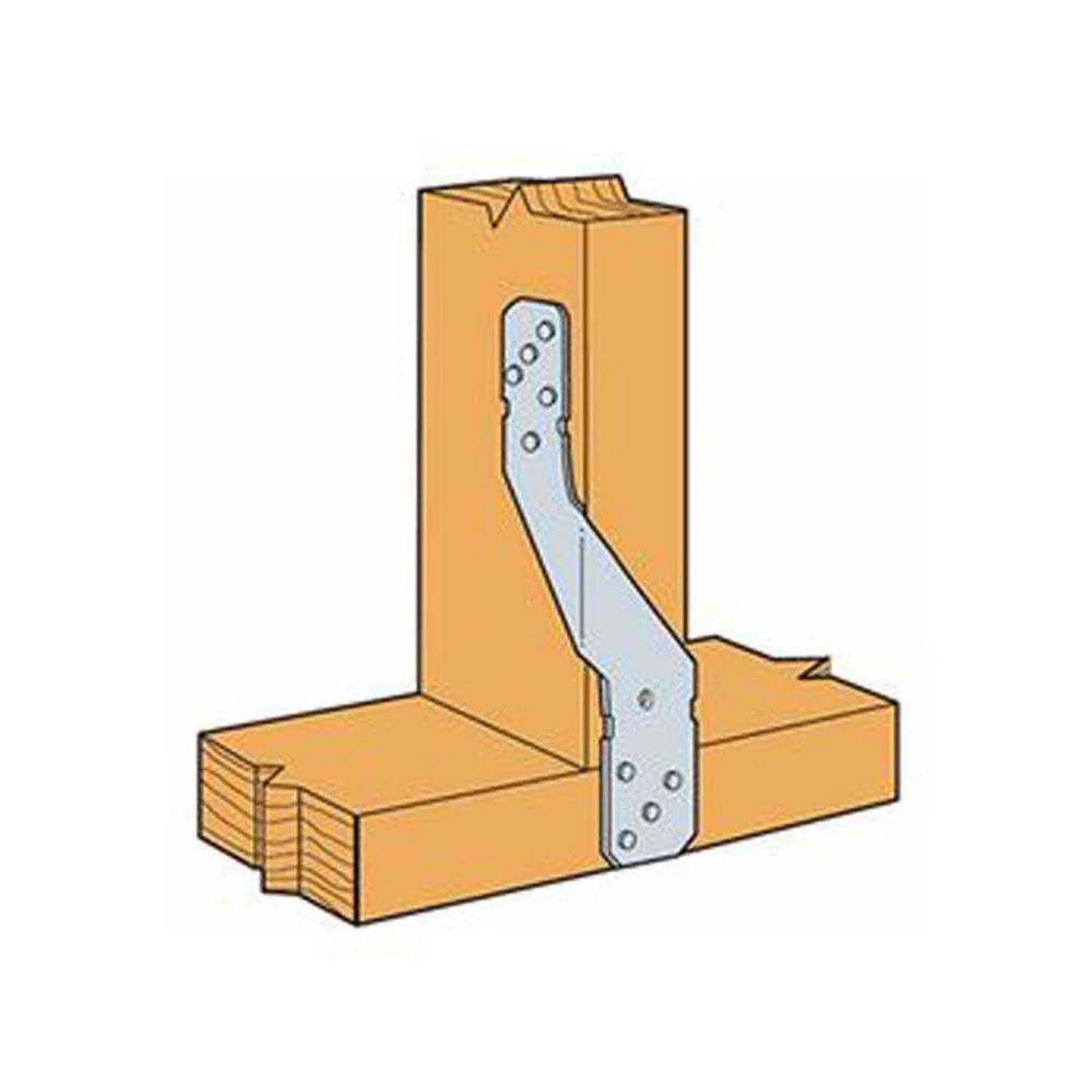

The Simpson Strong-Tie H8SS Hurricane Tie provides a positive connection between truss/rafter and the wall of the structure to resist wind and seismic forces. Made of stainless steel for enhanced corrosion resistance.
Simpson Strong-Tie H8SS Includes
- (1) Hurricane Tie
Simpson Strong-Tie H8SS Features
- Stainless steel construction for corrosion resistance
- Designed for wood-to-wood connections
- Approved for installation with load-rated Strong-Drive SD Connector screws
- Can be installed with flanges facing either inward or outward
Simpson Strong-Tie H8SS Applications
- Wood-to-wood connections in construction

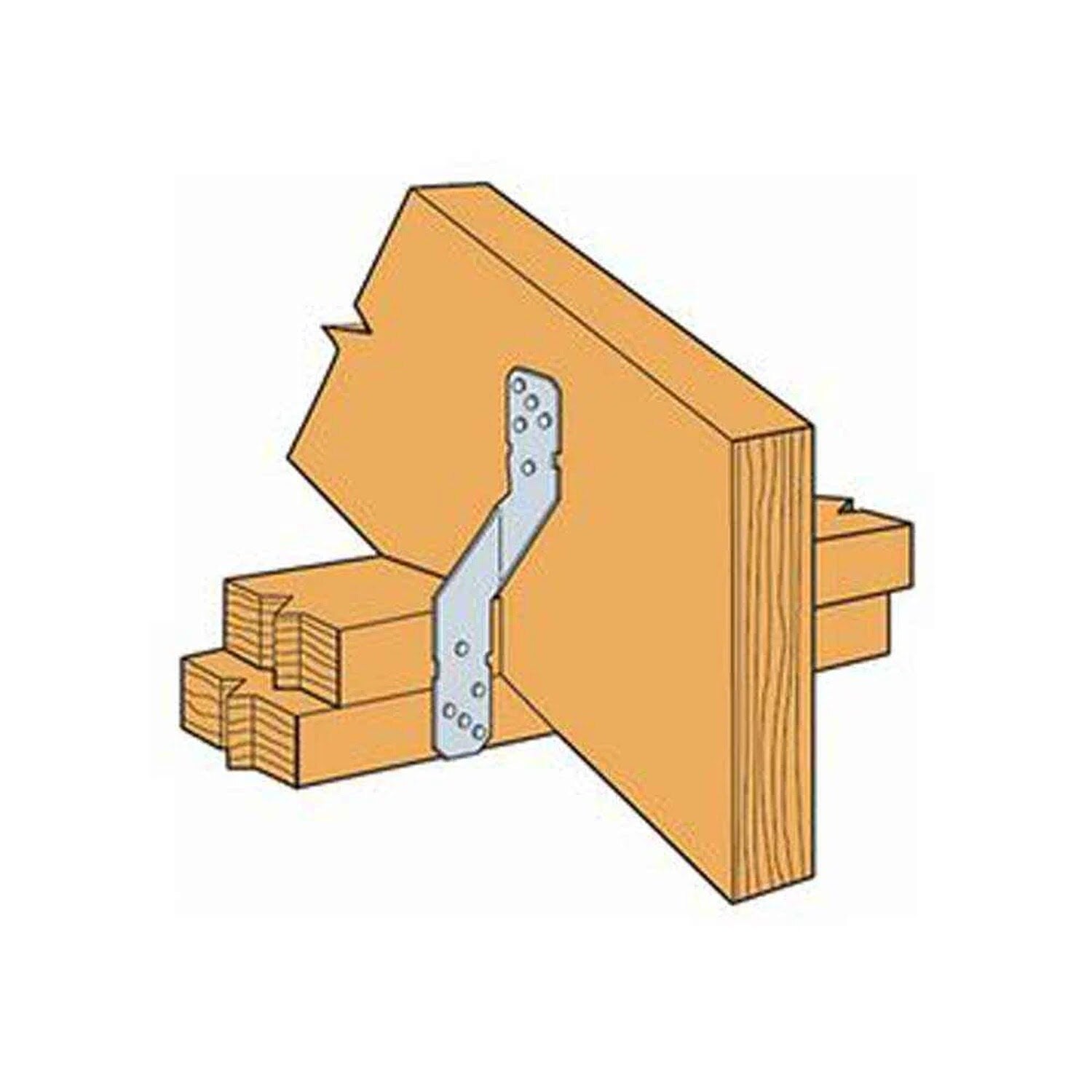

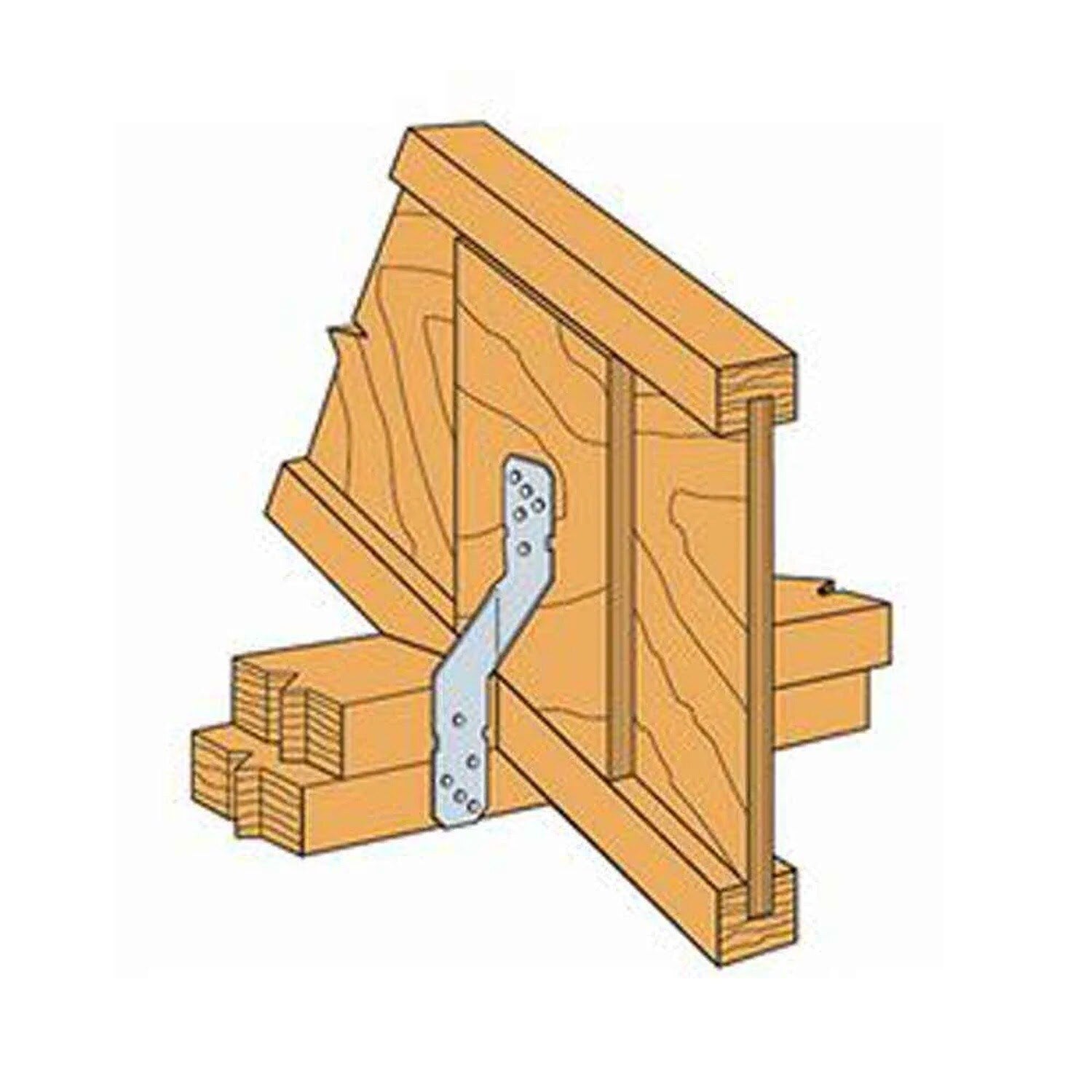

- Securing truss/rafter to wall structures
- Resisting wind and seismic forces
Simpson Strong-Tie H8SS Installation Overview
- Use all specified fasteners
- Ensure proper alignment and positioning
- Do not fasten through truss plates from behind
- Use stainless steel nails for stainless steel connectors
Simpson Strong-Tie H8SS Specifications
| Material | 18 Gauge Stainless Steel |
| Finish | Stainless Steel |

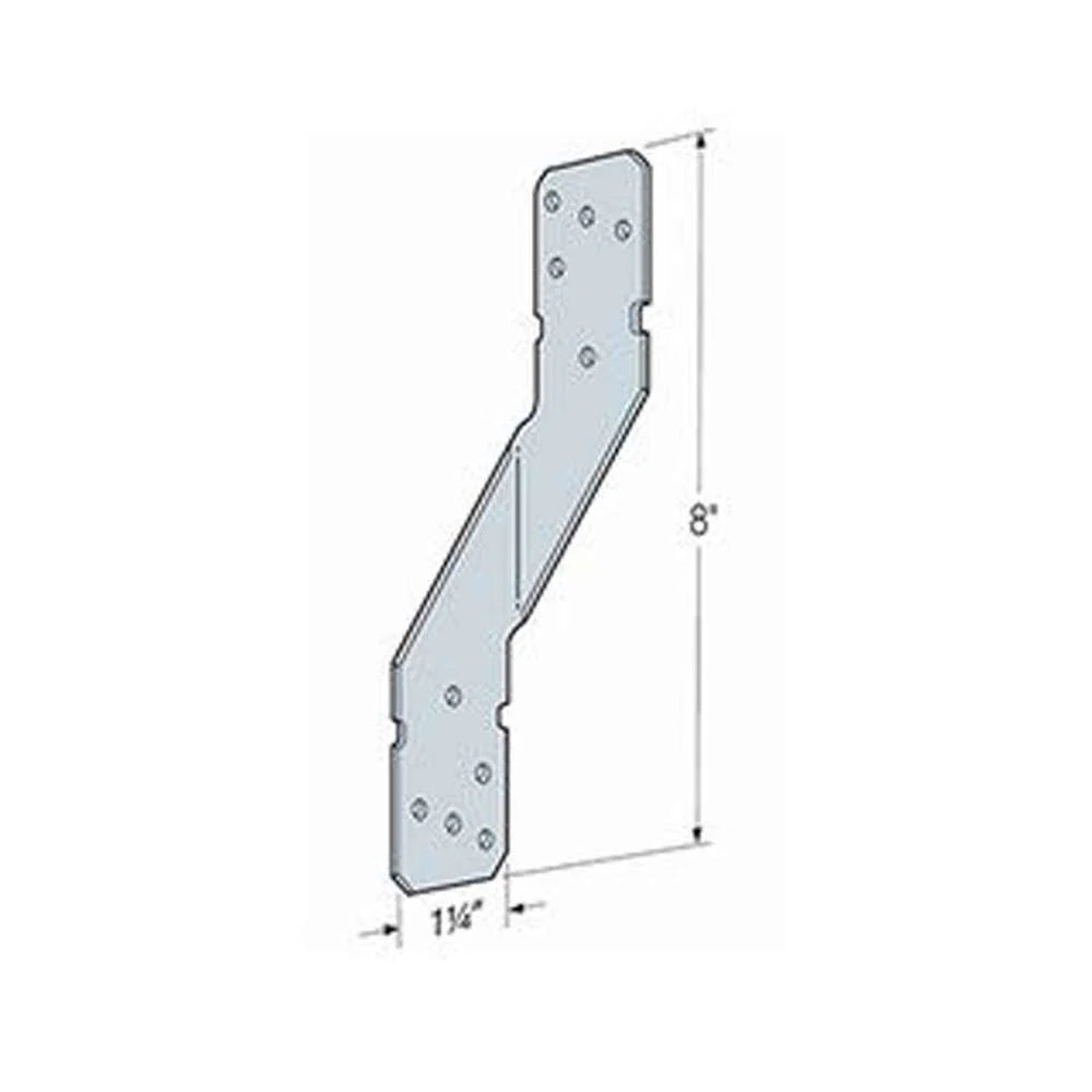

| Dimensions | Width: 1 1/4 in., Height: 8 in. |
| Weight | 0.1 lb |
| Fasteners Required | To Rafters/Truss - (5) 0.148" x 1-1/2" Nails, Top Plates - (5) 0.148" x 1-1/2" Nails |
| For Treated Lumber | Yes |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
