Simpson Hangers | SKU:
HB3.56/11.88

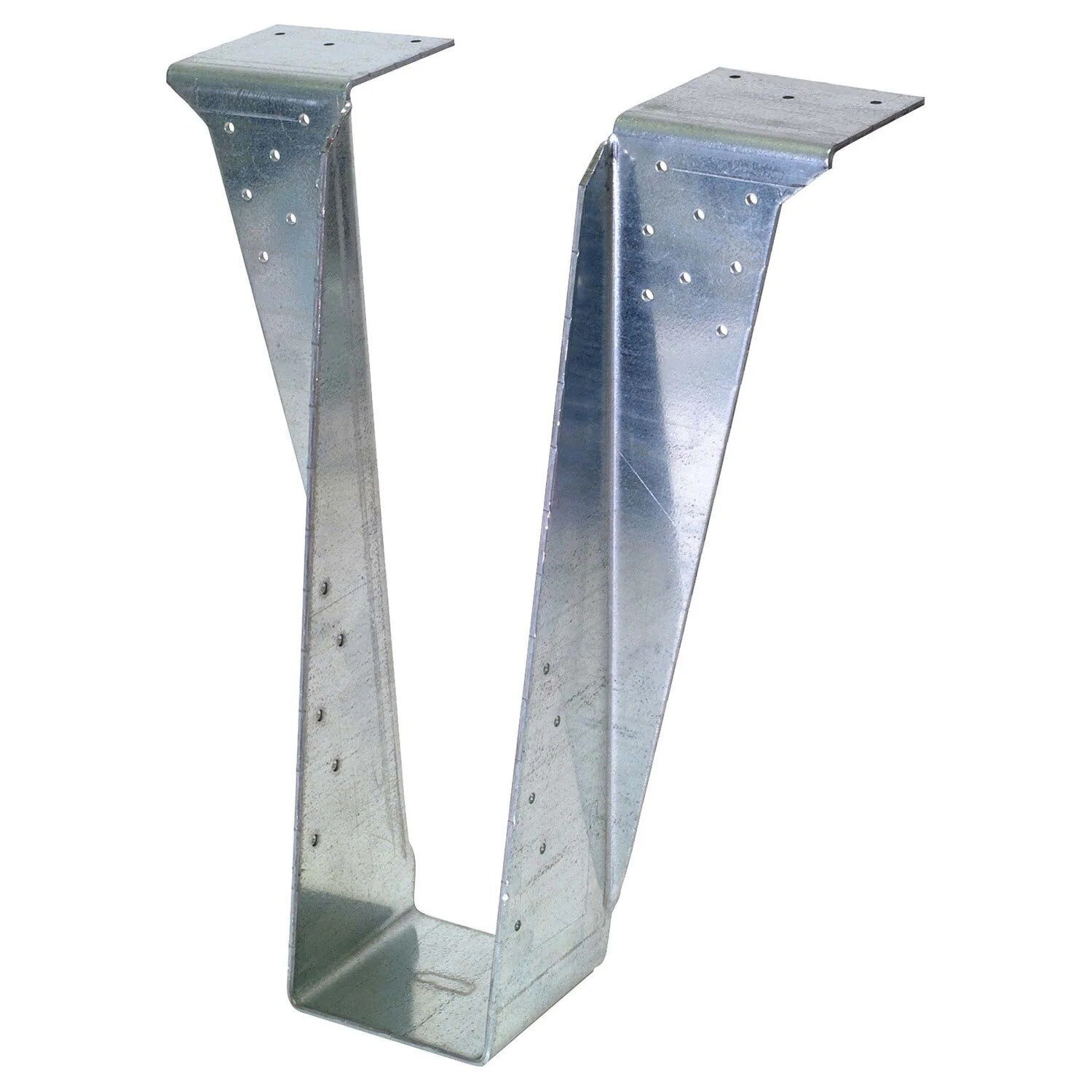

Simpson Strong-Tie HB3.56/11.88 (3-1/2" x 11-7/8") Top Flange I-Joist Hanger - G90 Galvanized
$41.58
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HB3.56/11.88 Description
The Simpson Strong-Tie HB Heavy Beam Hanger is a top-flange hanger designed for maximum load capacity when connecting beams to supporting members.
Simpson Strong-Tie HB3.56/11.88 Includes
- (1) Top Flange I-Joist Hanger
Simpson Strong-Tie HB3.56/11.88 Features
- Heavy-Duty Load Support: Engineered for high-capacity connections in heavy framing applications.
- Versatile Compatibility: Designed for both solid sawn and engineered wood applications.
- Top-Flange Design: Provides ease of installation and a strong, reliable connection.
- Wide Bearing Surface: Helps distribute load efficiently and reduce wood crushing.
- Precision Engineering: Manufactured to ensure a tight, accurate fit for secure fastening.
Simpson Strong-Tie HB3.56/11.88 Applications
- Commercial and Residential Framing: Supports heavy beams in large-scale structures.
- Deck Construction: Provides strong beam-to-post connections for elevated decks.
- Timber Frame Structures: Essential for heavy timber and post-and-beam construction.
- Multi-Story Buildings: Used to support major load-bearing beams in multi-level projects.
- Industrial and Agricultural Buildings: Ensures stable connections for high-load environments.

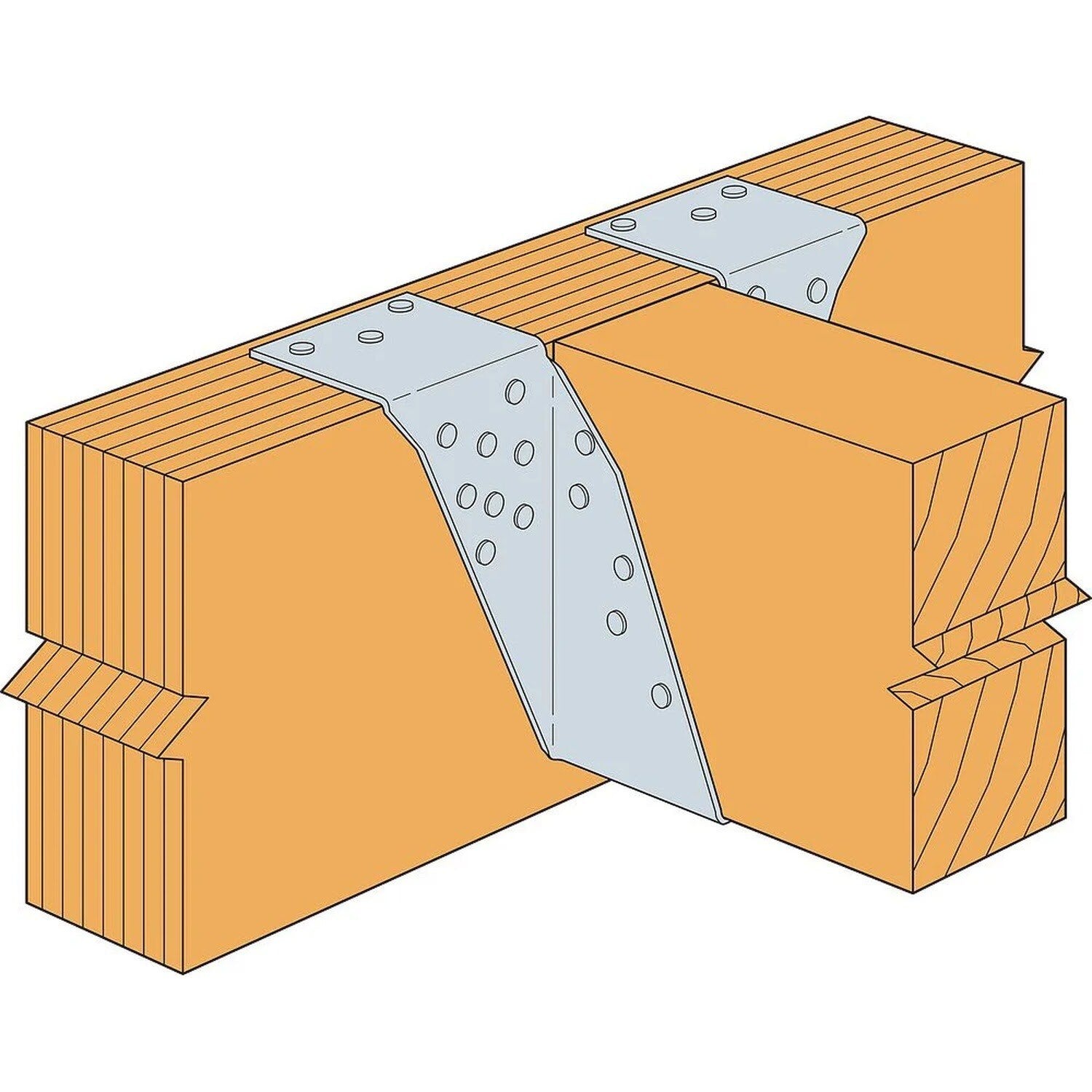

Simpson Strong-Tie HB3.56/11.88 Installation Overview
- Use Specified Fasteners: Install with appropriate nails or screws as recommended by Simpson Strong-Tie.
- Ensure Proper Bearing: The hanger should fully bear on the supporting structure for maximum load capacity.
- Check Beam Fit: Ensure a snug fit within the hanger seat to prevent unnecessary movement.

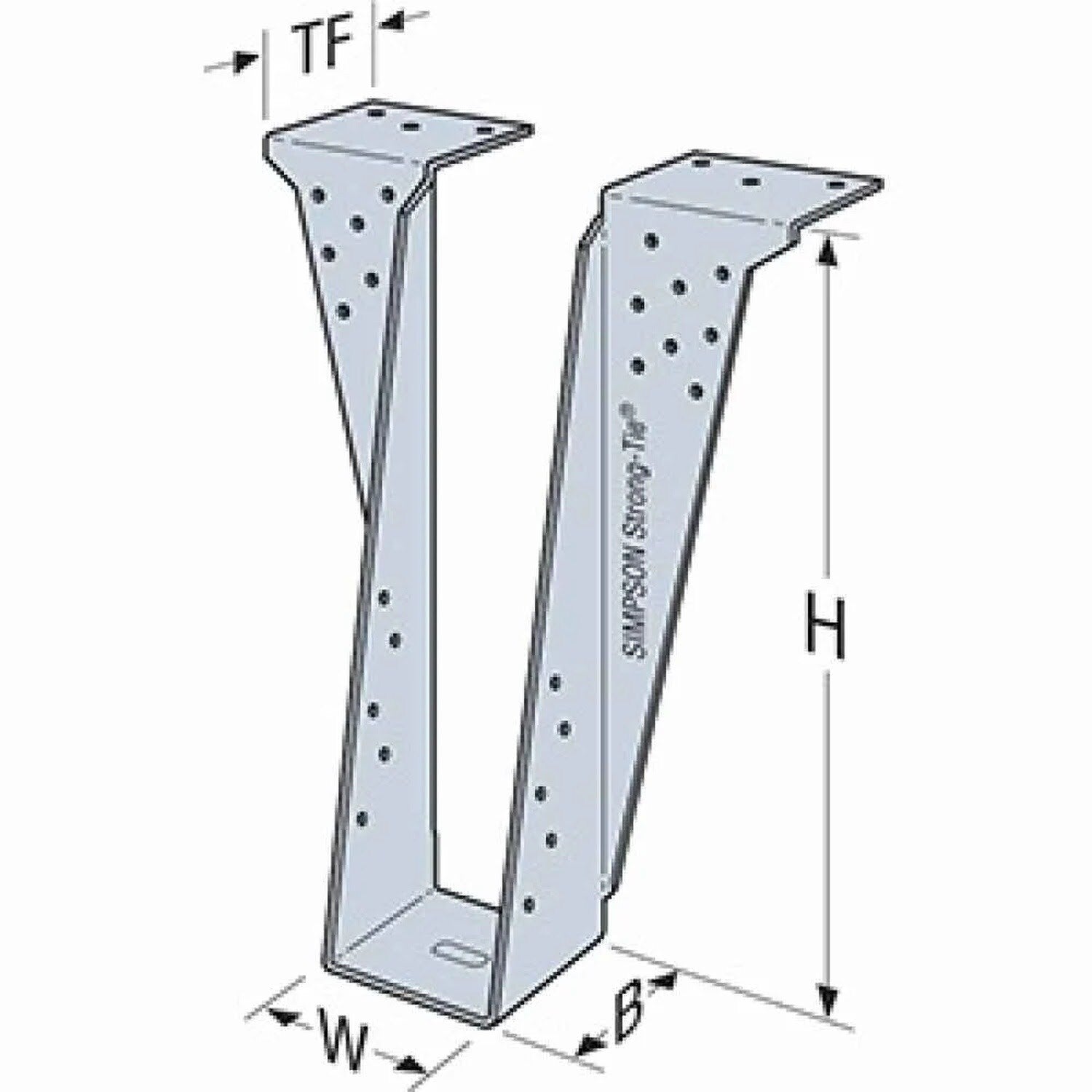

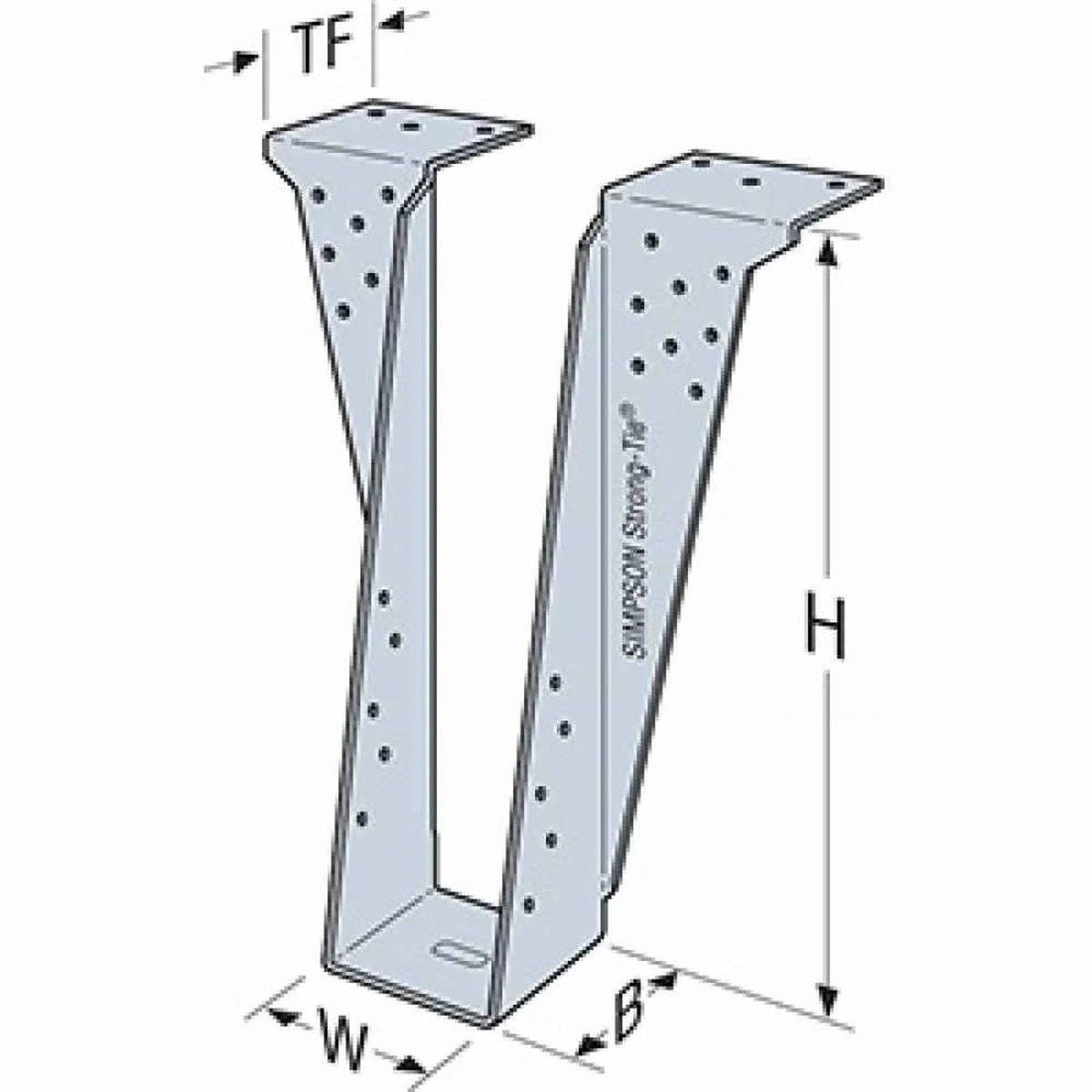

Simpson Strong-Tie HB3.56/11.88 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (22) 0.162" x 3-1/2" Nails Joist - (10) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 11-7/8" |
| Joist size | 3-9/16" X 11-7/8" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 10 Gauge |
| Width | 3-9/16" |
NOTE: Ensure proper bearing and use specified fasteners for maximum load capacity.
