Simpson Hangers | SKU:
HB3.56/12

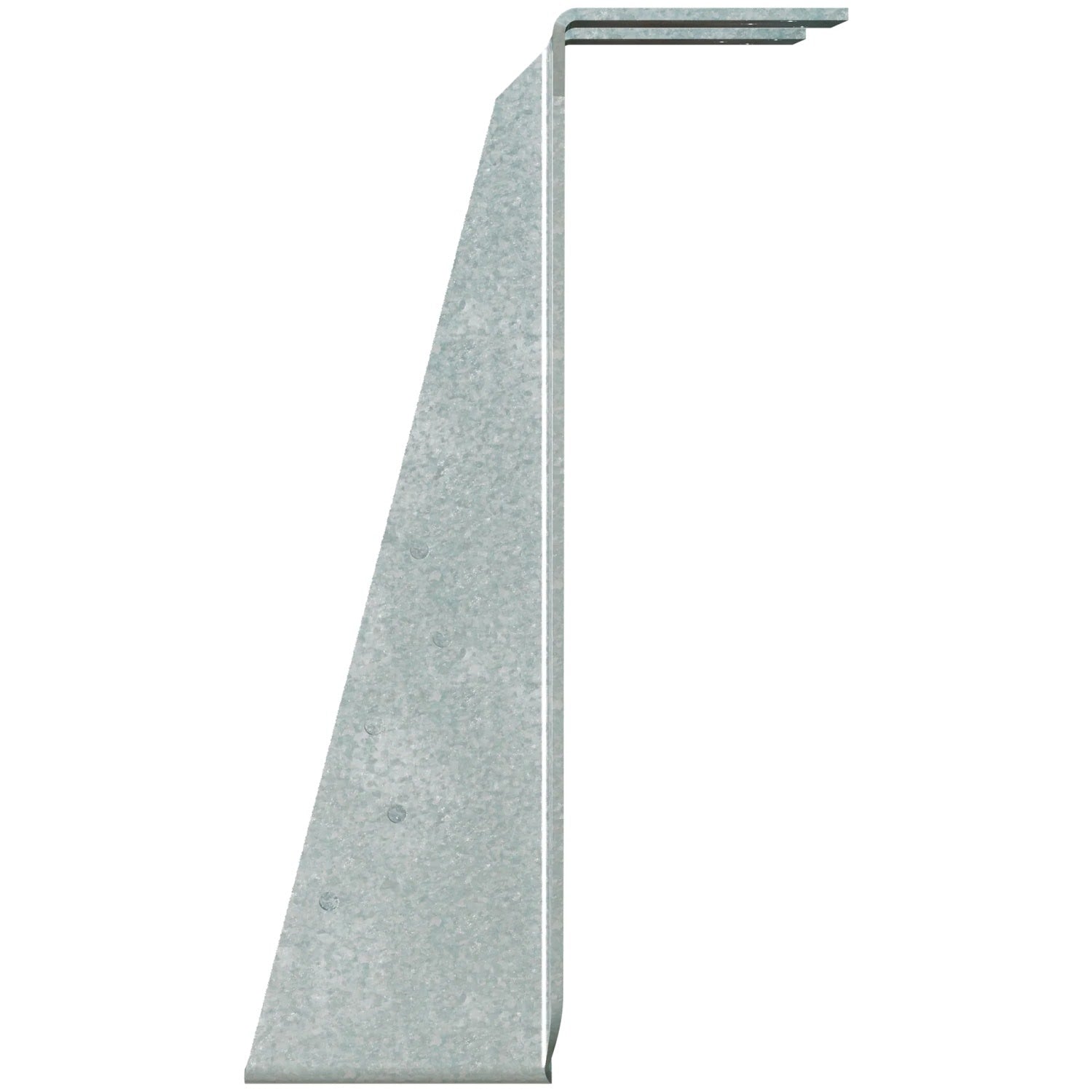

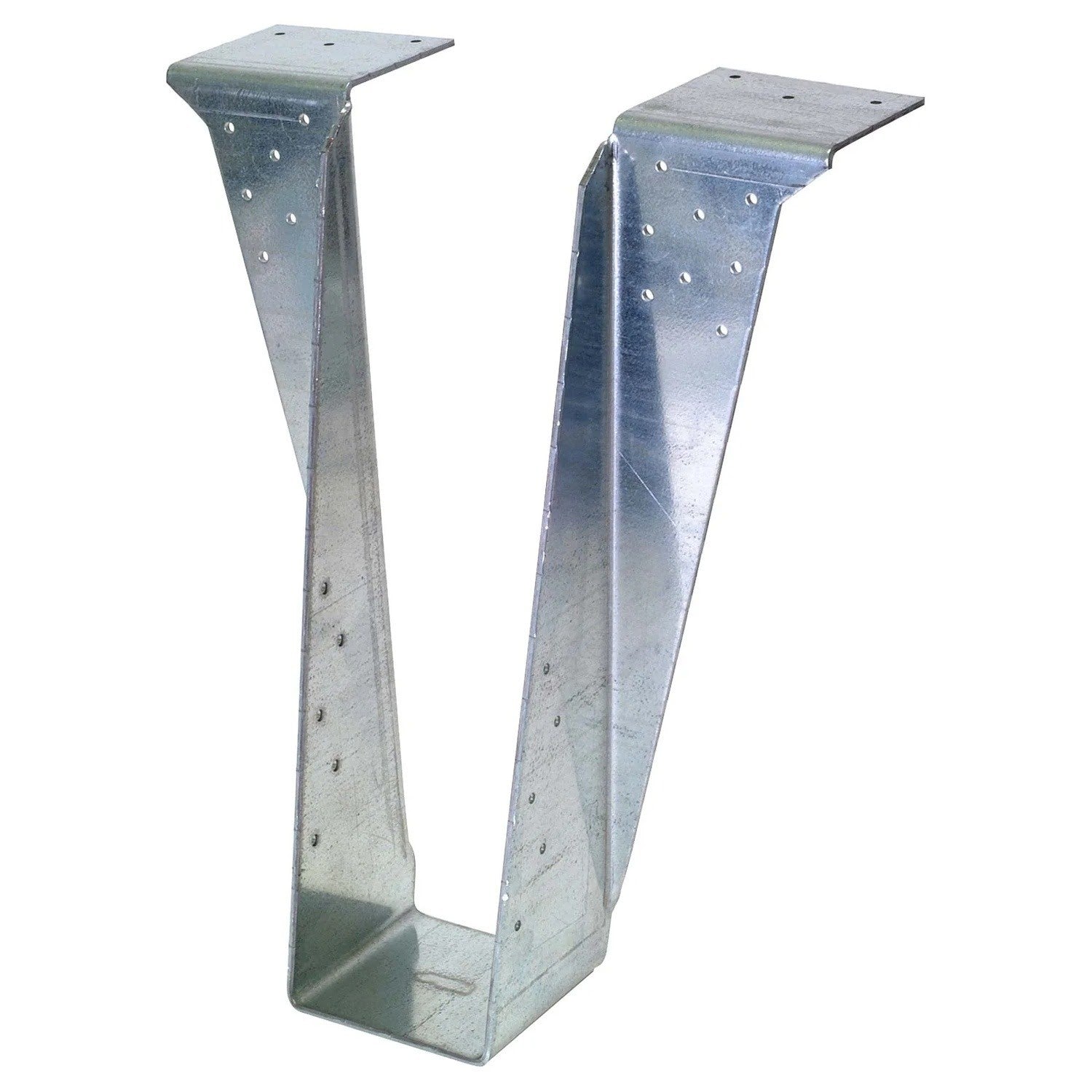

Simpson Strong-Tie HB3.56/12 (3-9/16" x 12") Top Flange I-Joist Hanger for Engineered Wood, G90 Galvanized
$41.58
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HB3.56/12 Description
The Simpson Strong-Tie HB3.56/12 is a top-flange I-joist hanger designed for engineered wood applications, offering high load capacity and durability with its G90 galvanized finish.
Simpson Strong-Tie HB3.56/12 Includes
- (1) Top Flange I-Joist Hanger
Simpson Strong-Tie HB3.56/12 Features
- Heavy-duty load support for high-capacity connections
- Compatible with solid sawn and engineered wood
- Top-flange design for easy installation
- Wide bearing surface to reduce wood crushing
- Precision-engineered for secure fastening
Simpson Strong-Tie HB3.56/12 Applications
- Commercial and residential framing for heavy beams
- Deck construction for strong beam-to-post connections
- Timber frame structures for heavy timber and post-and-beam construction
- Multi-story buildings for major load-bearing beams
- Industrial and agricultural buildings for stable high-load connections

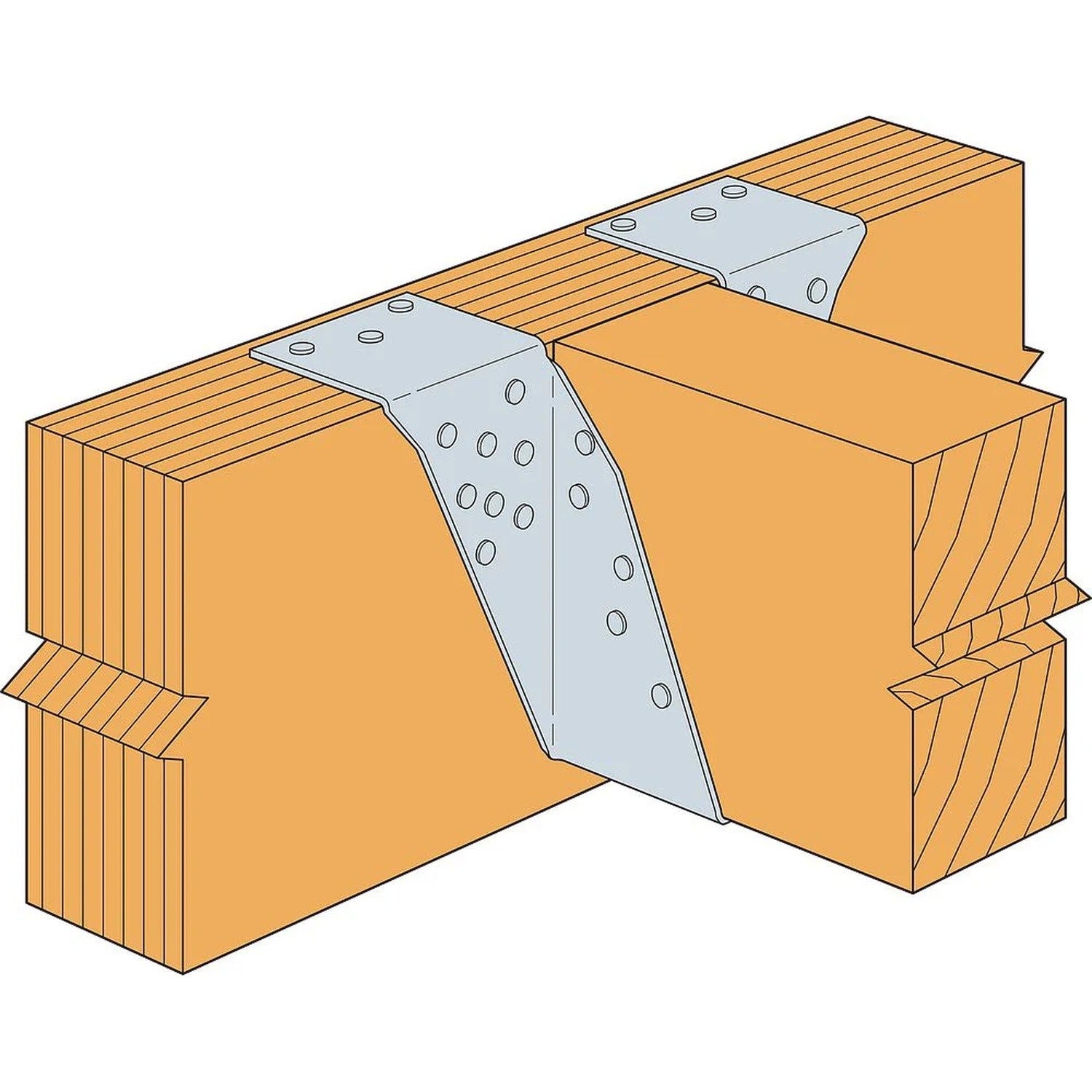

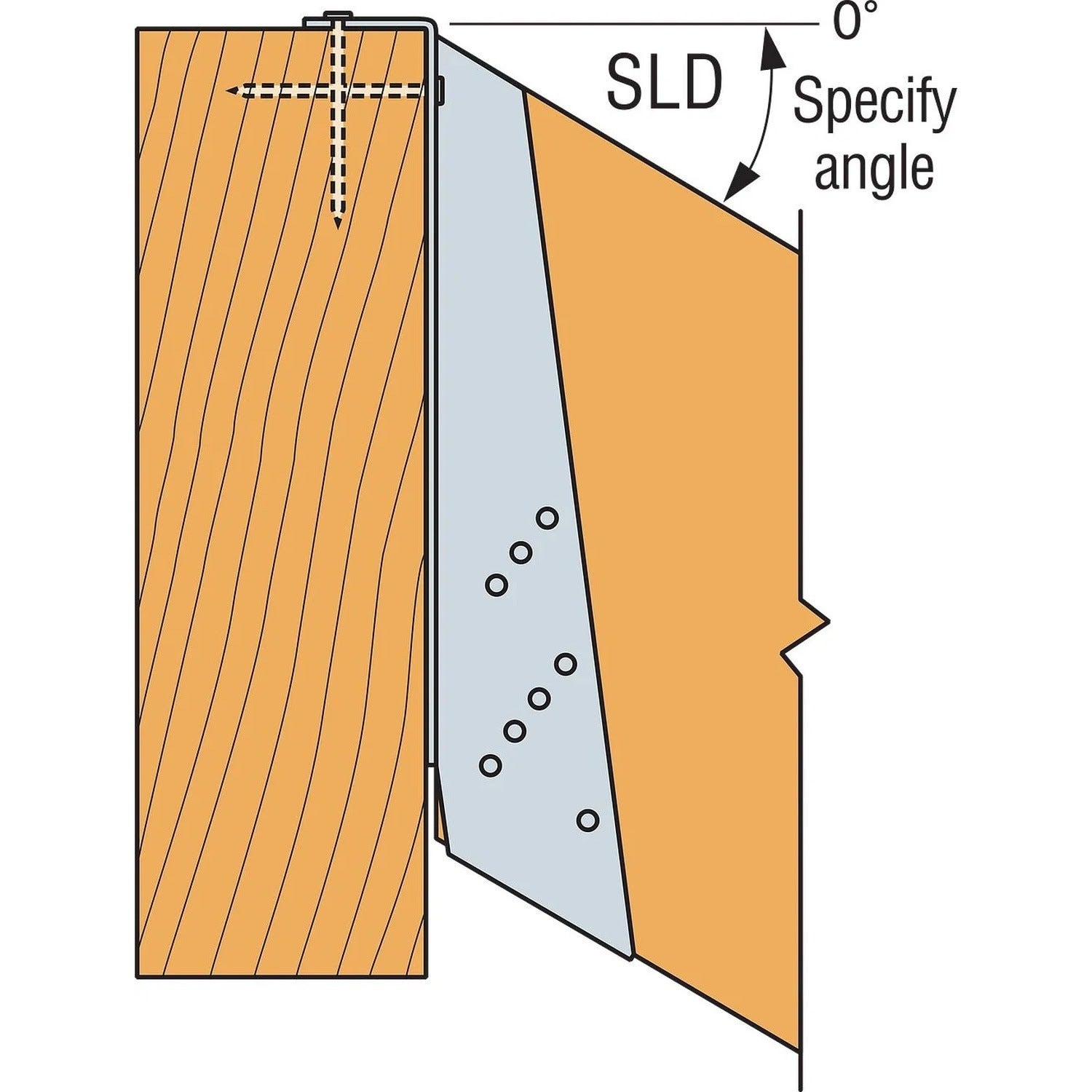

Simpson Strong-Tie HB3.56/12 Installation Overview
- Use specified fasteners as recommended by Simpson Strong-Tie
- Ensure the hanger fully bears on the supporting structure

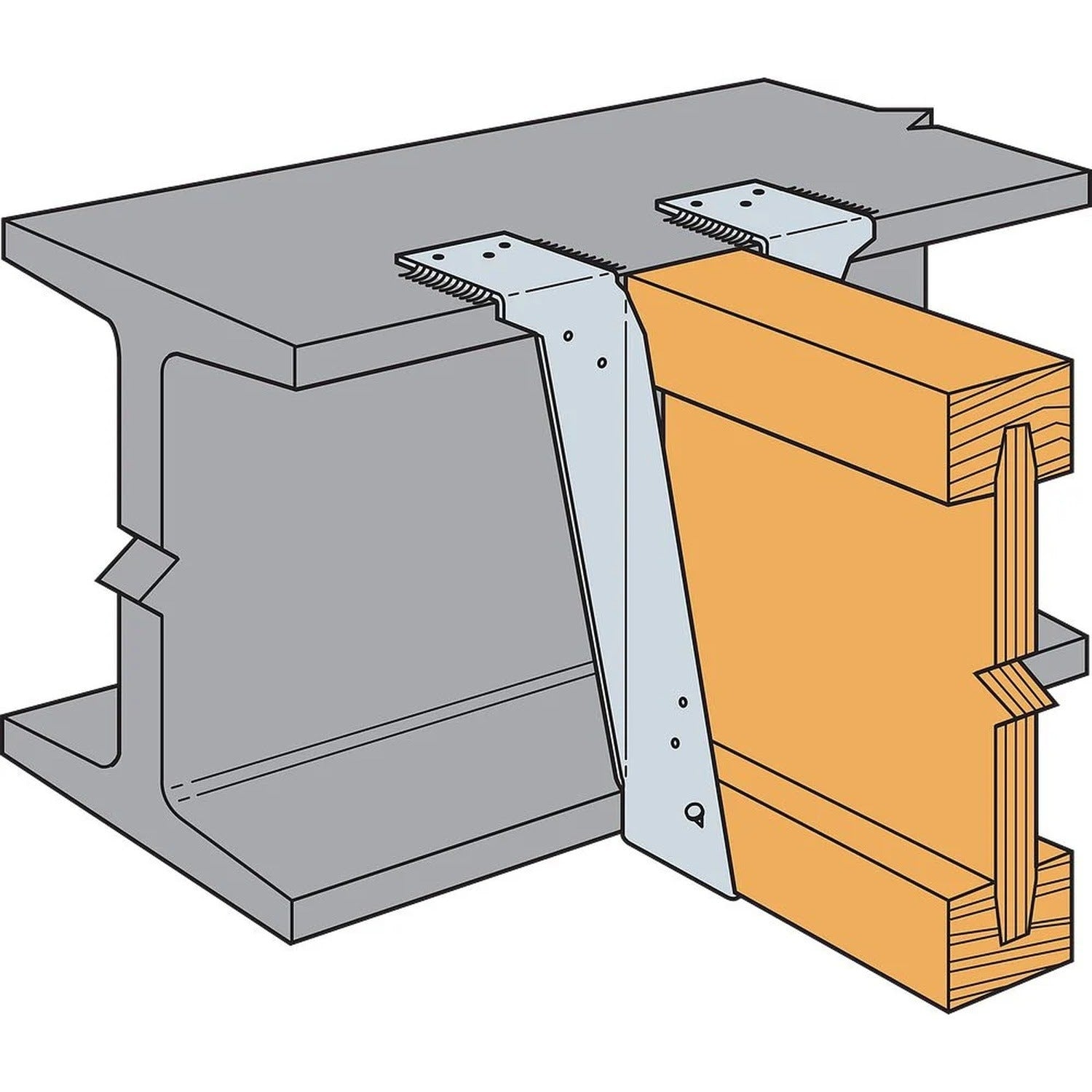

- Follow guidelines for welding applications if applicable
- Install web stiffeners for I-joists

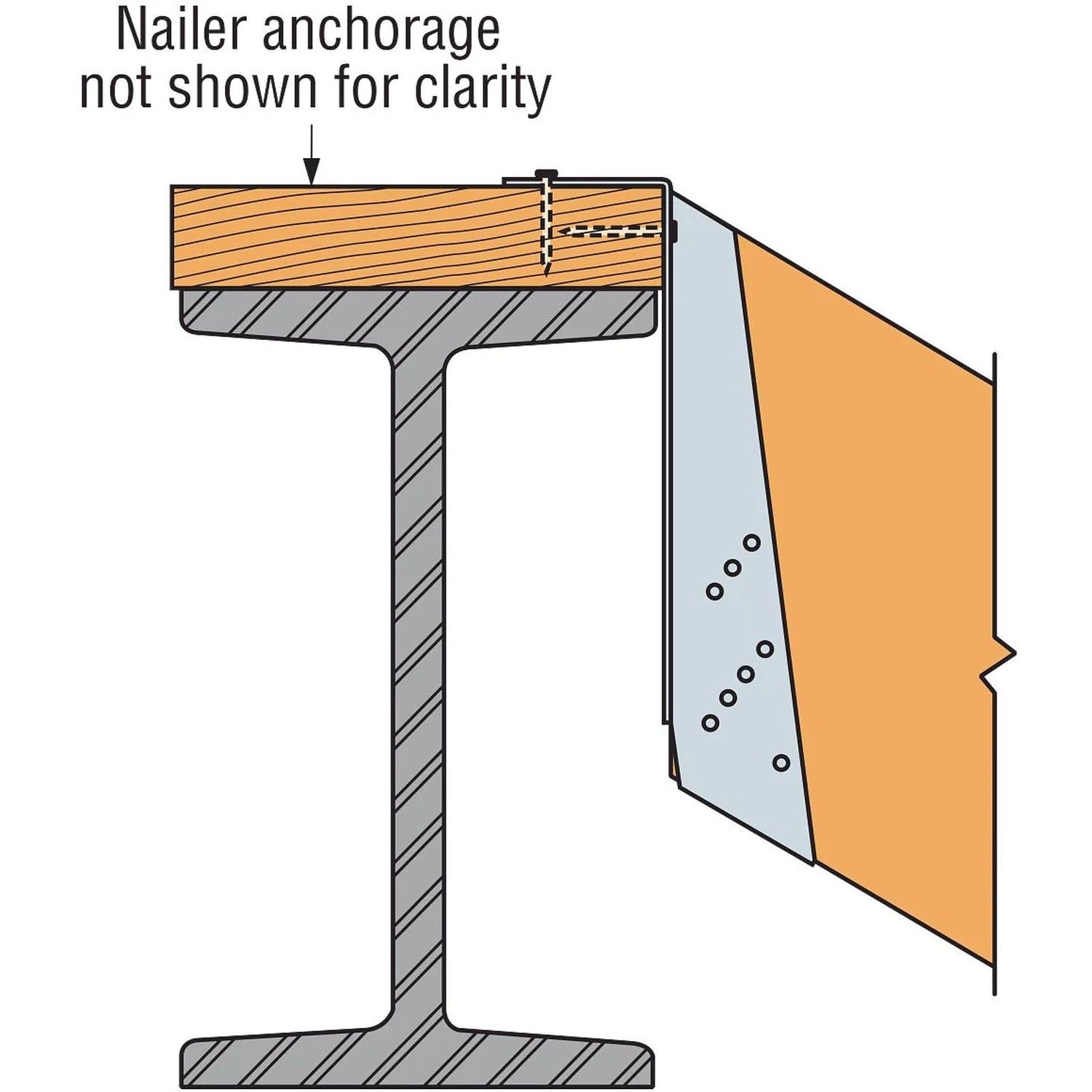

- Evaluate ledgers for each application separately

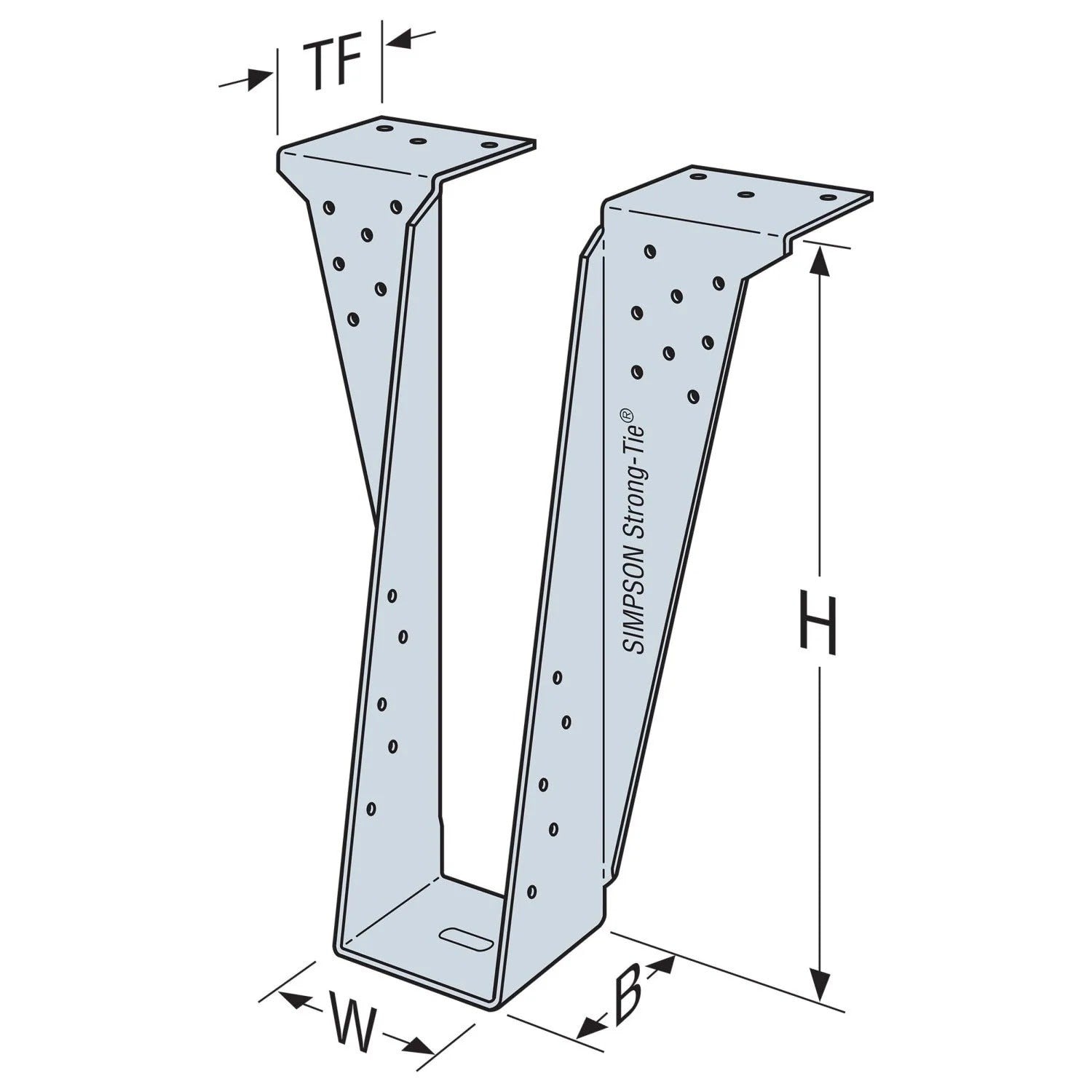

Simpson Strong-Tie HB3.56/12 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | See Spec Sheet; fastener requirements are based on ordered width |
| For Treated Lumber | No |
| Height | 12" |
| Joist size | 3-9/16" X 12" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 10 Gauge |
| Width | 3-9/16" |
