Simpson Hangers | SKU:
HB3.56/14

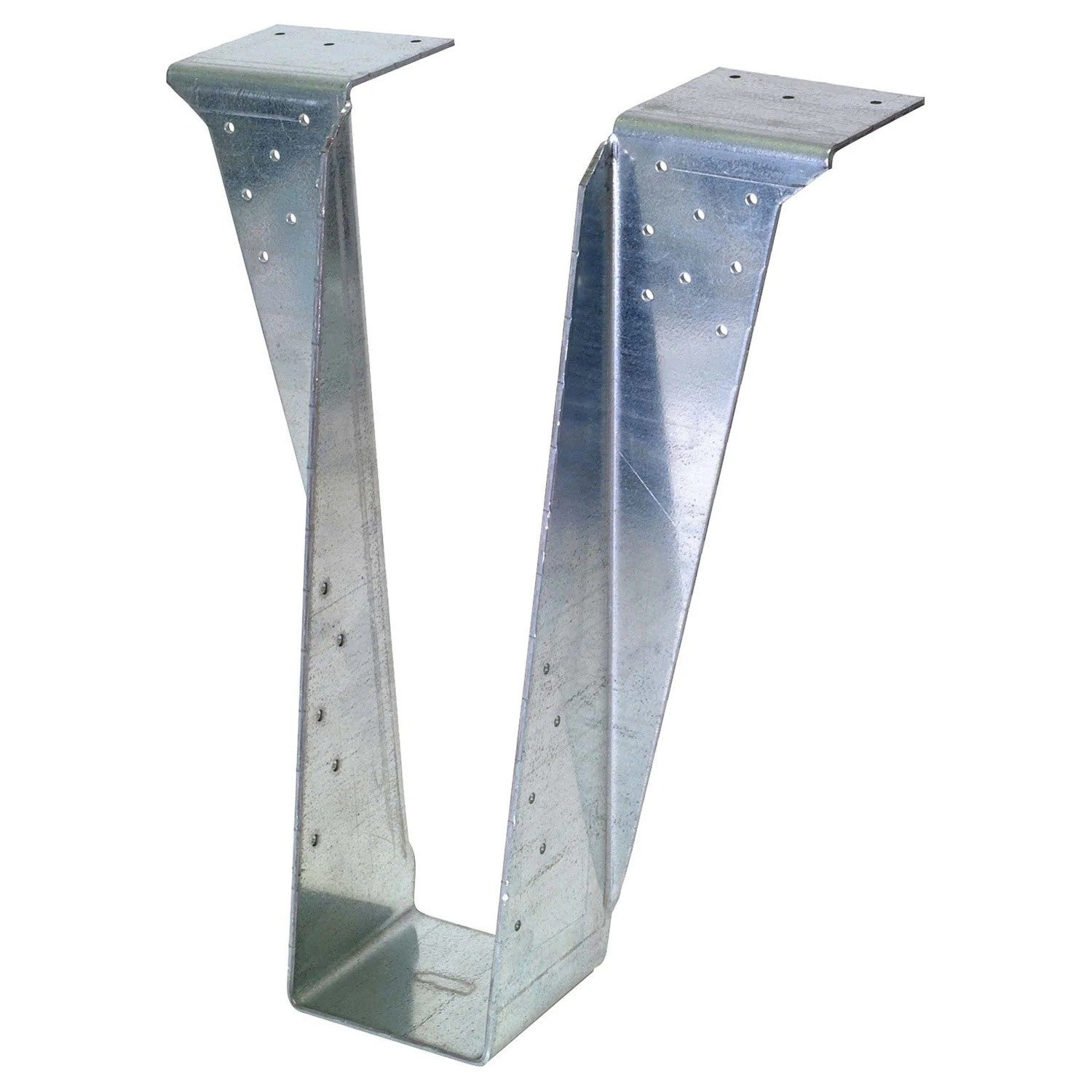

Simpson Strong-Tie HB3.56/14 (3-1/2" x 14") Top Flange I-Joist Hanger - G90 Galvanized
$46.54
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HB3.56/14 Description
The Simpson Strong-Tie HB Heavy Beam Hanger is a top-flange hanger designed for maximum load capacity when connecting beams to supporting members. Built for demanding loads, this hanger features durable steel construction and distributes weight efficiently, reducing stress on both the hanger and the beam.
Simpson Strong-Tie HB3.56/14 Includes
- (1) HB3.56/14 Top Flange I-Joist Hanger
Simpson Strong-Tie HB3.56/14 Features
- Heavy-Duty Load Support: Engineered for high-capacity connections in heavy framing applications.
- Versatile Compatibility: Designed for both solid sawn and engineered wood applications.
- Top-Flange Design: Provides ease of installation and a strong, reliable connection.
- Wide Bearing Surface: Helps distribute load efficiently and reduce wood crushing.
- Precision Engineering: Manufactured to ensure a tight, accurate fit for secure fastening.
Simpson Strong-Tie HB3.56/14 Applications
- Commercial and Residential Framing: Supports heavy beams in large-scale structures.
- Deck Construction: Provides strong beam-to-post connections for elevated decks.
- Timber Frame Structures: Essential for heavy timber and post-and-beam construction.
- Multi-Story Buildings: Used to support major load-bearing beams in multi-level projects.
- Industrial and Agricultural Buildings: Ensures stable connections for high-load environments.
Simpson Strong-Tie HB3.56/14 Installation Overview
- Use Specified Fasteners: Install with appropriate nails or screws as recommended by Simpson Strong-Tie.
- Ensure Proper Bearing: The hanger should fully bear on the supporting structure for maximum load capacity.
- Check Beam Fit: Ensure a snug fit within the hanger seat to prevent unnecessary movement.

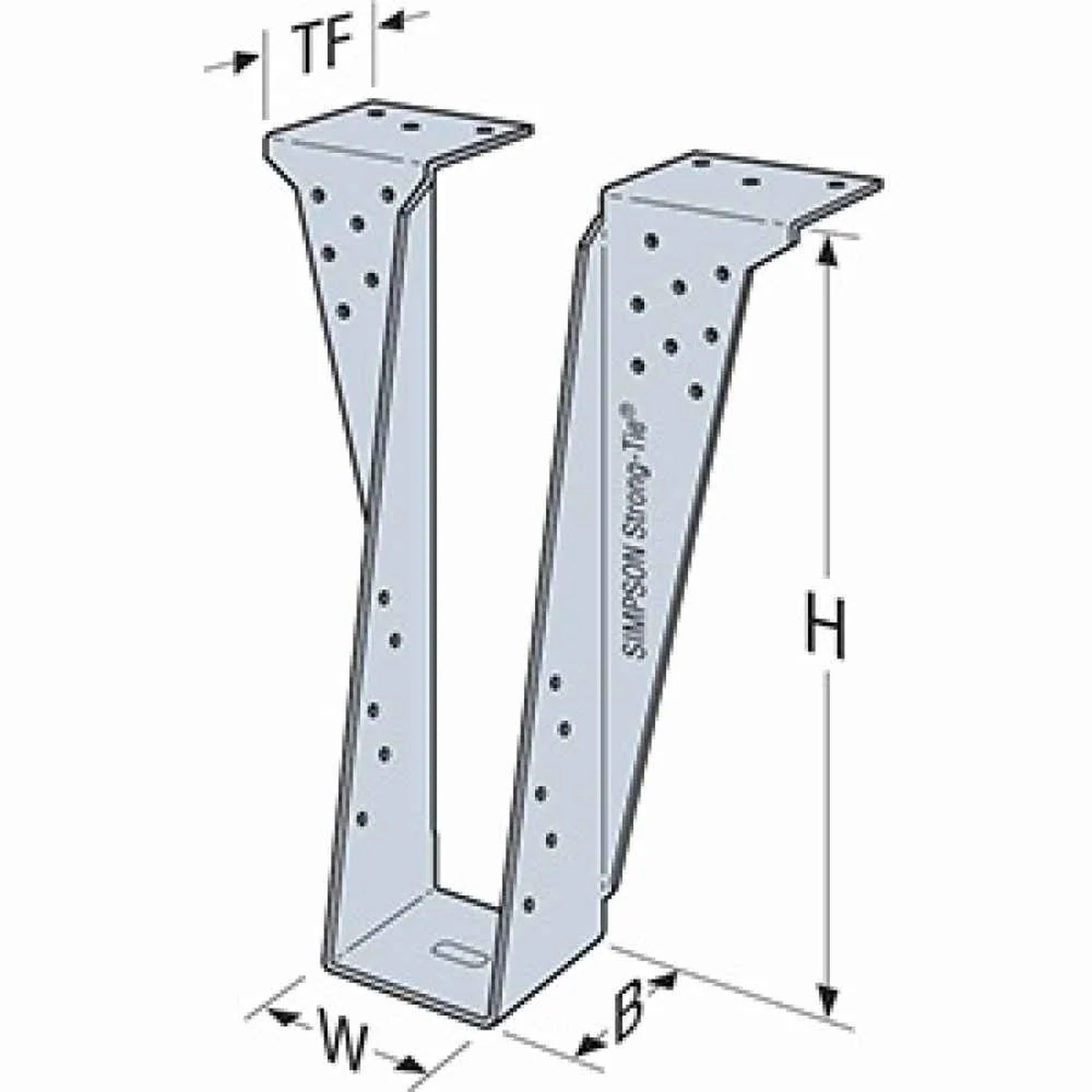

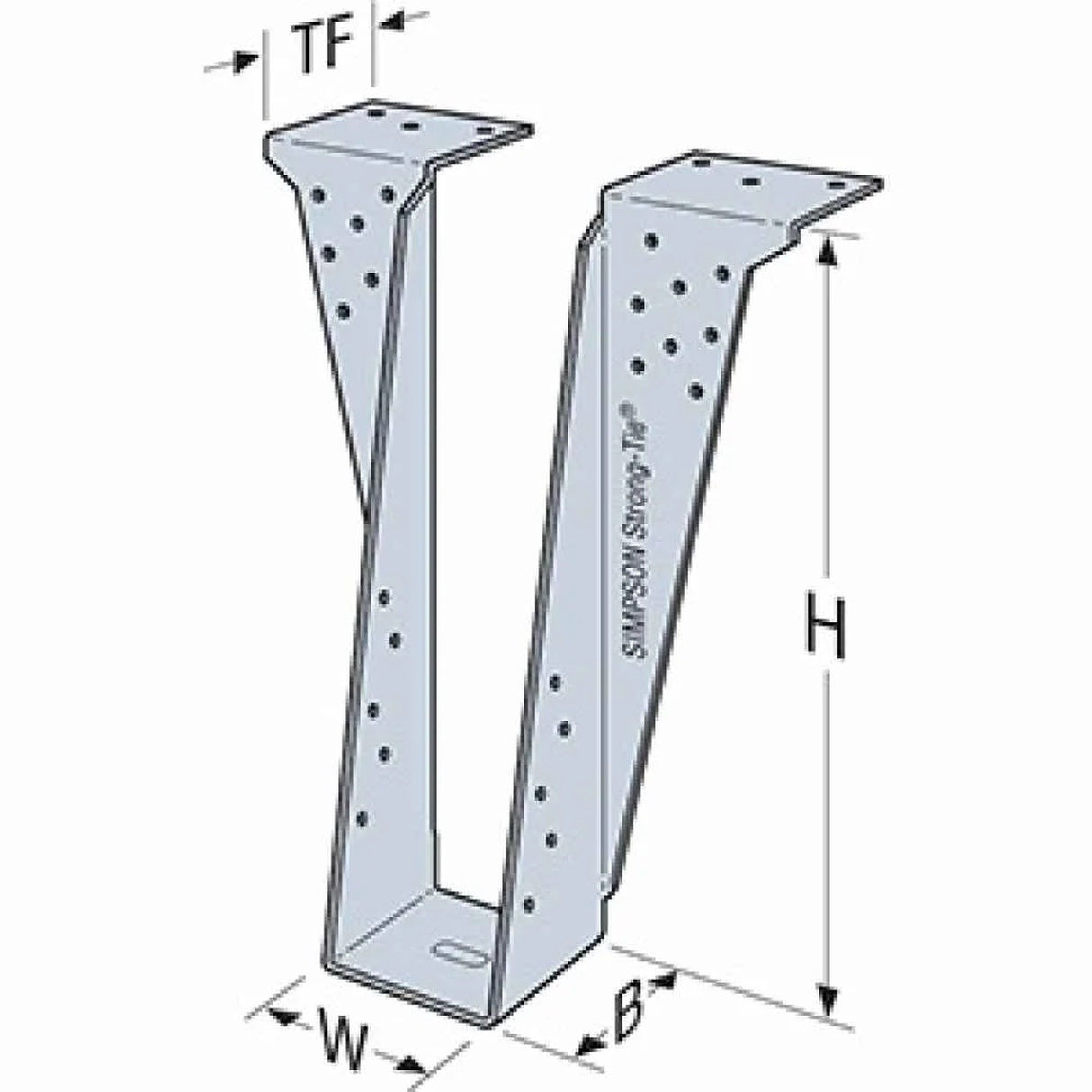

Simpson Strong-Tie HB3.56/14 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (22) 0.162" x 3-1/2" Nails Joist - (10) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 14" |
| Joist size | 3-9/16" X 14" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 10 Gauge |
| Width | 3-9/16" |
