Simpson Hangers | SKU:
HB612
Simpson Strong-Tie HB612 (6" x 12") 10Ga Heavy Top Flange Beam Hanger - G90 Galvanized
$34.67
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HB612 Description
The Simpson Strong-Tie HB612 is a top-flange joist hanger designed for high-load applications, providing a secure and reliable connection for 6x12 joists.
Simpson Strong-Tie HB612 Includes
- (1) HB612 Top-Flange Joist Hanger
Simpson Strong-Tie HB612 Features
- Heavy-duty load support for high-capacity connections
- Compatible with solid sawn and engineered wood
- Top-flange design for easy installation
- Wide bearing surface to reduce wood crushing
- Precision-engineered for a tight fit
Simpson Strong-Tie HB612 Applications
- Commercial and residential framing for heavy beams
- Deck construction for strong beam-to-post connections
- Timber frame structures for heavy timber and post-and-beam construction
- Multi-story buildings for major load-bearing beams
- Industrial and agricultural buildings for stable high-load connections
Simpson Strong-Tie HB612 Installation Overview
- Use specified fasteners as recommended by Simpson Strong-Tie
- Ensure the hanger fully bears on the supporting structure

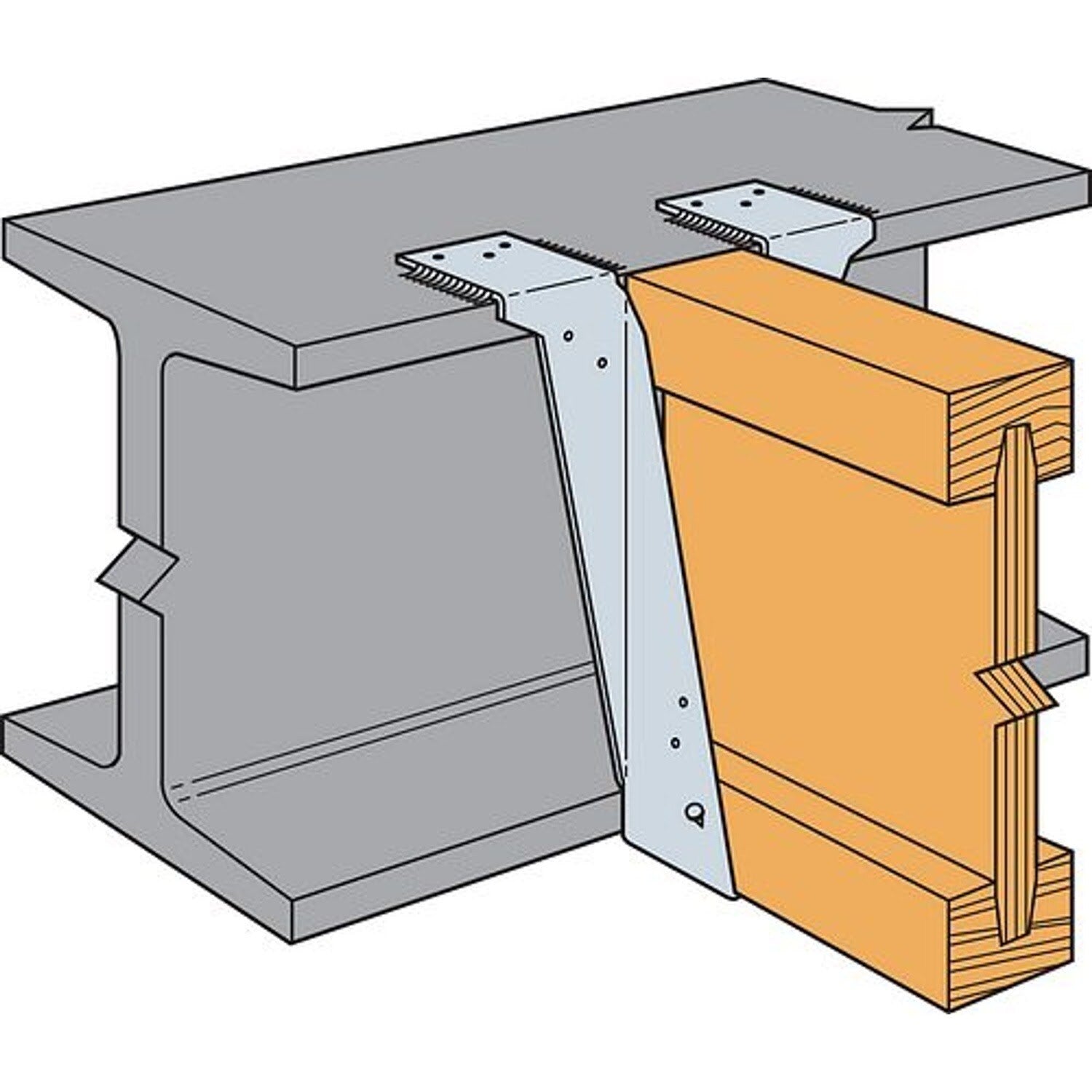

- Follow guidelines for welding applications if applicable
- Bevel-cut carried members for skewed applications
- Refer to technical bulletins for load reductions on sloped joists

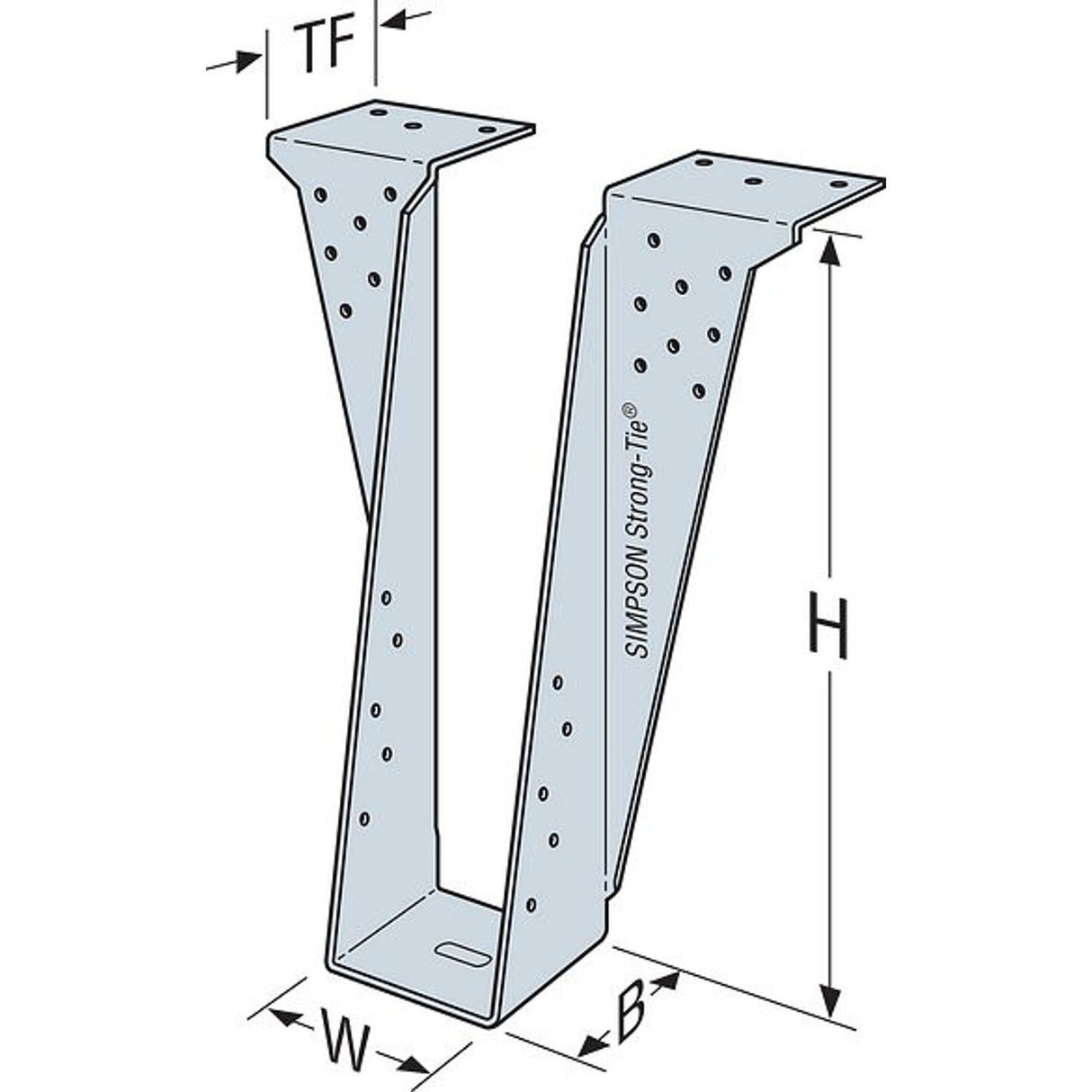

Simpson Strong-Tie HB612 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | See Spec Sheet; fastener requirements are based on ordered width |
| For Treated Lumber | No |
| Height | 12" |
| Joist size | 6" X 12" |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | 10 Gauge |
| Width | 6" |
