Simpson Hangers | SKU:
HB616
Simpson Strong-Tie HB616 (6" x 16") 10Ga Heavy Top Flange Beam Hanger - G90 Galvanized
$42.32
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HB616 Description

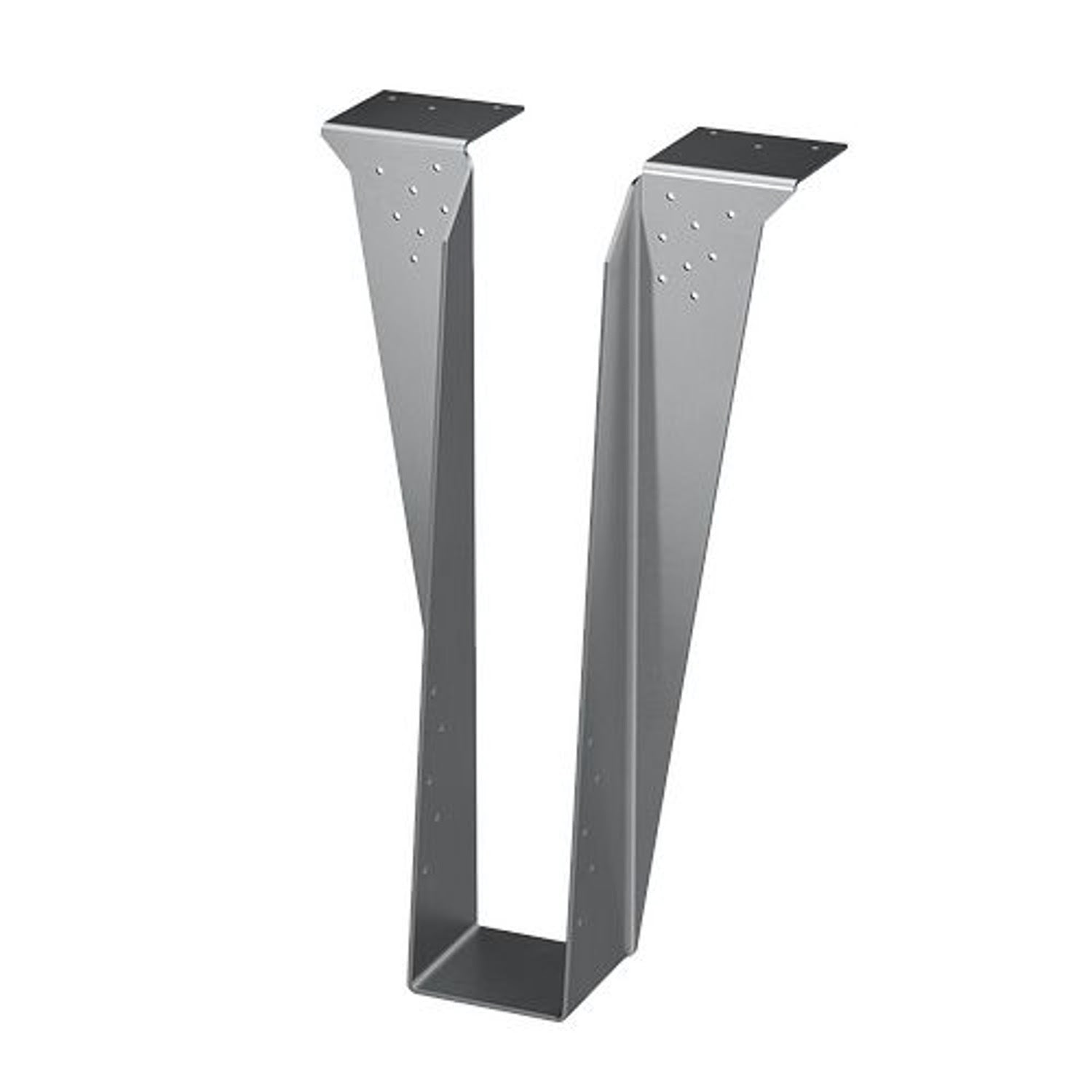

The Simpson Strong-Tie HB616 is a high-load top-flange joist hanger designed for 6x16 beams, offering robust support and easy installation.
Simpson Strong-Tie HB616 Includes
- (1) HB616 High-Load Top-Flange Joist Hanger
Simpson Strong-Tie HB616 Features
- Heavy-duty load support for high-capacity connections
- Versatile compatibility with solid sawn and engineered wood
- Top-flange design for ease of installation
- Wide bearing surface to distribute load efficiently
- Precision engineering for secure fastening
Simpson Strong-Tie HB616 Applications
- Commercial and residential framing for heavy beams
- Deck construction for elevated decks
- Timber frame structures for post-and-beam construction
- Multi-story buildings for major load-bearing beams
- Industrial and agricultural buildings for high-load environments

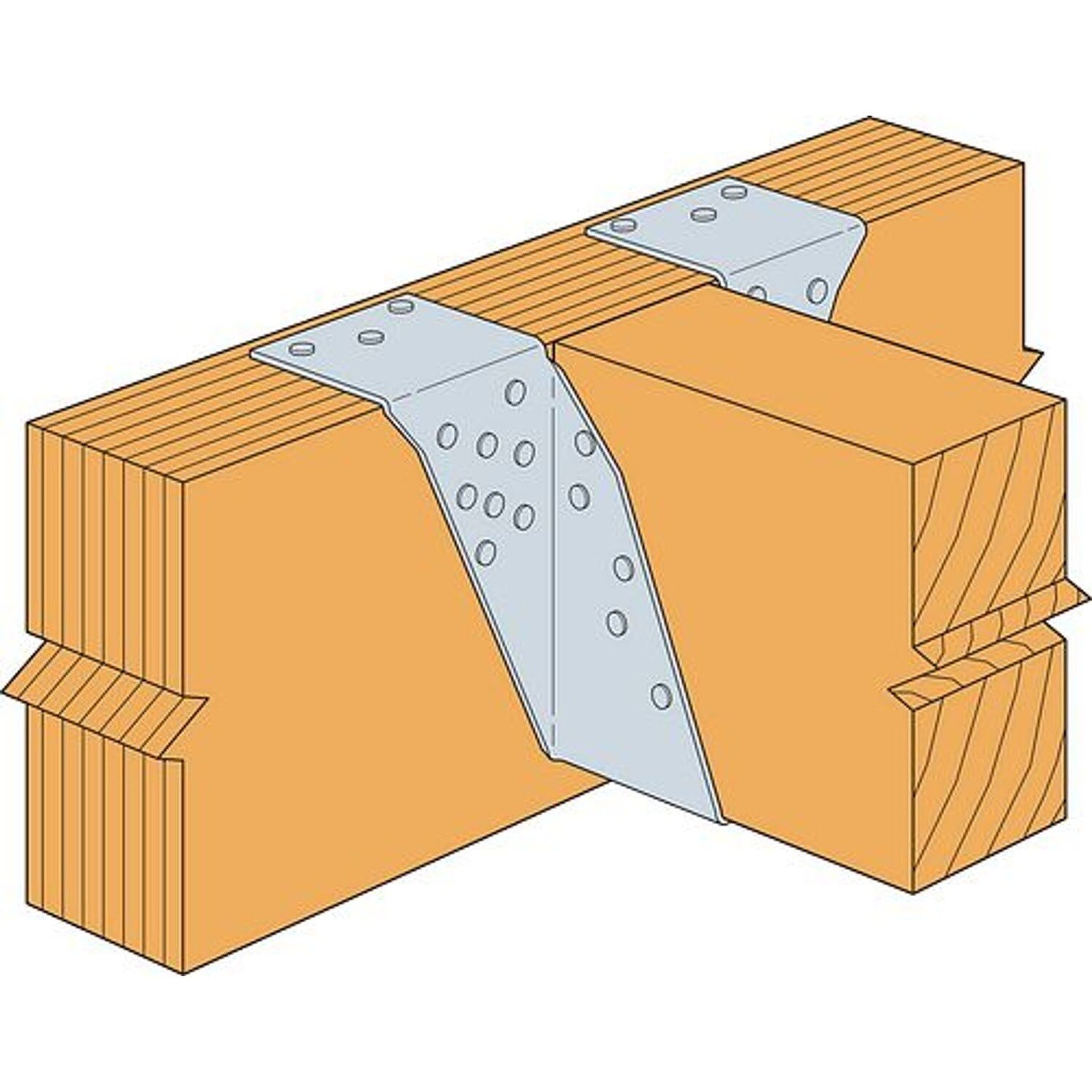

Simpson Strong-Tie HB616 Installation Overview
- Use specified fasteners as recommended by Simpson Strong-Tie
- Ensure the hanger fully bears on the supporting structure

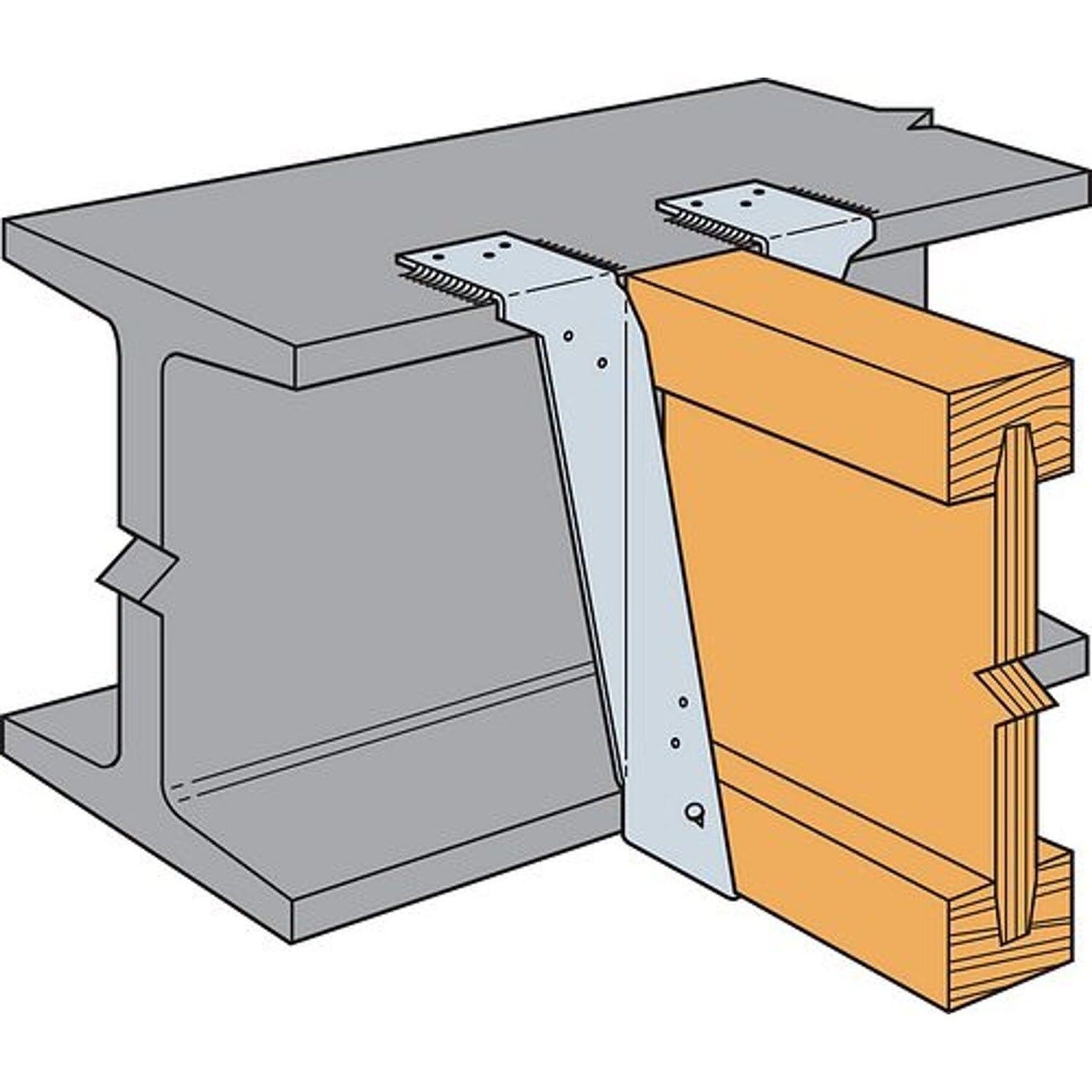

- Follow guidelines for weld-on applications if applicable
- Evaluate ledgers for each application separately
- Bevel-cut carried members for skewed applications

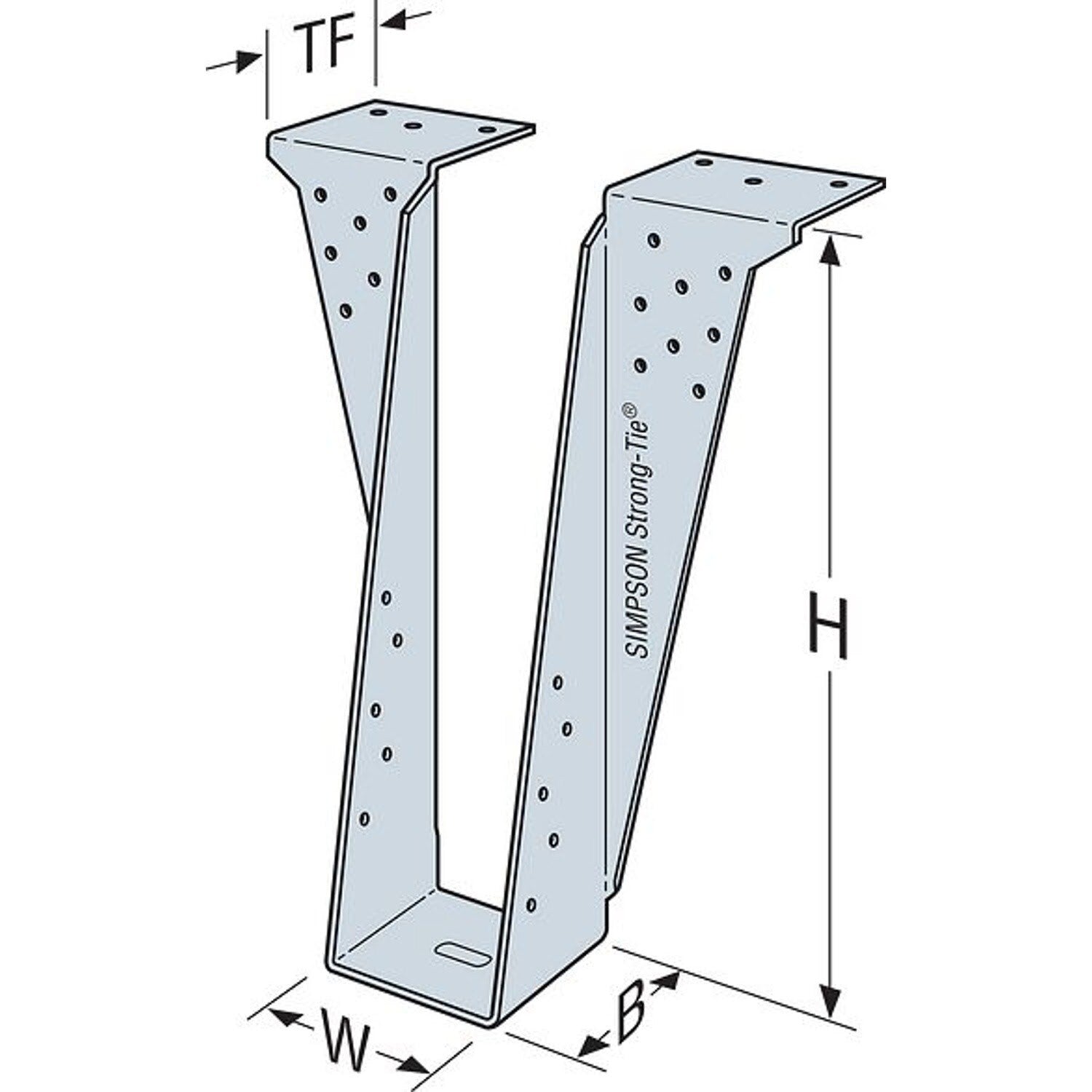

Simpson Strong-Tie HB616 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | See Spec Sheet; fastener requirements are based on ordered width |
| For Treated Lumber | No |
| Height | 16" |
| Joist size | 6" X 16" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 10 Gauge |
| Width | 6" |
NOTE: Ensure proper fasteners are used and installed correctly to achieve published load values.
