Simpson Hangers | SKU:
HB7.12/14
Simpson Strong-Tie HB7.12/14 (7 in. x 14 in.) Top Flange I-Joist Hanger for Engineered Wood
$55.38
Unit price
/
Unavailable
Description
Description

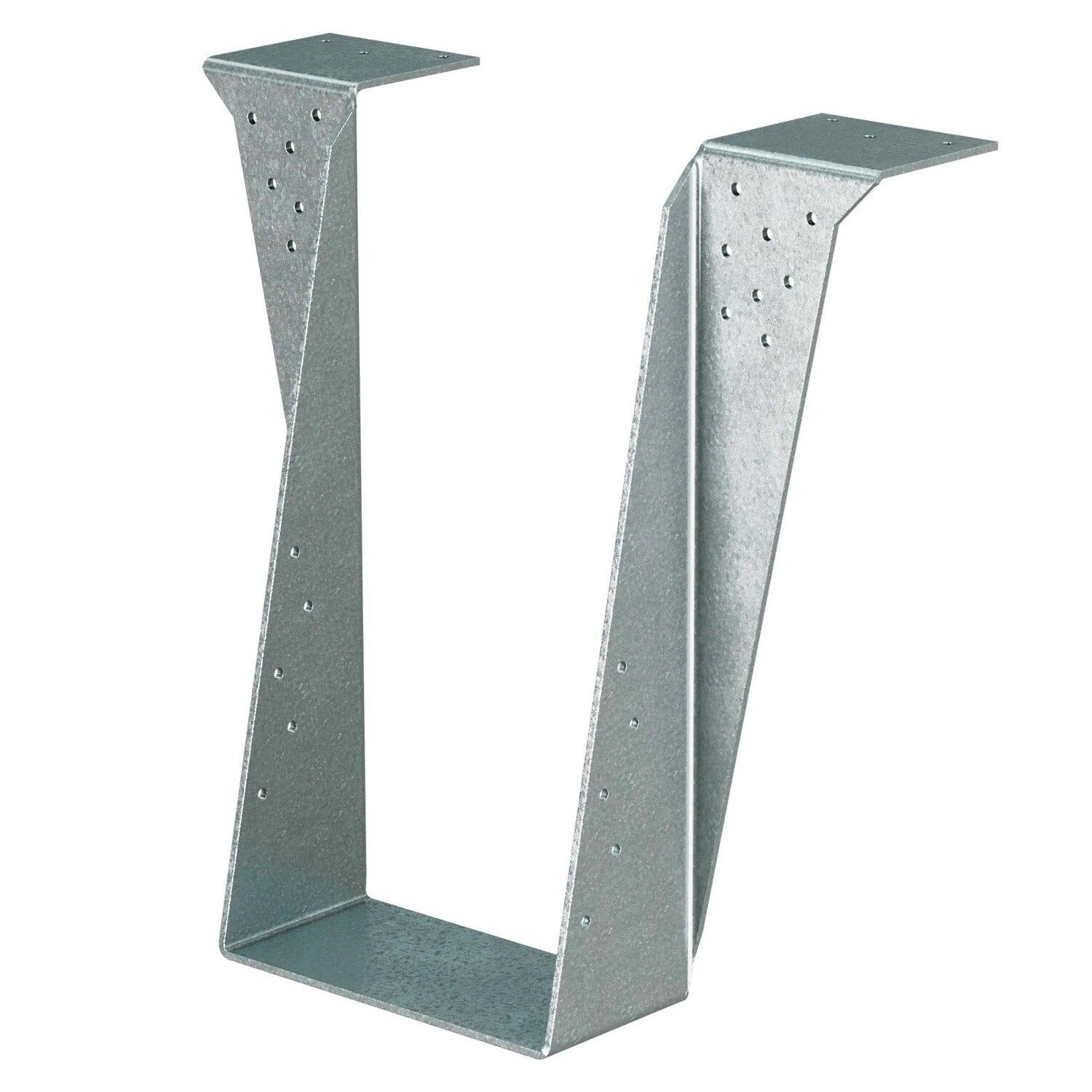

Simpson Strong-Tie HB7.12/14 Description
The Simpson Strong-Tie HB7.12/14 is a top-flange hanger designed for maximum load capacity when connecting beams to supporting members. Ideal for both solid sawn lumber and engineered wood, it ensures structural stability in various framing applications.
Simpson Strong-Tie HB7.12/14 Includes
- (1) HB7.12/14 Top Flange I-Joist Hanger
Simpson Strong-Tie HB7.12/14 Features
- Heavy-duty load support for high-capacity connections
- Compatible with solid sawn and engineered wood
- Top-flange design for ease of installation
- Wide bearing surface to reduce wood crushing
- Precision-engineered for a tight, secure fit
Simpson Strong-Tie HB7.12/14 Applications
- Commercial and residential framing for heavy beams
- Deck construction for strong beam-to-post connections
- Timber frame structures for heavy timber and post-and-beam construction
- Multi-story buildings for major load-bearing beams
- Industrial and agricultural buildings for stable high-load connections

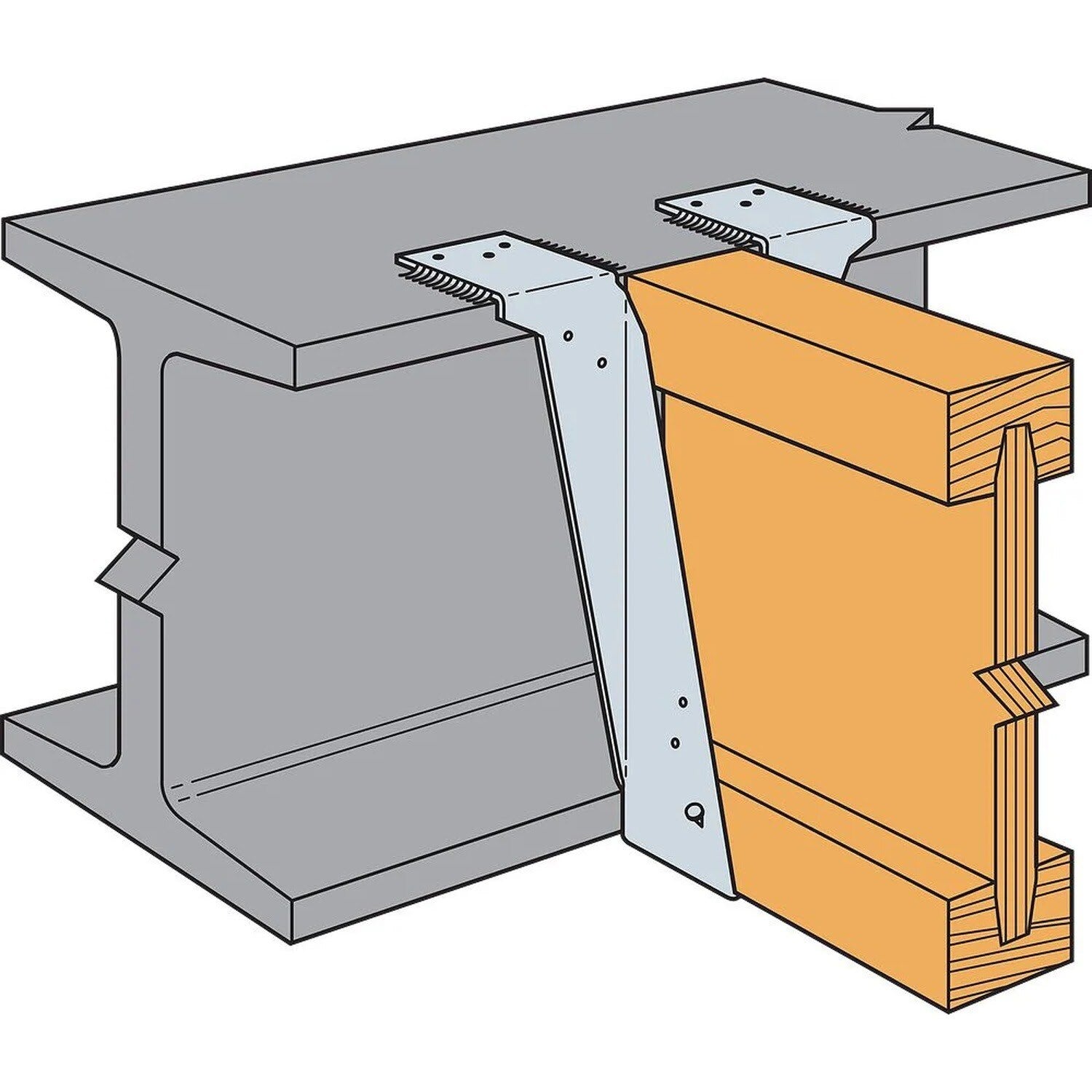

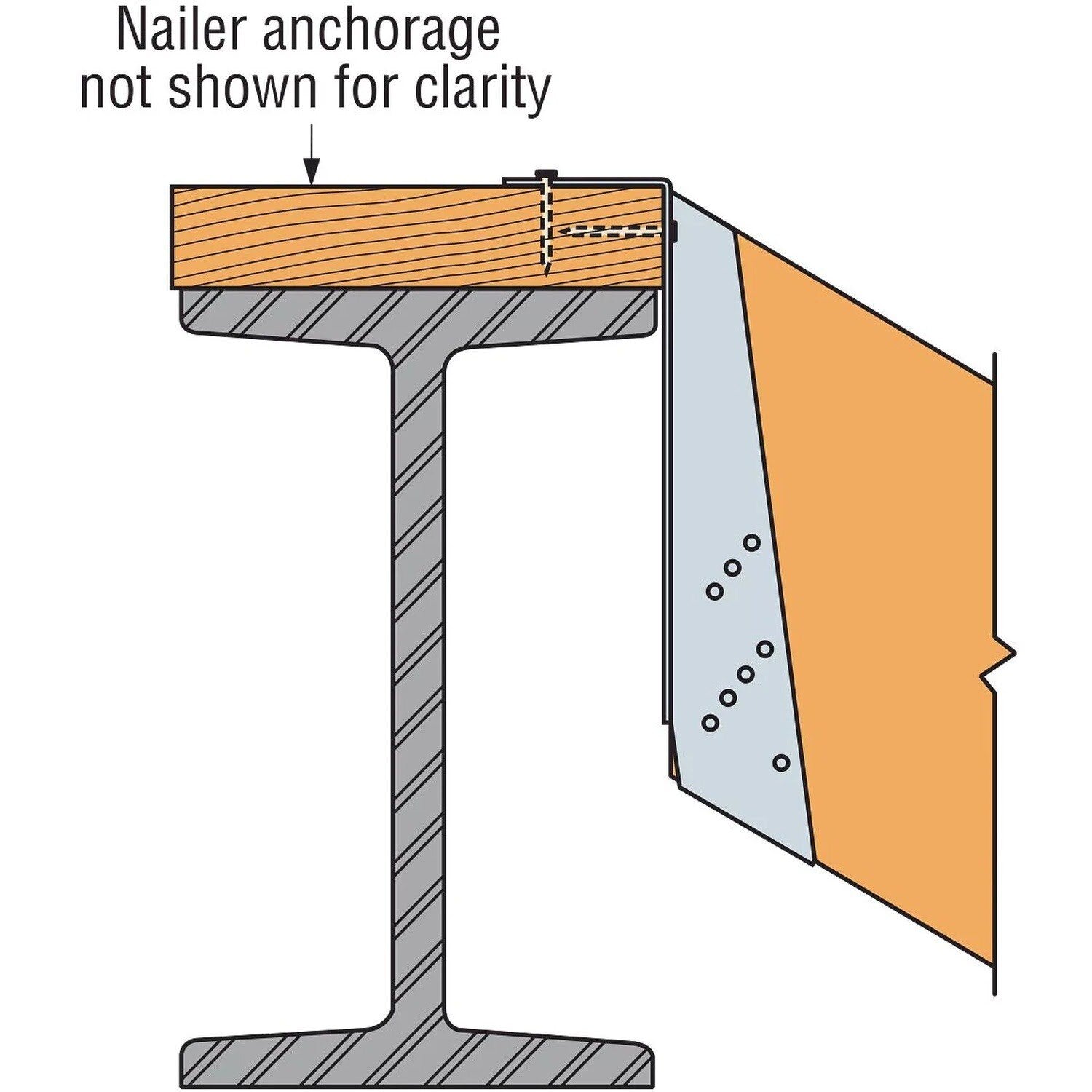

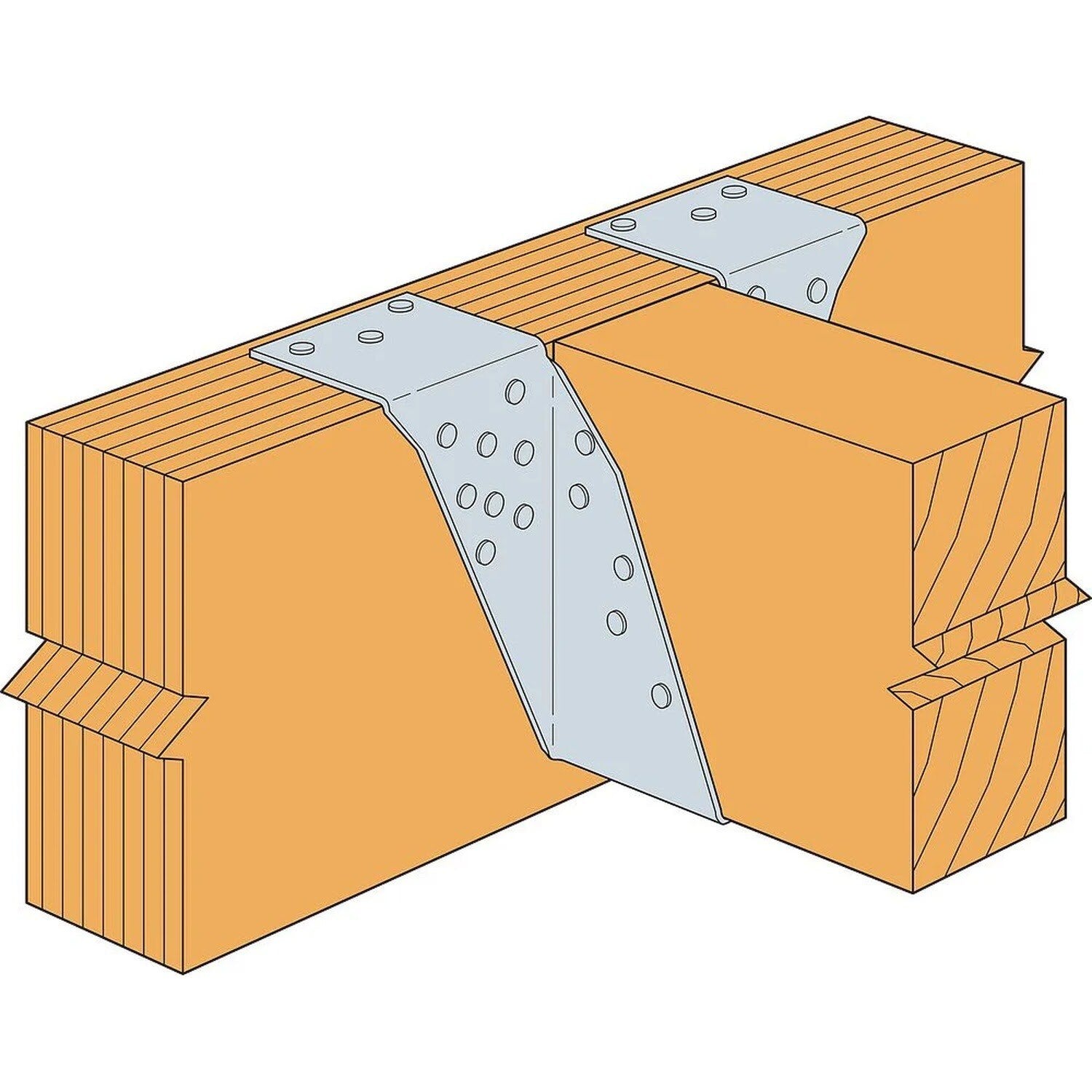

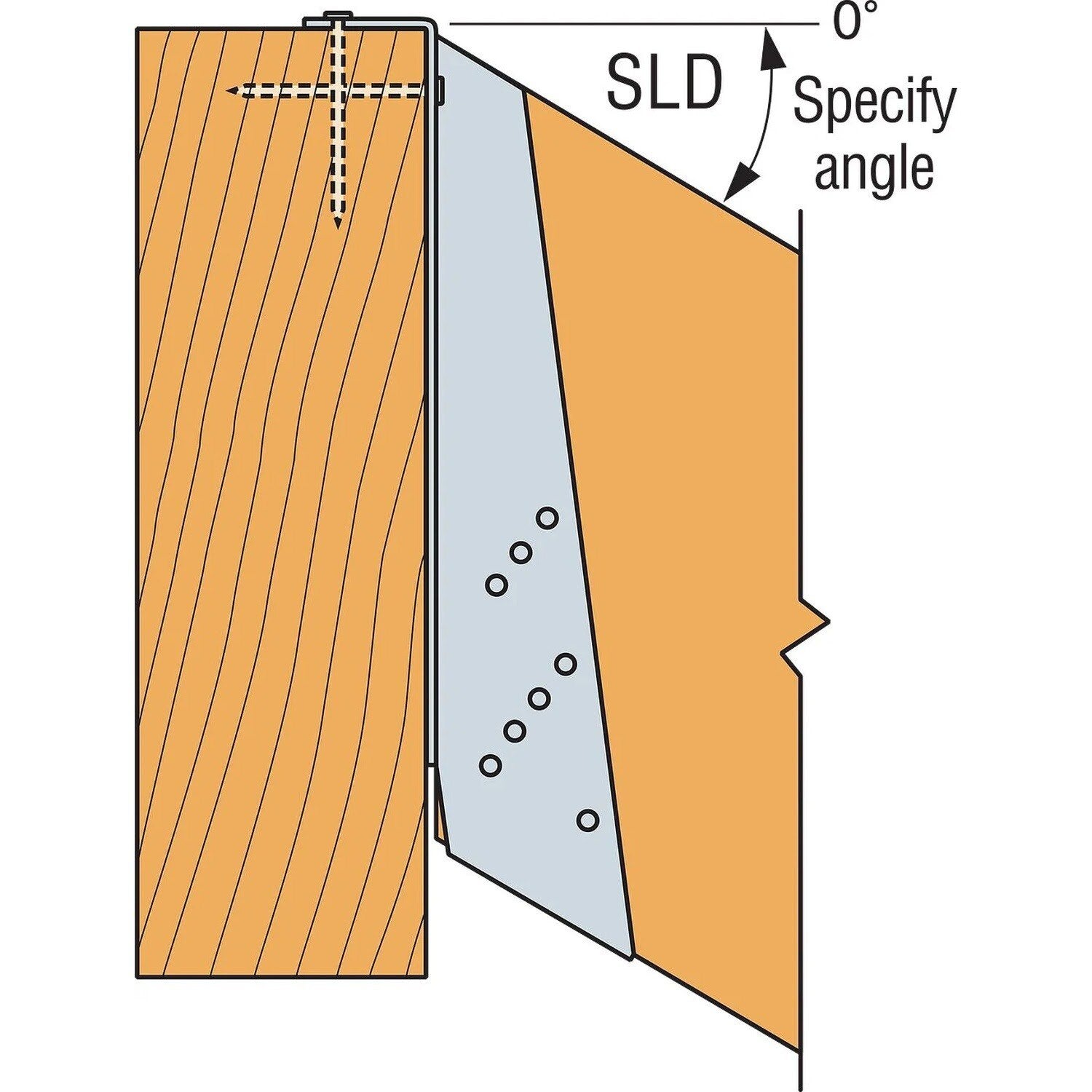

Simpson Strong-Tie HB7.12/14 Installation Overview
- Install with specified nails or screws as recommended
- Ensure the hanger fully bears on the supporting structure
- Verify a snug fit within the hanger seat to prevent movement

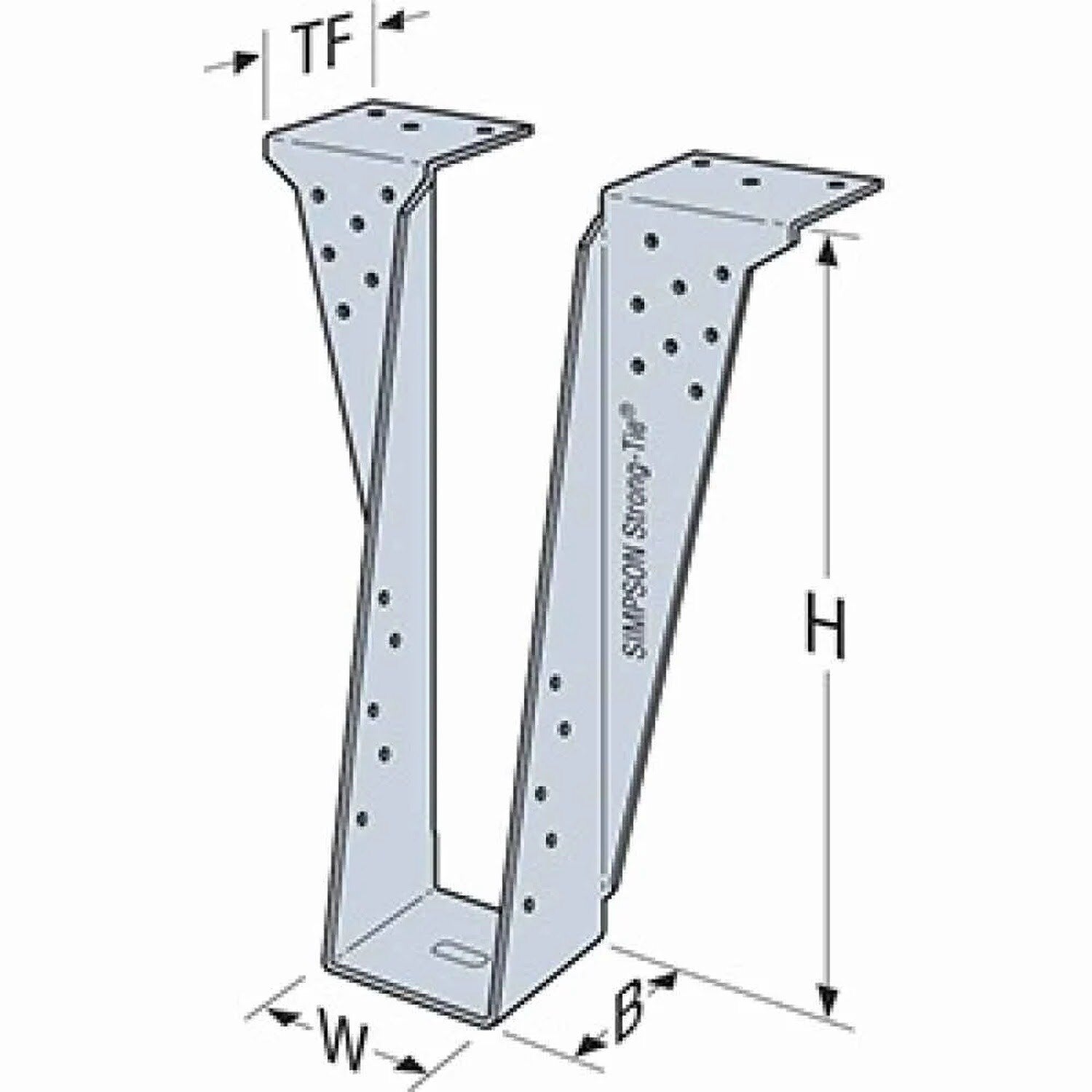

Simpson Strong-Tie HB7.12/14 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (22) 0.162" x 3-1/2" Nails, Joist - (10) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 14" |
| Joist size | 7-1/2" X 14" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 10 Gauge |
| Width | 7-1/8" |
