Simpson Strong-Tie HCJTZ Description
The HCJTZ is a heavy-duty concealed joist tie designed for glulam beams, offering robust support and a clean, concealed installation.

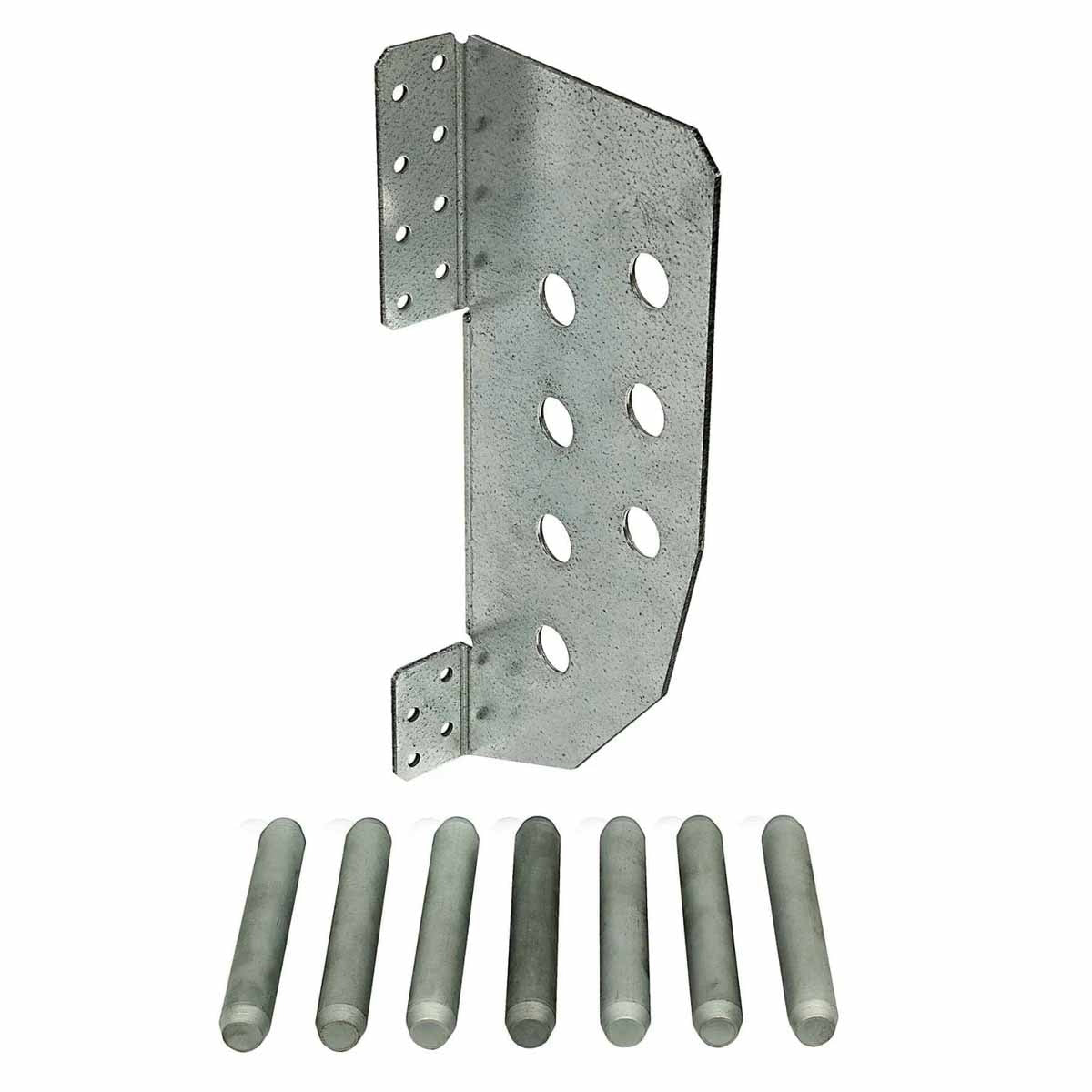

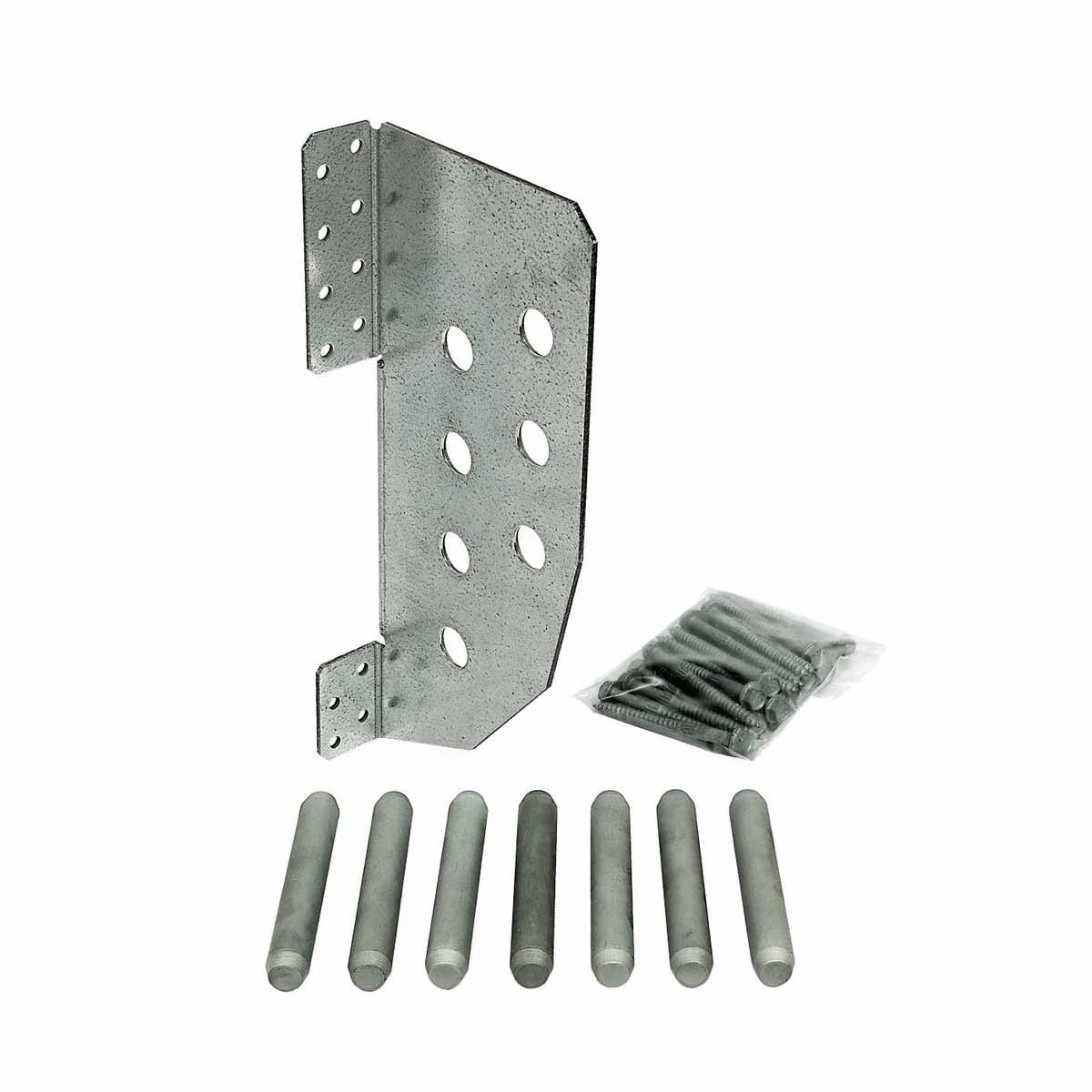

Simpson Strong-Tie HCJTZ Includes
- (1) HCJTZ Concealed Joist Tie
- (1) Set of Dowels and Screws
Simpson Strong-Tie HCJTZ Features
- Heavy-duty concealed design for glulam beams
- Supplied with all required dowels and screws
- Allows for a clean, flush installation
- Supports sloped members up to 45 degrees
Simpson Strong-Tie HCJTZ Applications
- Wood-to-wood fastening for glulam beams
- Heavy load-bearing applications

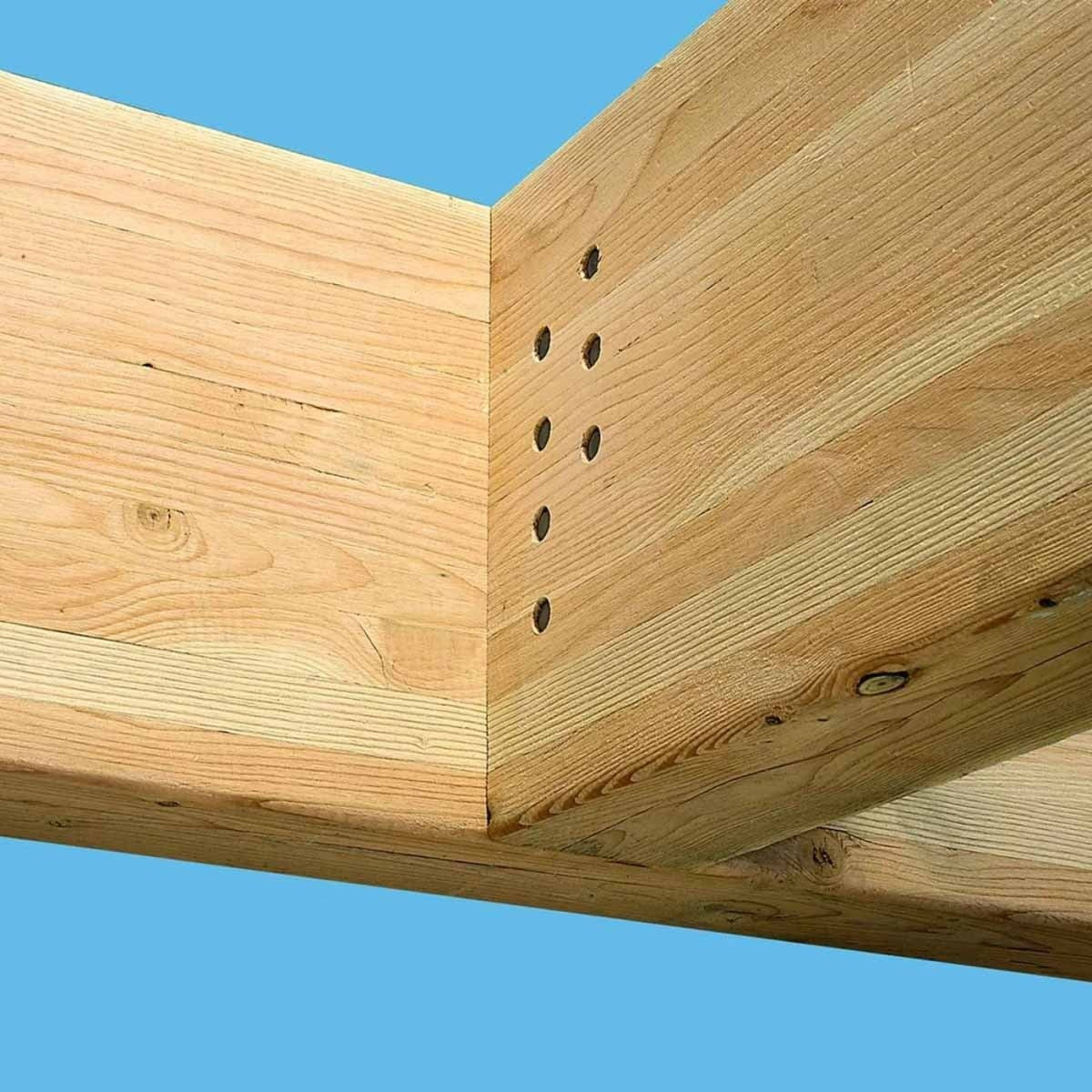

Simpson Strong-Tie HCJTZ Installation Overview
- Use all specified fasteners as per guidelines
- Ensure the beam is perpendicular to the support member
- Router the end of the beam for screw heads for flush installation
- Insert the connector into the end of the beam without a visible slot cut

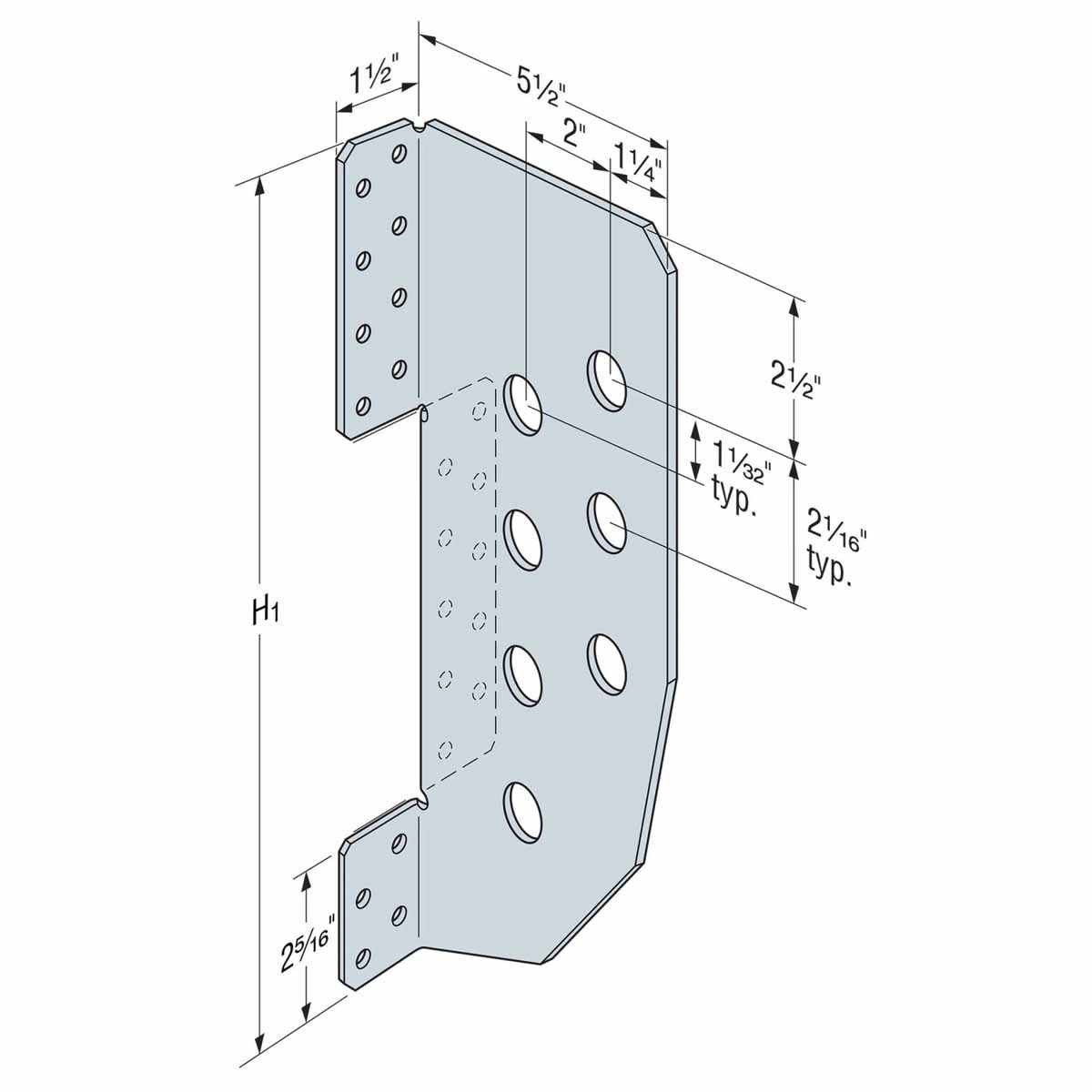

Simpson Strong-Tie HCJTZ Specifications
| Material | 10 Gauge |
| Finish | ZMAX Galvanized |
| Height | 13-1/16" |
| Width | 5-1/2" |
| Joist Size | 5-1/8" x 15" |
| Weight | 7.7 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
820404
