Simpson Anchors | SKU:
HCP1.81

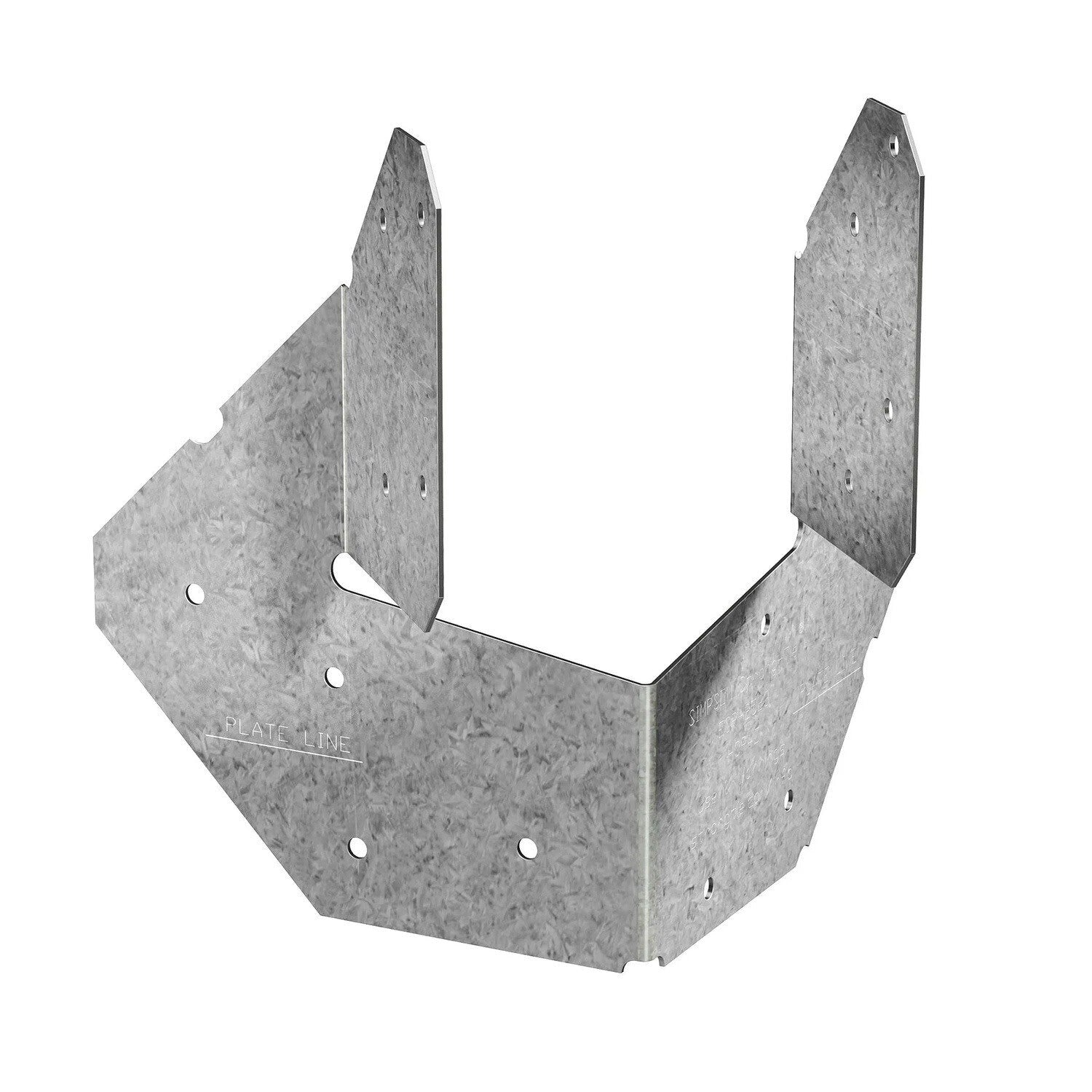

Simpson Strong-Tie HCP1.81 (2" x 1-3/4") 18 Gauge Galvanized Hip Corner Plate
$5.23
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HCP1.81 Description

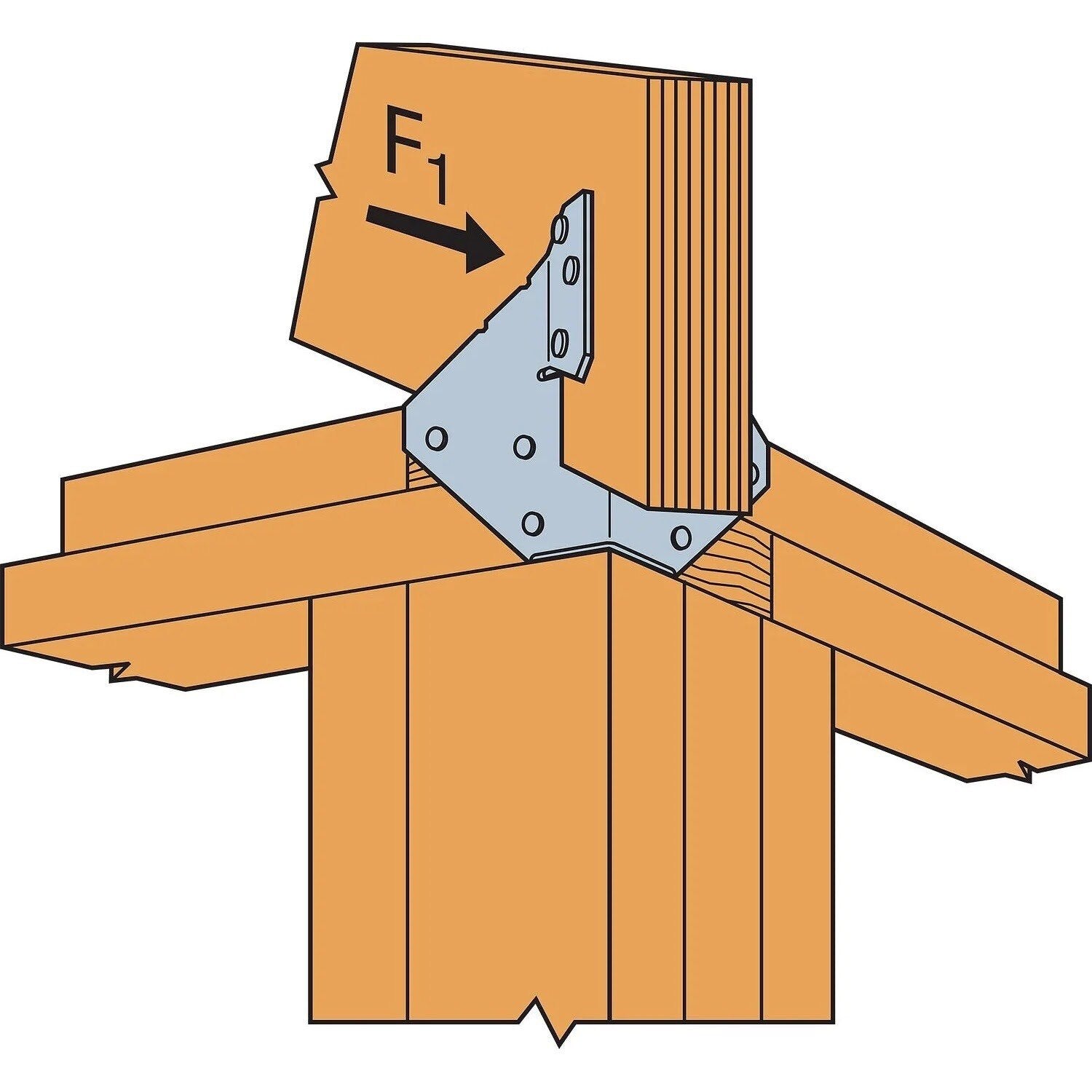

The Simpson HCP1.81 Hip Corner Plate connects a rafter or joist to double top plates at a 45° angle, providing secure and reliable support for engineered wood applications.
Simpson Strong-Tie HCP1.81 Includes
- (1) HCP1.81 Hip Corner Plate
Simpson Strong-Tie HCP1.81 Features
- Connects rafters or joists to double top plates at a 45° angle
- Made from 18-gauge galvanized steel for durability
- Compatible with solid sawn lumber
- Provides secure and reliable support for engineered wood applications
Simpson Strong-Tie HCP1.81 Applications
- Engineered wood construction
- Securing rafters or joists to double top plates
Simpson Strong-Tie HCP1.81 Installation Overview
- Use all specified fasteners as per guidelines
- Attach the HCP to double top plates
- Birdsmouth not required for table uplift loads but may be required for download
- Install rafter and complete nailing; rafter may be sloped to 45°

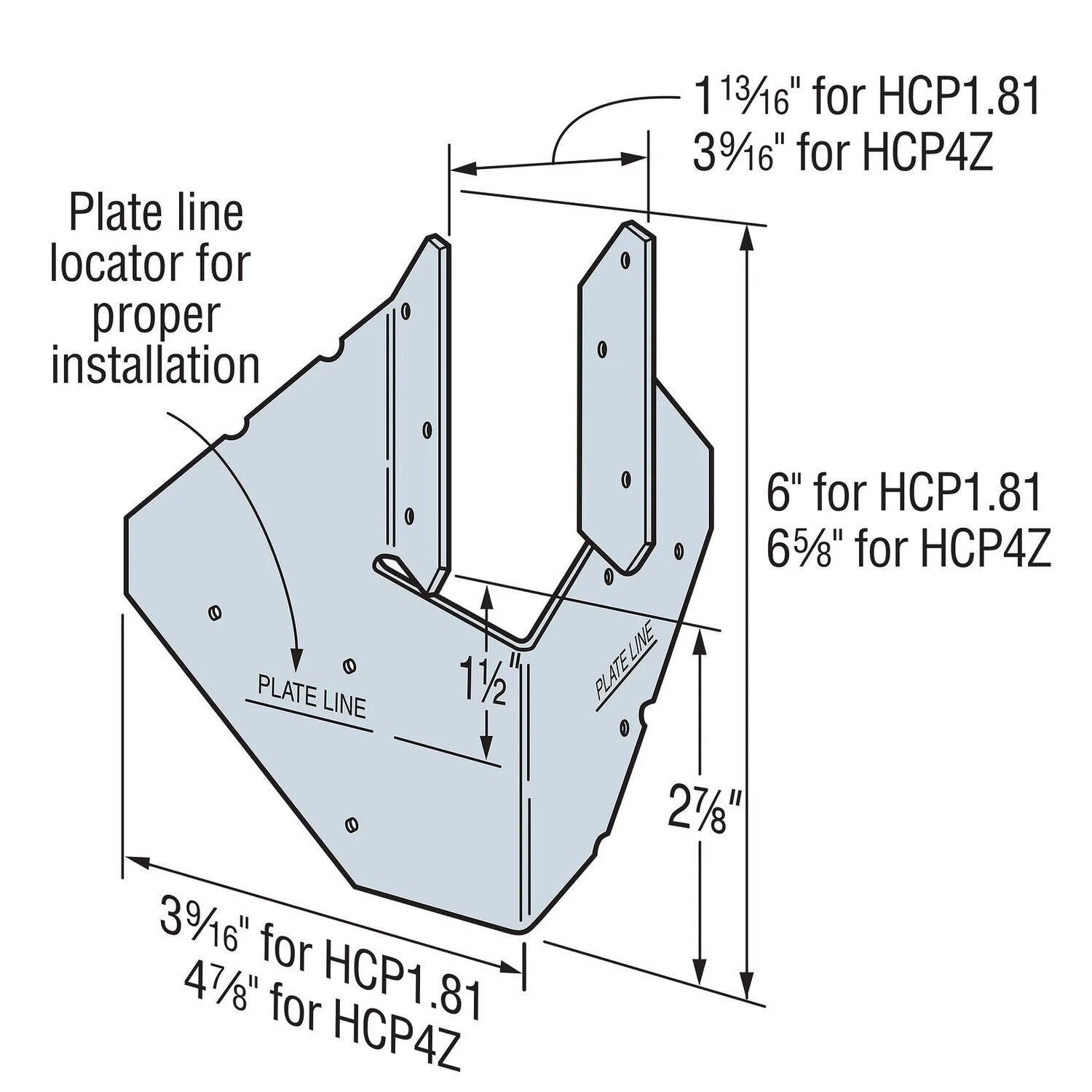

Simpson Strong-Tie HCP1.81 Specifications
| Material | 18 gauge galvanized steel |
| Finish | G90 Galvanized |
| Height | 6" |
| Member Size | 1-3/4" |
| Fasteners Required | Rafters: (6) 0.148x1-1/2" Plates: (6) 0.148x1-1/2" |
