Simpson Anchors | SKU:
HCP2

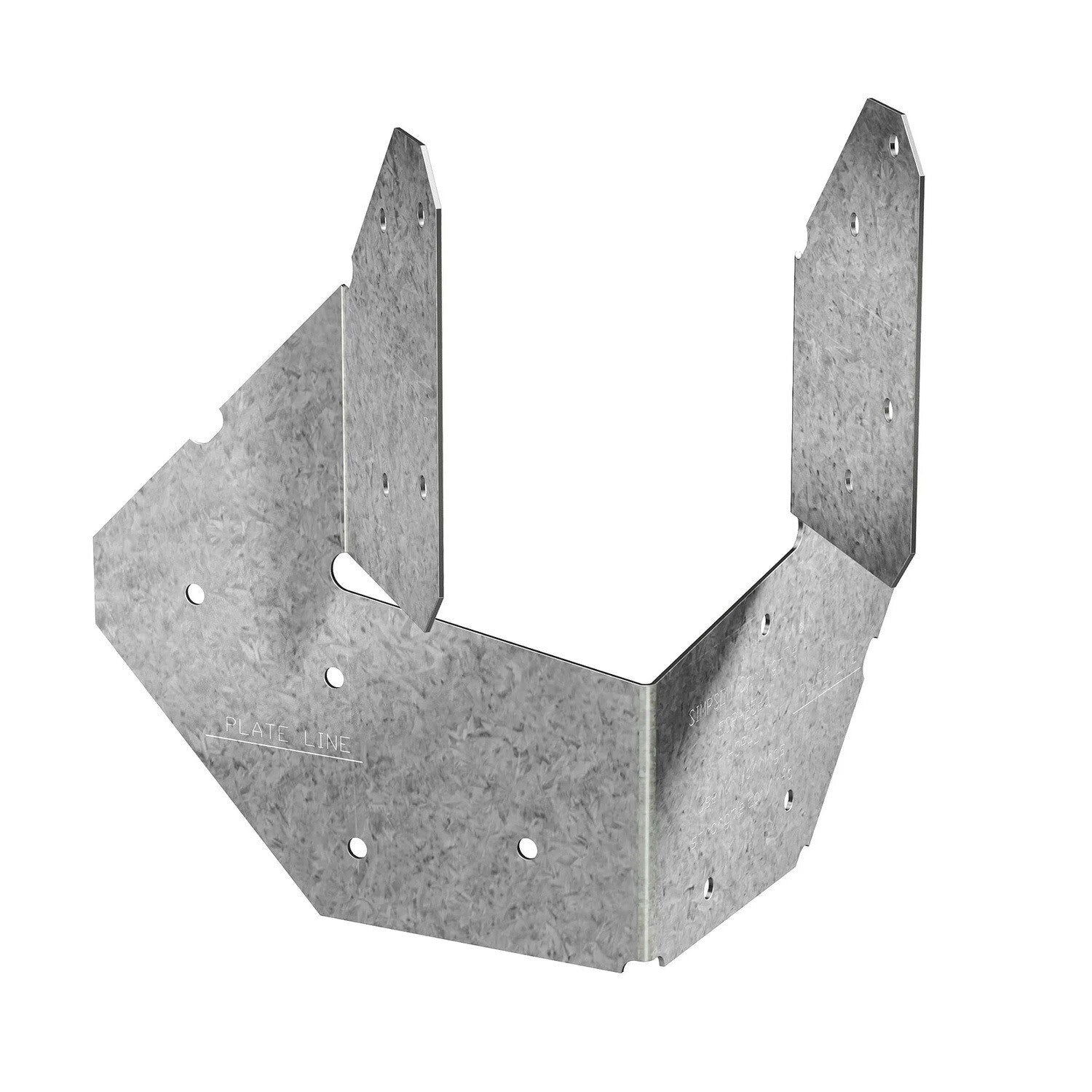

Simpson Strong-Tie HCP2 (2" x 2x") 18 Gauge Galvanized Hip Corner Plate
$4.67
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HCP2 Description
The Simpson HCP2 Hip Corner Plate connects a rafter or joist to double top plates at a 45° angle, providing a secure and durable connection.
Simpson Strong-Tie HCP2 Includes
- (1) Hip Corner Plate
Simpson Strong-Tie HCP2 Features
- Galvanized finish for corrosion resistance
- Designed for 2x member size
- 18-gauge steel construction
- Compatible with solid sawn lumber
- Easy installation with specified fasteners
Simpson Strong-Tie HCP2 Applications
- Connecting rafters or joists to double top plates at a 45° angle
- Use in wood construction for solid sawn lumber

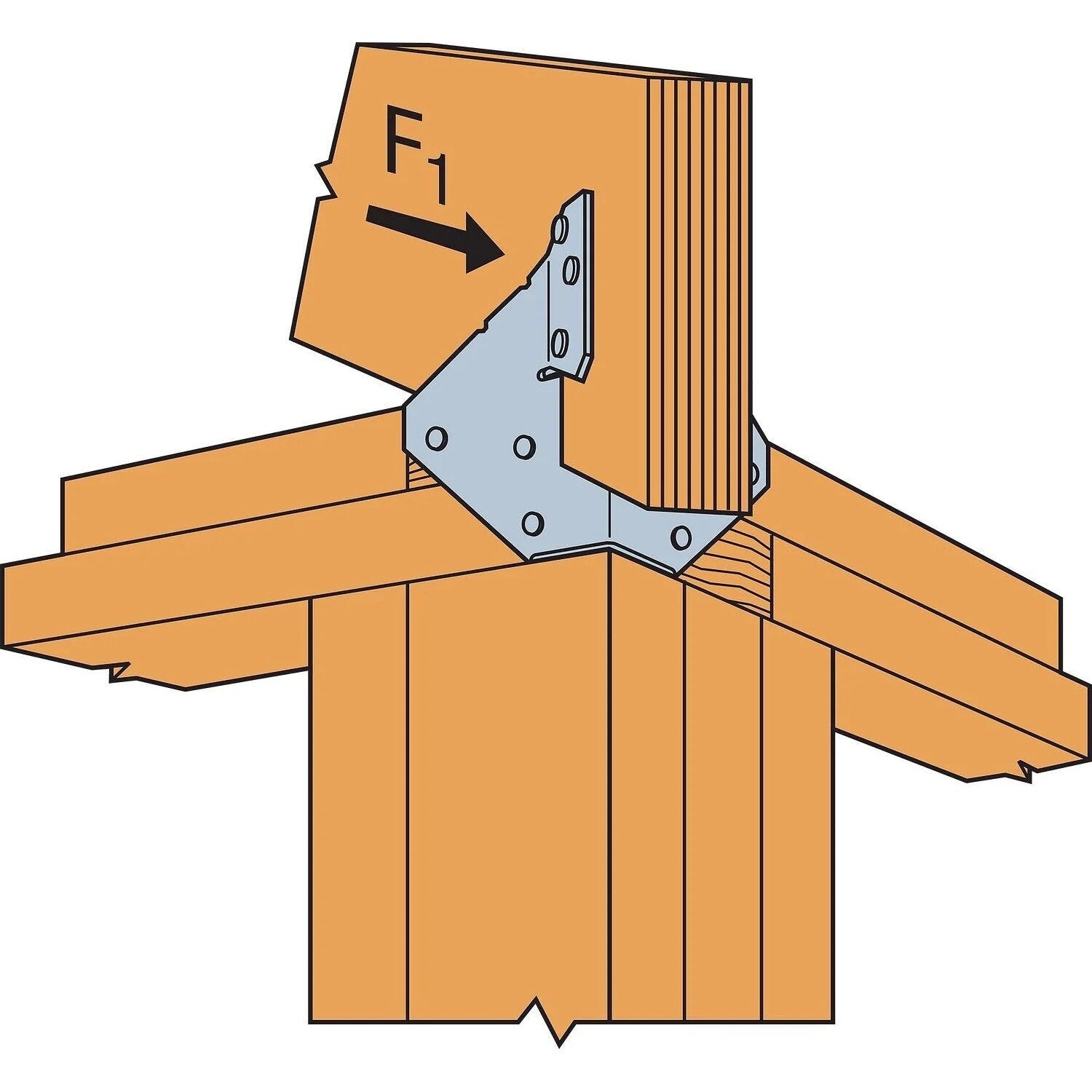

Simpson Strong-Tie HCP2 Installation Overview
- Use all specified fasteners as per guidelines
- Attach HCP to double top plates
- Birdsmouth not required for table uplift loads but may be required for download
- Install rafter and complete nailing; rafter may be sloped to 45°

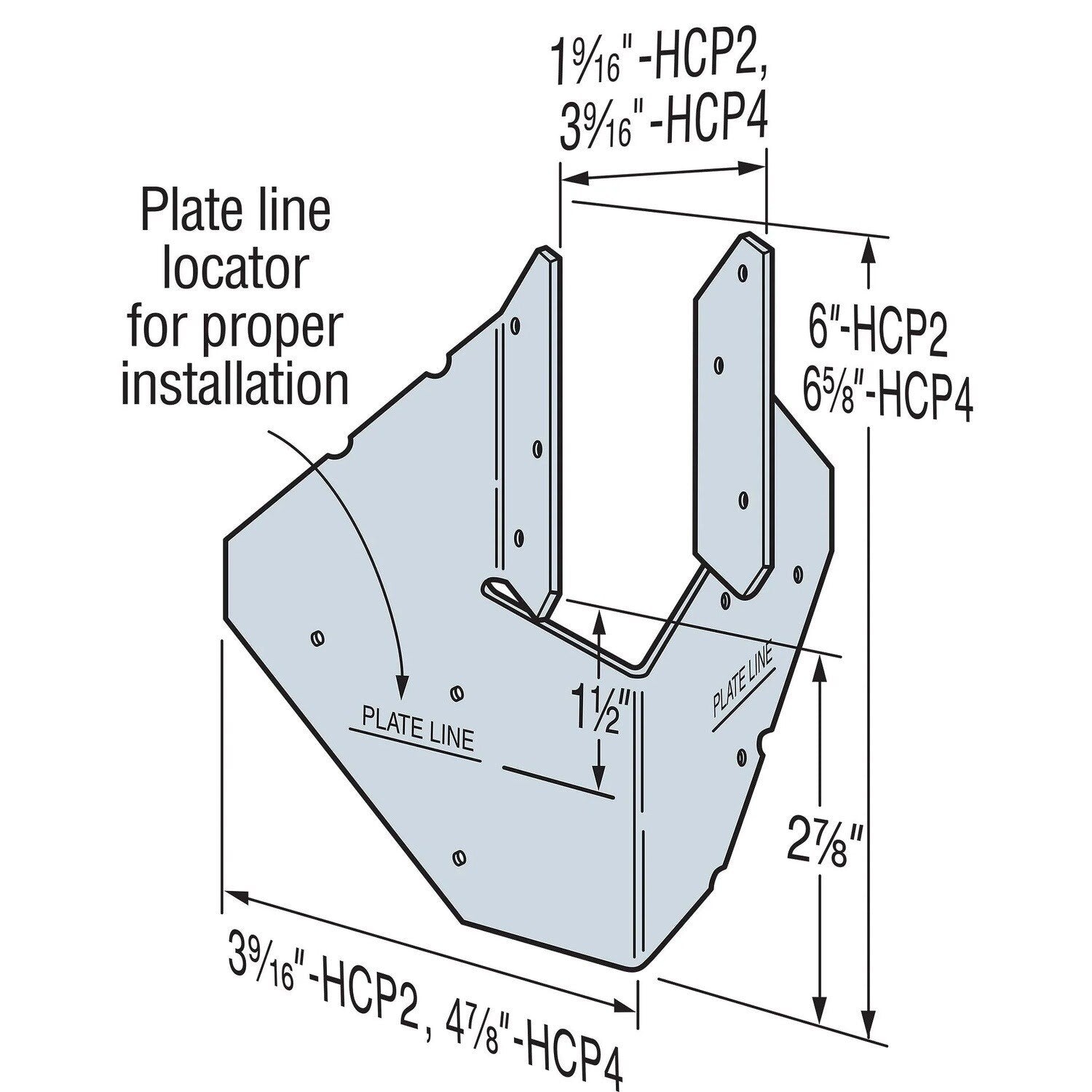

Simpson Strong-Tie HCP2 Specifications
| Material | 18 gauge steel |
| Finish | G90 Galvanized |
| Member Size | 2x |
| Height | 6" |
| Fasteners Required | Rafters: (6) 0.148x1-1/2", Plates: (6) 0.148x1-1/2" |
| Weight | 0.4 lb |
