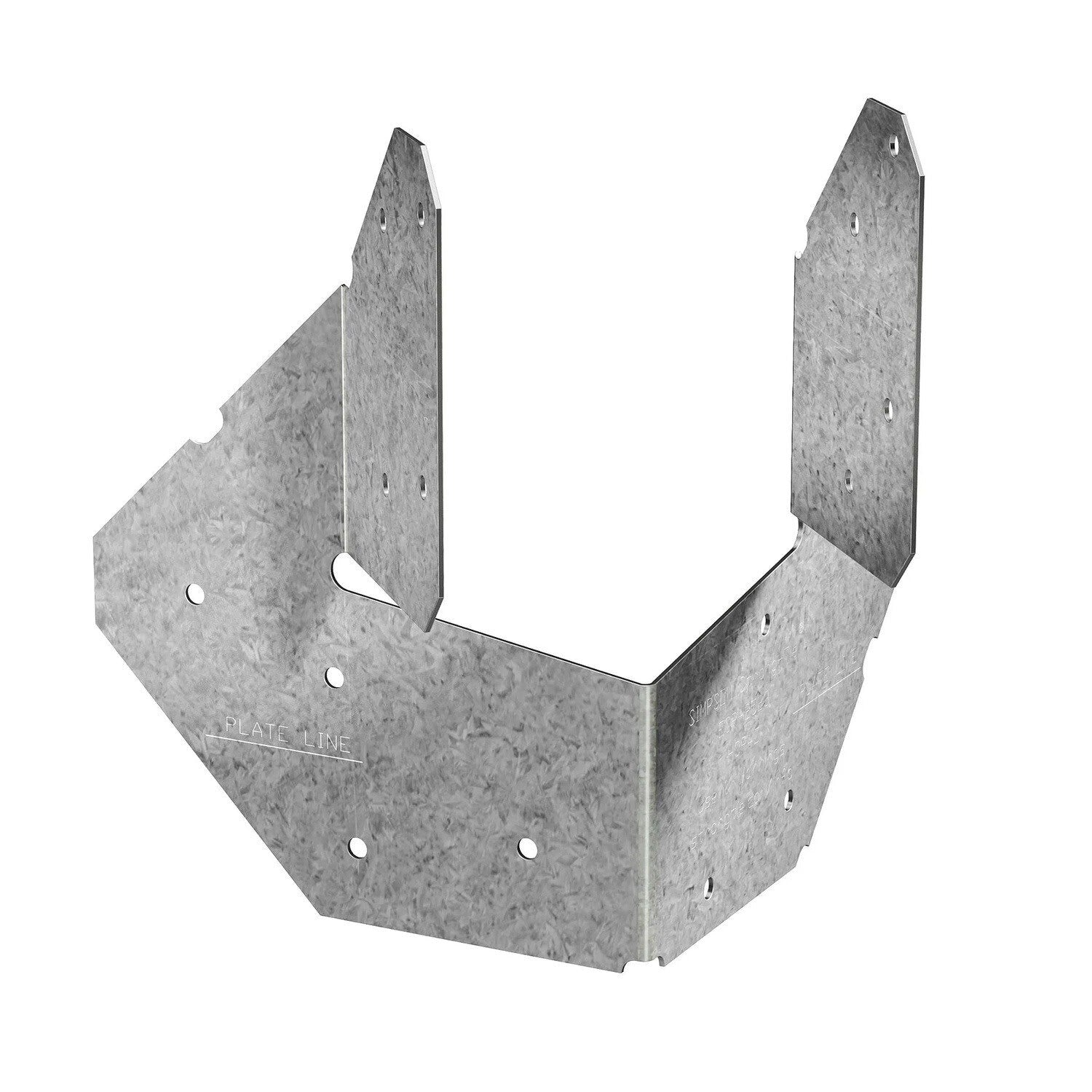

Simpson Strong-Tie HCP2Z Description
The Simpson HCP2Z Hip Corner Plate connects a rafter or joist to double top plates at a 45° angle, providing secure and reliable support.
Simpson Strong-Tie HCP2Z Includes
- (1) Hip Corner Plate ZMAX Finish
Simpson Strong-Tie HCP2Z Features
- ZMAX finish for corrosion resistance
- Connects rafter or joist to double top plates
- Designed for 45° angle connections
- No birdsmouth required for table uplift loads
Simpson Strong-Tie HCP2Z Applications
- Securing rafters or joists to double top plates
- Providing structural support at 45° angles

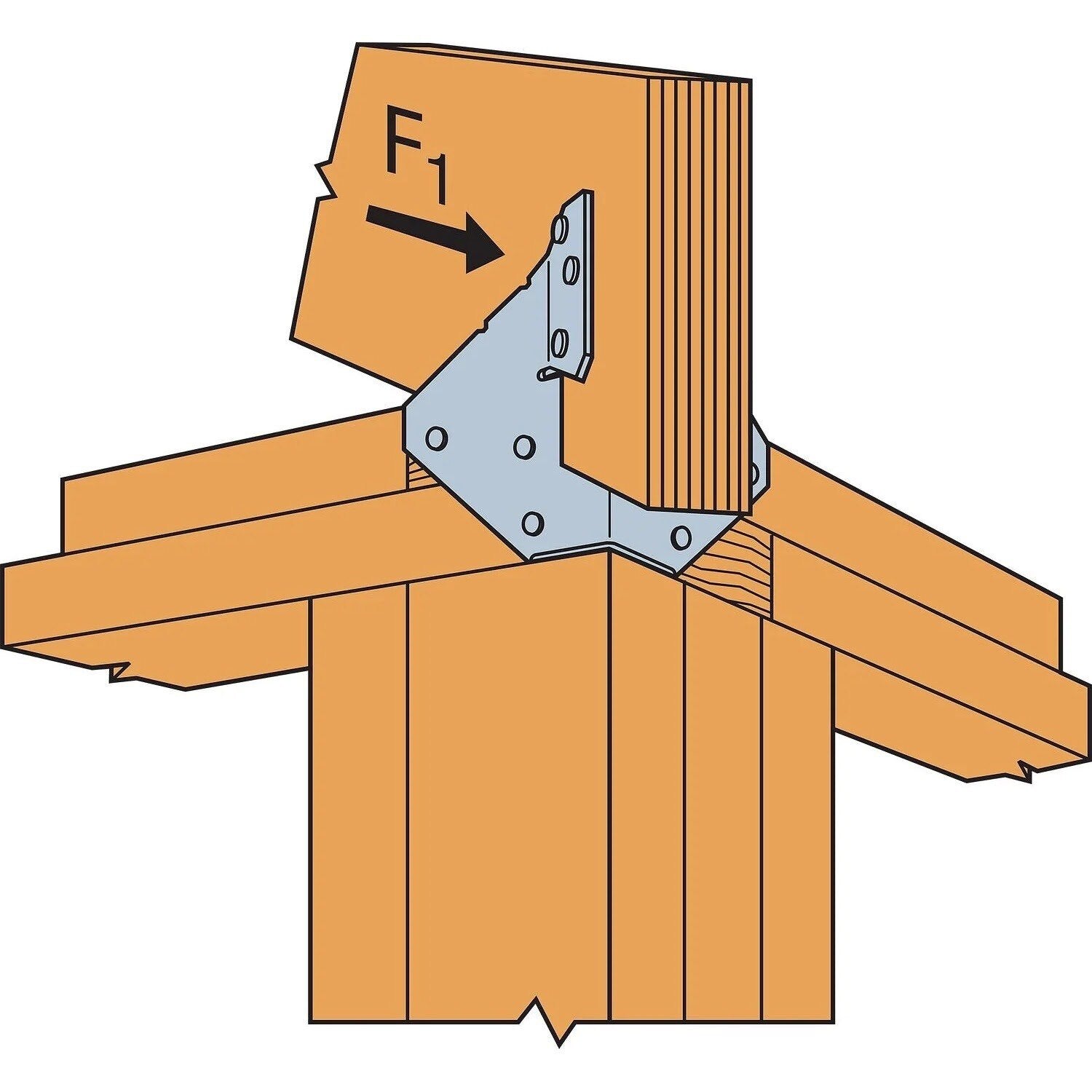

Simpson Strong-Tie HCP2Z Installation Overview
- Use all specified fasteners as per guidelines
- Attach HCP to double top plates
- Ensure proper alignment and complete nailing
- Rafter may be sloped to 45°

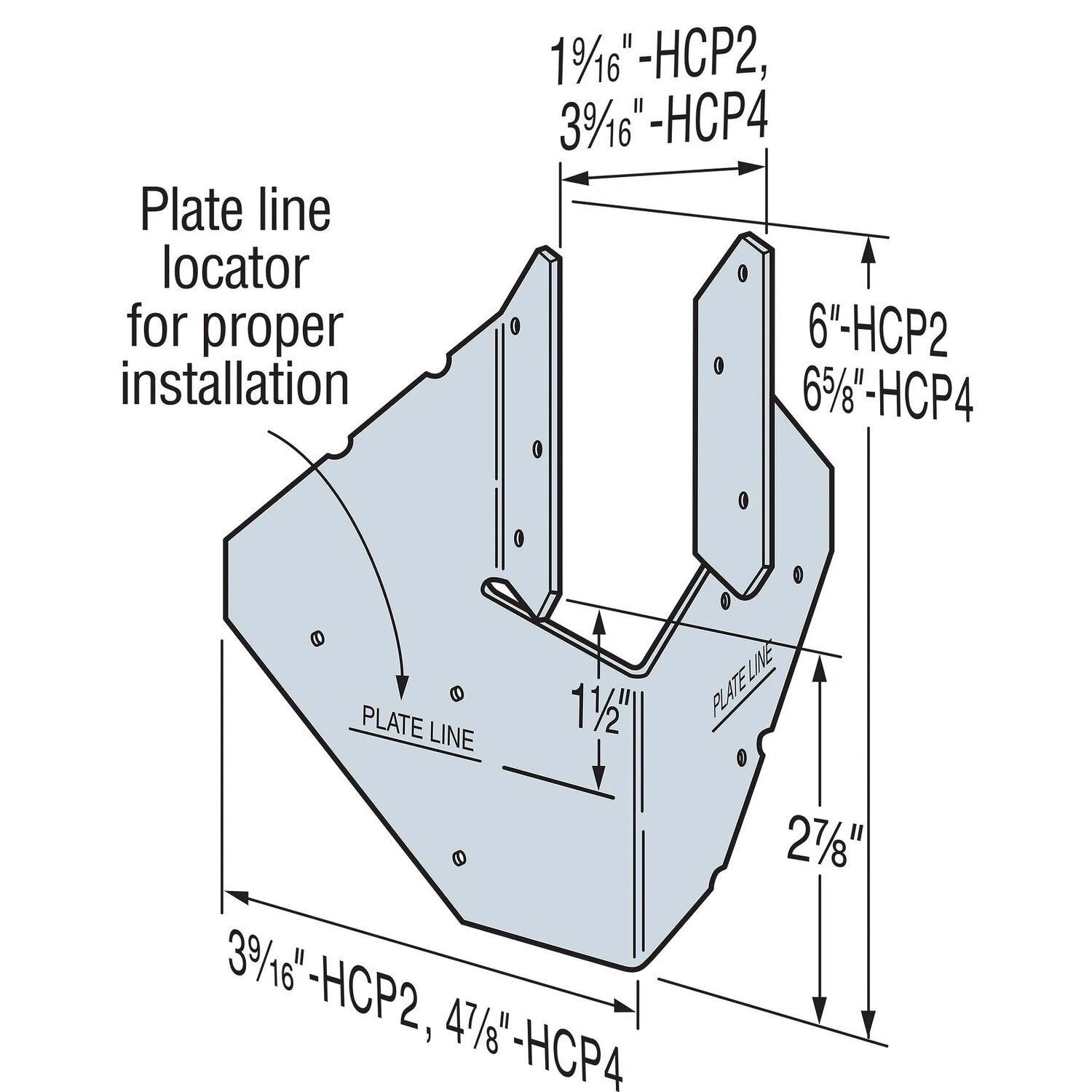

Simpson Strong-Tie HCP2Z Specifications
| Finish | ZMAX |
| Member Size | 3X |
| Fasteners required | Rafters: (8) 0.148x3" Plates: (8) 0.148x3" |
| Height | 6-5/8" |
| Thickness | 18 Gauge |
Toolup Part # :
824944
