Simpson Anchors | SKU:
HCP4Z
Simpson Strong-Tie HCP4Z (6-5/8" x 4x") 18 Gauge Hip Corner Plate - ZMAX Finish
$8.77
Unit price
/
Unavailable
Description
Description

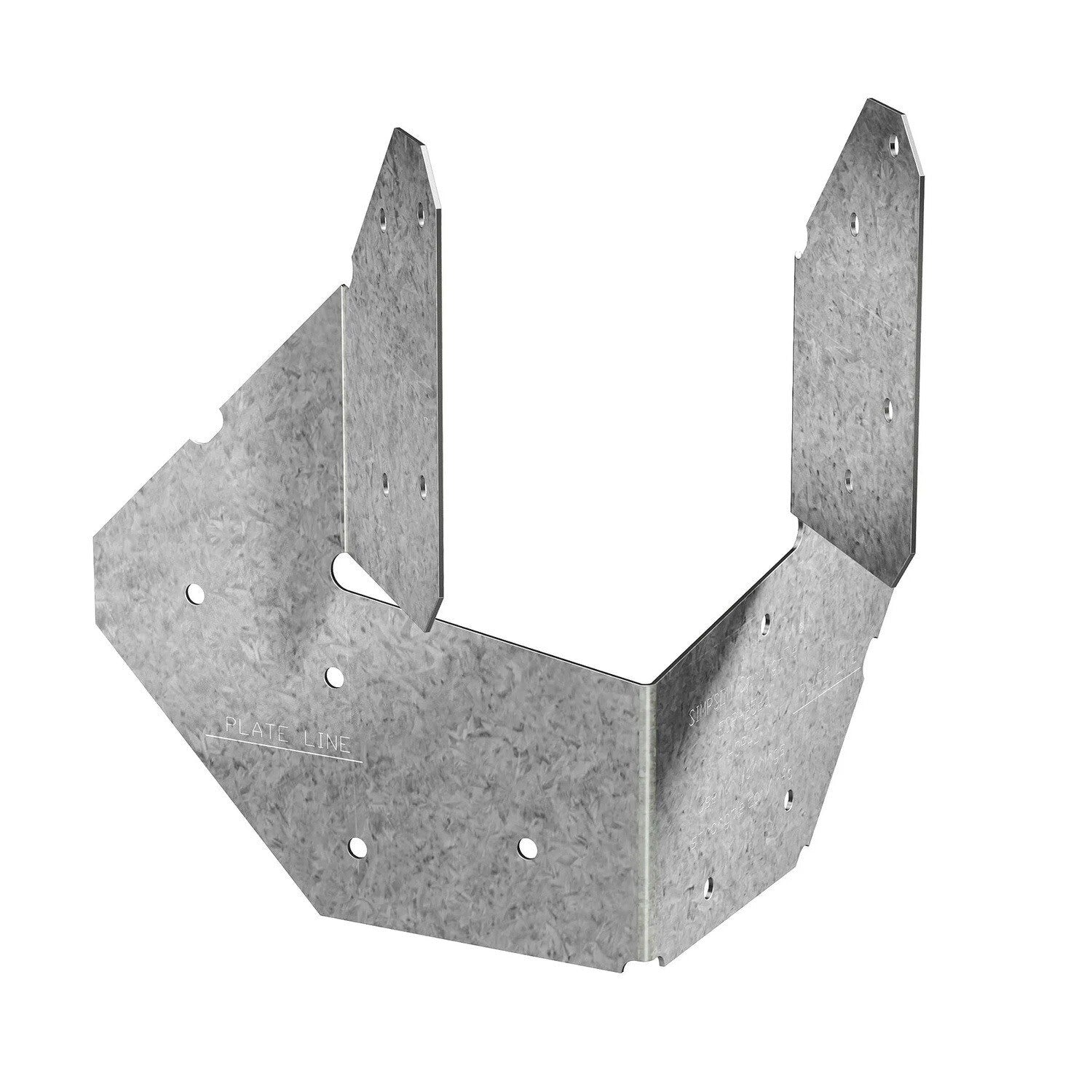

Simpson Strong-Tie HCP4Z Description
The Simpson HCP4Z Hip Corner Plate connects a rafter or joist to double top plates at a 45 Degree angle, providing reliable structural support.
Simpson Strong-Tie HCP4Z Includes
- (1) Hip Corner Plate
Simpson Strong-Tie HCP4Z Features
- ZMAX finish for enhanced corrosion resistance
- Connects rafters or joists to double top plates
- Designed for 45 Degree angle connections
- Made from durable 18-gauge steel
Simpson Strong-Tie HCP4Z Applications
- Solid Sawn Lumber: Ideal for connecting rafters or joists to double top plates
- Structural framing: Provides reliable support for angled connections

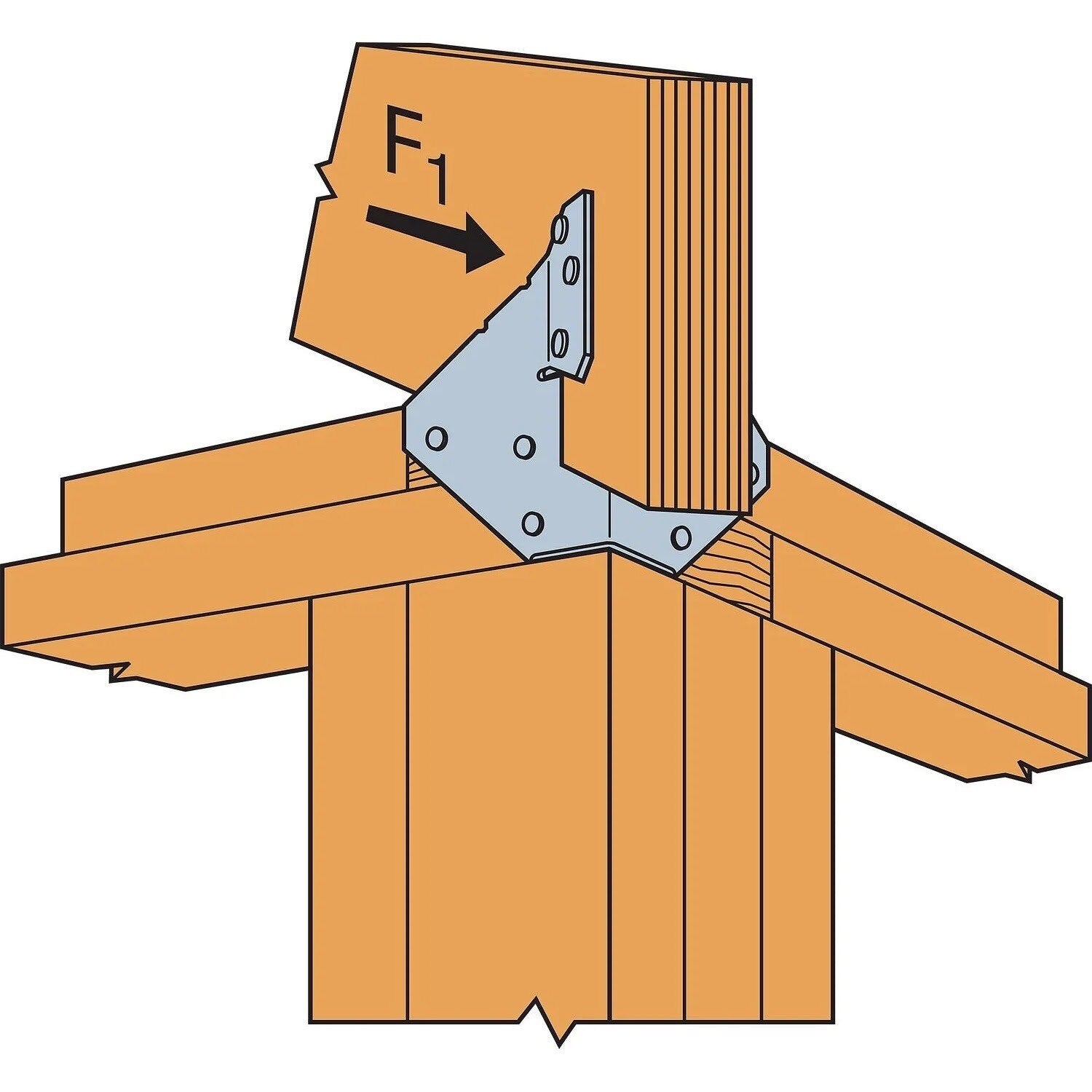

Simpson Strong-Tie HCP4Z Installation Overview
- Use all specified fasteners as per guidelines
- Attach HCP to double top plates
- Birdsmouth not required for table uplift loads but may be required for download
- Install rafter and complete nailing; rafter may be sloped to 45 Degree

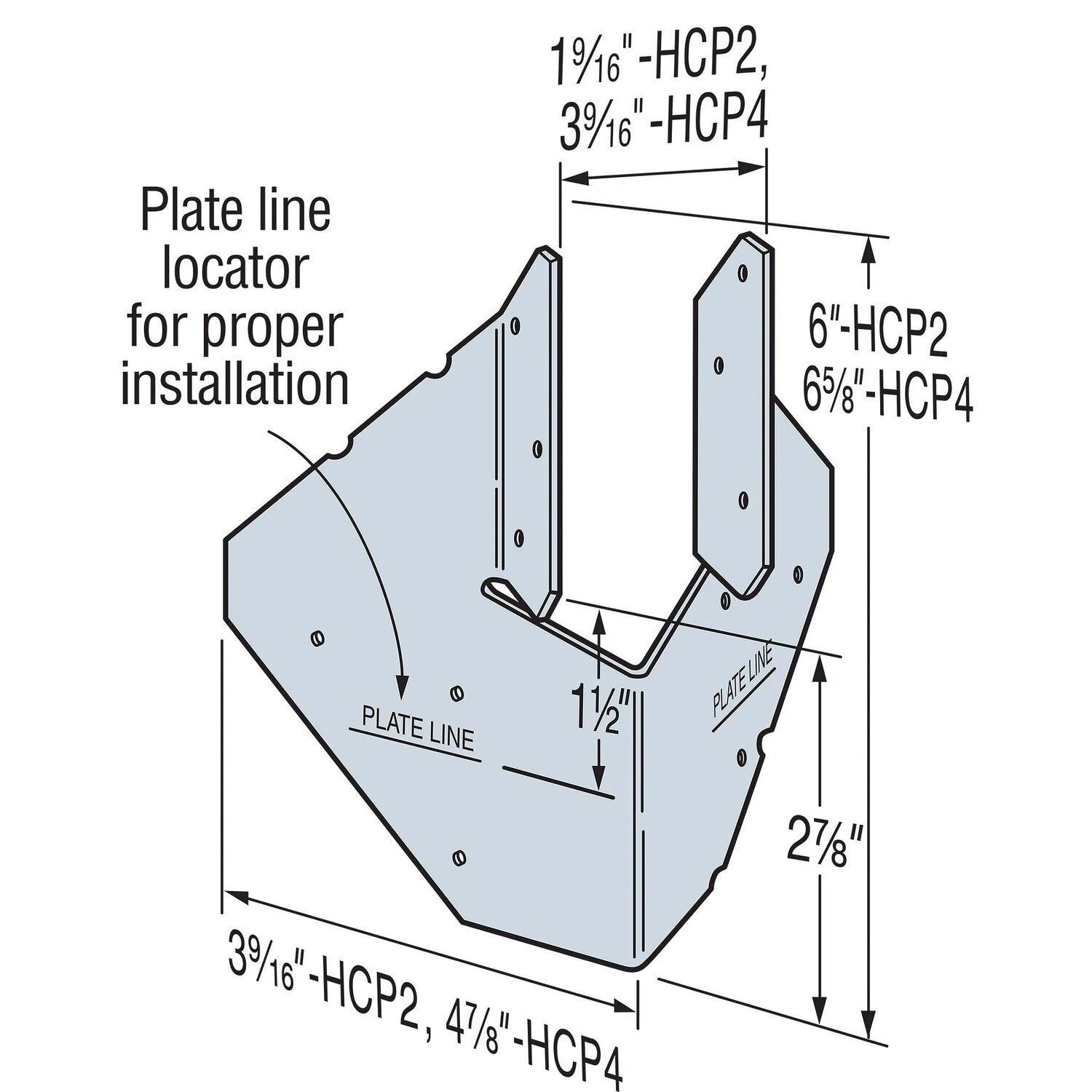

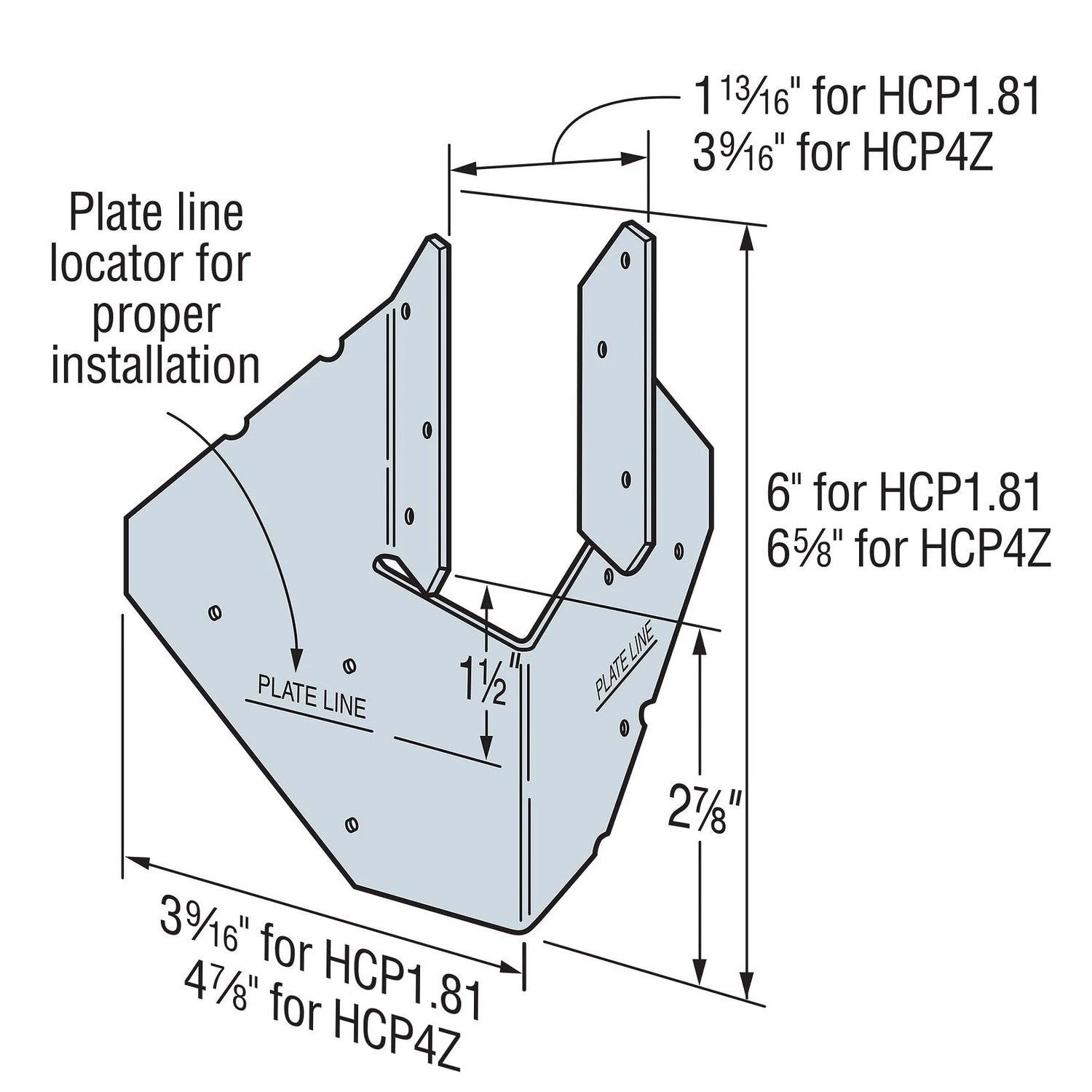

Simpson Strong-Tie HCP4Z Specifications
| Finish | ZMAX |
| Material | 18 Gauge Steel |
| Height | 6-5/8" |
| Member Size | 4X |
| Fasteners Required | Rafters: (8) 0.148x3" Plates: (8) 0.148x3" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
