Simpson Strong-Tie HCSTR3 Description

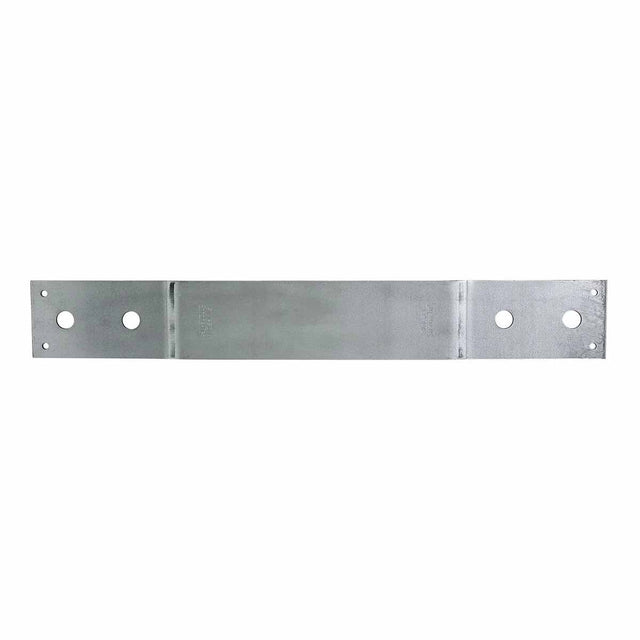

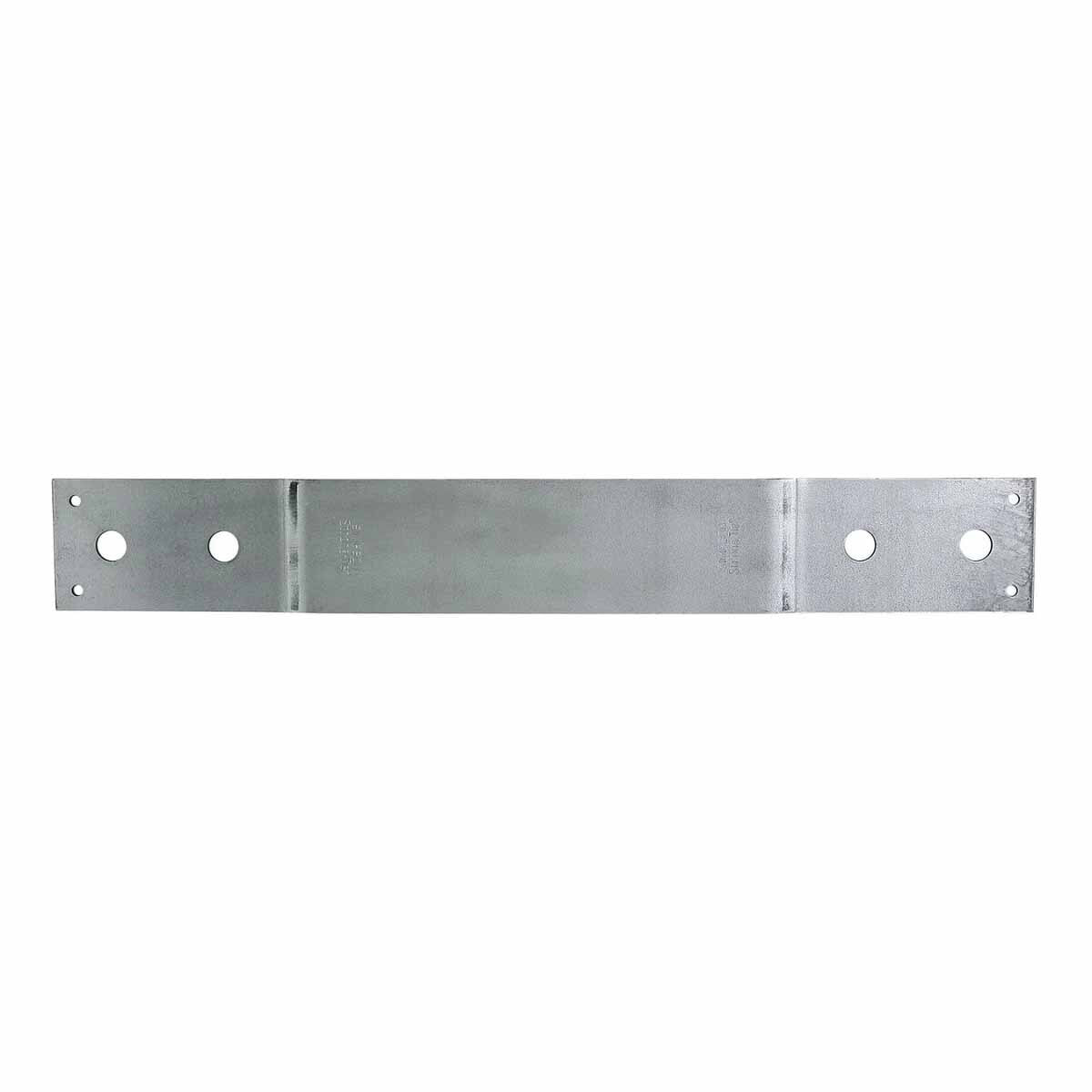

The Simpson HCSTR3 Hinge Connector Strap is designed for engineered wood applications, providing reliable support and durability with its 7-gauge galvanized construction.
Simpson Strong-Tie HCSTR3 Includes
- (1) HCSTR3 Hinge Connector Strap
Simpson Strong-Tie HCSTR3 Features
- 7-gauge galvanized construction for durability
- Designed for engineered wood applications
- Compatible with Simpson Strong-Tie HC hinge connectors
- Includes bolt holes sized for specified fasteners
Simpson Strong-Tie HCSTR3 Applications
- Engineered wood applications requiring hinge connector straps
- Retrofit applications to strap horizontal wood members together

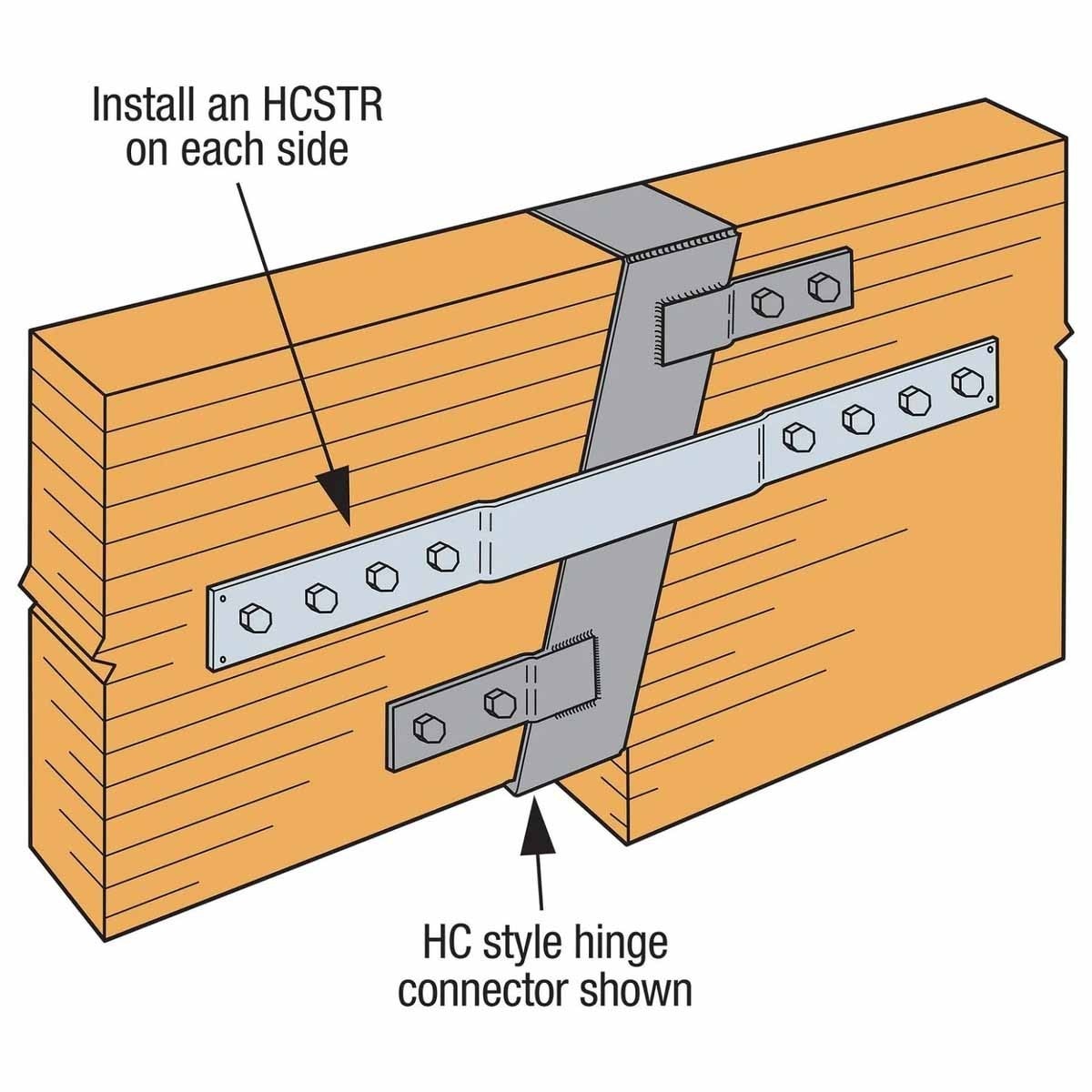

Simpson Strong-Tie HCSTR3 Installation Overview
- Ensure all bolt holes are sized correctly for specified fasteners
- Use all specified fasteners for secure installation
- Position strap to align with hinge connector

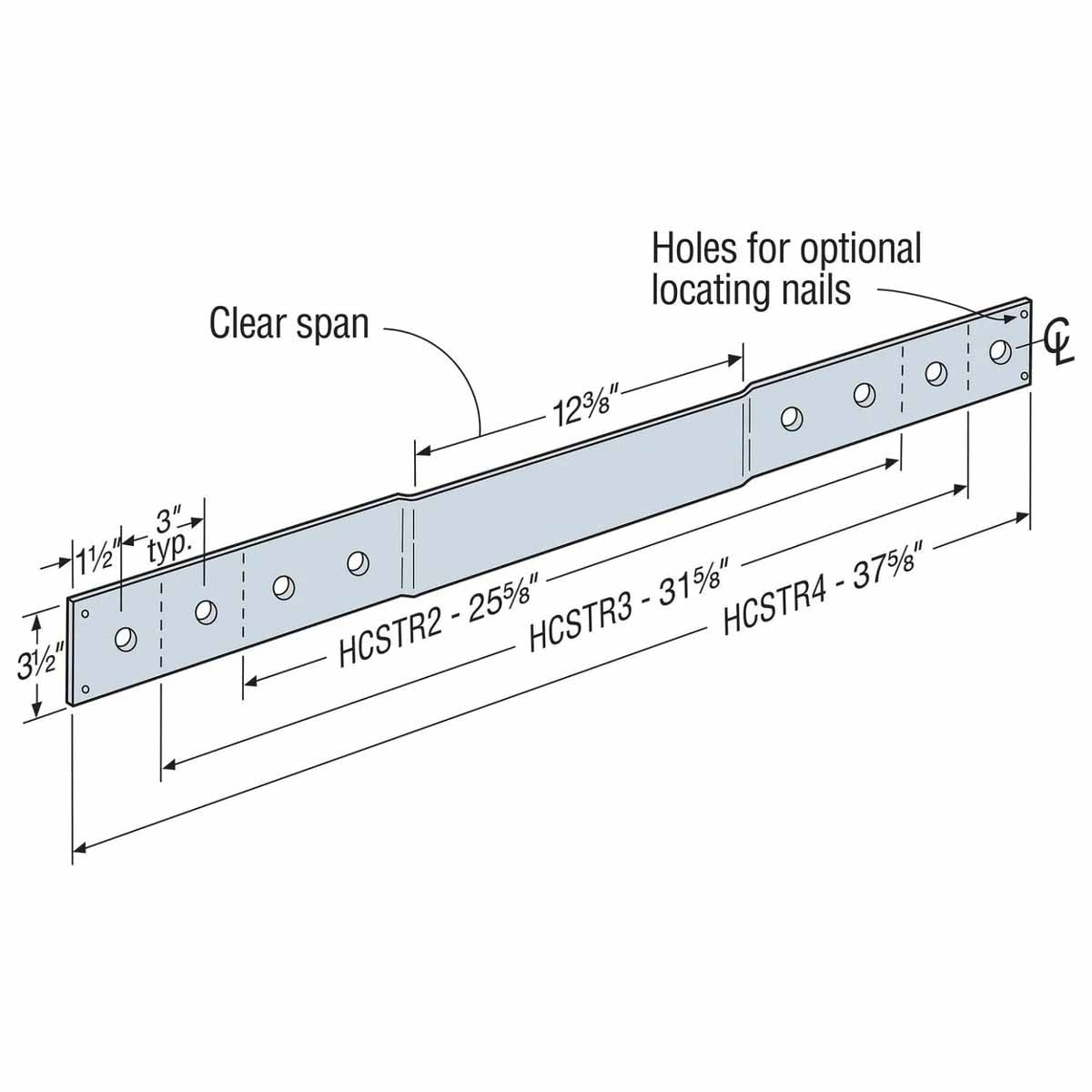

Simpson Strong-Tie HCSTR3 Specifications
| Length | 31-5/8" |
| Width | 3-1/2" |
| Thickness | 7 Gauge |
| Fasteners required | (6) 3/4" Diameter |
| Weight | 5.0 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
