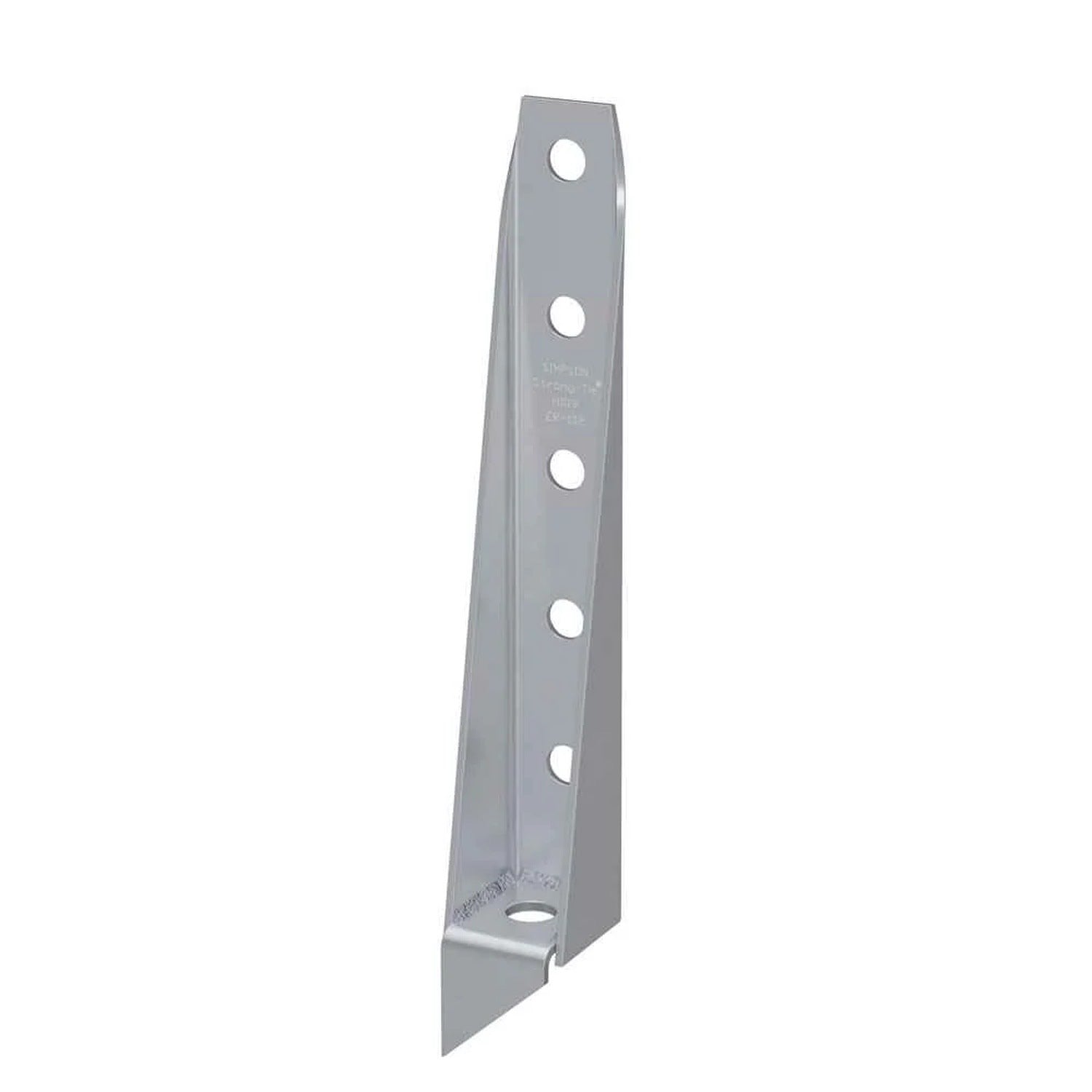

Simpson Strong-Tie HD19 (24-1/2") Bolted Holdown High-Capacity Low-Deflection
$150.68
$220.37
Unit price
/
Unavailable
Description
Description
Simpson HD19 Description
The HD19 Bolted Holdown offers high-capacity, low-deflection performance, ensuring compliance with code requirements and providing reliable structural support.
Simpson HD19 Includes
- (1) Bolted Holdown High-Capacity Low-Deflection
Simpson HD19 Features
- High-capacity low-deflection holdown
- Self-jigging design ensures code compliance
- Can be installed off the sill plate
- Tested in accordance with ICC-ES's AC 155 acceptance criteria
- Approved for vertical and horizontal applications
Simpson HD19 Applications
- High-Wind Construction
- Vertical and horizontal structural applications
- Back-to-back installation for eccentricity issues
Simpson HD19 Installation Overview
- Use all specified fasteners.
- Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter.
- Stud bolts should be snugly tightened with standard cut washers between the wood and nut.
- Ensure minimum bolt end distance when installed flush with the sill plate.
- Standard cut washer is required under the anchor nut for HD12 with 1" anchor and HD19 with 1 1/8" anchors.
Simpson HD19 Specifications
| Finish | Simpson Strong-Tie Gray Paint |
| Height | 24-1/2" |
| Weight | 10.8 lb |
| Fasteners required | (5) 1" Machine Bolts, (1) 1-1/8" Or 1-1/4" Concrete Anchor |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
