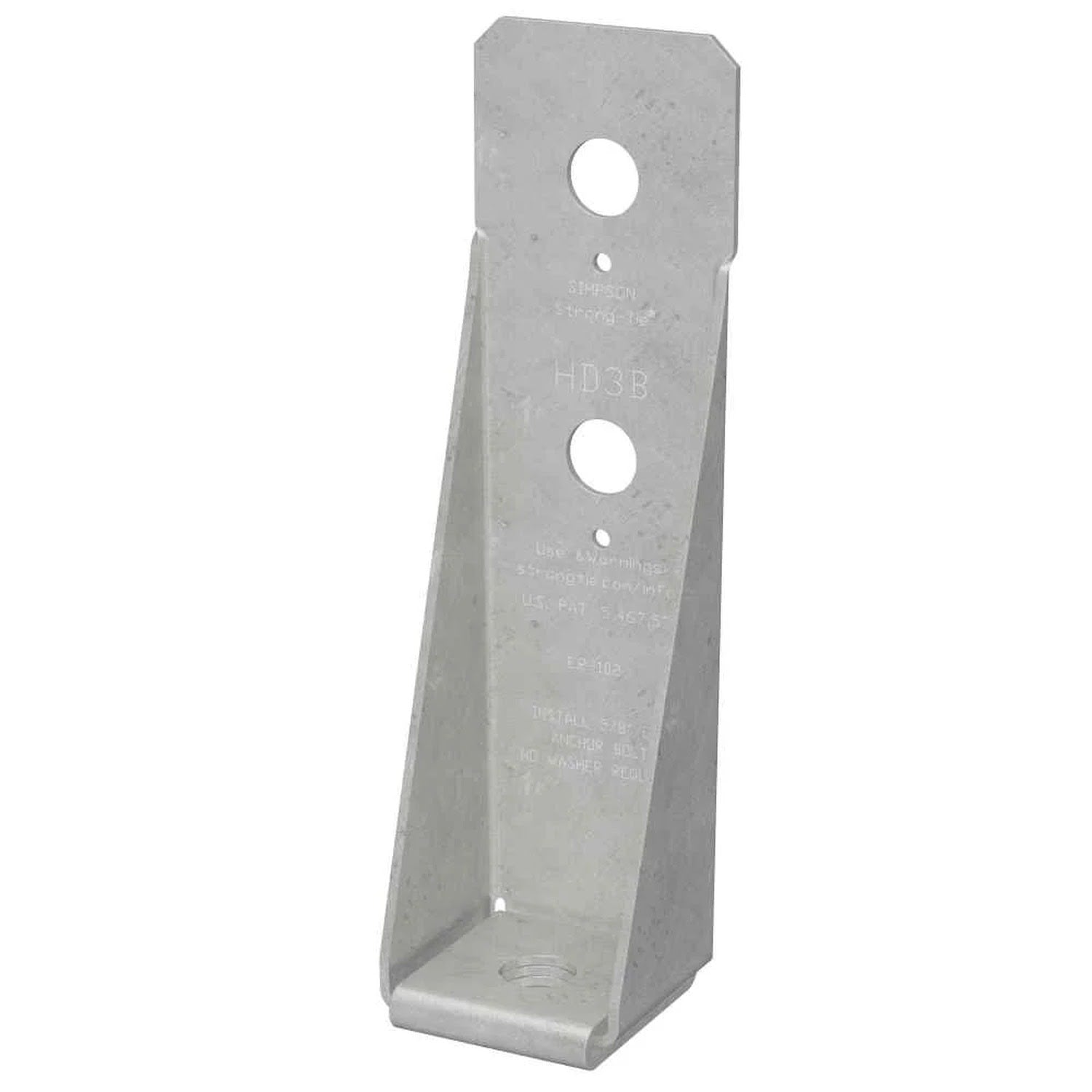

Simpson Strong-Tie HD3BHDG (8-5/8 in.) Bolted Holdown Hot-Dip Galvanized
$22.03
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HD3BHDG Description
The HD3BHDG bolted holdown from Simpson Strong-Tie is a light-duty holdown designed for shearwalls, braced-wall panels, and other lateral applications. It offers low deflection performance and is tested for vertical and horizontal use.
Simpson Strong-Tie HD3BHDG Includes
- (1) HD3BHDG Bolted Holdown
Simpson Strong-Tie HD3BHDG Features
- Low deflection performance for a range of load requirements
- Tested in accordance with ICC-ES's AC 155 acceptance criteria
- Approved for vertical and horizontal applications
- Hot-dip galvanized finish for corrosion resistance
Simpson Strong-Tie HD3BHDG Applications
- Shearwalls and braced-wall panels
- Lateral applications in construction
Simpson Strong-Tie HD3BHDG Installation Overview
- Use all specified fasteners
- Ensure bolt holes are 1/32" to 1/16" larger than the bolt diameter
- Tighten stud bolts snugly with standard cut washers between wood and nut
- Install flush with the sill plate for self-jigging and minimum bolt end distance
- Use standard cut washer under the anchor nut for specific anchor sizes
Simpson Strong-Tie HD3BHDG Specifications
| Finish | Hot Dip Galvanized |
| Fasteners required | (2) 5/8" Machine Bolts, (1) 5/8" Concrete Anchor |
| For Treated Lumber | Yes |
| Height | 8-5/8" |
| Weight | 1.3 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
