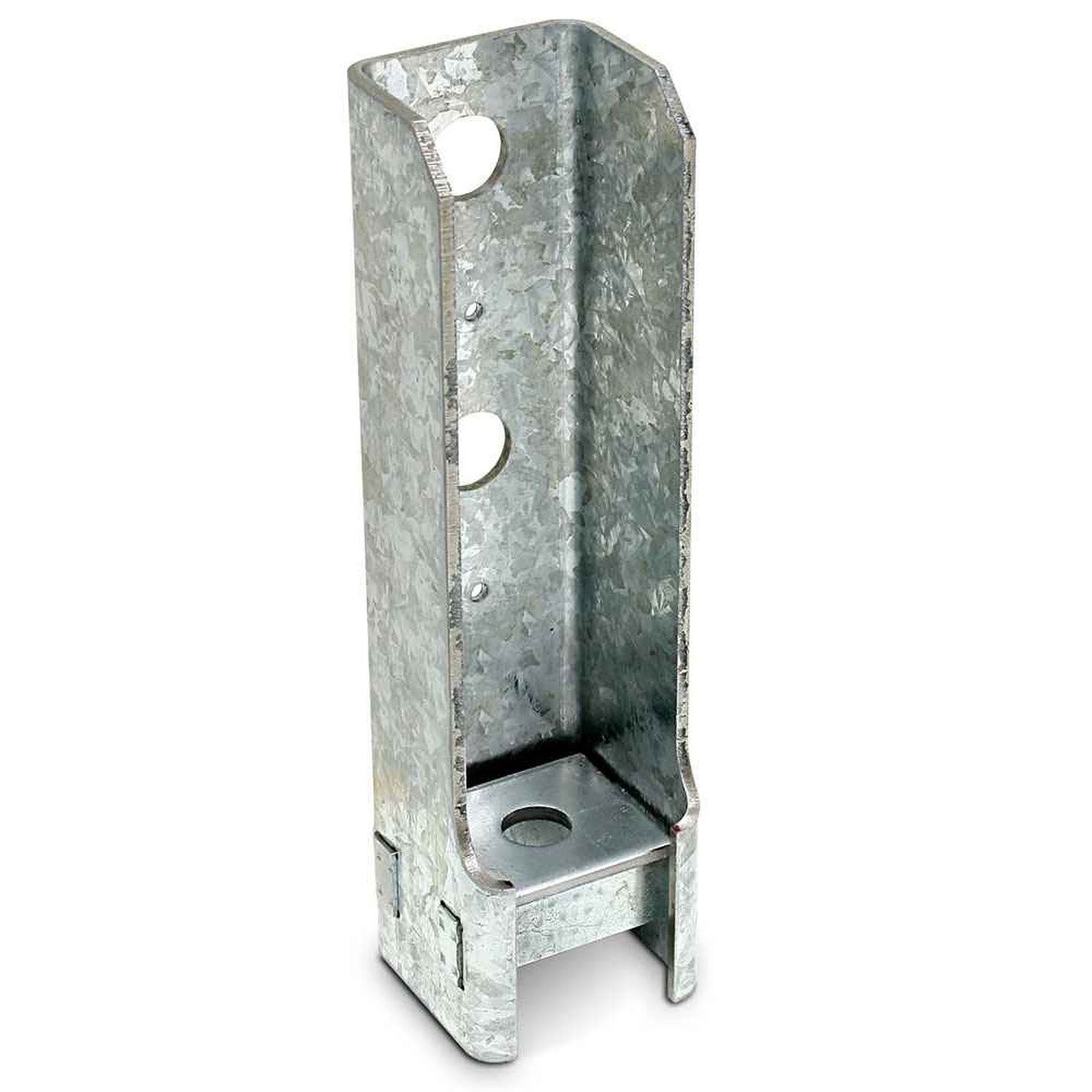

Simpson Strong-Tie HD5BHDG (9-3/8 in.) Bolted Holdown Hot-Dip Galvanized
$47.40
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HD5BHDG Description
The HD5BHDG bolted holdown from Simpson Strong-Tie offers low deflection performance and is suitable for intermediate-load-range shearwalls, braced-wall panels, and lateral applications.
Simpson Strong-Tie HD5BHDG Includes
- (1) HD5BHDG Bolted Holdown
Simpson Strong-Tie HD5BHDG Features
- Low deflection performance for a range of load requirements
- Tested in accordance with ICC-ES's AC 155 acceptance criteria
- Unique seat design minimizes deflection under load
- Self-jigging design ensures code-required minimum bolt distances
- Suitable for vertical and horizontal applications
Simpson Strong-Tie HD5BHDG Applications
- Intermediate-load-range shearwalls
- Braced-wall panels
- Lateral applications
- Vertical and horizontal structural support
Simpson Strong-Tie HD5BHDG Installation Overview
- Use all specified fasteners
- Ensure bolt holes are 1/32" to 1/16" larger than the bolt diameter
- Tighten stud bolts snugly with standard cut washers
- Install flush with the sill plate for self-jigging
- Use standard cut washer under the anchor nut for specific anchors
Simpson Strong-Tie HD5BHDG Specifications
| Finish | Hot Dip Galvanized |
| Fasteners required | (2) 3/4" Machine Bolts, (1) 5/8" Concrete Anchor |
| For Treated Lumber | Yes |
| Height | 9-3/8" |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
