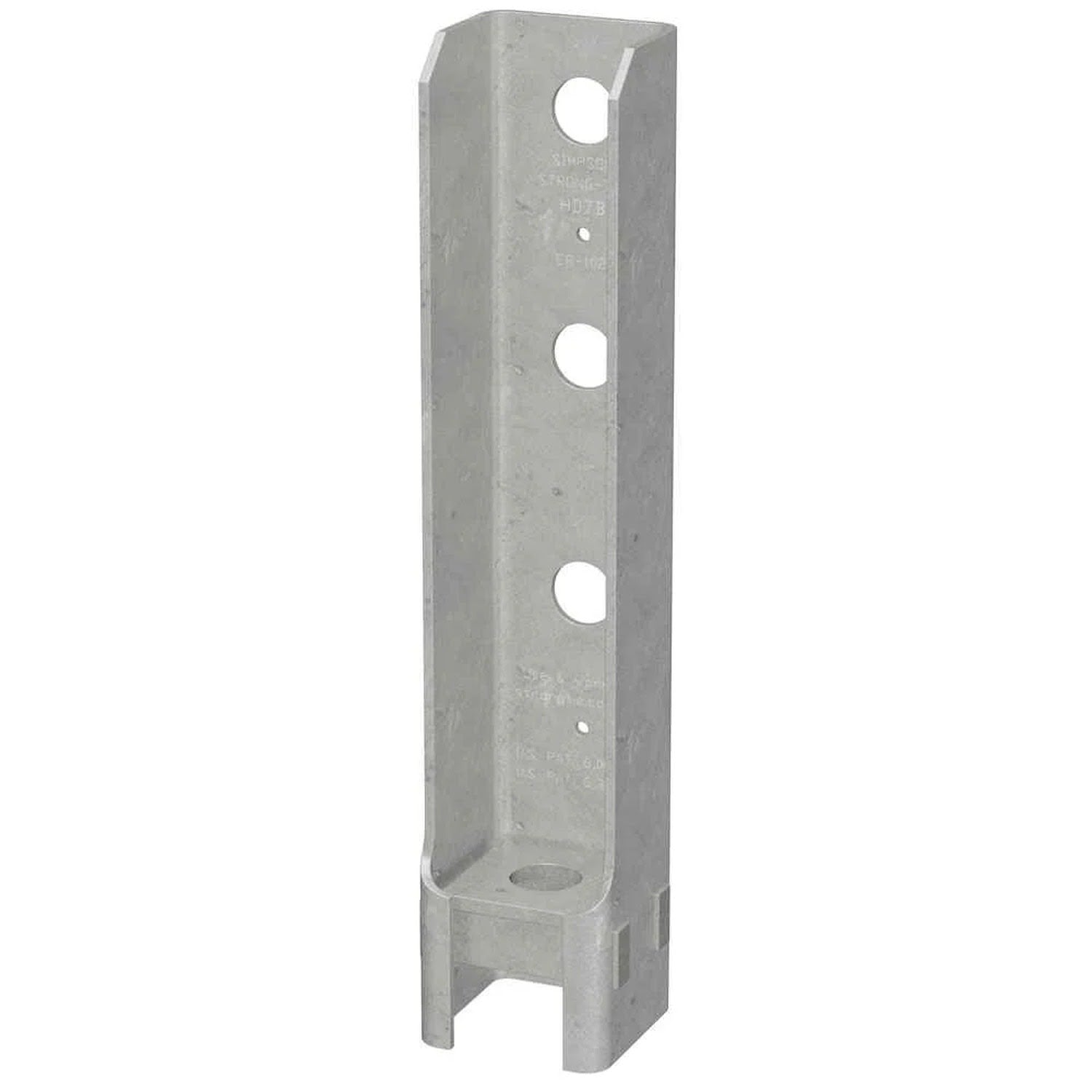

Simpson Strong-Tie HD7BHDG (12-3/8") Bolted Holdown - Hot Dip Galvanized
$68.08
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HD7BHDG Description
The HD7BHDG bolted holdown offers low deflection performance and is suitable for intermediate-load-range shearwalls, braced-wall panels, and lateral applications.
Simpson Strong-Tie HD7BHDG Includes
- (3) 3/4" Machine Bolts
- (1) 7/8" Concrete Anchor
Simpson Strong-Tie HD7BHDG Features
- Low deflection performance
- Tested in accordance with ICC-ES's AC 155 acceptance criteria
- Unique seat design minimizes deflection under load
- Self-jigging design ensures code-required minimum bolt end distance
- Suitable for back-to-back applications
Simpson Strong-Tie HD7BHDG Applications
- Intermediate-load-range shearwalls
- Braced-wall panels
- Lateral applications
Simpson Strong-Tie HD7BHDG Installation Overview
- Use all specified fasteners
- Ensure bolt holes are within specified size range
- Tighten stud bolts snugly with standard cut washers
- Install flush with the sill plate for minimum bolt end distance
- Use standard cut washer under anchor nut for specified anchors
Simpson Strong-Tie HD7BHDG Specifications
| Finish | Hot Dip Galvanized |
| Fasteners required | (3) 3/4" Machine Bolts, (1) 7/8" Concrete Anchor |
| For Treated Lumber | Yes |
| Height | 12-3/8" |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
